Velleman K6501 Bedienungsanleitung

Remote control by telephone

K6501

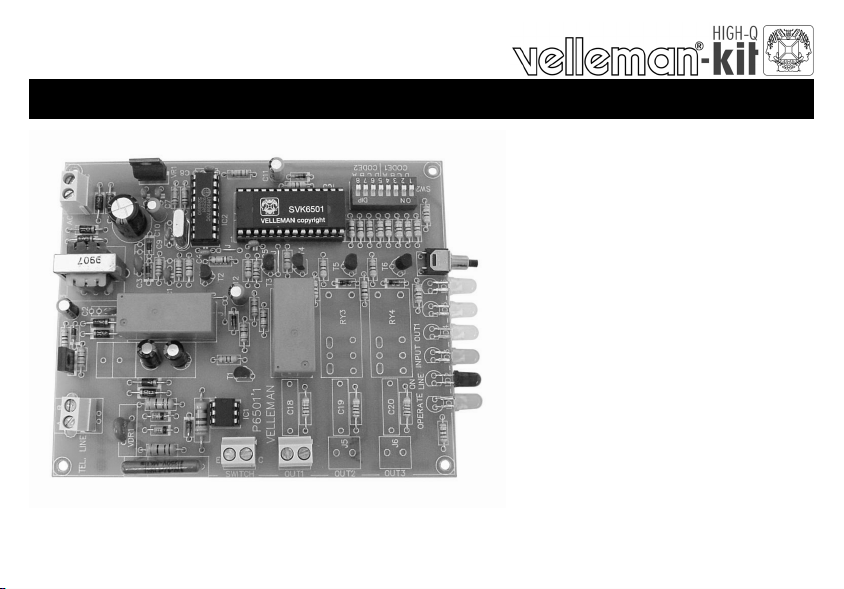

ILLUSTRATED ASSEMBLY MANUAL H6501IP-1

Total solder points: 338

Difficulty level: beginner 1 2 3 4 5 advanced

Operate yourappliances from

anywhere with a simple phone call.

Features:

 Controlled from a touch tone phone (DTMF).

 Unit gives audible feedback of output status.

 Adjustable security code.

 Pickup after 4 or 7 rings possible.

 Room for three output relays, one relay included.

 Input to monitor the status of a switch from a distance.

Specifications:

• Relay outputs : 240V/5A

• Power supply : 12VAC or DC / 300mA.

• Dimensions : 105x130

Features & Specifications

Assembly hints

1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.

1.1 Make sure you have the right tools:

• A good quality soldering iron (25-40W) with a small tip.

• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and will

protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.

• Thin raisin-core solder. Do not use any flux or grease.

• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they

cannot fly towards the eyes.

• Needle nose pliers, for bending leads, or to hold components in place.

• Small blade and Phillips screwdrivers. A basic range is fine.

For some projects, a basic multi-meter is required, or might be handy

1.2 Assembly Hints :

⇒Make sure the skill level matches your experience, to avoid disappointments.

⇒Follow the instructions carefully. Read and understand the entire step before you perform each operation.

⇒Perform the assembly in the correct order as stated in this manual

⇒Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

⇒Values on the circuit diagram are subject to changes.

⇒Values in this assembly guide are correct*

⇒Use the check-boxes to mark your progress.

⇒Please read the included information on safety and customer service

* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaflet.

Assembly hints

1.3 Soldering Hints :

1- Mount the component against the PCB surface and carefully solder the leads

2- Make sure the solder joints are cone-shaped and shiny

3- Trim excess leads as close as possible to the solder joint

REMOVE THEM FROM THE TAPE ONE AT A TIME !

AXIAL COMPONENTS ARE TAPED IN THE COR-

RECT MOUNTING SEQUENCE !

You will find the colour code for the resistances and the LEDs in the HALG

(general manual) and on our website: http://www.velleman.be/common/service.aspx

 R1 : 560 (5 - 6 - 1 - B)

 R2 : 100 (1 - 0 - 1 - B)

 R3 : 4K7 (4 - 7 - 2 - B)

 R4 : 4K7 (4 - 7 - 2 - B)

 R5 : 4K7 (4 - 7 - 2 - B)

 R6 : 4K7 (4 - 7 - 2 - B)

 R7 : 4K7 (4 - 7 - 2 - B)

4. 1/4W Resistors

R...

Construction

 J : 5x

1.Jumpers  R8 : 4K7 (4 - 7 - 2 - B)

 R9 : 4K7 (4 - 7 - 2 - B)

 R10 : 4K7 (4 - 7 - 2 - B)

 R11 : 4K7 (4 - 7 - 2 - B)

 R12 : 4K7 (4 - 7 - 2 - B)

 R13 : 4K7 (4 - 7 - 2 - B)

 R14 : 4K7 (4 - 7 - 2 - B)

 R15 : 4K7 (4 - 7 - 2 - B)

 R16 : 4K7 (4 - 7 - 2 - B)

 R17 : 4K7 (4 - 7 - 2 - B)

 R18 : 4K7 (4 - 7 - 2 - B)

 R19 : 100K (1 - 0 - 4 - B)

 R20 : 100K (1 - 0 - 4 - B)

 R21 : 100K (1 - 0 - 4 - B)

 R22 : 330K (3 - 3 - 4 - B)

 R23 : 390 (3 - 9 - 1 - B)

 R24 : 390 (3 - 9 - 1 - B)

 R25 : 390 (3 - 9 - 1 - B)

 R26 : 820 (8 - 2 - 1 - B)

 R27 : 820 (8 - 2 - 1 - B)

 R28 : 820 (8 - 2 - 1 - B)

 R29 : 820 (8 - 2 - 1 - B)

 R30 : 2K2 (2 - 2 - 2 - B)

 R31 : 82 (8 - 2 - 0 - B)

 R32 : 6K8 (6 - 8 - 2 - B)

 D1 : 1N4148

 D2 : 1N4148

 D3 : 1N4148

 D4 : 1N4148

 D5 : 1N4148

 D6 : 1N4148

 D7 : 1N4007

 D8 : 1N4007

 D9 : 1N4007

 D10 : 1N4007

 D11 : 1N4007

 D12 : 1N4007

 D13 : 1N4007

 D14 : 1N4007

2. Diodes. Watch the polarity!

D...

CATHODE

 ZD1 : 4V7 (4,7V)

 ZD2 : 4V7 (4,7V)

 ZD3 : 4V7 (4,7V)

 ZD4 : 27V0

 ZD5 : 27V0

3. Zenerdiodes. Watch the

polarity!

ZD...

CATHODE

 IC1 :6p

 IC2 :18p

 IC3 :28p

8. IC sockets, Watch the

position of the notch!

 R33 : 22 (2 - 2 - 0 - B - 9)

 R34 : 22 (2 - 2 - 0 - B - 9)

 R35 : 220 (2 - 2 - 1 - B - 9)

 R36 : 220 (2 - 2 - 1 - B - 9)

 R37 : 220 (2 - 2 - 1 - B - 9)

5. 1/2W Resistors

R...

 R38 : 5K6 (5 - 6 - 2 - B)

6. 1W Resistor

R...

 C1 : 4n7 (472)

 C2 : 22nF (223)

 C3 : 33nF (333)

 C4 : 100nF (104)

 C5 : 100nF (104)

 C6 : 100nF (104)

 C7 : 100nF (104)

 C8 : 100nF (104)

 C9 : 100nF (104)

7. Capacitors

Construction

First : Bend the leads exactly like

the drawing.

Next : Solder one lead, and check

the position, if necessary correct by

heating the soldering.

Last : Solder the second connec-

tion.

 LD1 : 5mm green

 LD2 : 5mm red

 LD3 : 5mm green

 LD4 : 5mm yellow

 LD5 : 5mm yellow

 LD6: 5mm yellow

 Pay attention to the polarity of LD1!

9. LEDs. Watch the polarity !

LD...

CATHODE

7mm

COLOR= 2...5

LD...

CATHODE

 T1 : BC547B

 T2 : BC547B

 T3 : BC547B

 T4 : BC547B

 T5 : BC547B

 T6 : BC547B

11. Transistors

 X1 : 3,5795MHz

X...

12. Quartz crystal

 SW1 : 1 pos.

10. Push button

 VDR1

13. VDR

 C10 : 1µF

 C11 : 1µF

 C12 : 1µF

 C13 : 1µF

 C14 : 10µF

 C15 : 10µF

14. Electrolytic capacitors.

Watch the polarity !

C...

 J1 : 2p

 J2 : 2p

 J3 : 2p

 J4 : 2p

16. Screw connectors

 T7 : BD681

15. Power transistor

 TRAFO1 : TRS1/1 (600/600)

17. Isolation transformer

Construction

 IC1 : 4N35

 IC2 : HT9170

 IC3 : VK6501

VK6501=(Programmed PIC16C55A-04)

 Pay attention to the position

of the notch!

22. IC mounting

PIN 1

 C16 : 470µF

18. Electrolytic capacitor.

Watch the polarity !

C...

 C17 : 0.47µF / 250V

19. Capacitor

 VR1 : UA7805

 Check the orientation !

20. Voltage regulator

VR...

Construction

 RY1 : VR10V121C (1p/12VDC)

 RY2 : VR10V121C (1p/12VDC)

21. Relays

RY...

1. Connect the telephone connections ‘A’ and ‘B’ to the

telephone line connections ‘a’ and ‘b’.

2. Connect a transformer or adapter of 12VAC min. 300mA to

the AC connections.

3. If required, connect the switching outputs to the devices.

The three outputs between L and P are normally open

contacts

4. If you want to check the condition of a (dead) switch, it may

be connected between the SW terminals. If the switch is

closed, the green IN LED will light up.

23. Connection

Connection & manual operation

TEL. LINE 12VAC/300mA

LOAD1

LOAD2

LOAD3

SWITCH SWITCH

OUT1

OUT2

OUT3

ACAB AC

P6501

TEL. LINE

1. The three outputs may be turned on or off manually by means of the push button. If the output is on

(contact closed) the corresponding LED will light up.

2. Press the push button once to turn output 1 on or off.

3. Press the push button twice shortly after one another to turn output 2 on or off.

4. Press the push button three times shortly after one another to turn output 3 on or off.

24. Manual operation

Code setting

See table to set the first digit (CODE1 or decades) and the second digit (CODE2 or units).

25. Setting the code

DCBA

CODE1

SW2

CODE2

BACD
