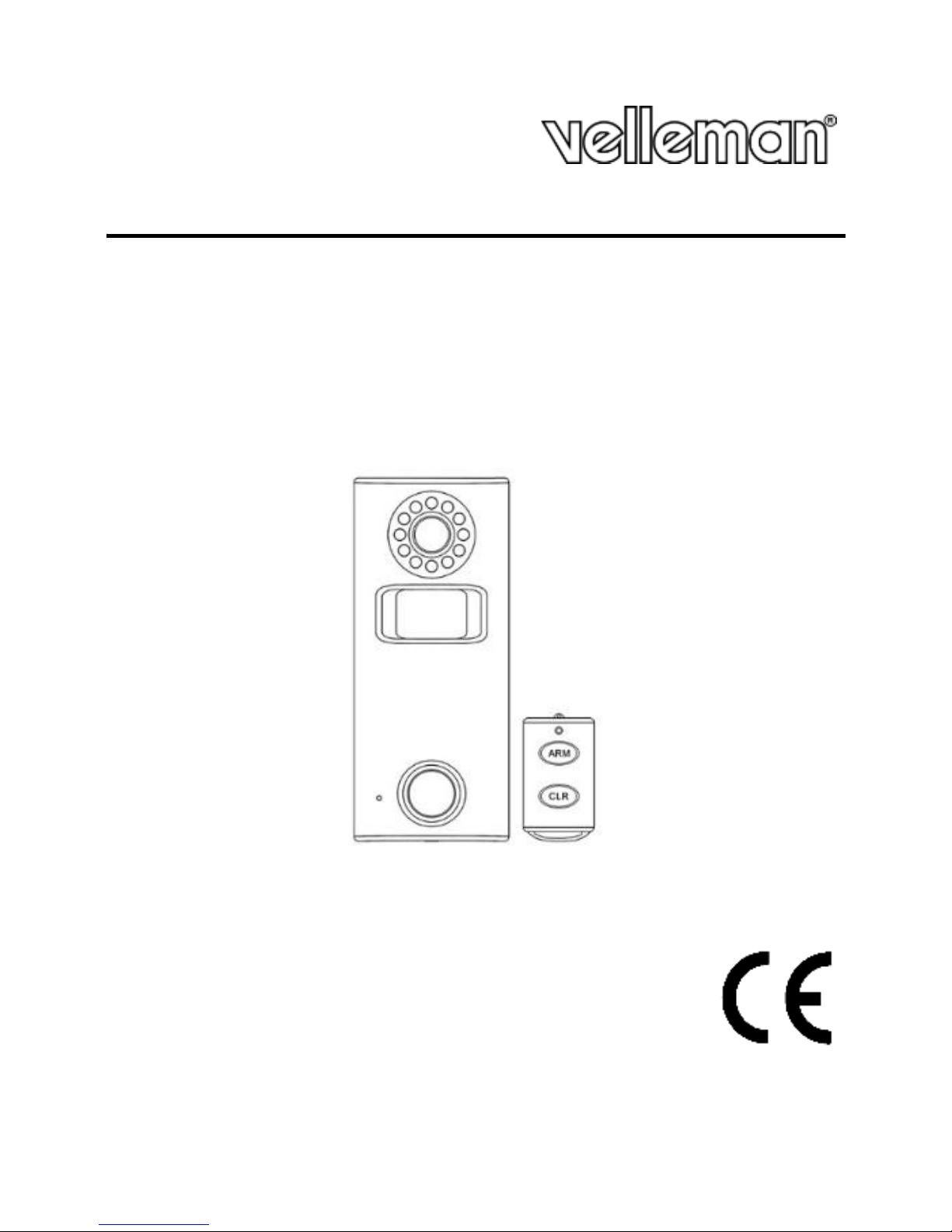

Velleman HAM202 Bedienungsanleitung

HAM202

PIR home alarm system with camera and wireless remote

PIR-alarm met camera en draadloze afstandsbediening

Alarme PIR avec caméra et télécommande sans fil

Sistema de alarma PIR con cámara y mando a distancia

PIR-Alarmanlage mit Kamera und Funk-Fernbedienung

Sistema de alarme PIR para habitações com câmara e

controlo remoto sem fios

USER MANUAL 6

GEBRUIKERSHANDLEIDING 12

MODE D'EMPLOI 19

MANUAL DEL USUARIO 25

BEDIENUNGSANLEITUNG 31

MANUAL DO UTILIZADOR 38

HAM202

V. 03 –11/12/2014 2 ©Velleman nv

HAM202

V. 03 –11/12/2014 3 ©Velleman nv

HAM202

V. 03 –11/12/2014 4 ©Velleman nv

HAM202

V. 03 –11/12/2014 5 ©Velleman nv

HAM202

V. 03 –11/12/2014 6 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that

disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as

unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect

the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly

before bringing this device into service. If the device was damaged in

transit, don't install or use it and contact your dealer.

HAM202

V. 03 –11/12/2014 7 ©Velleman nv

2. Safety Instructions

Keep this device away from children and unauthorised

users.

Indoor use only. Keep this device away from rain,

moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last

pages of this manual.

This system can provide valuable protection for your home and

property if used properly. However, it cannot guarantee complete

protection against burglary or robbery. Therefore, Velleman nv will

not be responsible for any losses or damages which occur during

the use of this product.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when

operating the device.

Do not aim the camera at the sun or other extremely bright

objects.

Familiarise yourself with the functions of the device before actually

using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not covered

by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual

is not covered by the warranty and the dealer will not accept

responsibility for any ensuing defects or problems.

There are no user-serviceable parts inside the device except for

the batteries. Refer to an authorized dealer for service and/or

spare parts.

Do not use this product to violate privacy laws or perform illegal

activities. Respect the legislation in your region when installing an

alarm system. If necessary, refer to local authorities.

HAM202

V. 03 –11/12/2014 8 ©Velleman nv

4. Features

This basic home alarm system has an integrated PIR sensor and

camera. The PIR sensor detects if an intruder enters the room and

the camera starts recording video files. An infrared remote allows

you to arm and disarm the alarm system. A solar panel provides

power during standby. The battery power is only used during an

alarm trigger and video recording.

alarm trigger: motion detection via PIR sensor

remote control to arm and disarm the alarm system

camera: record video files after a PIR trigger

solar panel to extend battery lifetime

130 dB alarm sound

mute mode: the alarm sound can be disabled

quick and easy installation.

5. Overview

Refer to the illustrations on page 2 of this manual.

alarm system with camera

solar panel

siren

IR LEDs for night vision

USB port

camera

microSD card slot

indicator LED

delete/mute button

motion detector

battery compartment

remote control

IR LED

arm button (ARM)

indicator LED

disarm button (CLR)

6. Installation

6.1 Installing/Replacing Batteries

Refer to the illustrations on page 3–4 of this manual.

Warning! Do not puncture batteries or throw them in fire as

they may explode. Do not attempt to recharge non-

rechargeable batteries (alkaline). Dispose of batteries in

accordance with local regulations. Keep batteries away from

children.

HAM202

V. 03 –11/12/2014 9 ©Velleman nv

Caution! Remove the batteries from the devices if they will not be

used for a long time. Old batteries can begin to leak and damage the

device.

Alarm

When the red indicator LED [4] lights up continuously, the batteries

are low. In that case, replace the batteries immediately.

1. Remove the screw from the bottom of the alarm cover and take

off the cover [A].

2. Insert 3 identical 1.5 V AA batteries according to the polarity

markings inside the battery compartment.

When the last battery is inserted, the alarm beeps to indicate

that the batteries are installed correctly.

3. Place the cover back and fix it with the screw.

Caution! Each time you replace the batteries, you must reconnect

the alarm to the remote control.

Remote Control

1. Remove the screws from the back of the remote control and

take off the cover [B].

2. Insert 3 identical LR44 batteries according to the polarity

markings inside the battery compartment.

3. Place the cover back and fix it with the screws.

6.2 Connecting the Alarm and the Remote Control

After inserting batteries, point the remote control to the alarm and

push the ARM button [13] twice. The alarm's LED [4] lights up to

indicate that the connection between alarm and remote control is

established.

To clear a connection between an alarm and a remote control, take

out the batteries from the alarm. The connection is deleted

automatically.

Caution! Each time you replace the batteries, you must reconnect

the alarm to the remote control.

6.3 Installing a microSD Card

Refer to the illustrations on page 5 of this manual.

Note: it is recommended to use a formatted microSD card.

To install/remove a microSD card, proceed as follows:

1. Slide the card slot cover [8] as indicated [C] to unlock it.

2. Lift the cover [D].

HAM202

V. 03 –11/12/2014 10 ©Velleman nv

3. Insert a microSD card (not included) in the card slot [F].

4. Close the cover [G] and slide it as indicated [H] to lock it.

5. To remove the SD card, slide the card slot cover [8] as

indicated [I] to unlock it.

6. Lift the cover [J].

7. Take out the microSD card.

6.4 Setting the Date and Time

To set the date and time in the alarm (for a correct timestamp on the

recorded video files), connect the alarm to your pc via the USB

port [7] and the included USB cable. The alarm automatically copies

the date and time from your pc.

6.5 Installing the Alarm

You can use the alarm free-standing on a horizontal surface, or you

can attach it to a wall. To mount against a wall, proceed as follows:

1. Remove the back cover from the alarm and screw it to the wall

at 1.0–1.5 m above the ground [M].

2. Click the body of the alarm into place on the back cover and fix

it with the screw.

7. Operation

Arming and Disarming the Alarm

To arm the alarm, press the ARM button [13]on the remote

control. The alarm plays a confirmation tune to indicate that

arming is successful. Note that the alarm is only activated after a

delay of 30 seconds, to allow you to leave the area without

triggering the alarm.

When the alarm detects motion, the siren goes off and the camera

starts recording video after a delay of 5 seconds. These 5 seconds

allow you to enter the area again and disarm the alarm before it

goes off. For each motion detection, the camera records a

30 second video file.

To disarm the alarm, press the CLR button [14]on the remote

control.

Muting the Alarm

If you want to mute the siren, proceed as follows:

1. Press the CLR button to disarm the alarm.
