BG-N7-2

BAT TERY GRIP

Designed for the

Nikon D810, D800/D800E

DSLR Cameras

USER’S MANUAL

Thank you

for choosing Vello

The Vello BG-N7-2 battery grip offers extended shooting

time and comfort when shooting in a vertical (portrait)

orientation. The grip is compatible with the Nikon D810

and D800/D800E DSLR cameras and accepts one Nikon

EN-EL15 type rechargeable battery, providing you with

an extra battery option together with the one in your

camera. It offers familiar controls like an alternate shutter

release button, main and sub-command dial, multi-

selector, and AF-ON button, as well as a control lock. This

makes the grip ideal for shooting portrait photography

and allows your hand to be in a comfortable position while

accessing the most-used controls.

Please read through this entire manual

before using the BG-N7-2 battery grip.

Precautions

The BG-N7-2 should be used only with the compatible

devices specified in this manual.

Use only with the batteries and battery holders

recommended in this manual.

If you notice smoke, noise, or an unusual smell from

the battery pack, discontinue use immediately. Remove

the batteries, and take the device to a Vello authorized

reseller.

The battery level may not display properly if batteries

are installed before mounting the grip.

5. Remove batteries from the grip when not in use.

6. Do not attempt to disassemble.

Avoid exposing this product to water or extreme

humidity, and keep it in a cool, dry place.

8. Keep out of reach of children.

9. All images are for illustrative purposes only.

OVERVIEW INTRODUCTIONASSEMBLYOPER ATI ON

Overview

1Shutter release button

2Control lock

3Sub-command dial

4Nonslip grip

5Tripod socket

6Battery compartment

7Battery tray lock

8Battery tray

9Thumbwheel lock

10 Multi-selector

11 Main command dial

12 AF-ON button

13 Power contacts

14 Camera contact cap holder

15 Contact cap

16 Mounting screw

17 Battery release

18 Battery slot

19 Battery contacts

20 Power supply socket

21 8-bay AA battery tray

OVERVIEW INTRODUCTIONASSEMBLYOPER ATI ON

Attaching the Battery Grip

1. Turn off the camera. 2.

Remove the camera’s

contact cap, and store it

in the grip’s contact cap

holder.

Remove the grip’s power

contact cap.

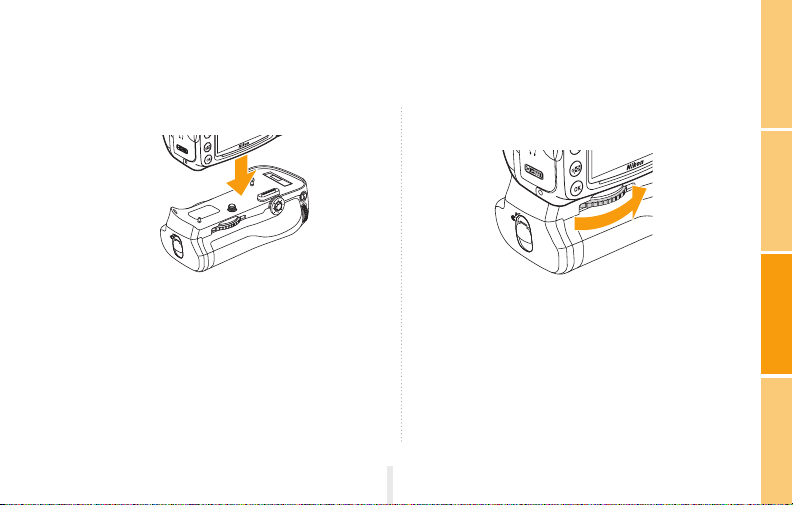

Line up the battery grip’s power contacts and

camera mount, and attach the grip to the camera.

Rotate the thumbwheel counterclockwise until

the grip is secured.

OVERVIEW INTRODUCTIONASSEMBLYOPER ATI ON

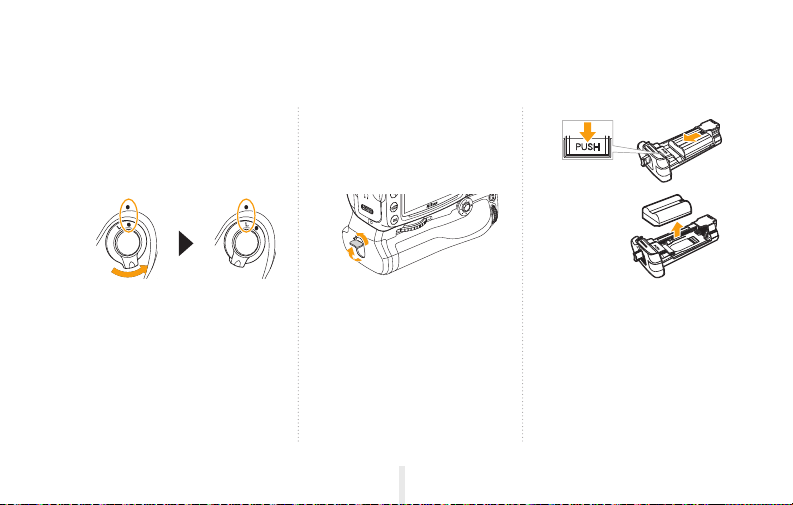

Inserting the Battery

Turn off the camera, and

make sure the grip’s control

lock is in the L position.

Twist the battery tray lock

counterclockwise, and

remove the battery tray

from the grip.

Nikon EN-EL15: Inser t

the battery into the slot as

shown, and push down to

lock the battery in place.

AA Batteries: Place eight

identical AA batteries into

the AA battery tray as

indicated.

Insert and lock the battery

tray inside the battery grip.

Turn on the camera, and

switch the grip’s control lock

to the • position.

Note: When removing the grip,

turn off the camera’s power and

switch the control lock to the L

position, and then remove the

batteries.

OVERVIEW INTRODUCTIONASSEMBLYOPER ATI ON

Removing the Battery

Turn off the camera, and

make sure the grip’s control

lock is in the L position.

Twist the battery tray lock

counterclockwise, and

remove the battery tray

from the grip.

Push down on the battery

release tab, and slide the

battery out of the slot.
