Vello FreeWave Viewer VL Bedienungsanleitung
FREEWAVE
VIEWER VL
WIRELESS LIVE-VIEW
REMOTE
'
2

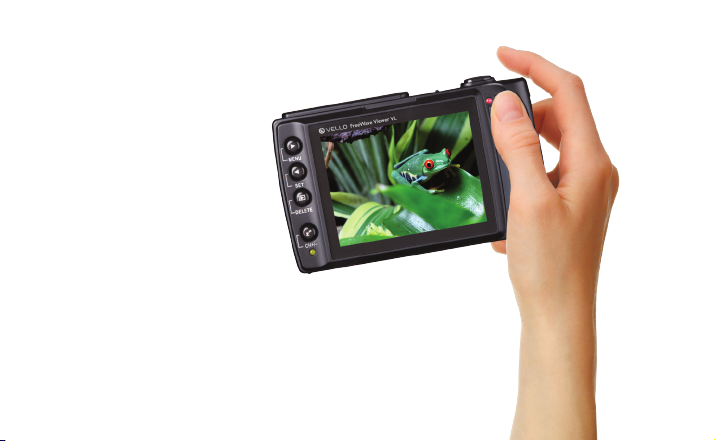

Thank you for selecting the Vello FreeWave Viewer VL Wireless Live-View Remote. The bright
3.5" color viewer displays the live view from select DSLR cameras and can trigger the shutter
and control video recording from up to 328 feet (100 meters) away in an open area.
The two-component system consists of the Transmitter/Mini-Cam that fits on the shoe mount of your
camera and the Receiver/Viewer that you can hold like any mobile device or mount on a tripod.
You’ll be able to take still photographs, start and stop video recording and more all from a safe distance or
hidden from your subject. Using a 2.4 Gigahertz (GHz) radio frequency (RF) that passes through and around
people, furniture, walls, floors and windows, the VL components do not require line-of-sight positioning.
The VL features two remote viewing modes. The Live View (LV) mode provides the same camera lens view
as if you were standing directly behind your camera looking at its view screen. The Closed Circuit Television-
type camera (the Mini-Cam) mode bypasses your camera’s lens and uses the fixed lens built into the VL’s
transmitter to see the general area at which your camera is pointed. The output feed from either viewing mode
can be used for big-screen monitoring on your TV using the included single-pin to composite video adapter.
INTRODUCTION
3
For a more elaborate setup, you
can use additional FreeWave VL
Transmitter/Mini-Cams and a
single Receiver/Viewer to monitor
and control up to four cameras.
Each camera can be matched
to its own wireless channel,
and each can be placed in a
dierent nearby location. For
example, you can shoot the same
subject from various angles.
4
In The Box
• Transmitter/Mini-Cam with swivel antenna and shoe-mount locking collar
• Receiver/Viewer with embedded antenna and pop-up sun shade
• USB Type A to Type B Mini USB cable to connect to your computer or charger
• 2–NP-60 batteries
• USB wall charger
• Composite video-output cable
• Wrist strap for Receiver/Viewer
• User manual
CONTENTS
5
Required Accessories
• Data and IR cables for use with specific DSLR camera models
(See separate compatibility insert)
Recommended Accessories
• NP-60 Lithium-Ion Battery Pack
• Compact AC/DC Charger for NP-60 Battery
• Vello Cold Shoe Mount with 1/4" Thread (CS-20) for mounting the Transmitter/Mini-Cam to a bracket or
tripod
• Vello Straight Flash Bracket (CB-600) for mounting the Transmitter/Mini-Cam next to your camera while
keeping its hot shoe free
6
• Live-view wireless display and remote control
• Built-in camera to support cameras without live-view
• Video start and stop control for Canon models that support infrared mode
• Up to 328' (100 m) operating distance
• Built-in color 3.5" TFT LCD with pop-up sun shade
• Built-in memory for storing photos in viewer
• Each component is powered by a removable rechargeable lithium battery
• Video output to a TV, monitor, or video recorder
• Option to monitor and control up to four cameras at once
KEY FEATURES
7
• Shooting wildlife, pets or other elusive or dangerous subjects from a distance
• Photographing children and other shy subjects that behave dierently when in close proximity to a
photographer
• Maintaining a view from a camera placed in a nearby but hard-to-access location like the foot of a stage or edge
of a sporting event
• Taking wireless self-portraits
• Adding live-view functionality to cameras that don’t innately oer the feature by using the built-in Mini-Cam
• Conserving power on your camera by turning o its own LCD
SUGGESTED USES FOR YOUR LIVE-VIEW REMOTE SYSTEM
8
• To prevent damage to your
equipment or injury to yourself
or others, read all of the
following safety instructions
before using this equipment.
Keep these instructions for
future reference.
• This equipment contains small
parts which may pose a choking
hazard. Consult a physician
immediately if a child swallows
any part of this device.
• Keep out of reach of children.
• Dispose of batteries in
accordance with local
environmental regulations.
• Should the product break
open as the result of a fall or
other accident, remove the
batteries. Failure to observe
this precaution could result
in electric shock or a product
malfunction.
• Do not disassemble or modify
the product.
• Keep away from water and
flammable gas.
• Do not expose to high
temperature.
• When using the FreeWave
Viewer VL, there may be static
and latency if you are moving
or if objects including vehicles
or people move between
the transmitter and receiver.
This is inherent in wireless
technology. It’s not the fault of
the FreeWave Viewer VL.
PRECAUTIONS
9
• Only use batteries listed in
this manual. Do not short or
disassemble them. Do not
attempt to insert batteries
upside down or backwards.
Batteries are prone to leakage
when fully discharged. To avoid
damage to the product, be sure
to remove the batteries when
leaving the product unattended
for prolonged periods or when
no charge remains. In case liquid
from the batteries comes into
contact with skin or clothing,
rinse immediately with water.
• Do not leave this equipment
in a closed vehicle under the
sun or in other areas subject to
extremely high temperatures.
Failure to observe this
precaution could result in fire
or damage to the casing or
internal parts.
• Do not handle with wet hands
or immerse the product or
expose it to water or rain.
Do not use in the presence
of flammable gas. Failure to
observe these precautions
could result in explosion or fire.
• All images are for illustrative
purposes only.
1
10
13
3
6
12
4
7
11
5
8
2
9
10
1. Power switch
2. Antenna
3. Signal LED
4. Power LED
5. Match button
6. Charger LED
7. USB port
8. IR port
9. Camera socket
10. Mini-cam lens
11. Heat vent
12. Battery cover release
13. Shoe-mount locking collar
OVERVIEW OF TRANSMITTER/MINI-CAM
