Copyright © 2009 Vent-Axia Limited. All rights reserved.
Sentinel
Kinetic MVHR with
Cooker Hood & SELV
Transformer
User, Installation, Commissioning &
Servicing Instructions
Stock Ref. N°
477003 Kinetic CWHL SELV
477004 Kinetic CSHL SELV
477005 Kinetic CWHR SELV
477006 Kinetic CSHR SELV
PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.
Read in conjunction with Sentinel Kinetic MVHR Installation &
Commissioning and Operation & Monitoring Documents
Safety Information
2 Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning
IMPORTANT
PLEASE READ THESE INSTRUCTIONS
CAREFULLY BEFORE COMMENCING
INSTALLATION.
1. READ THE SAFETY INSTRUCTIONS ON PAGE 2 OF
THE SENTINEL KINETIC MVHR INSTALLATION &
COMMISSIONING AND OPERATION & MONITORING
DOCUMENTS
2. IF THE EXTRACTOR HOOD IS INSTALLED IN A ROOM
CONTAINING A FUEL-BURNING APPLIANCE, THE
INSTALLER MUST ENSURE THAT AIR REPLACEMENT
IS ADEQUATE FOR BOTH THE EXTRACTOR HOOD FAN
AND THE FUEL-BURNING APPLIANCE.
3. DO NOT CONNECT THE EXTRACTOR HOOD DUCTING
TO CHIMNEYS, FLUES OR AIR DUCTS SERVING THE
ROOM.
4. DO NOT SITE WHERE AMBIENT TEMPERATURES ARE
LIKELY TO EXCEED 50ºC. DO NOT DO ANY FLAMBÉ
COOKING UNDERNEATH THE HOOD. WHEN FRYING,
NEVER LEAVE THE PAN UNATTENDED IN CASE OF
FIRE. THIS APPLIANCE IS NOT SUITABLE FOR USE
ABOVE AN EYE LEVEL GRILL.
5. WARNING: FAILURE TO COMPLY WITH THE
CLEANING INSTRUCTIONS MAY RESULT IN A RISK OF
FIRE. THE APPLIANCE EFFICIENCY DEPENDS ON THE
CONDITION OF THE FILTERS.
6. All regulations and requirements MUST be strictly
followed to prevent hazards to life and property both
during and after installation, and during any
subsequent servicing and maintenance.
Disposal
This product should not be disposed of with household
waste. Please recycle where facilities exist. Check with
your local authority for recycling advice.
About this Document
Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning 3
Contents
Product Description 4
Sentinel Kinetic MVHR with Cooker Hood......................................4
User Information...............................................................................5
Technical Specification 6
Sentinel Kinetic with Cooker Hood Technical Specification...........6
Sentinel Wiring Connections ……………………………………… 10
Installation 11
Overview ........................................................................................11
Before Installing the Unit................................................................11
Unit Installation...............................................................................11
Fitting the Cooker Hood to the Metal Duct Unit............................12
Attach Ducting................................................................................15
Electrical Installation......................................................................15
Commissioning...............................................................................15
Maintenance...................................................................................16
Caring for the Unit..........................................................................16
Cooker Hood Cleaning Interval .....................................................16
Removing Filters............................................................................16
Spares............................................................................................17
Troubleshooting .............................................................................17
Appendix A: Options and Accessories 18
CO2 / Temperature Sensor……………………………….............. 18
Normal / Boost switch……………………………………............... 18
Humidistat ………………………………………………….............. 18
Wireless Boost Switch……………………………………... ........... 18
UK Building Regulations (Part F)
Declaration of Conformance
The Sentinel Kinetic conforms to the 2010 Building
Regulations (Part F - Means of Ventilation requirements)
for installed performance of a ducted mechanical extract
fan when installed in accordance with the instructions in
this document.
Product Description
4 Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning
Product Description
Sentinel Kinetic MVHR with Cooker Hood
The Vent-Axia Sentinel Kinetic Mechanical Ventilation Heat Recovery (MVHR) unit is a heat recovery unit
with a Cooker Hood designed for the energy efficient ventilation of houses and similar dwellings, conforming to
the latest requirements of the Building Regulations document F 2010.
In case of a fire or severe overheating on the hob, the unit is fitted with an intumescent fire damper to close the
duct as required by BRE Digest 398 and a thermal fuse to switch off the electrical power.
The unit is designed to be mounted in the kitchen above a cooker hob in a standard cupboard space for
continuous 24-hour exhaust ventilation of stale moist air from bathrooms, toilets and kitchens. The unit should
be switched to boost mode by extending the cooker hood during cooking, or by use of any of the standard
switches or sensors. As the stale air is extracted, a heat exchanger within the unit retains up to 90% of the heat
and transfers it to the supply air entering the bedrooms and lounge.

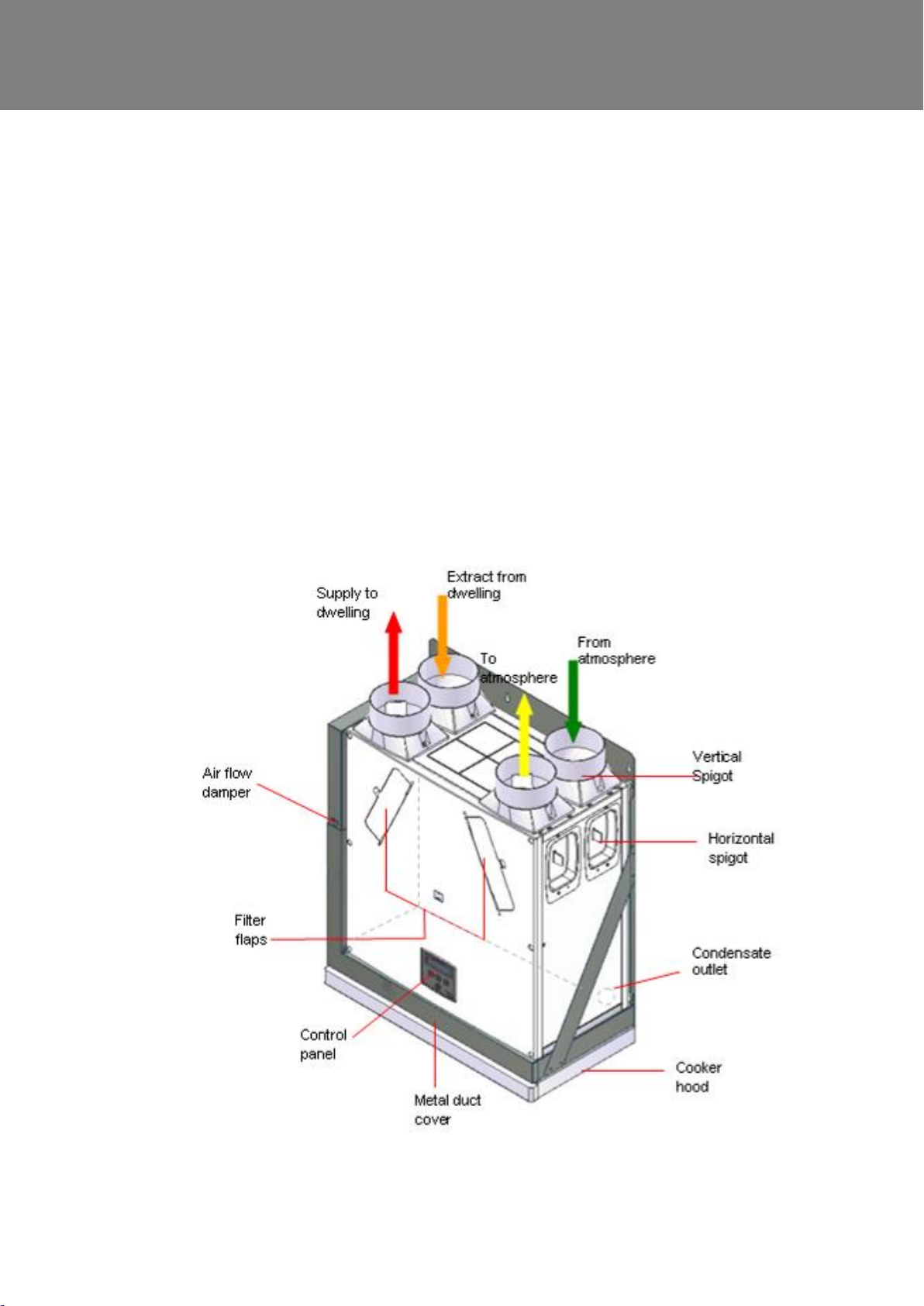

Figure 1: Sentinel Kinetic with cooker hood (Right Hand version shown)
Product Description
Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning 5
Models
447003, 447004, 447005, 447006 - Sentinel Kinetic with Cooker Hood, SELV transformer and summer
bypass. An internal damper is activated when the outside temperature is equal to, or greater than, the pre-
set ‘Comfort Temperature’ (adjustable between 16 and 30°C). The damper opens allowing cooler fresh air
to bypass the Heat Recovery Cell and reduce the internal temperature to the pre-set ‘Comfort
Temperature’. When the inside air temperature reaches the pre set ‘Comfort Temperature’ the bypass
damper closes. (See page 10 within the Operation & Monitoring leaflet for further information). Note that
when the cooker hood is extended the heat recovery cell bypass opens ensuring that grease and other
contaminants from cooking do not reduce its efficiency during normal use.
Accessories
441865 - Wireless enable kit (consists of wireless receiver and one wireless switch).
437827 - Additional wireless switch (up to four may be connected).
443131 –Wired remote control.
A range of sensors can be used to manage system demand and control the ventilation rate. These include an
internal humidity sensor, humidity sensors for independent mounting in rooms, wireless receiver and wireless
boost switches, CO2sensor, manual switches and pull cords. For these alternative control options, see
www.vent-axia.com
User Information
Operation of Cooker Hood
The unit is operated in boost mode when the telescopic hood is pulled out. Close it to return the unit to its
Normal Flow Rate.
Important Note:
Do not hold on to or place any object on telescopic hood whilst it is open, since this can cause damage to its
functioning component parts
Operation of Cooker Hood Light
Access can be gained to the light switch when the telescopic hood is opened. The light may be left on with the
hood closed if required. However, make sure you switch it off when you have finished using it.
Cleaning Instruction
Refer to page 15 of this document.
Technical Specification
6 Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning
Technical Specification
Sentinel Kinetic with Cooker Hood Technical Specification
Performance
Airflow
Refer to Sentinel Kinetic Installation & Commissioning Document page 5
Flow for cooker hood adjustable using the integral damper.
Sound levels (@ 3 m)
20 dB(A) (normal), 36 dB(A) (boost). Detailed sound spectra available from Vent-Axia.
Power
AC Voltage Input
220-240 V AC (single phase)
AC Frequency Input
50 Hz nominal
Supply Fuse
3 A (located in fused spur)
Product Fuse
2 A (located on main PCB)
Rated Power
Total 162 W (max.) including (2x5W cooker hood LED lamps)
Physical
Weight
28 kg
Spigot diameter
125 mm
Condensate pipe diameter
22 mm
Environmental
IP Rating
IP22
Operating Temperature
-10C to +45C
Air Intake Temperature
As above
Operating Humidity
0% to 95% RH
Storage Temperature
-10C to +45C
Storage Humidity
0% to 95% RH
For all other technical details, please see the Product Catalogue or our website at www.vent-axia.com
Technical Specification
Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning 7

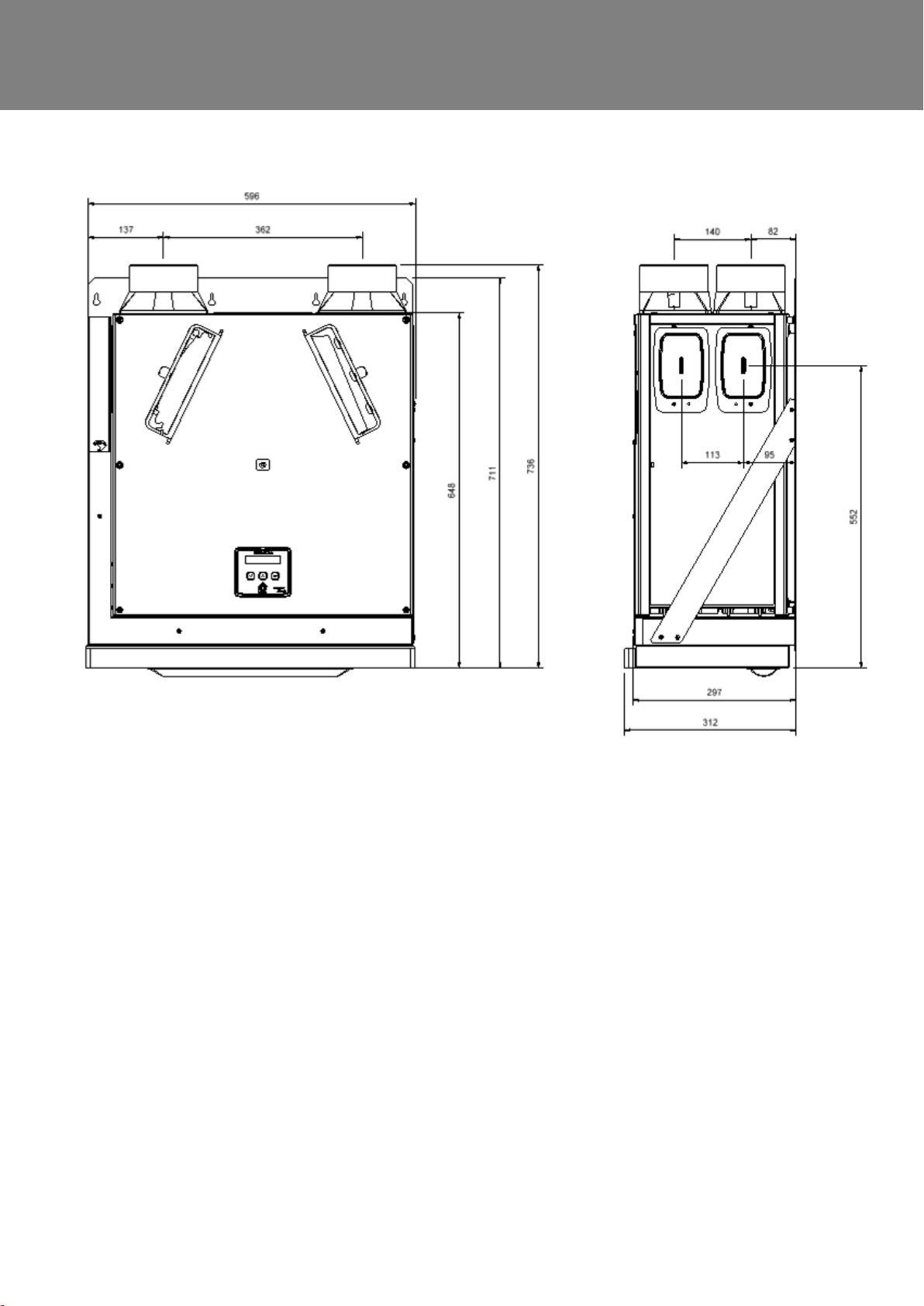

Figure 2: Sentinel Kinetic with Cooker Hood Dimensions
8 Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning

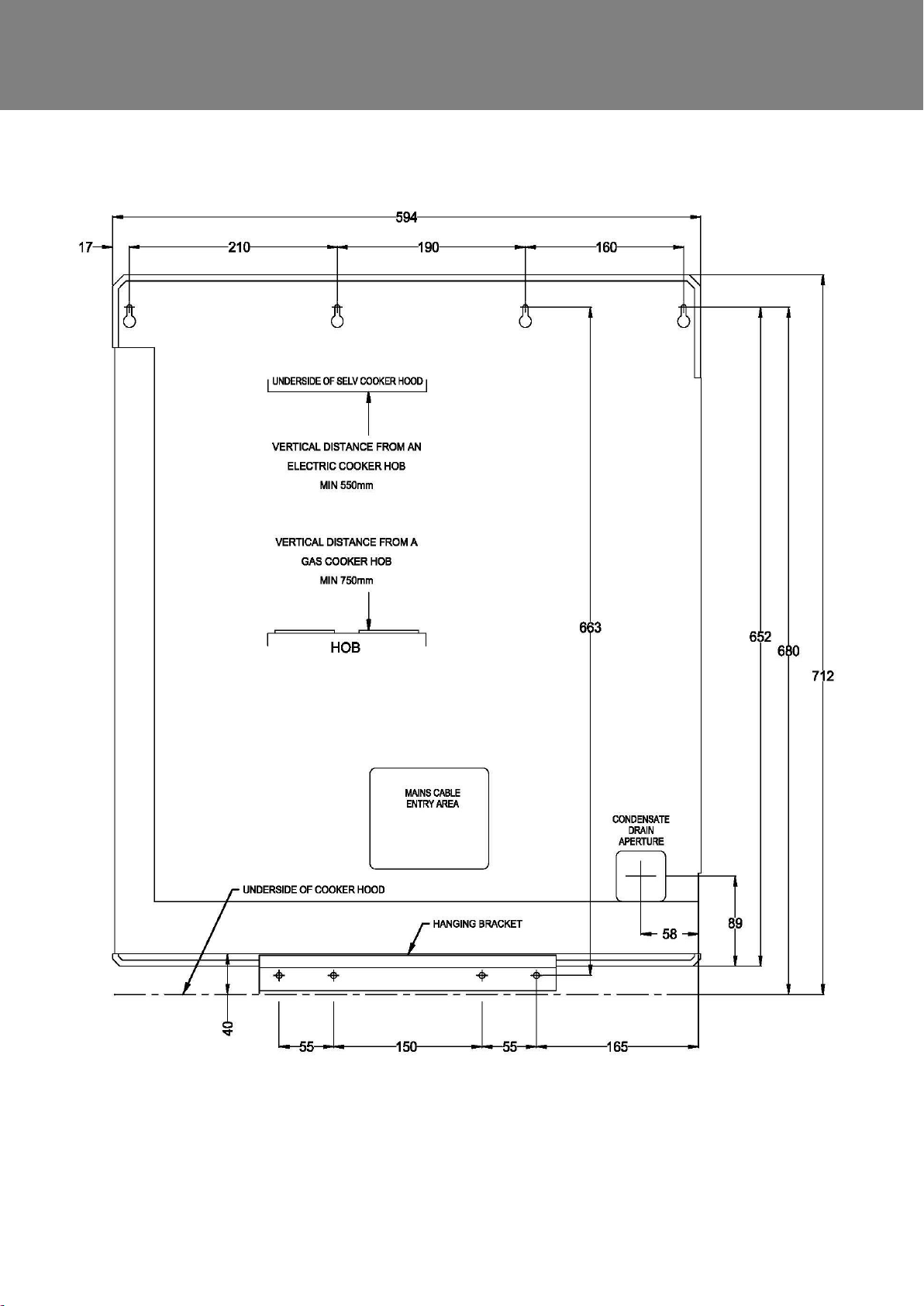

Figure 3: Sentinel Kinetic with RIGHT HAND Cooker Hood Dimensions
Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning 9

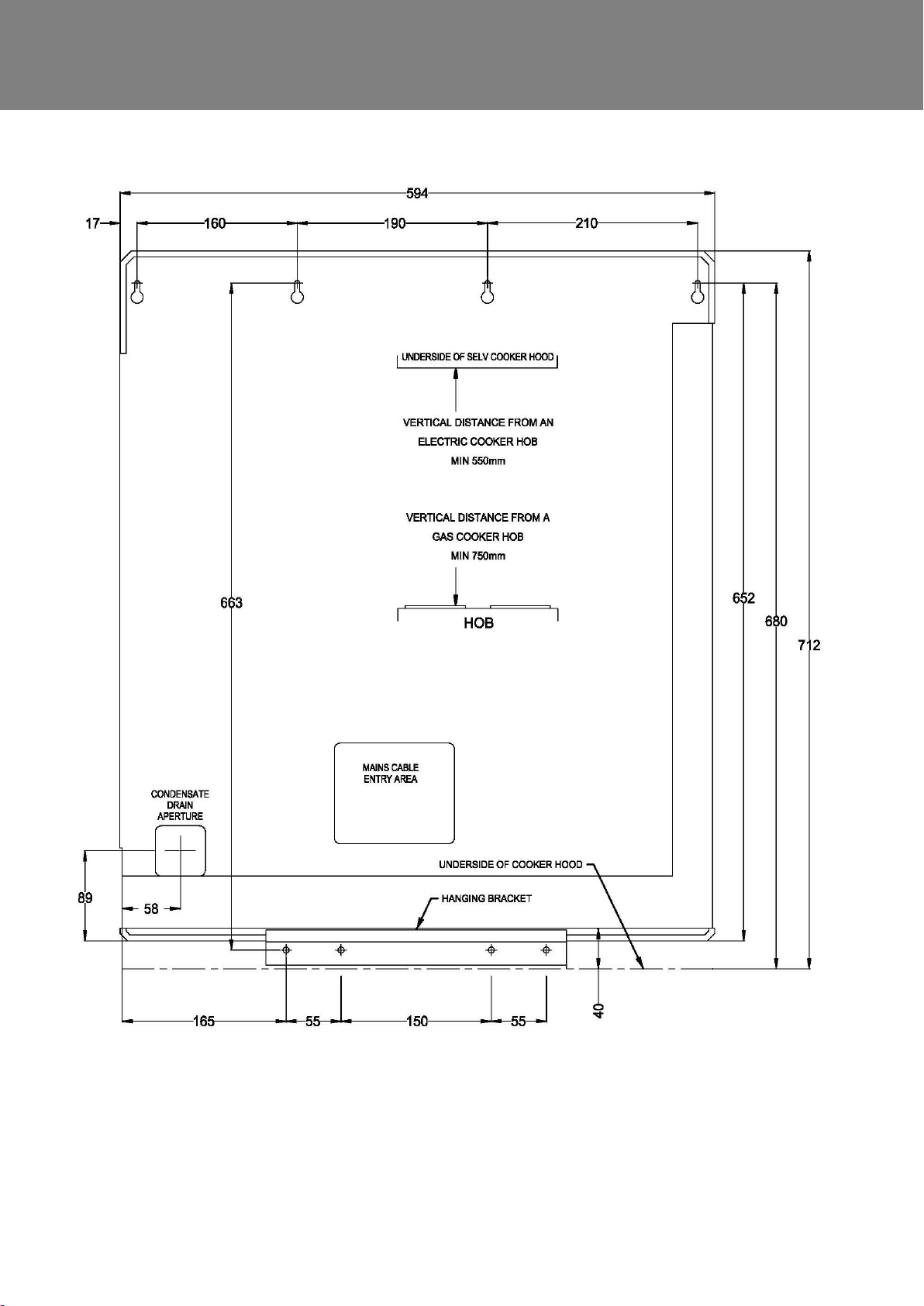

Figure 4: Sentinel Kinetic with LEFT HAND Cooker Hood Dimensions
10 Sentinel Kinetic MVHR with Cooker Hood Installation & Commissioning

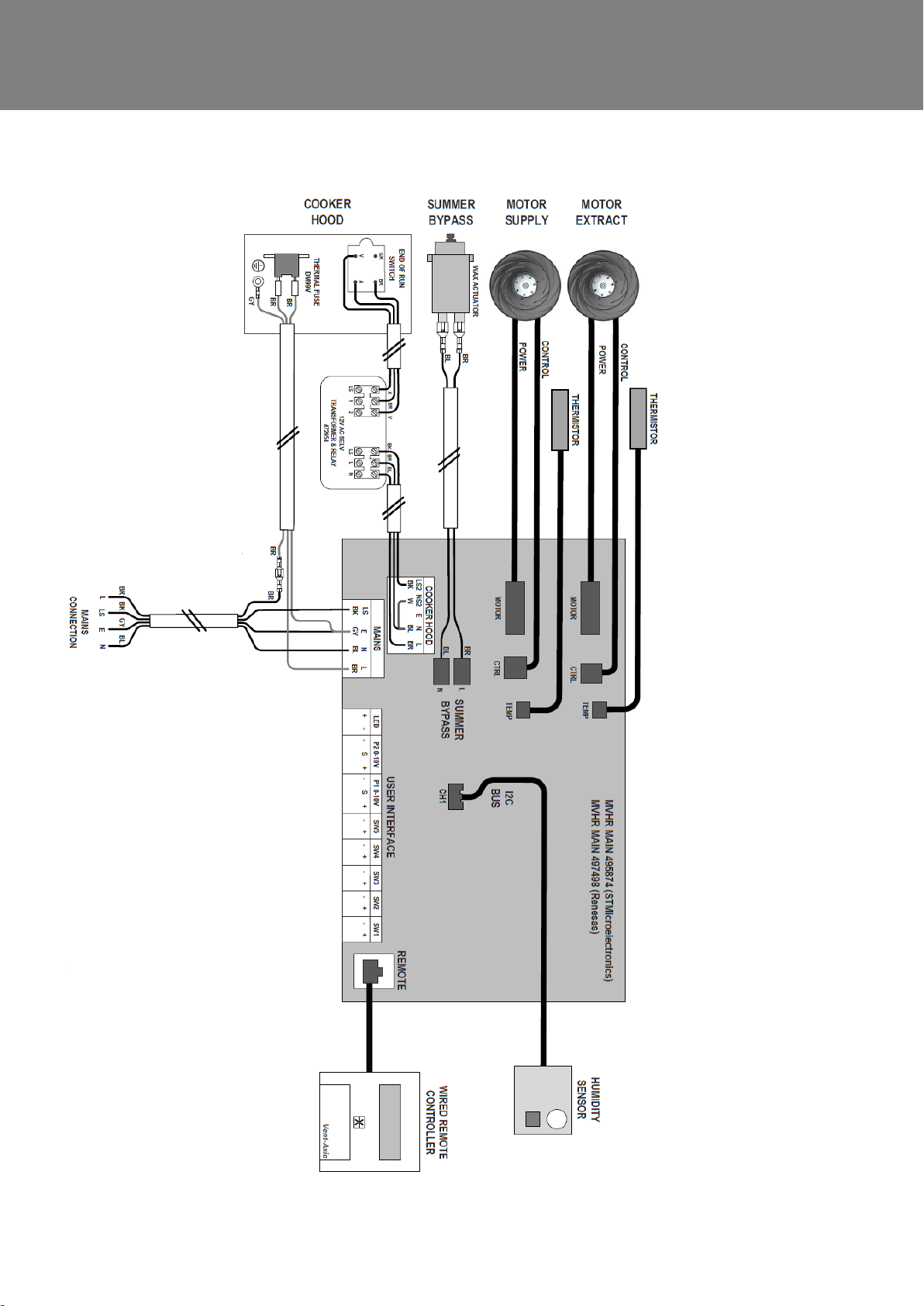

Wiring Connections
