FOR PYD18 EUROPA VENT-A-HOODS

INSTALLATION INSTRUCTIONS

A. Installation Work and Electrical Wiring Must Be Done By

Qualified Person(s) In Accordance With All Applicable

Codes And Standards, Including Fire-Rated Construction.

B. When cutting or drilling into wall or ceiling, do not

damage electrical wiring and other hidden utilities.

C. Ducted fans must always be vented to the out-

doors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

D. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel

burning equipment to prevent back drafting. Follow the

heating equipment manufacturers guideline and safety

standards such as those published by the NationaI Fire

Protection Association (NFPA), and the American

Society for Heating, Refrigeration and Air Conditioning

Engineers (ASHRAE), and local code authorities.

Read and Save These Instructions

Turn Page For More Instructions

All Hoods Should Be Installed By A Qualified Installer

Step 1 . . .

Step 3 . . .

Step 2 . . .

Step 5 . . .

Step 4 . . .

Set hood on floor with

wood pallet still attached

to top.

Remove blower deck, light

assembly and transition from

hood.

Run 8 diameter duct and

wiring through ceiling with

section long enough to

reach transition on hood.

Install duct cover to load

bearing framing in

ceiling. For additional

stability in duct covers

over 24 tall, use 1/4 all-

threaded rods.

Attach hood to bottom of duct cover

and re-install blower and light units.

LOAD BEARING FRAMING

(furnished by others)

MOUNTING PLATES ON EACH CORNER

DUCT COVER

4 MOUNTING HOLES

LOCATED IN CORNERS

HOOD

LOAD BEARING FRAMING

CEILING

8 DUCT

TRANSITION

DECK

T200 BLOWER

5 x 16 to 8 DIAMETER

VP546

TRANSITION

FURNISHED

WITH HOOD

1000 N. Greenville Ave. = P.O. Box 830426 =Richardson, TX 75083 =(972) 235-5201

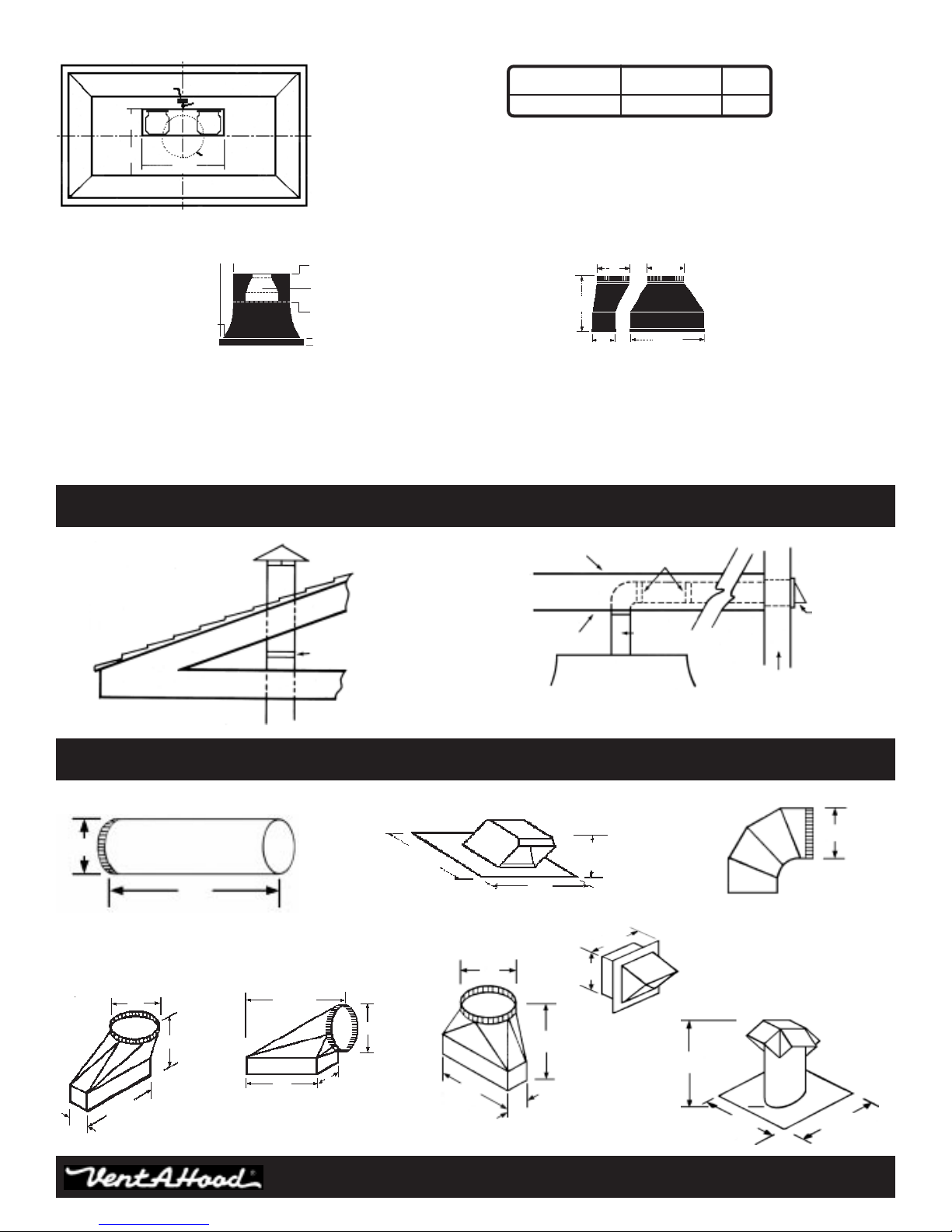

Methods of Ducting Your Vent-A-Hood

Venting Materials Available from Vent-A-Hood

- Step 6.  Connect ducting. 

1. Attach venting (before replacing deck if necessary). Do not restrict ducting anywhere

including roof jacks or wall louvers. Do not turn sharp turns with ducting. Make gradual turns

or 45°angles.

- Step 7.  Connect electrical. 

Follow label instructions and remove motor plate. Unplug motor and remove, being careful to not damage blower wheel. Connect electrical, black to

black, white to white and ground to lug provided. Replace motor(s) and dont forget to plug them back in. Replace blower front and be sure it is secured

properly and blower wheel(s) turn freely. Model T200, 3.4 Amps. Hoods with heat lamps and/or halogen lamps, 8.0 Amps.

Observe All Governing Codes and Ordinances

Proper transition is

furnished with hood.

dia.

Mounts under furr-down

Mounts to 8 ceiling

Standard Details

Transition to 8 round

duct furnished

Lip 3

Slope 6

Offset

1 

Blower

Minimum Round

Duct Size

Square

Inches

T-200 Dual 600 CFM 8 (or equivalent) 50

For use on all T-200

blowers with 8 duct

8 8

5 16

12

Other transitions by Special Order

Caution: To reduce the risk of fire or electrical shock, do not use this fan with any solid state variable speed control device.

Roof Jack

tape

8 LP Roof Jack

17 1

Round Vent Duct

6,7,8,9

8 Adjustable Elbow

8 Wall Louver

Offset L&R Transition

Side Vent Transition L & R

Island Transition

Wall Louver Venting

in 2-Story Dwelling

Hood

Floorline

(2nd floor)

Ceiling Line

(1st floor)

tape

Duct

Outside

Wall

Open

area --

screen

8 Roof Jack

161

specify

roof pitch

Europa Hoods

Motor Cooling Vent

Wiring Outlet

16

5

8

dia.

2 

7

2/25/99 II-PYD18
