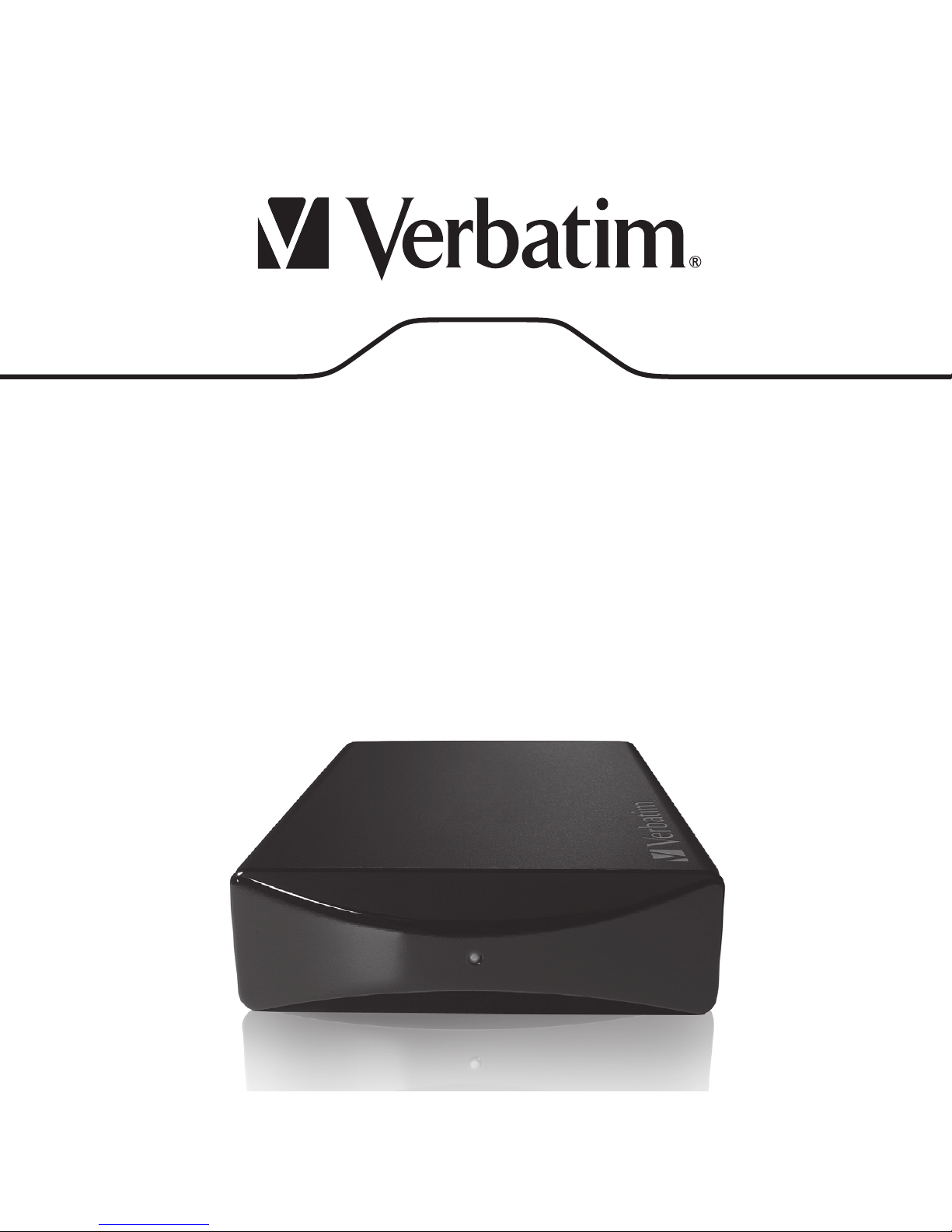

Verbatim 96570 Bedienungsanleitung
USB
External Hard Drive • Disque dur externe
Disco duro escritorio • Disco rígido externo
User Guide • Guide de l’utilisateur
Guía del usuario • Manual do usuário
Contents
Introduction ...................................................................................2
Controls, Connectors and Indicators ....................................................2
Front Panel Area ..................................................................................2
Rear Panel Area ................................................................................... 2
About the Hard Drive........................................................................... 3
Locating the Drive on Your Desk .......................................................... 4
Connecting To Your Computer ........................................... 4
Disconnecting Your Hard Drive..........................................4
For Windows Users.............................................................................. 5
For Mac OS Users ................................................................................ 5
Getting Help .................................................................................. 5
Limited Warranty Terms..........................................................6
Rights.................................................................................................8
FCC Compliance.......................................................................... 9
Indice
Introduction ................................................................................10
Contrôles, connecteurs et indicateurs ...............................................10
Section du panneau avant ................................................................10
Section du panneau arrière...............................................................10
Quelques mots sur le disque dur ......................................................11
Trouver le périphérique sur votre bureau .......................................... 12
Brancher le périphérique....................................................12
Débrancher le périphérique .............................................13
Pour les utilisateurs Windows............................................................13
Pour les utilisateurs Mac OS.............................................................. 14
Aide..................................................................................................14
Conditions de garantie limitée .......................................14
Droits...............................................................................................17
Conformité FCC ........................................................................17
Índice
Introducción................................................................................ 18
Controles, conectores e indicadores .................................................18
Área del panel frontal .......................................................................18
Área del panel trasero ......................................................................19
Acerca del disco duro.......................................................................19
Ubicación de la unidad Drive en su escritorio ...................................20
Conexión de disco duro.......................................................20
Desconexión de disco duro............................................... 21
Para usuarios de Windows................................................................21
Para usuarios de Mac OS .................................................................. 22
Ayuda..............................................................................................22
Términos de la garantía limitada....................................22
Derechos.......................................................................................25
Cumplimiento de FCC...........................................................25
Índice
Introdução....................................................................................26
Controles, conectores e indicadores .................................................26
Área do painel frontal .......................................................................26
Área do painel traseiro .....................................................................26
Sobre o disco rígido .........................................................................27
Posicionamento do drive sobre a mesa.............................................28
Conexão disco........................................................................... 28
Desconexão do disco............................................................29
Para usuários do Windows................................................................29
Para usuários do Mac OS ..................................................................30
Ajuda...............................................................................................30
Termos da garantia limitada.............................................30
Direitos........................................................................................... 33
Conformidade com a FCC ..................................................33
Introduction
Before you begin to use the drive there are a few important things to learn about your new
product.
Controls, Connectors and Indicators
First familiarize yourself with the features of the unit.
Front Panel Area
The front panel contains only the Activating LED, as illustrated below. The green LED will
come on to indicate the power-on state. The LED will flash during data access.
Rear Panel Area
Along the rear panel you will find the ON/OFF button and the interface connectors. Refer
to the figure below.
1. ON/OFF button. Once the AC Adapter has been properly connected to the drive
32
and an AC outlet, you can press the ON/OFF button to power on the drive. To turn off the
drive, press the ON/OFF button again.
2. DC Input Connector. Connect the DC cable of your included AC Adapter to the DC
Input Connector.
3. USB Connector. Use this connector to attach the drive to your computer via USB.
About the Hard Drive
The hard drive comes pre-formatted in FAT32 format. This format allows for operation with
either Windows or Mac OS.
Note: Capacity dependent on model. 1 MB = 1,000,000 bytes/1 GB = 1,000,000,000
bytes/1 TB = 1,000,000,000,000 bytes. Some capacity used for pre-loaded software,
formatting and other functions, and thus is not available for data storage. As a result,
and due to differing calculation methods, your operating systems may report as fewer
megabytes/gigabytes/terabytes.
32
1 2 3
Locating the Drive on Your Desk
Place the drive on a sturdy desk or table that is free from clutter that could block airflow
around the unit. The drive is designed to lie flat on its rubber feet, or may stand upright. In
either orientation take care not to block any air vents.
Connecting To Your Computer
Connecting your drive to a computer is extremely simple. Follow the steps below.
1. Connect the included AC Adapter to the drive, and then to a wall outlet.
2. Next press the ON/OFF button on the back of the drive.
3. Finally, connect the data cable. Connect the included USB cable from the USB port on
the drive to an available USB port on your computer.
4. The hard drive will mount automatically, and a new icon will appear in My Computer
(Windows) or a new icon will appear on the desktop (Mac).
If you are using a USB 1.1 port on your Windows computer, the following cautionary note
may appear on your display: Hi-Speed USB Device plugged into non-Hi-Speed USB hub.
This does not indicate a problem because the drive is compatible with both USB 1.1 and
USB 2.0 ports. Simply close the message and proceed. However, in this case the drive will
operate only at USB 1.1 speeds.
Disconnecting Your Hard Drive
Your external hard drive is hot-swappable. It can be connected and disconnected without
restarting your computer. To disconnect your drive at any time, perform the following steps.
You can also disconnect your hard drive at any time while your computer is powered off.
54
