VESTEL A Series Bedienungsanleitung
A SERIES
1
Contents
Information sheet………………………………………………………………..2
Electrical components…………………………………………………………...3
Detergent / rinse aid dispenser…………………………………………………9
Washing specification and programs…………………………………………...11
Service failure codes…………………………………………………………...12
Setting the water hardness……………………………………………………...24
Failure codes (possible problems)……………………………………………...25
Necessary ınformation have to be gıven to users whıle ınstakkatıng the
dıshwasher………………………………….......................................................28
Repair techniques components and resistance values.........................................29
Component value measurement………………………………………….…….31
Poor drying……………………………………………………………………..45
Disassembly……………………………………………………………...…….46
1
2
INFORMATION SHEET
BARCODE STICKER CODE EXPLANATION / DISHWASHER:
SERIAL NO
PRODUCT
CODE
01- w/o cartoon; w strip
02- w/o cartoon; w/o strip
03- w cartoon ; w strip
04- w cartoon ; 4- lane
05- w/o cartoon ; 4-lane
Work order
number Increases by
numeratically
In front of this numbers “55”
should be added for an order
number:
00205458 - 5500205458 is
the order number
In front of this numbers
“10” should be added for
an product code:
668316 - 10668316 is
the product code
WHITE GOODS
CUSTOMER
SUPPORT
04 668316 0001
00205458
3
ELECTRICAL COMPONENTS
BUTTON ( ON / OFF SWITCH )
Voltage 250 V
Currency 16 (4 ) A
DOOR LOCK
It is a mechanical lock/release system that is
closing the door, supplying the connection of
electrical parts in the machine and cutting off
the connection.
Currency 16 (4 ) A
CIRCULATION PUMP
Single direction, single phase, asynchronus and
two pole.
It turns opposite clock direction.
It is assambled to the basement with rubber
hangers.
FLOATER
Button is assambled in the control panel unit.
ON /OFF (two pole)
4
Capacitor is permanently connected
to the circulation pump coils.
CAPACITOR
DRAIN PUMP
Voltage 220/240 volt
Total power 1800W
27.6-30.6 ohm
HEATER
NTC
5

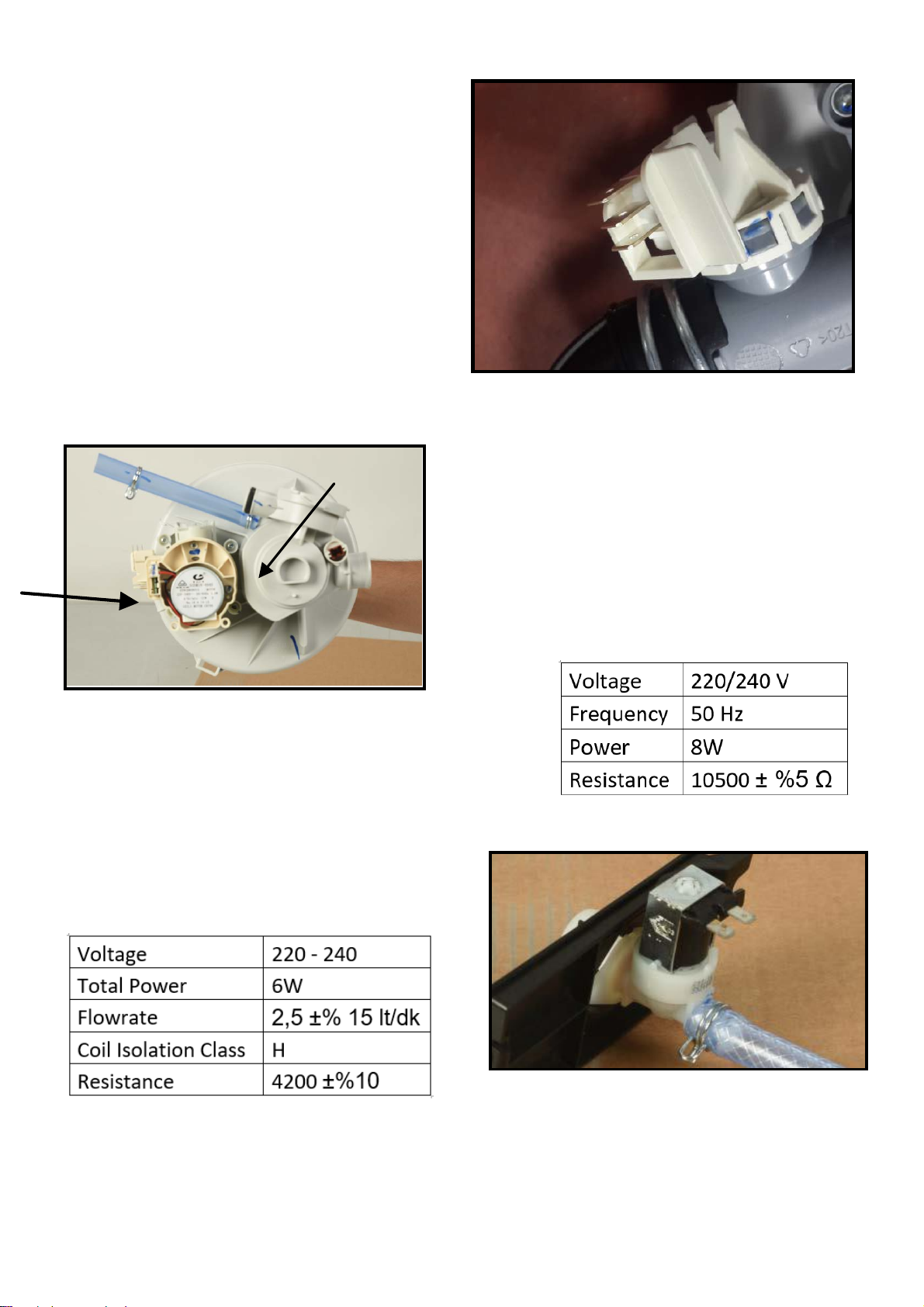

PRESSURE SWITCH
Voltage 220/240 v
Frequency 50/60 Hz
16 A - 3 Pins
DIVERTER
There is diverter at A15 and A23
models It is assembled to the heater
Casing Group.
WATER INLET VALVE
Single inlet and single outlet standard
single coil selenoid valve.
It is assembled to the basement and connect
to the airbreak by hose.
6
REGENERATION VALVE
Regeneration valve is assembled on the
water softener.
PARASITE FILTER
It is used to prevent parasites from
the main supply It has been
assemblied to basement.
TURBO FAN MOTOR
There is a thermal protector shaded pole motor,
two pole temperature is between -40-150 °C
There is turbo fan motor only at A models.
7

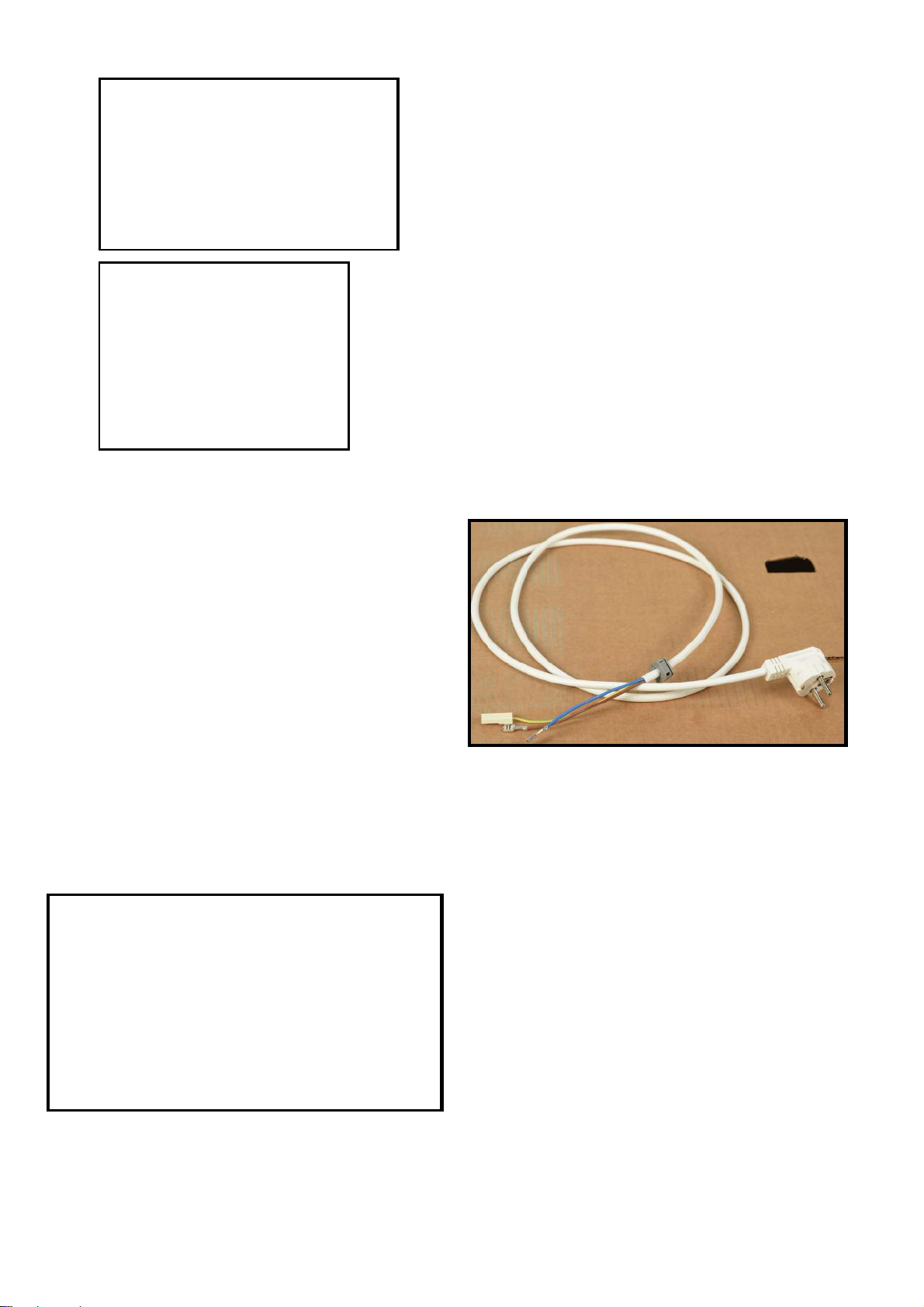

SALT SENSOR
Voltage 250 V
Currency 50 mA
It is assembled to the water softener. It warns if
the salt is less than requested quantity.
POWER CORD
DRAIN HOSE
8
UPPER SPRAY ARM
It distributes water from upper spray arm to dirty dishes in the upper basket.
It provides to wash the dishes in the upper basket through turning by the holes with various
angles.
LOWER SPRAY ARM
It distributes water from lower spray arm to dirty dishes in the lower basket.
It provides to wash the dishes in the lower basket through turning by the holes with various
angles.
9
DETERGENT / RINSE AID DISPANSER
Detergant dispenser consists of rinse aid and detergant compartment. It has been assemlied to the
ınner door by the snap fits. Only one bobbin has been used for operation the system.
RINSE AID SET
In order to enter rinse aid set, user applies below
steps.
Power ON; press Up button at least for 5” for models without display
Power ON; press Program button at least for 5” for models with display.For A4 models,
use delay button and press it for 5”.
If “Rinse aid set” is recognized;
all leds blink twice if model is without display. If model has display, “rA” is shown.
Release program button. The last setting level is viewed*.
Press program button to set the desired level.
At any pressure of program button rinse aid level is incremented. The level 1 returns after level 5.
For models without display; rinse aid levels are the same with water hardness levels as shown in the
table.
10
