VESTEL C55tw11 Bedienungsanleitung

CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

WHITE GOODS ASSEMBLE & DISASSEMBLE

A- Changing The Door Swing Direction to Right Hand

Figure - 1

Figure - 2

Figure -3 Figure -4

1- Unscrew the two screws which are fixing the middle hinge and remove the two

middle hinge screw caps (big). (Fig-1)

2- Dismantle the refrigerator and freezer door from cabinet by pulling towards to you

together with the middle hinge. (Fig-2)

3- Lie down the appliance to the left side. Dismantle both leveling feet and unscrew

the bottom hinge fixing screws and remove it. (Fig-3) Unscrew the bottom hinge pin

and screw in the next hole.(Fig-4) Then screw the hinge to left side of the refrigerator.

Screw the both leveling feet.

Unscrew the two

hinge screw.

Remove the two

middle hinge

screw caps (big)

CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

WHITE GOODS ASSEMBLE & DISASSEMBLE

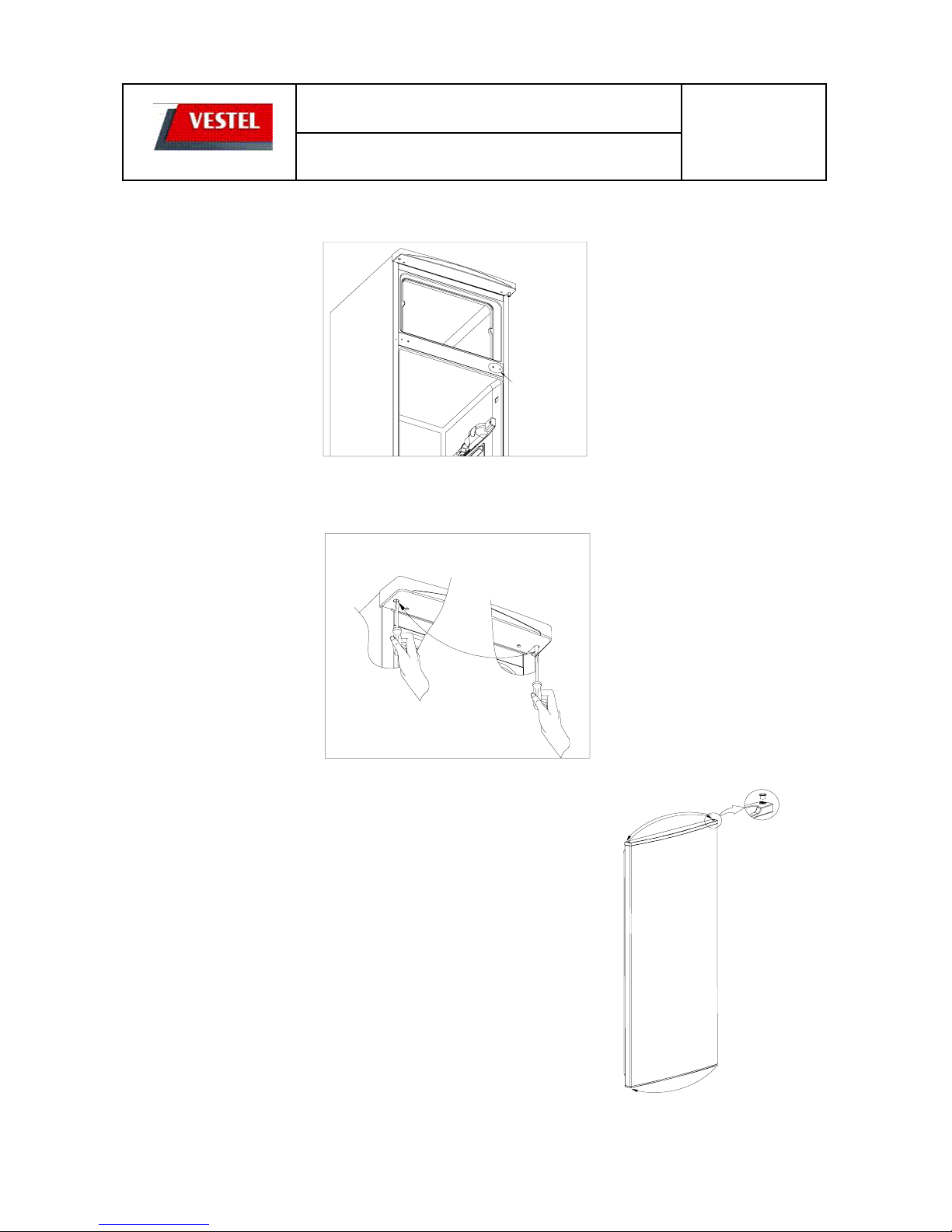

Figure - 7

Figure - 5

Figure - 6

DETAIL-A

DETAIL-B

5-Unscrew the pin on the right. (Fig-6/Detail-A) and screw it to the left. (Fig-6/Detail-B)

REFRIGERATOR

DOOR

Insert the two

middle hinge

screw caps

(big) here.

4- Place the two middle hinge screw caps (big) as shown in the figure. (Fig-5)

You can find the new caps in the user manuel bag.

6- Replace the top bushing and top bushing cap. (Fig-7)

(You can use the bushing cap that is put in the user manuel)

Remove the bottom bushing and bottom stopper and

assemble them to the left hole. (Fig-7)

CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

WHITE GOODS ASSEMBLE & DISASSEMBLE

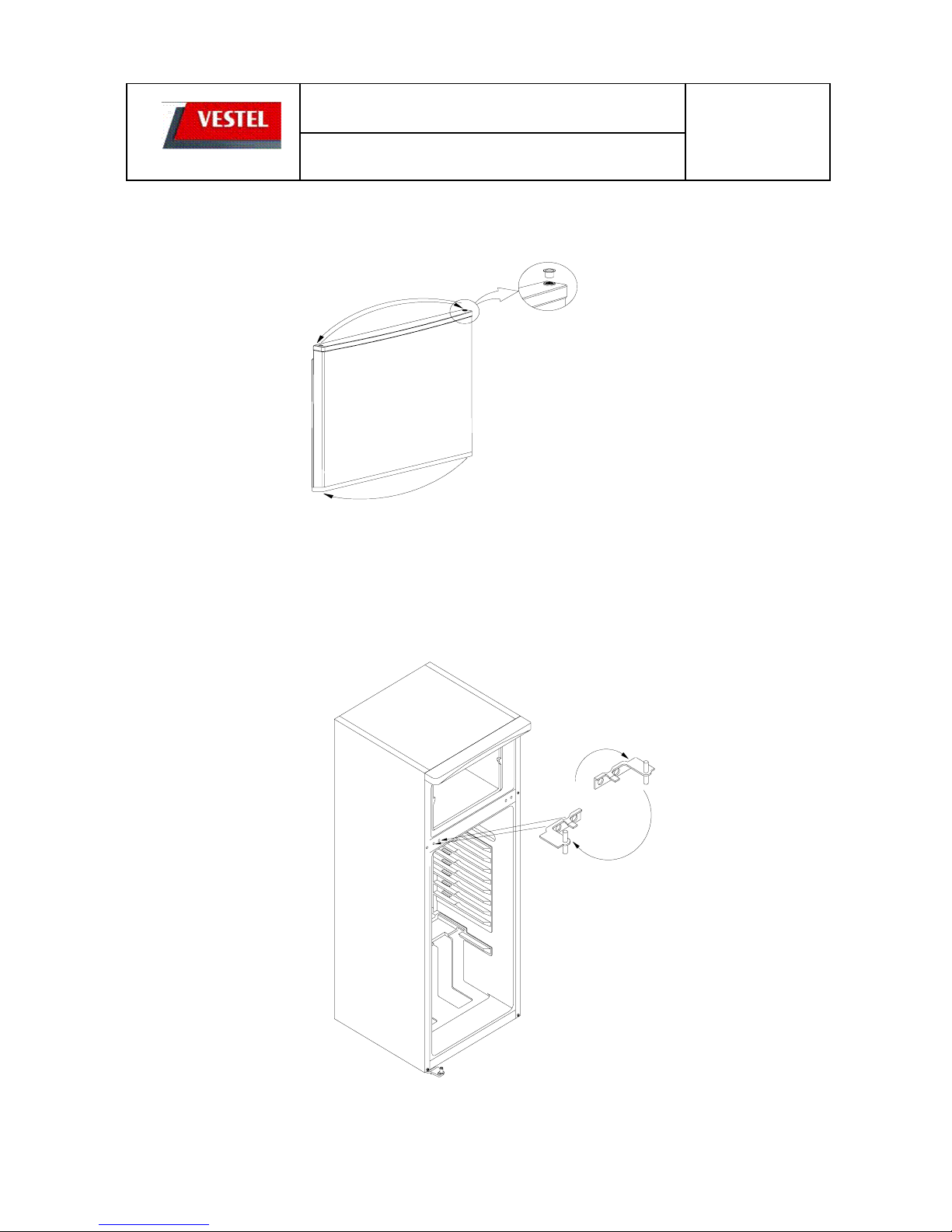

Figure - 8

7- Replace the top bushing and top bushing cap. (Fig-8)

Remove the bottom bushing assemble it to the left hole. (Fig-8)

Figure - 9

Turn the middle

hinge 180°

8- Turn the middle hinge 180º . Assemble the freezer door and refrigerator door

together with middle hinge. (Reverse operation of item 2) Fix the middle hinge by

tighting the screws. (Fig-9)

FREEZER

DOOR

CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

WHITE GOODS ASSEMBLE & DISASSEMBLE

B - Changing The Thermostat :

1) Remove the lamp cover and unscrew the fixing screw.

2) Remove the screw cap and unscrew the fixing screw.

3) Remove the thermostat box by pulling it and disconnecting the wire connector.

4) Remove the thermostat knob by pulling forward. Loosen the nut fixing the thermostat.

5) Pull out the thermostat bulb from the housing.

6) Replace the thermostat with a new one and assemble the thermostat box following the steps

backwards.

C - Thermostat Knob

This knob is used to control the temperature of the freezer and refrigerator parts automatically. It can

be set to any value between “0“ and “5“positions.

“ 0 ” position indicates that the thermostat is “off ”.The refrigerator is “off ” on this setting.

By turning the knob between “1” and “5”, you can increase or decrease the cooling degree.

The refrigerator is designed to get optimum performance when the thermostat knob is set between

position “2” to “4”.

CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

WHITE GOODS REFRIGERANT CYCLE DIAGRAM

F EVAPORATOR

R EVAPORATOR

CAPILLARY

DRYER

HOT PIPE

SUCTION PIPE

R EVAPORATOR

CONDENSER

SUCTION PIPE

CONDENSER

COMPRESSOR

F EVAPORATOR

DRYER

CAPILLARY

HOT PIPE

COMPRESSOR
