VEVOR XC6527 Bedienungsanleitung
Technical Support and E-Warranty Certificate www.vevor.com/support
GEAR PULLER
MODEL: XC6527
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings
you might benefit from buying certain tools with us compared to the major top brands and does not necessarily
mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are
placing an order with us if you are actually saving half in comparison with the top major brands.
1
MODEL: XC6527
Have product questions? Need technical support? Please feel free to
contact us: Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
GEAR PULLER
2
Safety & Warning
Read and understand this entire manual before assembling, installing,
operating, or servicing this product. Failure to follow these warnings and
instructions can cause death, personal injury, or damage valuable
property.
While assembling and using this product, keep the work area clean and
well-lighted, and keep spectators and children out of the work area.
Wear ANSI-approved safety goggles, heavy-duty work gloves, and
safety shoes during use.
Use as intended only.
Before each use, inspect the general condition of the product. Check for:
broken, cracked, or bent parts, loose or missing parts, and any condition
that may affect the proper operation of the product.
After every use, wipe with a clean cloth. Then, store the product in a
safe, dry location out of reach of children and other non-authorized
people.
Ensure only genuine parts are used for replacement & Repair.
Be aware of dynamic loading! The sudden load movement may briefly
create an excess load, causing product failure.
Specifications
Model Series
XC6527
Max. Tensile Force (t)
2（Small）& 5（large）
Max. Jaw Spread(inch)
3 Small）& 7（large）
Structural Style
Mechanical
3
Figure of the Product
Part
Description
Qty.
1
Toolbox
1
2
Large Screw
1
3
Small Screw
1
4
Small Pull Jaw
3
5
Large Pull Jaw
3
6
Small Pull Block
1
7
Large Pull Block
1
4

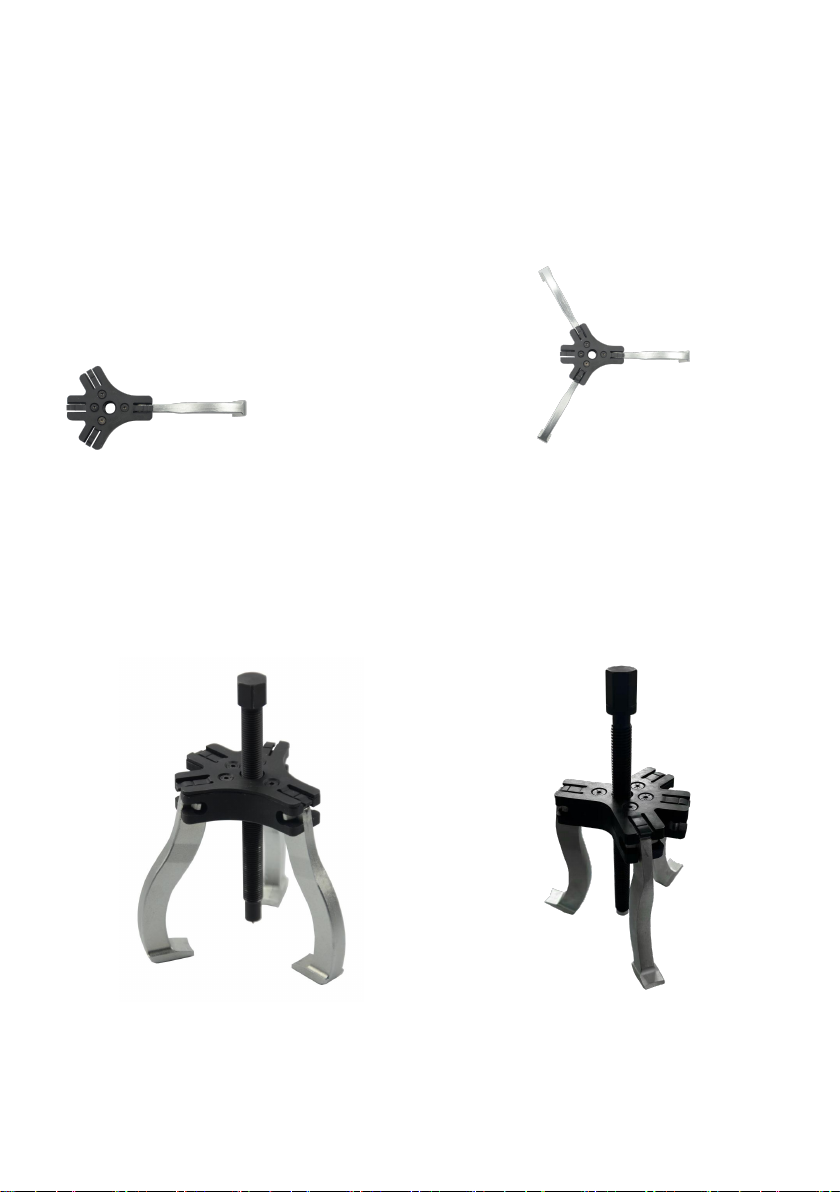

Installation instructions
Three-legged Pattern：
Step 1. Step 2.
Step 3.
OR
5
Double Leg Pattern：
Step 1. Step 2.
Step 3.
OR
Instructions
A. Gear puller is often used in mechanical maintenance.
B. It is mainly used to remove the damaged bearings from the shaft along
the axis.
6
C. It mainly comprises a rotating handle, a screw rod, and a pulling claw.
There are two claws, three claws, the main size of the length of the pull
claw, pull claw spacing, and screw length, to adapt to different diameters
and different coaxial installation depths of the bearing.
D. When in use, the screw center is positioned at the shaft end center hole
to adjust the position of the pulling claw so that the pulling claw is hooked
to the outer ring of the bearing, and the rotating handle makes the pulling
claw drive the bearing to move outward along the axis to remove.
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW
2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 91730
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
Made In China
