VIA Technologies K8T800 Bedienungsanleitung

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.1

April 26, 2004

VIAVIA

VIA K8T800K8T800

K8T800K8T800

K8T800 mainboard for AMDmainboard for AMD

mainboard for AMDmainboard for AMD

mainboard for AMD

Socket 754 based Athlon 64 processorSocket 754 based Athlon 64 processor

Socket 754 based Athlon 64 processor

User’User’

User’ss

ManualManual

Manual

60000028H5+11

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

iii

80 Port Frequently Asked Questions

Below is a list of some basic POST Codes, possible problems and solutions. For

more detailed information about POST Codes, refer to Appendix D in this manual.

POST CODE Problem Solution

FFh or CFh 1.BIOS chip inserted

incorrectly

2. Incorrect BIOS update

version

3. M ainboard problem

4. Add-on card inserted

incorrectly.

1. Reinsert the BIOS

chip

2. Download the correct

BIOS version update

from the manufacturer's

Web site.

3. Replace mainboard

4. Remove and replace the

add-on card

C1h - C5h 1. Memory module

inserted incorrectly

2. Memory compatibility

problem

3. Memory module

damaged

1. Reinsert memory

module

2. Replace memory

with correct type

3. Replace memory

module

2Dh 1. Error occured in VGA

BIOS

2. VGA card inserted

incorrectly

1. Replace VGA card

2. Reinsert the VGA

card

26h Overclock error Clear CMOS or press the insert

key to power on the system

07h - 12h 1. Init keyboard

controller error

2. RTC error

1. Ensure that the keyboard and

mouse are connected

correctly.

2. Replace the RTC battery.

Initial Keyboard

Table of Contents

Section 1 Introduction

Package Contents ...................................................... 1- 1

Mainboard Features ................................................... 1- 2

System Block Diagram ............................................... 1- 5

Section 2 Specification

Mainboard Specification ............................................ 2-1

Section 3 Installation

Mainboard Layout ..................................................... 3- 2

Easy Installation Procedure ....................................... 3- 3

CPU Insertion ............................................................. 3- 3

Jumper Settings .......................................................... 3- 6

System Memory Configuration .................................. 3-7

Expansion Slots .......................................................... 3- 9

Device Connectors..................................................... 3-11

Power-On/Off (Remote) .............................................. 3-18

External Modem Ring-in Power ON and

Keyboard Power ON Function (KBPO) ..................... 3-18

STR (Suspend To RAM) Function ............................ 3-19

CPU Overheating Protection...................................... 3- 20

Section 4 BIOS Setup

Main Menu ................................................................ 4- 1

Standard CMOS Setup ............................................... 4- 2

Advanced BIOS Features .......................................... 4- 3

Advanced Chipset Features ...................................... 4- 6

Integrated Peripherals ................................................ 4-11

Power Management Setup ......................................... 4-17

PNP/PCI Configuration .............................................. 4-20

Page

PC Health Status ........................................................ 4-22

Power BIOS Features ................................................. 4-24

Defaults Menu ........................................................... 4-26

Supervisor/User Password Setting ............................ 4-27

Exit Selecting .............................................................. 4-28

Section 5 S-ATA RAID Configuration

Introduction ............................................................... 5-1

VIA S-ATA RAID Features ........................................ 5-3

Silicon Image SiI3114 SATA RAID Features (Optional) 5-4

Enable RAID Function ............................................... 5-5

Section 6 Driver Installation

Easy Driver Installation .............................................. 6-1

Realtek Sound Manager Quick User guide ................ 6-2

Appendix Appendix A

Realtek Media Player User’s Guide ............................ A-1

Appendix B

Update Your System BIOS ......................................... B-1

Appendix C

VIA RAID BIOS Utility ................................................ C-1

Silicon Image SiI3114 RAID BIOS Utility (Optional) ..... C-7

Appendix D

POST Codes ............................................................... D-1

Page Left Blank

Introduction

Page 1-1

Section 1

INTRODUCTION

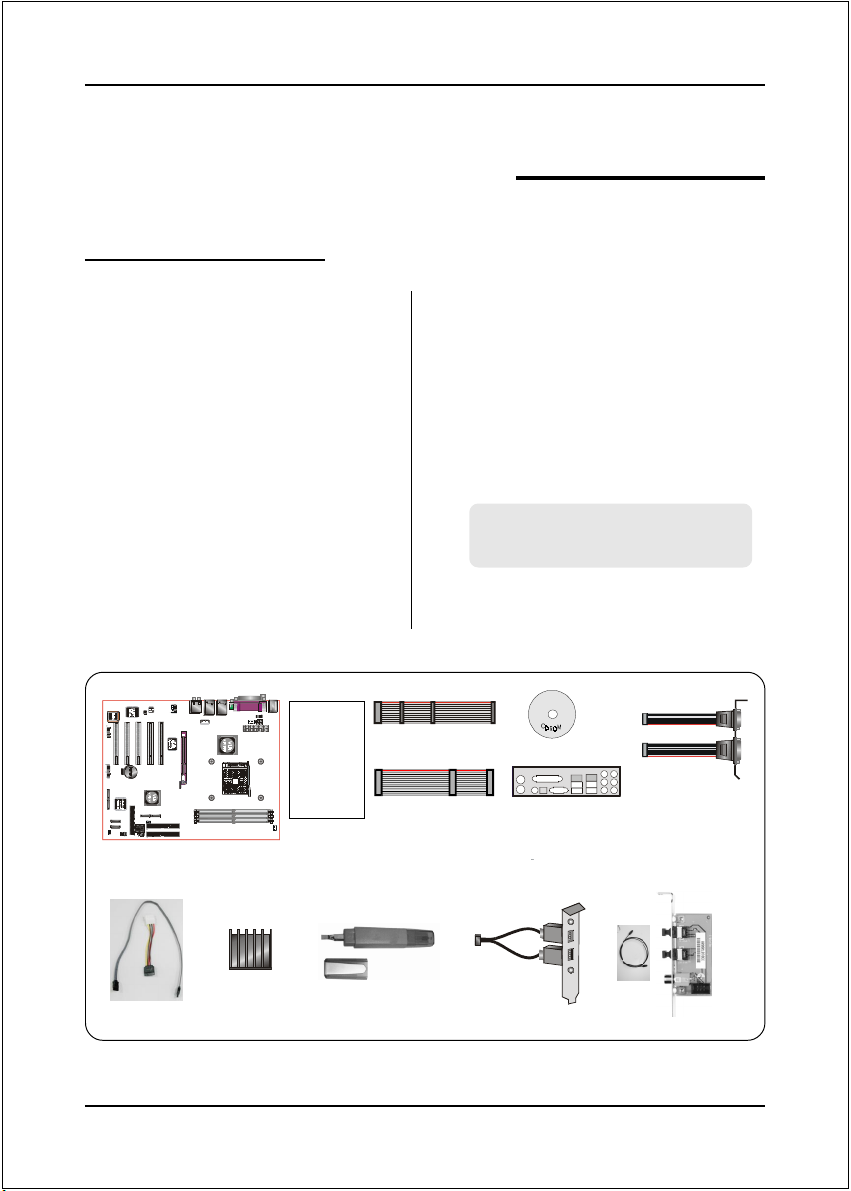

1-1 Package Contents

Contents

A. Mainboard

B. User’s manual

C. Floppy drive cable

D. HDD drive cable

E. CD (drivers and utilities)

F. I/O Shield

G. Game & COM bracket cable

H. S-ATA data and power cable

Powerpack items (Optional)

I. Mini heatsink

J. Tool Pen

K. Extra USB2.0 port cable

Optional Items

L. S/PDIF Module

USER’S

MANUAL

If you need the optional item, please

contact your dealer for assistance.

Introduction

Page 1-2

1-2 Mainboard Features

Features Brief Introduction

2AthlonTM 64 Processor

The AMD AthlonTM 64 processor family is designed to support performance

desktop. It provides a high performance HyperTransportTM link to I/O, as well

as a single 64-bit high-performance DDR memory controller.

For more information about all the new features AthlonTM 64 Processor deliver, check out

the AMD website at http://www.amd.com

2Chipset

The board is designed with VIA chipset, K8T800 as North Bridge and VT8237 as

South Bridge, providing a feature rich and scalable platform. The K8T800 North

Bridge is designed with an ultra fast HyperTransport link to the AthlonTM 64 and

comes equipped with AGP 8X features for VGA card expansion.

The K8T800 North Bridge connects to the VT8237 South Bridge through the fast

Ultra V-Link connection at 1.06GB/s. With support for two Serial ATA channels

at 150MB/s bandwidth, integrated RAID (0, 1, 0+1 & JBOD) capability as well as

up to eight USB 2.0 ports, the VT8237 offers the highest possible peripheral

performance for professional users. Additional features include a VIA MAC for

10/100Mbps Fast Ethernet, integrated PCI support.

2Accelerated Graphics Port (AGP)

The AGP slot on the board is compliant with the new AGP 3.0 specification. This

new specification enhances the functionality of the original AGP specification

by allowing 8X data transfers ( 8 data samples per clock) resulting in maximum

bandwidth of 2.1GB/s. Only 1.5V AGP cards are supported.

2Ultra ATA100/133

The mainboard provides an Ultra ATA100/133 Bus Master IDE controller. This

controller supports Ultra ATA100/133 protocols which are ideal to support

demanding applications such as real-time video, multimedia, and a high perfor-

mance operating system. A new IDE cable is required for Ultra ATA100/133.

Introduction

Page 1-3

2Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system

operation and status. The features include CPU temperature, voltage and fan

speed in RPMs.

210/100 LAN (Optional)

This mainboard is mounted with a ethernet LAN PHY. It allows the mainboard to

connect to a local area network by means of a network hub.

2GbE LAN (Optional)

This mainboard is optionally mounted with a Gigabit ethernet LAN chipset. The

new Gigabit Ethernet LAN allows data transmission at 1,000 megabits per second

(Mbps), which runs 10 times faster than conventional 10/100BASE-T Ethernet

LANs.

2Serial ATA

Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage

interface .Increases the peak data transfer speed up to 150MB/sec and allows

future enhancements to the computing platform.

2More S-ATA (Optional)

Extra SiI3114 S-ATA controller onboard for more S-ATA ports, complete with

RAID function, 4 S-ATA ports with 150MB/sec supporting RAID 0, 1 , 10, 5.

2USB2.0

A popular USB standard for plugging in peripherals with up to 480Mbps transfer

speed while maintaining backward compatibility with older USB1.1 device.

28ch

Delivers 8 channel audio to bring you the latest in audio realism from DVD

movies and games. Perfect for your home theatre system.

Introduction

Page 1-4

Special Features

&Cool ‘n’Quiet Technology

Reduce the noise and heat from your PC when AMD Cool’n’QuietTM Technology

is enabled.

&80 Port

An onboard LED-display trouble-shooting device ,facilitating user to detect

boot-up problems.

&QuickSPDIF

On board SPDIF-out connector for quick connection to 6 channel speakers. Not

only removes cable cluttering but also delivers loss-free digital audio to let you

enjoy DVD movies and games with crystal clear sound.

&Magic Health

Reports your system hardware status for every boot-up to help detect faults

early.Monitor hardware status including CPU temperature ,CPU/Memory/AGP

voltage ,fan RPM speed for chassis fan,CPU fan & Power supply fan.

&EZ-Boot

Simply press “ESC” to select your bootable device.No more hassle to serach the

BIOS menu.change and re-start.

&PowerBIOS

Supporting a full range of overclocking setting via BIOS ,Various adjustable

feature include FSB/AGP/Memory voltage tweaking.

Inhaltsverzeichnis

Andere VIA Technologies Hauptplatine Handbücher

VIA Technologies

VIA Technologies EPIA-PN Bedienungsanleitung

VIA Technologies

VIA Technologies VB8004 Bedienungsanleitung

VIA Technologies

VIA Technologies P4M266A Bedienungsanleitung

VIA Technologies

VIA Technologies K7MKLE Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-M720 Bedienungsanleitung

VIA Technologies

VIA Technologies VB8004 Bedienungsanleitung

VIA Technologies

VIA Technologies P4M890 Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-M910 Bedienungsanleitung

VIA Technologies

VIA Technologies CM30-SC Bedienungsanleitung

VIA Technologies

VIA Technologies VT310-DP Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-N800 Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-PE Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-CN13000G - VIA Motherboard - Mini ITX Bedienungsanleitung

VIA Technologies

VIA Technologies VAB-820 Bedienungsanleitung

VIA Technologies

VIA Technologies VB9001 Bedienungsanleitung

VIA Technologies

VIA Technologies P4XB-S Bedienungsanleitung

VIA Technologies

VIA Technologies P4M266A Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-E900-12Q Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-P700 Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-E900 Bedienungsanleitung

VIA Technologies

VIA Technologies PT-6VAX Bedienungsanleitung

VIA Technologies

VIA Technologies NX 15000G - VIA EPIA Nano ITX Motherboard Bedienungsanleitung

VIA Technologies

VIA Technologies EPIA-P910 Bedienungsanleitung

VIA Technologies

VIA Technologies P4PB ULTRA-URL Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
