QUICK START GUIDE
VAB-630
Android EVK v1.0.3
Copyright
Copyright © 2017 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language,
in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written
permission of VIA Technologies, Incorporated.
Trademarks
All brands, product names, company names, trademarks and service marks are the property of their respective holders.
Disclaimer
VIA Technologies makes no warranties, implied or otherwise, in regard to this document and to the products described in this
document. The information provided in this document is believed to be accurate and reliable as of the publication date of this
document. However, VIA Technologies assumes no responsibility for the use or misuse of the information (including use or
connection of extra device/equipment/add-on card) in this document and for any patent infringements that may arise from the use of
this document. The information and product specifications within this document are subject to change at any time, without notice
and without obligation to notify any person of such change.
VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any time without prior notice.
VAB-630 Android EVK v1.0.3 Quick Start Guide
iii
Revision History
Version Date Remarks
1.00 08/11/2017
Initial release
VAB-630 Android EVK v1.0.3 Quick Start Guide
iv
Table of Contents
1. Introduction ................................................................................................................................... 1
EVK Package Contents .......................................................................................................... 1
1.1.
Firmware Folder Contents ............................................................................................ 1
1.1.1.
Document Folder Contents.......................................................................................... 1
1.1.2.
Tools Folder Contents .................................................................................................. 1
1.1.3.
Version Information and Supported Features .................................................................. 2
1.2.
2. Image Installation ......................................................................................................................... 3
Requirements .......................................................................................................................... 3
2.1.
Booting from the SPI ROM with eMMC ............................................................................ 3
2.2.
3. Hardware Functions ..................................................................................................................... 4
Setting Up U-Boot Parameters ............................................................................................ 4
3.1.
Configuring Display Parameters .......................................................................................... 6
3.2.
Setting Up the LVDS Display Parameter .................................................................... 6
3.2.1.
Setting Up the HDMI Display Parameter ................................................................... 7
3.2.2.
Smart ETK ................................................................................................................................ 8
3.3.
Installing Smart ETK ....................................................................................................... 8
3.3.1.
Testing Watchdog Timer Function .............................................................................. 9
3.3.2.
Testing GPIO Function................................................................................................. 10
3.3.3.
Testing UART Function ................................................................................................ 12
3.3.4.
4. Accessories .................................................................................................................................. 14
Configuring the EMIO-2531 miniPCIe / EMIO-5531 USB Wi-Fi & Bluetooth Module 14
4.1.
Connecting to the Internet ......................................................................................... 14
4.1.1.
Enabling Bluetooth ...................................................................................................... 16
4.1.2.
4.1.2.1. Setting Up Bluetooth A2DP Profile ................................................................. 16
4.1.2.2. Setting Up Bluetooth SPP Profile ..................................................................... 16
Configuring the EMIO-2550 miniPCIe Mobile Broadband Module .......................... 19
4.2.
Connecting to the Internet ......................................................................................... 19
4.2.1.
Enabling 3G ................................................................................................................... 20
4.2.2.
VAB-630 Android EVK v1.0.3 Quick Start Guide
1
1. Introduction
This Quick Start Guide provides an overview on how to boot the Android EVK system
image in the VAB-630 board and configure the supported hardware functions in the
build.
The VAB-630 Android EVK v1.0.3 is developed based on Android 5.0.0 (Lollipop) and it
enables the hardware features of the VAB-630 board.
EVK Package Contents
1.1.
There are three folders in the package as listed below.
Firmware folder Description
VAB-630_Android_EVK_v1.0.3.zip Android EVK system image and installation script
files
Document folder Description
VAB-630_Android_EVK_v1.0.3_Quick_Start
_Guide_v1.00_20170811.pdf Quick start guide
Tools folder Description
SmartETK_SDK_Sample.apk Smart ETK demo program
BluetoothSPPTest.apk Bluetooth SPP testing program
arm_201103_gcc4.5.2.tgz Toolchain
VAB-630 Android BSP contents
Firmware Folder Contents
1.1.1.
VAB-630_Android_EVK_v1.0.3.zip: The Android EVK system image and installation
script files.
Document Folder Contents
1.1.2.
VAB-630_Android_EVK_v1.0.3_Quick_Start_Guide_v1.00_20170811.pdf: This Quick Start
Guide provides an overview on how to boot the Android EVK system image in the VAB-
630 board and configure the supported hardware functions in the build.
Tools Folder Contents
1.1.3.
SmartETK_SDK_Sample.apk: is the Smart ETK demo program.
BluetoothSPPTest.apk: is the Bluetooth SPP profile test program.
arm_201103_gcc4.5.2.tar.gz: is a toolchain, which is a set of software development tools
for building images for the VAB-630 board.
VAB-630 Android EVK v1.0.3 Quick Start Guide
2
Version Information and Supported Features
1.2.
•U-Boot version: 1.1.4
•Kernel version: 3.4.5
•Evaluation image: Android Lollipop 5.0
•Development based on WM8980 Android_5.0_v0.2.0
•Supports SPI with eMMC boot
•Supports HDMI or LVDS display
•Supports HDMI audio output
•Supports ONation capacitive touch panel (through USB interface)
oONation 10.1” LVDS Panel VIA1001 OT101RBWDLT-00 (1280×800)
•Supports Debug UART connector
•Supports Line-out and Mic-in
•Supports Micro USB 2.0 OTG port
•Supports 10/100Mbps Ethernet
•Supports EMIO-5531 USB Wi-Fi & Bluetooth module
oSupports Bluetooth A2DP and SPP profile
•Supports EMIO-2531 miniPCIe Wi-Fi & Bluetooth module
oSupports Bluetooth A2DP and SPP profile
•Supports EMIO-2550 miniPCIe Mobile Broadband module
•Supports Smart ETK v1.0.3 GPIO, Watchdog timer, and UART
VAB-630 Android EVK v1.0.3 Quick Start Guide
3
2. Image Installation
The VAB-630 only supports booting Android from the SPI ROM with eMMC. This section
explains the setup requirements for booting from the SPI ROM with eMMC.
The installation script files, the precompiled U-boot and image are provided in the
“Firmware” folder.
Requirements
2.1.
•Host machine
•Micro SD card
•EVK package : VAB-630_Android_EVK_v1.0.3.zip
Booting from the SPI ROM with eMMC
2.2.
The first step is to insert a Micro SD card into the host machine and create a FAT
formatted partition. Next, extract the VAB-630_Android_EVK_v1.0.3.zip and copy the
bspinst folder and scriptcmd file onto the Micro SD card.
Insert the prepared Micro SD card into the VAB-630, connect an HDMI display, and
power on the device to initiate the update process.

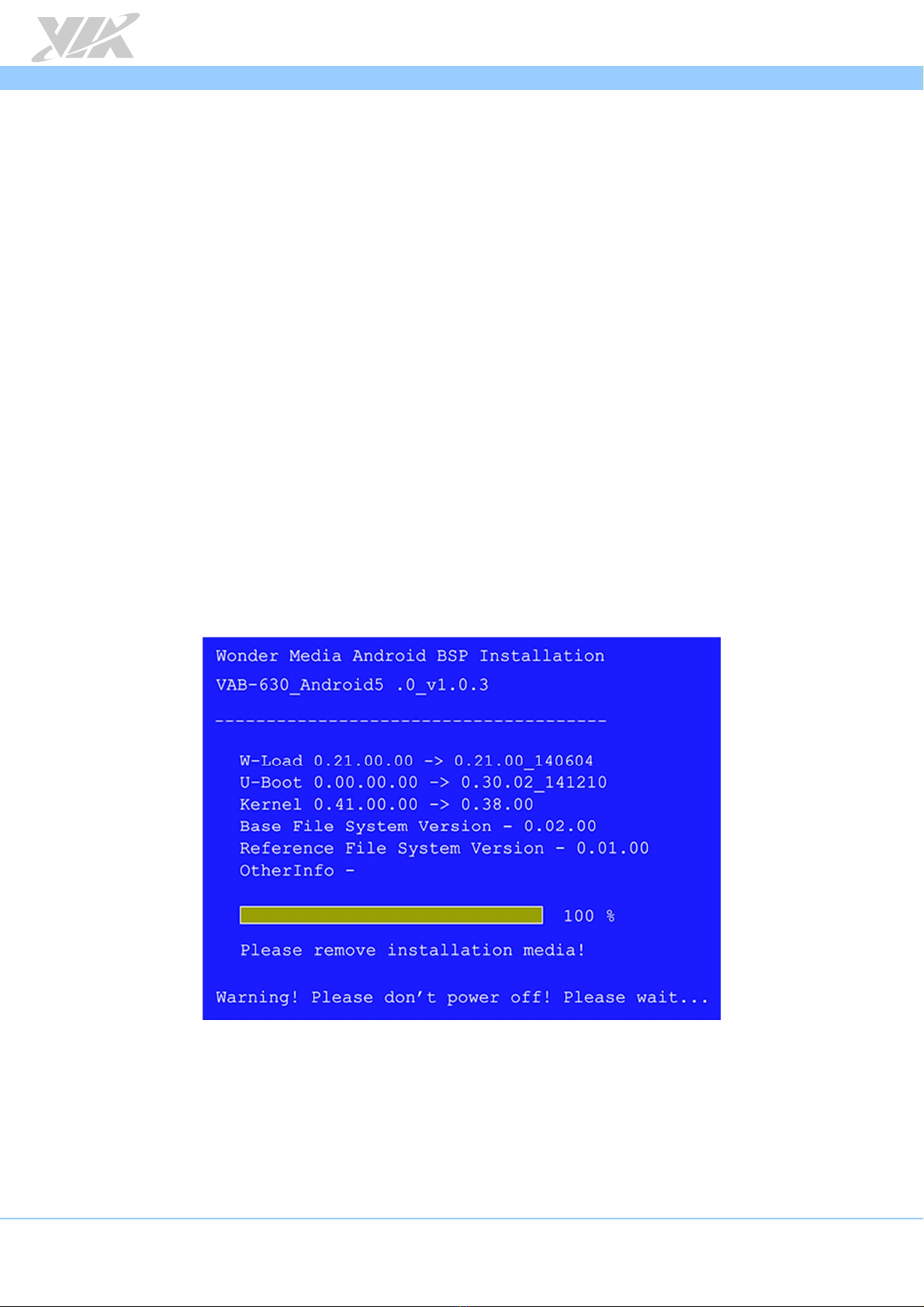

Update process screen
*Note:
Keep the power on during the installation process. After the installation process has
completed, the system will automatically restart.
VAB-630 Android EVK v1.0.3 Quick Start Guide
4
3. Hardware Functions
This section explains how to enable and test the hardware functions precompiled in the
VAB-630 Android EVK including setting u-boot parameters, configuring displays settings
as well as installing and applying the different functions included in the VIA Smart ETK
sample program.
Setting Up U-Boot Parameters
3.1.
VIA recommends that console board (P/N: 15GCU000000-20) and console cable (P/N:
99G33-192486) are used in order to configure the VAB-630 parameters.
The first step is to connect the host machine to the console board, then connect the
console board to the VAB-630 through the Debug UART connector (J1). Use a serial
port communication program such as PuTTY, GtkTerm, or Minicom, to configure the
serial port setting and connect to the debug console. There you will be able to see the
U-Boot boot log and adjust settings in the U-Boot console.
Serial port setting of host machine
Debug UART connector (J1) diagram
OPEN
LOCK
VAB - 630
J1
1
1
VAB-630 Android EVK v1.0.3 Quick Start Guide
5
Pin Signal
1 UART0TXD
2 UART0RXD
3 SFCLK
4 GND
5 SFDO
6 SFDI
7 SFCS0-
8 VCC_SF
Debug UART connector (J1) pinout
Next, power on the VAB-630 to initiate the boot process. When prompted, press any
key to stop the boot process and enter the U-Boot console as illustrated by the
screenshot below.
WonderMedia Technologies, Inc.
W-Load Version : 0.21.00.00
Uncompressing U-Boot... done, booting U-Boot.
U-Boot 1.1.4 (Oct 13 2016 - 12:13:07)
WonderMedia Technologies, Inc.
U-Boot Version : 0.32.00.00
logo = 680 ms
Hit any key to stop autoboot: 0
WMT #
Debug console view of boot process
VAB-630 Android EVK v1.0.3 Quick Start Guide
6
Configuring Display Parameters
3.2.
The VAB-630 Android BSP v1.0.3 supports the following display devices:
•ONation 10.1” LVDS Panel VIA1001 OT101RBWDLT-00 (1280×800)
•HDMI monitor (default)
The following sections below describe how to switch the settings from HDMI to LVDS,
and vice versa.
Setting Up the LVDS Display Parameter
3.2.1.
To set up the LVDS monitor, first connect the ONation LVDS panel to the VAB-630
board through the LVDS1 connector
.
Connecting LVDS panel
Use the following command to change the U-Boot parameters for the ONation LVDS
Panel
WMT # setenv wmt.display.fb0 0:[6:0:18:1280:800:60]
WMT # setenv wmt.display.ui.res 1280:800
WMT # saveenv
WMT # reset
From the output above we can see 1280:800 is the detected resolution set for the LVDS
panel.
LVDS Panel display
(Rear side)
2
1
