Roughneck® V920D Series

Camera Domes

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8258-20-00

Product specications subject to change without notice.

Issued: 1012

Quick Guide

V920D Series Quick Installation Guide

1. Description

The information in this manual provides quick installation and setup procedures for the Roughneck®

V920D Series of Camera Domes. These units should only be installed by a qualified technician using

approved materials in conformance with federal, state, and local codes. Read these instructions

thoroughly before beginning an installation. Always refer to Vicon’s website to assure you have the

most up-to-date manual, www.vicon-security.com.

The V920D Series of HD IP Camera Domes is designed for demanding security installations. It offers a

number of fixed network camera versions that deliver crisp clear images to fit any installation need;

models with IR illuminators are available. The V920D cameras are fully compatible with all ViconNet®

systems; its ONVIF certification provides an open-platform for integration into other video

management systems.

The housing is designed for easy installation. PoE eliminates the need for power cables, providing a

cost-effective method of installation. The V920D features an autoiris lens that adapts to changing

outdoor lighting; the true day/night camera includes a removable IR cut filter. The camera dome is

IP66 rated with a vandal-proof casing that withstands rain, dust and vandalism. It provides 3-axis

adjustment. The alarm input and alarm output can be used to connect various third party devices,

such as door sensors and alarm bells.

• Installation Steps

Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list below.

2. Connect the network camera.

3. Set an IP address.

4. Set the password.

V920D Series Quick Installation Guide

• Package Component

The system comes with the following components:

Cameraunit InstallationCD InstallationGuide TemplateSheet AccessoryKit

Optional OSD Controller

Check your package to make sure that you received the complete system, including all components

shown above.

Note: The optional V920D-OSD OSD Controller can be purchased separately.

• Contents in the installation CD

1. The V920D User’s Manual

2. The SmartManager User’s Manual

3. The SmartManager Installation software

Note: Check your package to make sure that you received the complete system, including all

components shown above.

V920D Series Quick Installation Guide

2. Installation

For the operation of the network camera, it is necessary to connect a network cable for data

transmission (IP version) and power connection from supplied power adapter. Depending on operation

methods, it is possible to additionally connect an alarm cable. Refer to the full User's manual .

2.1 Connection

Connection Description

NO Connector Name Description

1 Micro-SD Slot Micro-SD memory slot

2 Service Monitor Port Service Monitor & OSD Controller Communication Port, Mono Jack

3 Audio In & Out Port Audio Input and Output, Mono Jack.

4 Alarm In & Out Port

Alarm Input and Output, 3pin terminal.

Pin 1: Alarm In

Pin 2: GND

Pin 3: Alarm Out

5 Main Power

Main Power, 2pin terminal,

12 VDC 470 mA (4 W), 24 VAC 520 mA (6.5 W) IR on, without heater, or

24 VAC 1.13 A (25.5 W) with IR and heater

Pin 1: 12 VDC/24 VAC, Pin 2: GND/24 VAC

6 RJ-45 Port Ethernet, RJ-45 port compatible with 10/100Mbps having PoE functionality.

Micro SD memory slot on the Board

Card Slot for Micro SD memory: Socket “J15”

• Connecting to the RJ-45

V920D Series Quick Installation Guide

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection

to a hub.

A router featuring PoE (Power over Ethernet) can also be used to supply power to the camera.

• Connecting Alarms

AI (Alarm In):

External devices can be used to signal the network camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.

G (Ground):

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

Alarm Out:

The network camera can activate external devices such as buzzers or lights. Connect the device

to the AO (Alarm Out) and G (Ground) connectors.

• Connecting the Power

Connect the power of 12 VDC or 24 VAC for the network camera. Connect the positive (+) pole to

the ‘+’ position and the negative (-) pole to the ‘-’ position for the DC power.

Be careful not to reverse the polarity when connecting the power cable.

A router featuring PoE (Power over Ethernet) can also be used to supply power to the

camera.

The heater can only be powered by a 24 VAC power source.

If using PoE, the heater will not operate at all.

For the power specifications, refer to the Appendix, Product Specification.

If PoE and 12 VDC are both applied, the camera will be supplied with power from PoE.

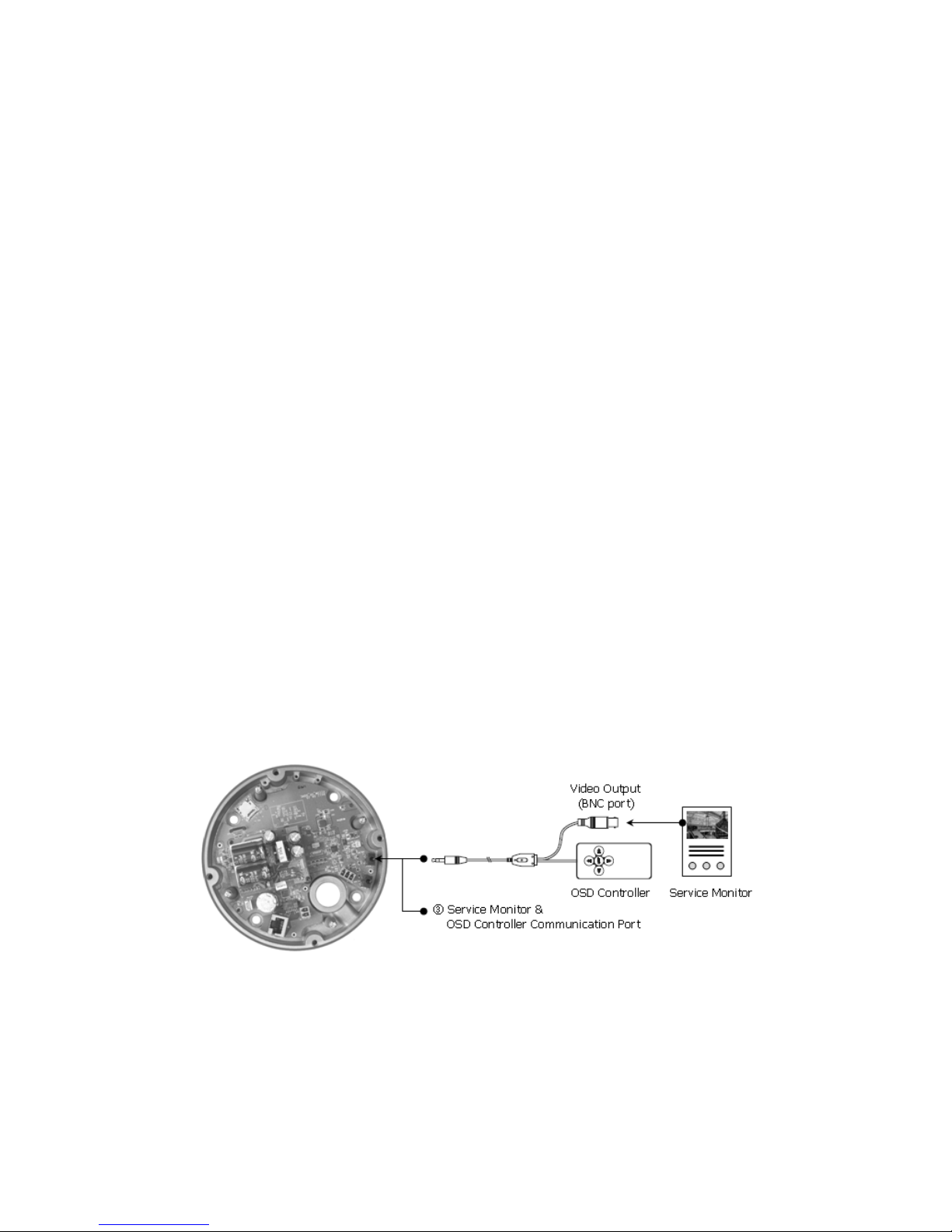

• Connecting Service Monitor Port

Service monitor output port (J7) is located on the board of the dome camera, and is used for an

easy OSD setup.

▶ID & IP assignment

To make changes in the OSD menu, use the OSD controller (provided optionally). You can set

Camera Title and IP Address.

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

V920D Series Quick Installation Guide

3. Press the SET key to access Main menu.

4. Change Camera ID, and IP Address. You can change the Name or Title and IP address of the

camera. Using the ↑↓←→ buttons on the controller, change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

Video Outputis used for an easy zoom and focus control when installing lens. Video Output is

restricted to 704x480 (576) resolution.

▶Zoom & Focus Control (Models with motorized lens only)

The camera enters Zoom and Focus control mode as soon as connecting OSD Controller to the

Service Monitor port.

-.ZoomControl: ↑(Zoom In), ↓(Zoom Out)

-.FocusControl: ←(Focus Near), →(Focus Far)

-. Fine Focus: Press and hold the SET button for at least 2 seconds. The camera readjusts

focus automatically.

Note: The optional V920D-OSD OSD Controller can be purchased separately.

Heater

Power Supply 24 VAC

Power Consumption 20 Watt

Heater On at 41°F (5°C)

Heater Off at 59°F (15°C)

Caution: The heater requires 24 VAC. If using PoE or 12 VDC, the heater will not operate.

V920D Series Quick Installation Guide

2.2 Network Connection and IP assignment

The IP network camera supports the operation through the network. When a camera is first

connected to the network it has no IP address. It is necessary to allocate an IP address to the device

with the “Smart Manager” utility on the CD. The factory default IP is 192.168.1.254.

1. Connect the network camera/device to the network and power up.

2. Start SmartManager utility (All Programs>SmartManager>SmartManager), the main window will

be displayed, after a short while any network devices connected to the network will be displayed

in the list.

3. Select the camera on the list and click right button of the mouse. The pop-up menu displays as

below.

4.Select Assign IP. The Assign IP window displays.

Note: For more information, refer to the Smart Manger User’s

Manual.

V920D Series Quick Installation Guide

3. Operation

The network camera can be used with Windows operating system and browsers. The recommended

browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows.

3.1 Access from a browser

1. Start a browser (i.e., Internet Explorer).

2. Enter the IP address or host name of the network camera in the Location/Address field of your

browser.

3. A starting page displays. Click Live View or Setup to enter web page.

4.Click Live View for the network camera’s Live View page to appear in the browser.

3.2. Access from the internet

Once connected, the network camera is accessible on your local network (LAN). To access the

network camera from the Internet you must configure your broadband router to allow incoming data

traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to

automatically configure the router to allow access to the network camera. This is enabled from Setup

> System > Network > NAT.

For more information, refer to “3.5.5 System>Network>NAT” of User’s Manual.

V920D Series Quick Installation Guide

3.3 Setting the admin password over a secure connection

ain access to the camera, the password for

he default administrator user must be set. This

is done in the “Admin Password” dialo

, which is

displayed when the network camera is accessed

or the setup at the first time. Enter your admin

name and password, set by the administrator.

Note: The default administrator username is

“ADMIN” and password is “1234”. If the

password is lost, the network camera must be

reset to the factory default settin

s. See “3.6

Resettin

to the Factory Default Settin

”

3.4 Live View Page

he live view pa

e comes in seven screen

modes: 1920x1080, 1280x1024, 1280x720,

704x480 (576), 640x480, 352x240 (288),

and 320x240. Select the most suitable

mode in accordance with your PC

specifications and monitorin

purposes.

1) General controls

LiveViewPage Search&PlaybackPage SetupPage HelpPage

The video drop-down list allows you to select a customized or pre-programmed

video stream on the live view page. Stream profiles are configured under Setup > Basic

Configuration > Video & Image. . For more information, see “3.5.1 Basic Configuration > Video &

Image” of User’s Manual.

Theresolutiondrop-downlistallowsyoutoselectthemostsuitable

video resolutions to be displayed on Live View page.

Theprotocoldrop-downlistallowstheselectionofthecombinationof

protocols and methods to use depending on your viewing requirements and on the properties of

the network.

2) Control toolbar

The live viewer toolbar is available in the web browser page only. It displays the following

buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the

start and stop. The Start button connects to the network camera or start playing a

videostream.

The Pause button pauses the video stream being played.
