BASIC OPERATING INSTRUCTIONS
CHRONOGRAPHS
ACCESSORIES
In 1897 the Original Swiss Army™Knife was created in the small village of Ibach,
Switzerland. Since that time, Victorinox®has become known in more than
100 countries for precision, quality, functionality and versatility.
This century old heritage has been extended to Swiss Army Watches and Timepieces.
Each reflects the ingenious design and outstanding durability we’ve come to stand
for over the years. Uncompromising craftsmanship makes these watches worthy
to carry the cross and shield emblem that symbolizes the legend of Victorinox and
the Swiss Army Brand.
Whether you’re going around the corner or around the globe, our classically styled
watches will make sure that you’re equipped for life’s adventures. No matter what
those adventures might be.
QUALITY FEATURES
Made in Switzerland.
Precision Swiss Movements.
Individually tested for water resistance; most are 100M (330 feet).
Solid stainless steel cases and/or bracelets on most models.
Scratch-resistant mineral or sapphire crystals.
Swiss Army Brand Watches are covered by a three-year limited warranty. Only our
watches are authorized by the Swiss government to carry the name “Swiss Army.”
- 2 -
WATER RESISTANCE
Water-resistant to 30 meters (100 feet/3 ATM).
Will withstand rain or splashes of water but should
not be worn while showering, swimming or diving.
Water-tested to 50 meters (165 feet/5 ATM).
Suitable for showering or swimming in shallow water.
Water-tested to 100 meters (330 feet/10 ATM).
Suitable for swimming or snorkeling.
Water-tested to 200 meters (660 feet/20 ATM).
Suitable for swimming, snorkeling or skin diving.
Water-tested to 300 meters (990 feet/30 ATM).
Suitable for swimming, snorkeling or scuba diving.
+
&
/
;
\
WATER RESISTANCE CHART
THREE HAND ANALOG QUARTZ
NOTE: Your watch will have either a “pull-out” or
“screw-down” crown. To determine this, gently try to
pull out the crown to position (2). If it does so, your
watch has a pull-out crown. If not, use the thumb and
forefinger to apply mild pressure on the crown while
rotating toward you to release it. If it does so, your
watch has a screw-down crown.
SETTING THE DATE & TIME - Pull Out Crown
A. Pull out the crown to position (2).
B. Rotate the crown toward you until the date
showing is the day before the desired setting.
C. Pull out the crown to position (3) and rotate
toward you. When midnight is reached, the
date will advance to the desired date. Continue
to turn the crown until the desired time is set. Remember, the date
advances at 12:00 midnight, not 12:00 noon.
D. Push in the crown, returning it to position (1). The date and time are
now set.
- 3 -
1 2 3
- 4 -
To Set Time Alone
Refer to instruction “C”.
SETTING THE DATE & TIME - Screw Down Crown
A. Using the thumb and forefinger, apply mild pressure on crown
while rotating toward you until crown releases.
B. Pull out crown to position (2). Turn the crown away from you
until the date showing is the day before the desired setting.
C. Pull out the crown to the fully extended position (3) and rotate
toward you. When midnight is reached, the date will advance
to the desired date. Continue to turn the crown until the desired
time is set. Remember, the date advances at 12:00 midnight,
not 12:00 noon.
D. After setting, push in the crown then press and screw down away
from you until it is sealed tight into position (1). The date and time
are now set.
To Set Time Alone
Release crown (refer to “A”) and follow instruction “C”.
- 5 -

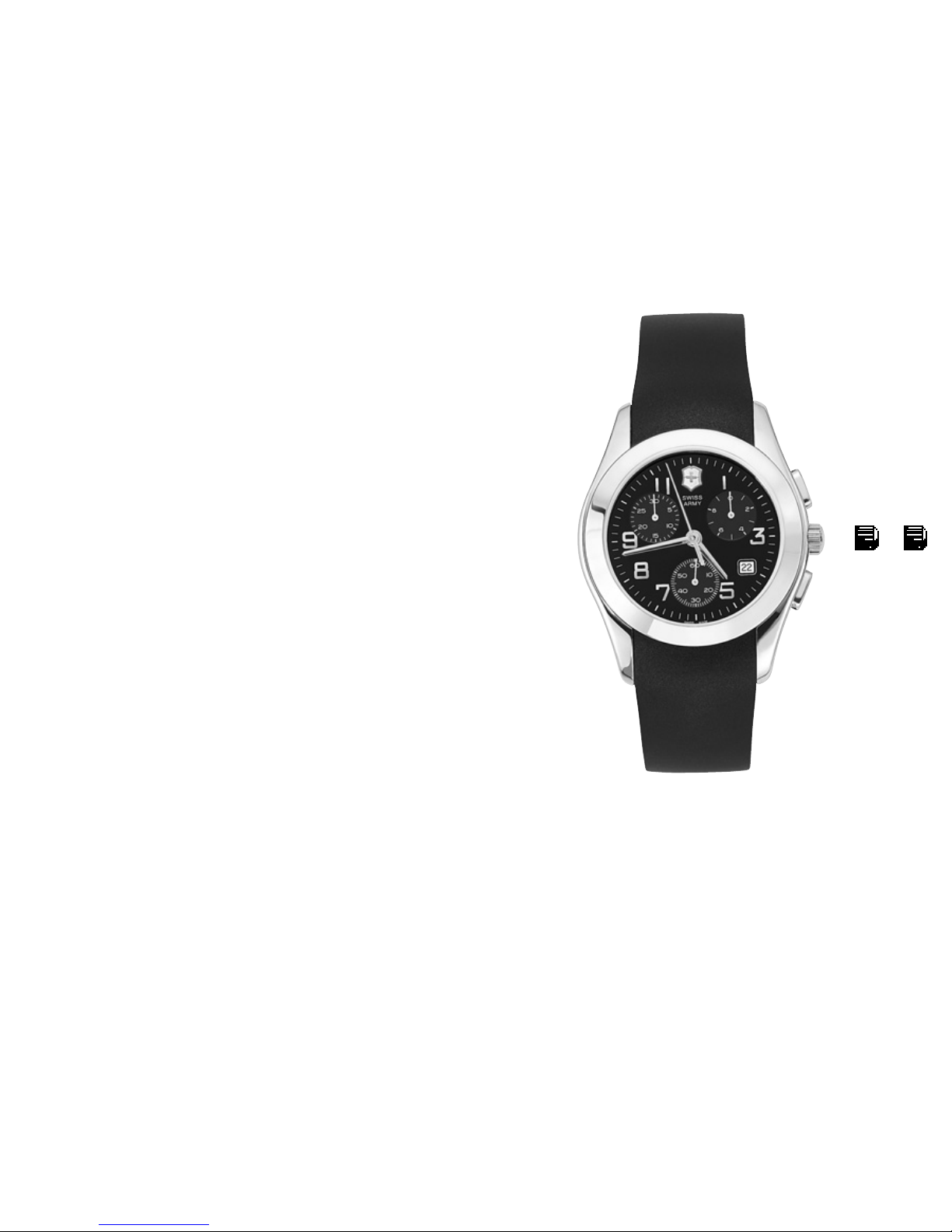

ANALOG CHRONOGRAPHS
*Refer to NOTE on page 2 to determine the type of crown on your watch.
CHRONOGRAPH OPERATING
PROCEDURE (CHRONO TYPE I, II, III, IV, V)
Chrono types I and II feature a 30-minute
counter, one-tenth second timer, sweep
second hand and date calendar. It enables
short times to be measured to an accuracy
of one-tenth of a second in a 30-minute
period. Chrono types III and IV feature a
12-hour counter, a 30-minute counter, sweep
second hand counter and date calendar.
They enable time to be measured to an
accuracy of one second in a 12-hour
period. Chrono type V features a 60-minute
counter, 60-second sweep counter and a
date calendar.
1 2 3
B
A
- 6 -
The crown has three positions:
1. Normal position – recessed.
2. Extended position – to set the date.
3. Fully extended position – to set the time.
SETTING THE DATE AND TIME (CHRONO TYPE I)
A. Pull out the crown to position (2).
B. Rotate the crown toward you until the date showing is the day
before the desired setting.
C. Pull out the crown to position (3) and rotate toward you. When
midnight is reached, the date will advance to the desired date.
Continue to turn the crown until the desired time is set.
Remember, the date advances at 12:00 midnight, not 12:00 noon.
D. Push in the crown, returning it to position (1). The date and time
are now set.
To Set Time Alone
Refer to instruction “C”.
- 7 -
CHRONO TYPE II AND V
The Quick-Set feature allows the hour hand
to be advanced without advancing the minute
hand and will also quick-set the calendar. It is
especially useful when traveling to different
time zones, as the hour hand can be rapidly
advanced to set the desired time.
NOTE: Your watch will have either a
"pull-out" or "screw-down" crown.
To determine this, gently try to pull out
the crown to position (2). If it does so, your
watch has a pull-out crown. If not, use
the thumb and forefinger to apply mild
pressure on the crown while rotating
toward you to release it. If it does so, your
watch has a screw-down crown.
1 2 3
A
B
SETTING THE DATE AND TIME (CHRONO TYPE II)
A. Pull out crown to position (2). Turn the crown away from you and the
quick-set feature will rapid-advance the hour hand. As the hour hand
passes midnight it will also advance the calendar. Continue to turn
the crown away from you until the date showing is the day before the
desired setting.
B. Pull out the crown to position (3). The seconds subdial hand will stop.
Turn the crown away from you. When midnight is reached, the date
will advance to the desired date. Continue to turn the crown until the
desired time is set. Remember, the date advances at 12:00 midnight,
not 12:00 noon.
C. After setting, push in the crown then press and screw down away
from you until it is sealed tightly into position (1). The date and time
are now set.
To Set Time Alone
Release the crown and then follow instructions “B”.
NOTE: You must always push in and screw down the crown to form a
water resistant seal with the case. Never operate the crown when the
watch is wet. - 8 -
- 9 -
SETTING THE DATE AND TIME (CHRONO TYPE III & IV)
SETTING THE DATE (Quick Mode)
A. Pull out the crown to position (2) (the watch continues to run).
B. Turn the crown until the correct date appears.
C. Push the crown back into position (1).
Please note: The date can be changed during the date changing
between 9:00 PM and 12:00 PM; please note that the date must be set to
the date of the following day as in this case the automatic date chang-
ing does not occur at midnight.
