Videodata Lilliput A10 Bedienungsanleitung

Lilliput A10

User Manual

VDH Video Data Handels GmbH

Kohlentwiete 14

22761 Hamburg

www.videodata.de

IMPORTANT SAFETY INSTRUCTIONS:

Please read User Guide before using this product.

Please keep User Guide for future reference.

Please read the cautions to prevent possible danger and loss of

property.

FEATURES:

High resolution: 3840×2160;

Wide voltage: DC 12-24V;

High brightness: 400cd/㎡;

High contrast: 1500:1;

Visual menu icon;

Quad view display.

CAUTIONS:

1. Please do not place the display screen towards the ground.

2. Please avoid heavy impact or drop onto the ground.

3. Please do NOT use chemical solutions to clean this product. Please

wipe with a clean soft cloth to maintain the brightness of the surface.

4. Please do not block any vent hole.

5. Please follow the instructions and trouble-shootings to adjust the

product. Other improper adjustment may result in damage. Any further

adjustment must be performed or conducted by a qualified technician.

6. Please unplug the power and remove the battery if long-term no-use,

or thunder weather.

YP-01160908

Contents

1. PRODUCT DESCRIPTION........................................... 5

2. DV BATTERY MOUNT PLATE ..................................... 6

3. MENU SETTING ........................................................... 7

7. ACCESSORIES .......................................................... 10

8. PARAMETERS ........................................................... 11

9. TROUBLE SHOOTING............................................... 11

1. PRODUCT DESCRIPTION

1．MENU Dial：

Menu key：Press the dial to display menu on the screen when

screen is lit.

Options key：Left or right sliding the dial in the menu screen to

select the desired menu option.

Confirm key：Press the dial to confirm the selected option.

2．EXIT：

To return or exit the menu function.

3．F1、F2 User-definable buttons：Long press F1 or F2 key for 3-5

seconds to pop-up shortcut menu directly. As shown in Figure

(default menu button in white font).

F1：Display Model F2：Disp Rotate

4. / INPUT

Power：Long press for 3 or 5 seconds to power ON/OFF.

Switch：Short press to switch among of VGA，DP，HDMI 1，HDMI

2，DVI and SDI.

5．SDI input/output interface.

6．DVI / VGA input interface.

7. HDMI input interface.

HDMI 1: HDMI2.0, support 4K 60Hz

HDMI 2: HDMI1.4, support 4K 30Hz

8. DP input interface.

9. Speaker.

10. DC 12V power input.

11. Battery plate switch.

2. DV BATTERY MOUNT PLATE

Standard mounts process

①First place battery plate into the slot, then slide the switch to left.

②Then slide the battery plate down into the slot.

Following Four types of battery plates are suitable for this device, model

F970, QM91D, DU21 & LP-E6 (choose 2 out of 4).

MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6

DV Battery Mount Plate Specification:

Model DU21 for battery of Panasonic DV:

NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with

Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi

DZ-HS303SW/BZ-BP14S/DZ3200/BP07W.

Model QM91D for battery of SONY DV:

DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV

116/DCR-DVD/PS105K/300K/10P/1E series.

Model F970 for battery of SONY DV:

DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700,

GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C,

HVR-V1C, FX7E F330.

Model LP-E6 for battery of Canon DSLR:

5D Mark II/5D Mark III/EOS6D/EOS7D/EOS60D/EOS70D；

3. MENU SETTING

Before setting the functions, please make sure the device is

connected correctly.

3-1. F1~F2 User-definable function buttons:

Long press any F1-F2 key for 3-5 seconds to pop-up shortcut menu

directly. As shown in Figure (default menu button in white font).

Select option via sliding to the left or right.

Press to confirm option as default, then press EXIT to exit.

Functions of F1-F2 buttons can also be customized: Center Marker,

Safety Marker, Aspect, Underscan, Check Filed, Freeze, Auto,

Peaking, Display Model and Disp Rotate.

F1-F2：2 user-definable function buttons

Default function:

F1：Display Model F2：Disp Rotate

3-2. Dial

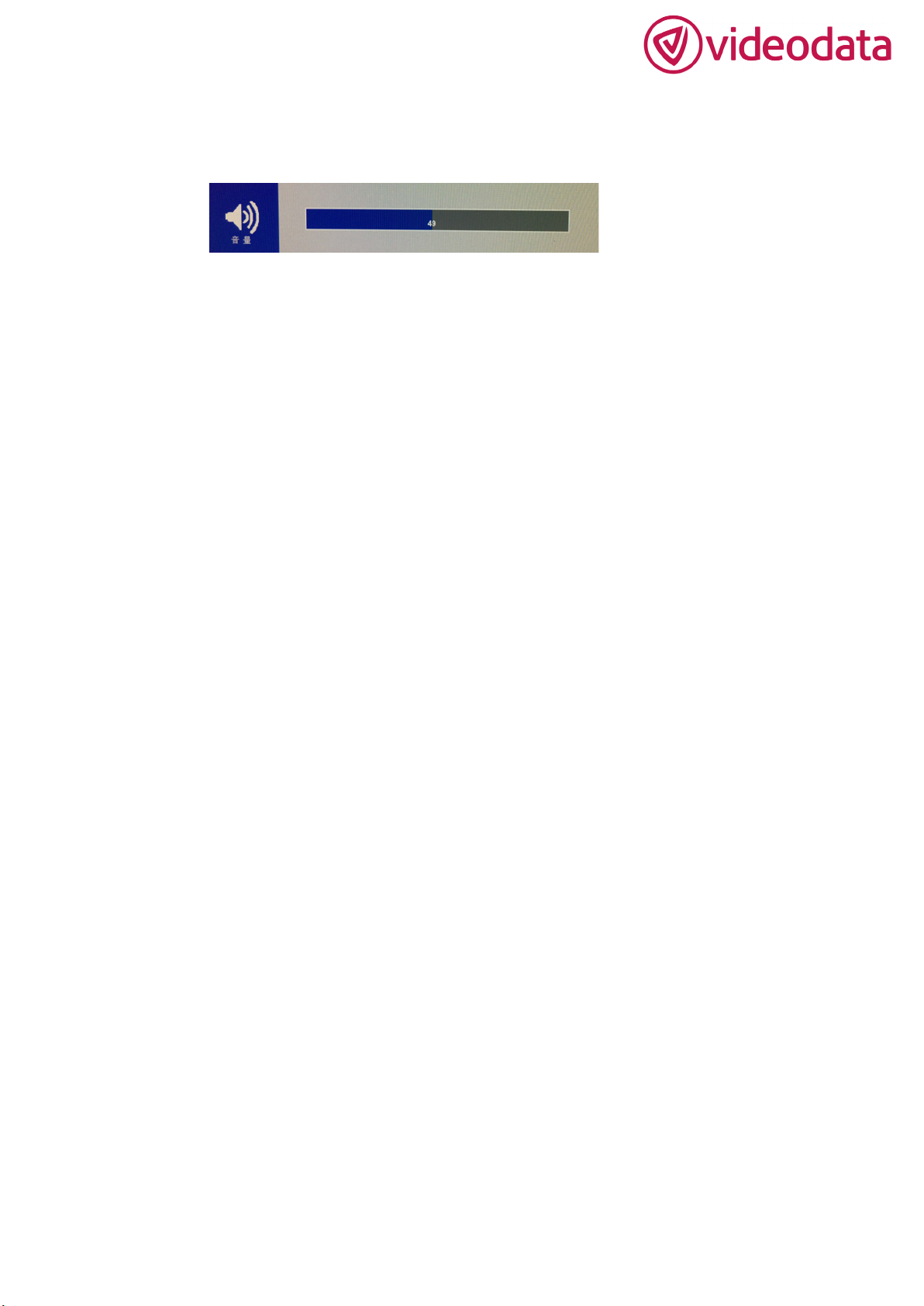

Sliding the dial to activate the volume bar when not under the menu

display

Slide the dial to adjust the value of option directly.

Press “EXIT” to exit if accidentally enter the menu.

After enter the Volume menu, press the dial to select among of

Volume, Brightness, Contrast, Saturation, Hue, Sharpness, Backlight,

Menu and Exit.

3-3. MENU Operation

When power on, press dial on the device, the menu of function setting

will display on the screen.

Sliding the dial to select the menu option;

Then press the dial to confirm;

Press“INPUT/EXIT”button to exit menu.


Brightness

0~100

Contrast 0~100

Saturation 0~100

Hue 0~100

Sharpness 0~4

Te m perature 9300, 7500, 6500, 5800, User (R.G. B)

Backlight 0~100

Function

Center Marker

ON, OFF

Safety Marker

OFF, 95%, 93%, 90%, 88%, 85%, 80%

Aspect

Full screen, 16:9, 17:9, 4:3, 1.85:1, 2.35:1

Underscan

ON, OFF

Check Filed OFF, Red, Green, Blue

Freeze Input ON, OFF

Peaking ON, OFF

Display Mode 1P，2P LR，2P TB，2P PIP，4P

Display Setting

Display Rotate 0°，90°，180°，270° Available when single

display.

LR Ratio

0~4

Available when dual

display on left and

right.

Input Swap

Select Region

Menu setting to region selected according to users’ needs.

Input

Signal switch to region selected according to users’ needs.

Audio

Volume 0~100

Audio Source Analog，Digital 1，Digital 2，Digital 3，Digital 4

。

VGA

Auto Adjust Press to confirm after selected.

Only for

adjusting

VGA

signal

modes.

H Position 0~100

V Position 0~100

Clock 0~100

Phase 0~100

System

Reset Press to confirm after selected.

Menu Time

5~60s

OSD H Position

0~100 (To set menu display area)

OSD V Position

0~100 (To set menu display area)

Language English, Chinese

Transparency

0~255 (To set menu transparency)

OSD Rotate 0°，90°，270°

Border Width 0~10

Border Color

R, G, B, W

Info

To display current information.

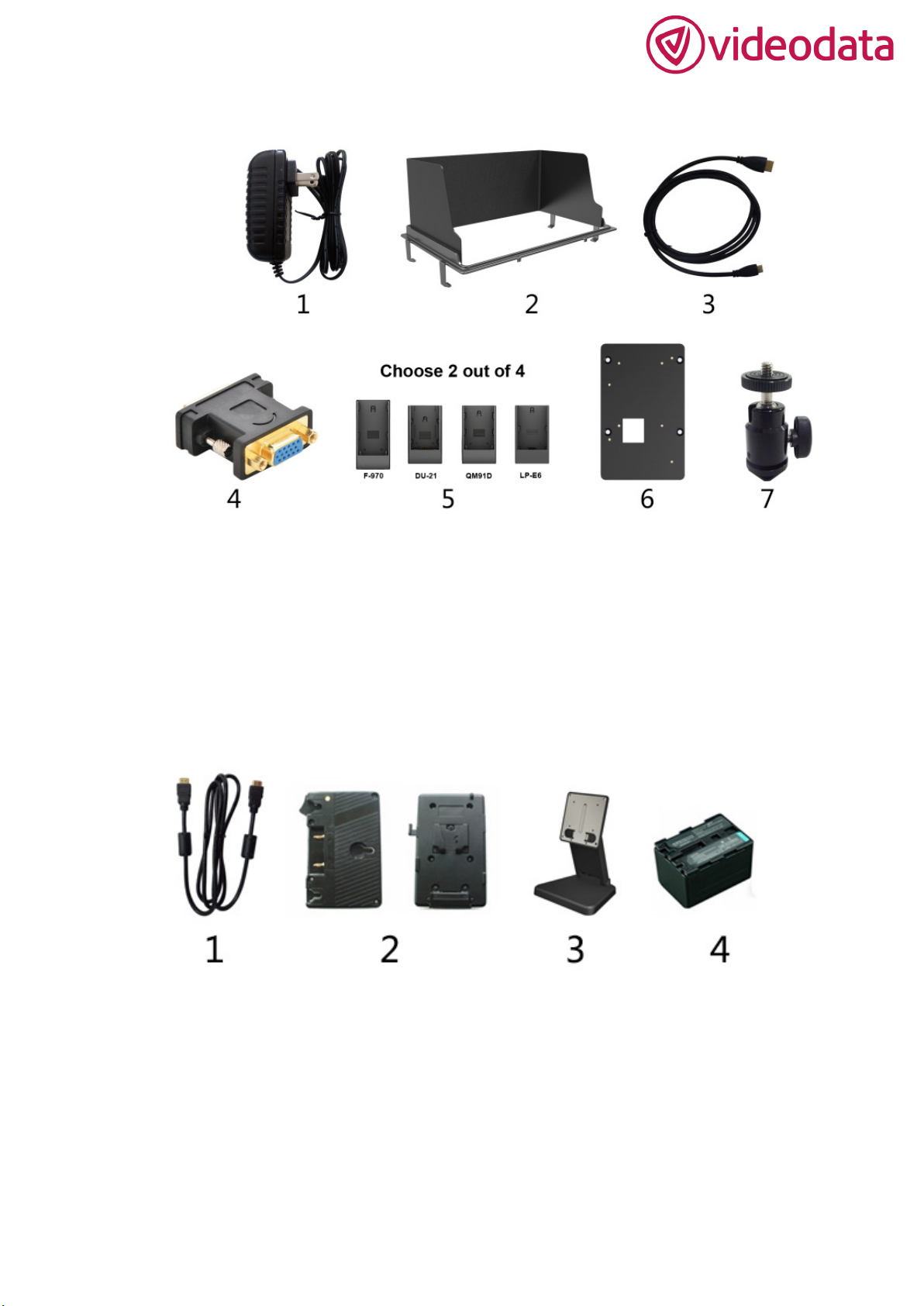

7. ACCESSORIES

Standard:

1. 12V DC adapter 1 piece

2. Folding sun shade cover 1 piece

3. HDMI A/C cable 1 piece

4. DVI to VGA connector 1 piece

5. Battery plate(QM91D, DU21, F970 or LP-E6) 2 pieces

6. VESA battery plate 1 piece

7. Shoe mount 1 piece

8. Manual 1 copy

Optional:

1. HDMI A/A cable （support 4K）1 piece

2. V-mount or Anton bauer mount 1 piece

3. VESA folding bracket 1 piece

4. Li-ion Battery 1 piece

8. PARAMETERS

9. TROUBLE SHOOTING

1. Only black-and-white display:

Check whether the color saturation is properly setup or not.

2. Power on but no pictures:

Check whether the cables of VGA, DP, HDMI, DVI and SDI are correctly

connected or not. Please use the standard power adapter coming with the

product package. Improper power input may cause damage.

3. Wrong or abnormal colors:

Check whether the cables are correctly and properly connected or not.

Broken or loose pins of the cables may cause a bad connection.

4. When on the picture shows size error:

Press “MENU →FUNCTION →Underscan” to zoom in/out pictures

automatically when receiving HDMI signals

5. Other problems:

Please press dial button and choose “MENU→SYSTEM→ Reset →ON”

6. According to the ISP, the machine can not function properly:

ISP for program upgrades, non-professionals do not use. Please reboot

your device if press accidentally!

Note: due to constant effort to improve products and product

features, specifications may change without notice.

Panel

10.1”8bit

Physical Resolution

3840×2160

Brightness

400 cd/

㎡

Contrast

1500: 1

Viewing Angle

160°/ 160°(H/V)

Input Voltage

DC 12-24V

Input Signal

VGA, Display Port, HDMI 1, HDMI 2, DVI, SDI

Power Consumption

≤12W

Operating Temperature

-20

℃

~60

℃

Storage Temperature

-30

℃

~70

℃

Dimension (LWD)

252×157×25mm

Weight

600g
