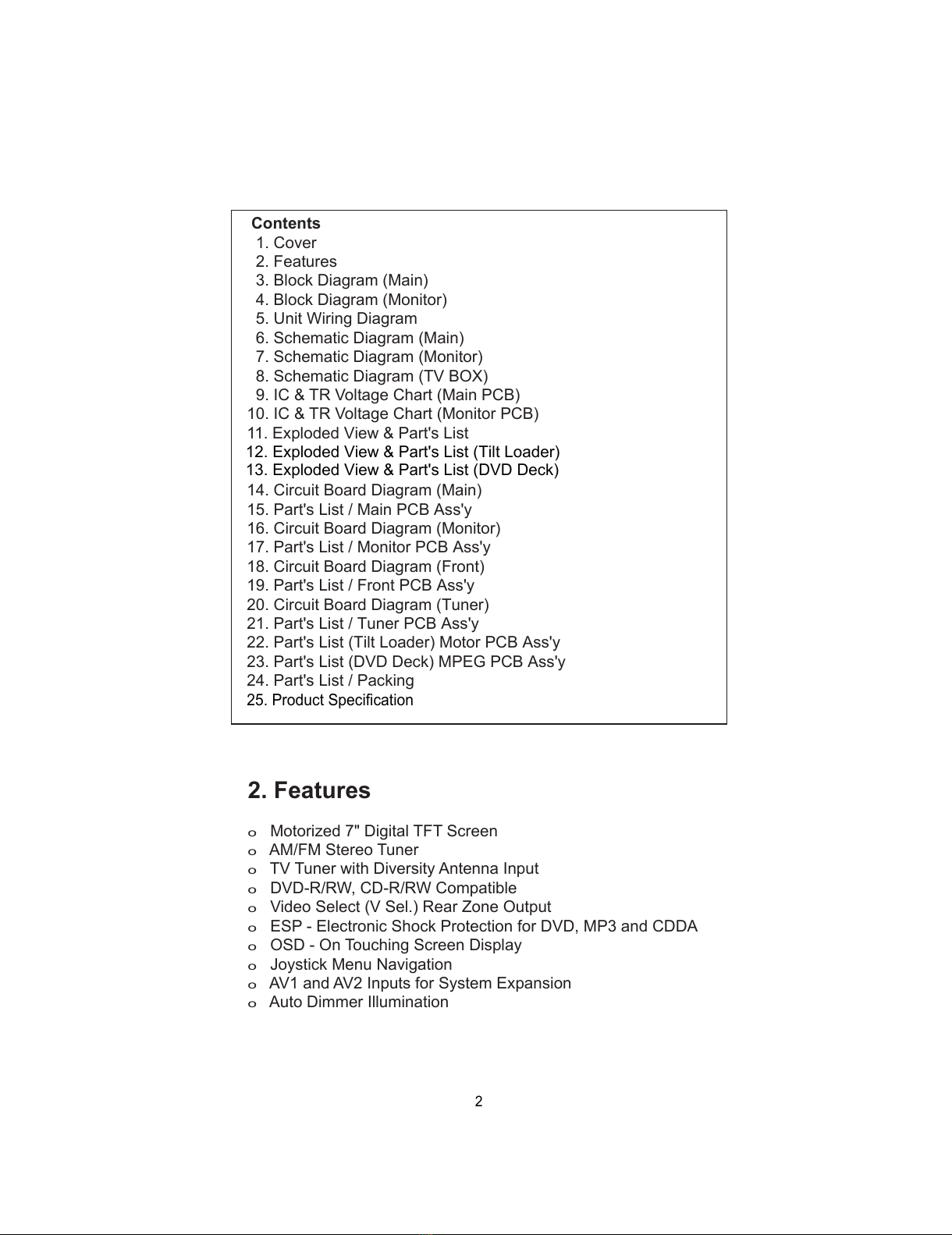

Contents
2. Features
3. Block Diagram (Main)
4. Block Diagram (Monitor)
5. Unit Wiring Diagram
6. Schematic Diagram (Main)
7. Schematic Diagram (Monitor)
8. Schematic Diagram (TV BOX)
9. IC & TR Voltage Chart (Main PCB)
10. IC & TR Voltage Chart (Monitor PCB)
11. Exploded View & Part's List
14. Circuit Board Diagram (Main)
15. Part's List /Main PCB Ass'y
16. Circuit Board Diagram (Monitor)
17. Part's List /Monitor PCB Ass'y
18. Circuit Board Diagram (Front)
19. Part's List /Front PCB Ass'y
20. Circuit Board Diagram (Tuner)
21. Part's List /Tuner PCB Ass'y
22. Part's List (Tilt Loader) Motor PCB Ass'y
23. Part's List (DVD Deck) MPEG PCB Ass'y
24. Part's List /Packing
25. Product Specification
2. Features
o
Motorized 7" Digital TFT Screen
o
AM/FM Stereo Tuner
o
TV Tuner with Diversity Antenna Input
o
DVD-R/RW, CD-R/RW Compatible
o
Video Select (V Sel.) Rear Zone Output
o
ESP - Electronic Shock Protection for DVD, MP3 and CDDA
o
OSD - On Touching Screen Display
o
Joystick Menu Navigation
o
AV1 and AV2 Inputs for System Expansion
o
Auto Dimmer Illumination
1. Cover
2
12. Exploded View & Part's List (Tilt Loader)
13. Exploded View & Part's List (DVD Deck)
