TECHNICAL MANUAL

EDITION 1.2

VANDAL RESISTANT

ONE BUTTON DOOR

ENTRY KIT WITH CODED

ACCESS

VR4K-1/CL

PAGE 2 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

PAGE 3 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

MANUAL INTRODUCTION

The information in this manual is intended as an installation and commissioning guide for

the vandal resistant one button audio intercom kit. This manual should be read carefully

before the installation commences. Any damage caused to the equipment due to faulty

installations where the information in this manual has not been followed is not the

responsibility of Videx Security Ltd.

VIDEX run free training courses for engineers who are not familiar with the Videx product

range. Technical help is also available on 0191 224 3174 during office hours or via e-mail

[email protected].

SYSTEM INTRODUCTION

This kit will enable a caller at an entrance point to signal an occupant in the dwelling by

pressing a call button which will send an electronic call tone to an audio telephone. A

Yellow ‘SPEAK’ LED will indicate the call has been answered and a two way conversation

can take place, the occupant can release an electric lock release by pressing a button on

the telephone base unit. The kit does not include the electric lock release. A 12V AC

release should be used with this kit (The output for the lock is a dry contact relay so any

other type of lock can be used with an appropriate PSU). If this kit is to be used with a

gate, the dry contact output can be used to trigger the gate control board. DDA features

such as a ‘SPEAK’ LED, ‘DOOR OPEN’ LED and reassurance tones are standard on this

kit.

A two code, two relay codelock unit is also incorporated into the door panel to allow users

to gain access using an access code.

SYSTEM COMPONENTS

This kit comprises of a flush or surface vandal resistant door panel, audio telephone and

PSU. Up to a maximum of three telephones can be used on the system to call in parallel.

DOOR PANEL

The vandal resistant door panel will consist of an amplifier module, codelock module,

button, vandal resistant plate, frame and back box.

Dip-Switches

The four way dip-switch bank has the following functions. Please note: dip-switches must

be set before power up. Any changes made when power is on will not take effect until a

power down reset.

1 2 3 4

ON Speech time

Switch 1 OFF 1 Minute

Switch 1 ON 2 Minutes

Relay time

Switch 2 OFF

Switch 3 OFF

2 Seconds

Switch 2 OFF

Switch 3 ON

4 Seconds

Switch 2 ON

Switch 3 OFF

8 Seconds

Switch 2 ON

Switch 3 ON

20 Seconds

Speech live

Switch 4 OFF Only

when

called

Switch 4 ON

(Only possible

on one door

systems)

Speech

live

whenever

a handset

is lifted

PAGE 4 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

Jumper

Jumper JP controls the reassurance tone volume level at the door panel.

POTS

Speech volume adjustments are carried out at the door panel using a small trimmer driver.

Amplifier module (VX136)

Connection Function

1 Receive speech from apartment

2 Transmit speech to apartment

+ +12Vdc input

- 0V (Ground)

5 Switched 0V from phone to trigger door release relay

T Electronic call tone output to common side of call buttons

- 0V for use with push to exit input (PTE)

PTE Switched 0V input from push to exit button to trigger door release relay

C Common connection of dry contact relay

NC Normally closed connection of dry contact relay

NO Normally open connection of dry contact relay

D+ External link to door open (+12V side) LED. Not used with this kit

D- External link to door open (0V side) LED. Not used with this kit

BSY Busy signal for use with multiple door systems (Normally high, 12V. Low when busy 0V)

SL Switched 0V output to switch on video PSU. (0V throughout a call, open collector in standby)

F1 Switched 0V output to switch on camera. (0V throughout a call, open collector in standby)

Codelock module (Art.VR4KCLM-1)

Connection Function

+ 12-24V ac/dc power input

- 0V power input

C1 Common connection of relay 1 (Dry contact)

NO1 Normally open connection of relay 1 (Dry contact)

NC1 Normally closed connection of relay 1 (Dry contact)

C2 Common connection of relay 2 (Dry contact)

NO2 Normally open connection of relay 2 (Dry contact)

NC2 Normally closed connection of relay 2 (Dry contact)

SW1 Push to exit input for relay 1 (Triggered by 0V)

SW2 Push to exit input for relay 2 (Triggered by 0V)

Adjustment for

speech volume level

at the door station

Adjustment for

speech volume at the

apartment

Position H High volume reassurance tones

Position L Low Volume reassurance tones

No Jumper No reassurance tones

PAGE 5 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

Dimensions

PANEL FLUSH BACK BOX

Surface Audio panel with codelock 135mm(W) x 280mm(H) x 43mm(D) NA

Flush Audio panel with codelock 135mm(W) x 280mm(H) x 16mm(D) 120mm(W) x 263mm(H) x 30mm(D)

POWER SUPPLY

Art.520M

The power supply is the Art.520M. Outputs of 12Vdc (200mA), 8Vdc (300mA) and 13Vac

(1A) are available. The dc outputs are designed to power the amplifier modules only and

must not be used to power other devices such as lock releases etc. These items must be

connected to the AC output of this power supply or auxiliary power supply.

TELEPHONE

Art.3111

CONNECTIONS

Terminal Function

+12 12Vdc output (200mA Max.)

+8 8Vdc output (300mA Max.)

- 0V (Ground)

~ 13Vac (1A Max.)

230 Mains in (Live connection)

0 Mains in (Neutral connection)

The Art.3111 is a white ABS plastic wall mounting electronic call

telephone and includes a lock release push button and spare dry

contact button. There is a three position call volume control external

to the top left side of the telephone.

CONNECTIONS:-

Function

1 Transmit speech to the door panel

2 Receive speech from the door panel

3 0V

4 Call tone input

5 Lock trigger (Switched 0V)

6 Not used

8 One side of spare dry contact button (Max. 200mA 24V)

9 Second side of spare dry contact button (Max. 200mA 24V)

Fuse

compartment

PAGE 6 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

BLOCK DIAGRAM

INSTALLATION

The wiring diagram towards the back of this manual should be followed carefully. Heavy

duty conductors on wiring diagrams are shown heavily outlined; these wires should be

doubled up.

- Check that all components are free from damage before installing (Do not proceed with installation in the

event of damage).

- Keep all packaging away from children.

- Do not obstruct the ventilation openings or slots on any of the devices.

- All connections to mains voltages must be made to the current national standards (IEE Wiring

regulations)

- Install an appropriate fused spur or isolation switch to isolate the mains.

- Isolate the mains before carrying out any maintenance work on the system.

- All intercom and access control cables must be routed separately from the mains.

- When the panel is mounted on an uneven surface, use additional sealant to protect from water ingress.

LOCK RELEASE

12V AC

~~ 0.1uF capacitor

CABLE SIZE GUIDE

Connections from door panel to telephone.

Connections 50m 100m 200m 300m 400m

1 0.25mm² 0.35mm² 0.5mm² 0.75mm² 1.0mm²

2 0.25mm² 0.35mm² 0.5mm² 0.75mm² 1.0mm²

3 0.25mm² 0.35mm² 0.5mm² 0.75mm² 1.0mm²

4 0.25mm² 0.35mm² 0.5mm² 0.75mm² 1.0mm²

5 0.25mm² 0.35mm² 0.5mm² 0.75mm² 1.0mm²

Maximum acceptable resistance for all terminals = 10Ω

Connections for power supply output to door panel and lock release connections. These

connections are shown heavily outlined on the wiring diagram.

50m 100m

Connections 0.5mm² 0.75mm²

The power supply should be located as close to the door panel as possible for best performance.

Lock release back EMF protection : A

capacitor should be fitted across the terminals on

an AC lock release as shown in the diagram

below to suppress back EMF voltages.

PAGE 7 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

Maximum acceptable resistance for above cables = 3Ω

TESTING THE INSTALLATION

- Check all the connections have been made correctly and dip-switches have been set

and then power up the system.

- Call the apartments. Check for call to the apartment, speech in both directions and lock

release and correct operation of the SPEAK & DOOR OPEN LED’s.

- If the volume of speech needs to be adjusted, this can be done by adjusting the presets

on the rear of the amplifier at the door panel.

- Program a code into the codelock and check it releases the door for the programmed

time.

PANEL CARE

The door panel is manufactured from 12 Gauge 304 grade stainless steel. It is important

that the facia is cleaned on regular occasions to prevent dirt build up and tarnishing of the

metal. A general household metal polish can be used but care should be taken to follow

the grain of the metal when polishing and also avoid any polish build up around the call

button which may prevent the button from operating correctly.

ACCESSORIES CONNECTION GUIDE

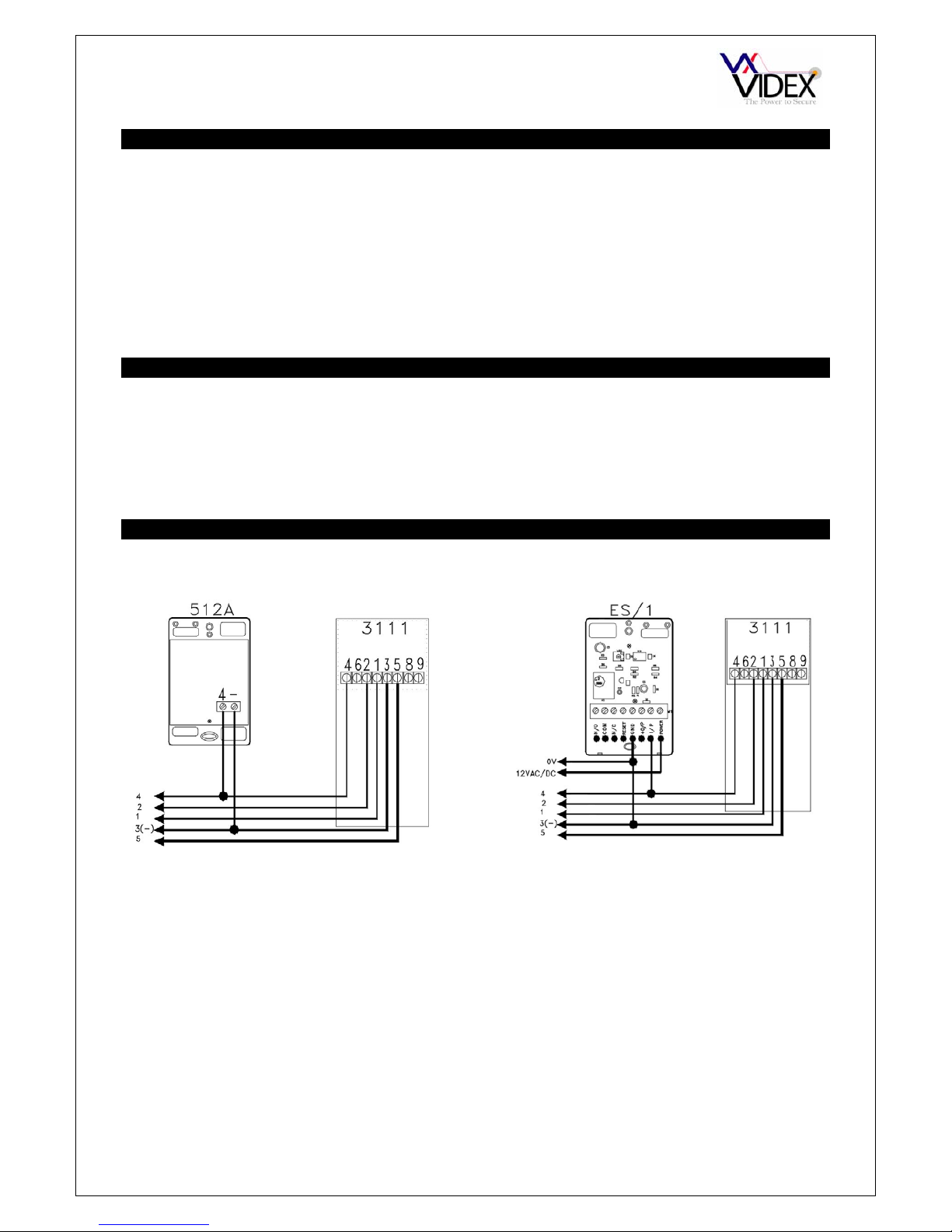

512A Extension sounder ES/1 Extension Strobe

oA normally open push to exit button can be connected across PTE & - on the door

panel.

oWhen triggering a gate, use C & NO as dry contacts.

oWhen using a fail safe lock release use a separate DC PSU and the NC connection

instead of the NO connection.

oRemember to fit the 0.1uF capacitor across the lock release.

PAGE 8 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

WIRING DIAGRAM

PAGE 9 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

VR4KCLM-1 CODELOCK

The VR4KCLM-1 includes two relays (5A contacts), two push to exit inputs (Switched

negative) and can have up to two 4 to 8 digit access codes programmed (One per relay).

The relay times can be programmed from 01 second up to 99 seconds or by setting the

relay time to 00, latch the relay (To latch, enter the code followed by enter and to unlatch

enter the code followed by clear).

INITIAL PROGRAMMING

All programming is carried out using the codelock keypad. The programming menu is

protected by an engineer’s code. The factory default engineers code is 111111 (6x1). This

code can be changed to any four to eight digit code during the program but must be

different to the codes used to gain entry. Follow the flow chart to setup the system:-

Enter the engineer’s

code.

111111

Then press enter

The red LED will illuminate to acknowledge programming mode. If the red

LED does not illuminate check the master code is correct. If the master

code may have been changed from the factory default and you do not

know what it is then follow the factory default procedure on the following

page.

Enter a new engineers

code or enter the same

engineers code again

followed b

enter

This code can be from 4 – 8 digits and will not activate a relay. It can only

be used to enter programming mode.

Note this new code in the box provided on the next page. It will be needed

to re-program the codes in the future.

Enter the access code

for relay 1 and then

press enter

This code will be used to open the door/gate (Relay 1). The code can be

from 4 – 8 digits long and must be different from the engineer’s code.

Enter a two digit relay 1

time from 00 – 99 and

then

ress enter

This is the time the relay 1 will energise for. 00 will latch the relay when

the code is entered and require the code followed by clear to unlatch.

Enter the access code

for relay 2 and then

press enter

This code will be used to open the door/gate (Relay 2). The code can be

from 4 – 8 digits long and must be different from the engineer’s code.

Enter a two digit relay 2

time from 00 – 99 and

then

ress enter

This is the time the relay 2 will energise for. 00 will latch the relay when

the code is entered and require the code followed by clear to unlatch.

codes?

YES

Press enter twice The red LED will go off to confirm the exit from programming mode.

PAGE 10 of 12 VR4K-1/CL TECHNICAL MANUAL VER1.2

VR4KCLM-1 CODELOCK REPROGRAMMING GUIDE

Enter the

engineer’s

code

Press Enter RED Light will

illuminate *

Notes:

* If the red light does not illuminate, the engineer’s code is incorrect. Follow the factory default procedure below.

** On the first loop of the flow chart its relay 1, second loop is relay 2.

FACTORY DEFAULT PROCEDURE

Step 1 Remove the power from the keypad

Step 2 Press and hold the enter button while re-powering the keypad

Step 3 Release the enter button. The factory engineer’s code is restored to 111111 (6 x 1)

Re-Enter the

engineer’s

code

Alternatively enter a

new engineer’s

code (4-8 digits)

Press Enter

Enter relay

code

Relay code (4 – 8

digits) operates the

door or gate. **

Press Enter

Enter relay

time

Press Enter

Two digits (01 – 99 Sec

or 00 for remain open)

doors?

NO Press Enter

twice to exit

programming

RED Light will

switch off

Repeat steps

for relay 2

YES

Engineers code

Relay 1 code

Relay 2 code

Relay 1 Time

Relay 2 Time

Inhaltsverzeichnis

Andere Videx Gegensprechanlage Handbücher

Videx

Videx VRVK Series Systemhandbuch

Videx

Videx VK4K/6358 Series Systemhandbuch

Videx

Videx Art.8835 Bedienungsanleitung

Videx

Videx 940ST Bedienungsanleitung

Videx

Videx IP videokit IPVK/6296 Series Systemhandbuch

Videx

Videx 4000 Series Bedienungsanleitung

Videx

Videx 4000 Series 4384 Bedienungsanleitung

Videx

Videx 5418 Bedienungsanleitung

Videx

Videx 3000 Series Bedienungsanleitung

Videx

Videx IPVK Series Systemhandbuch

Videx

Videx Kristallo Series Bedienungsanleitung

Videx

Videx Kristallo Series Bedienungsanleitung

Videx

Videx VK8K/6256 Series Systemhandbuch

Videx

Videx 4000 Series Bedienungsanleitung

Videx

Videx S6200MV Bedienungsanleitung

Videx

Videx 4000 Series Bedienungsanleitung

Videx

Videx Smart Series Bedienungsanleitung

Videx

Videx VK4K/5456 Series Systemhandbuch

Videx

Videx CVR4KV Bedienungsanleitung

Videx

Videx ESVK/6788 Series Systemhandbuch

Videx

Videx 4000 Series Bedienungsanleitung

Videx

Videx ESVK/6788 Series Systemhandbuch

Videx

Videx ESVK/6388 Series Systemhandbuch

Videx

Videx GSM4K/4G Bedienungsanleitung

Beliebte Gegensprechanlage Handbücher anderer Marken

Bticino

Bticino LINEA 3000 Bedienungsanleitung

MSI

MSI MSI-140 Bedienungsanleitung

golmar

golmar Stadio Plus Bedienungsanleitung

CyberData

CyberData 011211 series Handbuch

Vidos

Vidos duo M1021 Bedienungsanleitung

Vimar

Vimar ELVOX 7539/E Bedienungsanleitung

SSS Siedle

SSS Siedle BTSV 850-03 Bedienungsanleitung

Dahua

Dahua VTO Series Bedienungsanleitung

Elvox

Elvox 5651 Bedienungsanleitung

Rocom

Rocom Doortello Business FW T2.05W2.04 Bedienungsanleitung

Viking

Viking E-35-EWP Bedienungsanleitung

Safeguard Supply

Safeguard Supply LRA-EX1000 Bedienungsanleitung

SSS Siedle

SSS Siedle BFCV 850 Series Bedienungsanleitung

GRD

GRD MAX V2 Bedienungsanleitung

Alecto

Alecto ADI-250 Bedienungsanleitung

Aiphone

Aiphone IE-8MD Bedienungsanleitung

Perel

Perel EDB4 Bedienungsanleitung

Bticino

Bticino Classe 300 Bedienungsanleitung
