Videx 3000 Series Bedienungsanleitung

TECHNICAL SUPPORT

Tel: 0191 224 3174

Fax: 0191 224 4938

Email: [email protected]

Web: www.videxuk.com

SERIES

3000

PRIVACY ON

DOOR OPEN

OFF

PRIVACY ON

DOOR OPEN

OFF

3114

3000 Series Audiophone

QUICK GUIDE

ART. 3114

3000 Series full base "4+1" audiophone incorporating an adjustable

electronic call tone, "door open" push button including a " door open" LED,

spare service button and privacy switch with privacy ON illumination LED.

For use on traditional "4+1" audio systems that require an electronic call

tone including the following audio kits: 4K series, 8K series, VR4K series

and VR120DK series kits.

Call tone adjustment: 3 level (low, medium and high) call tone switch.

Privacy facility: 2 position privacy switch (ON/OFF).

Privacy indication: 1 privacy illumination LED (red).

Door open indication: 1 door open illumination LED (green).

QG_3114_V.1.0_03/17

Door Open button Handset speaker

Handset

microphone

Audiophone

Handset

Handset cord

Front cover

retaining

screw

3 level (low,

medium and high)

call tone volume

adjustment

OVERVIEW

Spare Service

button

Privacy ON/OFF

switch

Privacy ON LED

Door Open LED

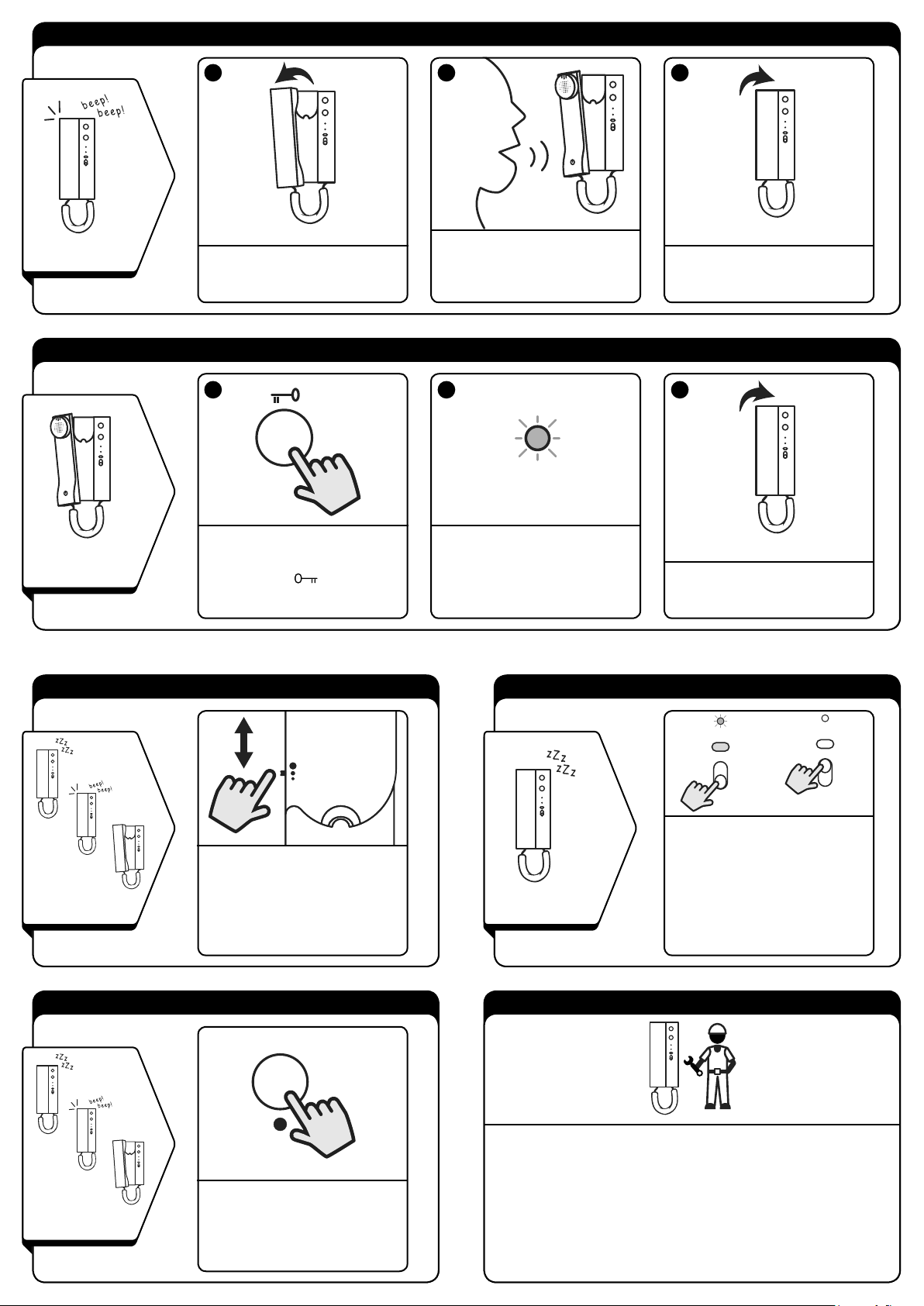

ANSWERING A CALL

TO OPEN THE DOOR

To answer an incoming call

pick up the handset.

With the handset lifted a

conversation with the caller

can begin.

To end the call replace the

handset back on the cradle.

During a call

During a conversation, with

the handset lifted, press the

lock button to operate

the lock.

To end the call replace the

handset back on the cradle.

During a

conversation

CALL TONE VOLUME ADJUSTMENT

PRIVACY ON

OFF

In every situation

Move the volume switch to the lower

position to set the call tone volume

to low, to the middle position to set

the call tone volume to medium and

to the upper position to set the call

tone volume to high.

To activate privacy and switch the

phone OFF, move the privacy switch

to the OFF position (the privacy LED

will switch ON, if this was set up

during the installation). To switch the

phone back ON, move the privacy

switch to the ON position (the

privacy LED will switch OFF).

12 3

SPARE SERVICE BUTTON TECHNICAL ADVICE

In every situation

Press the spare service button

to activate a secondary

function (if this was set up

during the installation).

For further technical advice and assistance on the

installation of this product please contact Videx technical on

tel: 0191 224 3174.

For any sales advice and assistance please contact Videx

sales on tel: 0191 238 8324.

To download a copy of this quick guide visit the Videx

website: www.videxuk.com

OPERATING THE PRIVACY SWITCH

In standby

PRIVACY ON

OFF

DOOR OPEN

The door open LED will

switch ON to indicate the

door is open (if this was set

up during the installation).
