Viega 4296.2XL Bedienungsanleitung
for pressing Megapress XL press connectors
Model Year built:
4296.2XL from 10/2017
en_INT
Pressgun Press Booster
Instructions for Use
Pressgun Press Booster 2 from 20
Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
1.4 Note on use of abbreviated terms 5
2Product information 6
2.1 Standards and regulations 6
2.2 Intended use 6
2.2.1 Areas of use 6
2.3 Product description 7
2.3.1 Overview 7
2.3.2 Technical data 8
2.3.3 Operating mode 9
3Handling 10
3.1 Transport and storage 10
3.2 Preparing the press tool 10
3.3 Pressing 13
3.4 Interrupting pressing 16
3.5 Troubleshooting 17
3.6 Care and maintenance 18
3.6.1 Cleaning the press tools 18
3.6.2 Inspection and maintenance 18
3.7 Service partners 19
3.8 Disposal 20
Table of contents
Pressgun Press Booster 3 from 20
1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
Individuals without the abovementioned training or qualification are not
permitted to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The use of Viega products must be carried out in accordance with the
general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
This symbol gives additional information and hints.
About these instructions for use
Pressgun Press Booster 4 from 20
1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
1.4 Note on use of abbreviated terms
For reading comfort, the following abbreviated terms are used in these
instructions for use:
Viega system press machine,
such as e.g. Pressgun 5
Press machine
Viega Pressgun Press Booster Press Booster
Viega Megapress XL press con‐
nector
Press connectors
Viega system press jaws Press jaws
Viega system press rings Press rings
Viega system press tool Press tool
Combinations of for example:
npress machine and press jaw
nPress machine and Press
Booster
About these instructions for use
Pressgun Press Booster 5 from 20
2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe and
are provided as a support feature.
Regulations from section: Technical data
Scope / Notice Regulations applicable in Ger‐
many
Oscillation emission value IEC 60745-1
2.2 Intended use
2.2.1 Areas of use
The Viega Pressgun Press Booster is a press capacity booster.
Together with a Viega Pressgun 5 (or comparable system press
machines, see below) and the respective Viega Megapress XL system
press rings, the Viega Pressgun Press Booster constitutes a full-fea‐
tured system press tool. With the system press tool, it is possible to
press Megapress XL connectors up to size 4 inches or 114.3 mm.
The Viega Pressgun Press Booster is certified for its full scope of func‐
tions.
Suitable system press machines:
Viega Nussbaum
Viega type II Nussbaum type 2
Viega PT3-H Nussbaum type 3
Viega PT3-EH
Viega Pressgun 4E Nussbaum type 5
Viega Pressgun 4B Nussbaum type 5A
Viega Pressgun 5 Nussbaum T6
nPress ring for Megapress XL (model: 4296.1XL)
Suitable system press rings
Product information
Pressgun Press Booster 6 from 20
NOTICE!
To avoid confusion with Viega press rings for other Viega
pressing systems, the hinged adapter jaw of the Pressgun
Press Booster as well as the Megapress XL press rings are
marked "Z3".
2.3 Product description
2.3.1 Overview

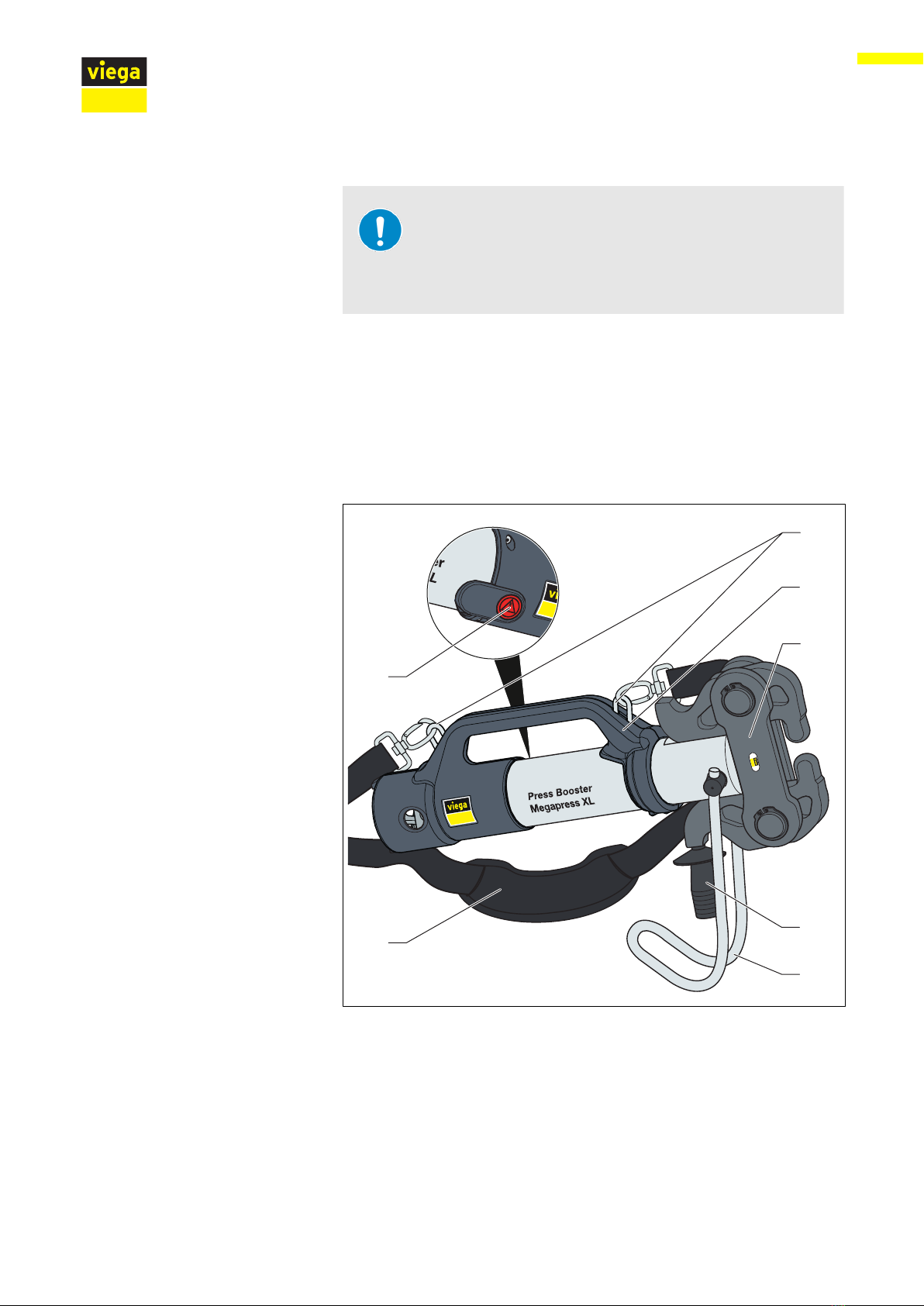

Fig. 1: Overview
1 - fastening lugs for the shoulder strap
2 - carrying handle
3 - Hinged adapter jaw
4 - control handle
5 - guard bracket
6 - shoulder strap
7 - Button for manual release
Product information
Pressgun Press Booster 7 from 20
The Megapress XL tool system consists of the following components:
Tool sets
Set Article
number
Press Booster and press ring 2½ inch in case 762056
Press ring 3+4 inch, in case 762063
Single components
Components Article
number
Press Booster 753924
Press ring 2½ inch / 76.1 mm 753870
Press ring 3 inch / 88.9 mm 753887
Press ring 4 inch / 114.3 mm 753900
shoulder strap 762117
2.3.2 Technical data
The product has the following technical data (approximate values):
Drive [external] Press machines according to list
Ä
„Suitable system press
machines:“ on page 6
Operating temperature -5 °C up to +50 °C
Permitted storage temperature 0 °C up to +45 °C
Permitted humidity 0% to 80%
Dimensions [L x W x H] approx. 500 x 300 x 80 mm
Weight of Press Booster approx. 9 kg
Weight of 2½ inch (73 mm, US
pipe standard) press ring
approx. 2.7 kg
Weight of 2½ inch / 76.1 mm
press ring
approx. 2.7 kg
Weight of 3 inch / 88.9 mm press
ring
approx. 3.2 kg
Weight of 4 inch / 114.3 mm press
ring
approx. 4.5 kg
System scope
Product information
Pressgun Press Booster 8 from 20
The oscillation emission value is measured pursuant to the
applicable regulations and is suitable for comparing the
machine with other electrical tools, also refer to
Ä
„Regula‐
tions from section: Technical data“ on page 6. When using
the Press Booster, the actual value depends on which press
machine (machine type) is used.
Combined with the Pressgun 5, the oscillation emission
value is for example < 2.5 m/s2.
2.3.3 Operating mode
Combined with a Viega system press machine, the Press Booster acts
as a press capacity booster.
As a rule, the Press Booster needs two pressings of the driving press
machine to execute a complete pressing for Megapress XL press con‐
nectors.
During the first pressing, the press machine moves the roller head of the
Press Booster forward and presses the ball heads of the hinged adapter
jaw into the contact points of the press ring, building up pressure. A
second pressing following directly after the first completes the pressing
process, and causes the press machine and the Press Booster to move
back automatically.
For the next pressing, you may need to carry out a a reset stroke to
move the press machine and the Pressgun-Press Booster back to its
starting position.
Once the Press Booster opens automatically, the pressing
has been completed properly. If you cannot fully open the
hinged adapter jaw of the Press Booster via the handle after
completed pressing and removal from the press ring,
actuate the press machine once more and carry out a reset
stroke; also refer to
Ä
Chapter 3.3 „Pressing“ on page 13.
As soon as the first pressing is completed, locking takes
place and prevents a separation of the Press Booster from
the press ring until the entire pressing process is terminated.
If you nevertheless need to interrupt the pressing, see
Ä
Chapter 3.4 „Interrupting pressing“ on page 16.
Product information
Pressgun Press Booster 9 from 20
3 Handling
Note the warning and mandatory signs on the Press Booster:
General hazard symbol
Comply with all instructions marked with this symbol to
avoid injuries or danger to life.
Hazard of crushing your hands, fingers, and other body
parts
Hazard of electric shock
Follow the instructions for use
Read the operating and safety instructions carefully before
commissioning.
Wear eye protection
Wear safety goggles with side protection to avoid injury.
3.1 Transport and storage
Protect the Press Booster from the following external influences:
nShocks
nWetness and moisture
nDust and dirt
nFrost and extreme heat
nChemical solutions and vapours
Clean the Press Booster and the press rings before switching them off
for longer standstill or storage
Ä
Chapter 3.6.1 „Cleaning the press
tools“ on page 18.
Store the Press Booster and press rings only in the case comprised in
the delivery.
3.2 Preparing the press tool
Warning and mandatory signs
Placing the Press Booster on the press machine
Handling
