Viessmann Vitodens 100-W Bedienungsanleitung

VIESMANN

Operating instructions

for the system user

Gas fired wall mounted condensing boiler

with control unit for constant temperature operation

VITODENS 100-W

5592 550 GB 2/2007 Please keep safe.

Please follow these safety instructions closely to prevent accidents and

material losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and

environmental pollution.

Note

Details identified by the word "Note"

contain additional information.

Target group

These operating instructions are for

the heating system user.

Danger

Incorrectly executed work on

the heating system can lead to

life‐threatening accidents.

&Work on gas appliances must

only be carried out by a quali-

fied gas fitter.

&Work on electrical equipment

must only be carried out by a

qualified electrician.

If you smell gas

Danger

Escaping gas can lead to

explosions which may result in

serious injury.

&Never smoke. Prevent naked

flames and sparks. Never

switch electrical lights or

equipment ON or OFF.

&Close the gas shut‐off valve.

&Open windows and doors.

&Remove all people from the

danger zone.

&Notify your gas or electricity

supplier and your local heat-

ing contractor from outside

the building.

&Shut off the electricity supply

to the building from a safe

place (outside the building).

If you smell flue gas

Danger

Flue gas can lead to life‐threa-

tening poisoning.

&Shut down the heating sys-

tem.

&Vent the boiler room.

&Close all doors in the living

space.

For your safety

Safety instructions

5592 550 GB

In case of fire

Danger

Fire creates the risk of burning

and explosions.

&Shut down the heating sys-

tem.

&Close the shut‐off valves of

the fuel lines.

&Use a tested fire extin-

guisher, class ABC.

Boiler room requirements

!Please note

Incorrect ambient conditions

canleadtodamagetothe

heating system and put the

safe operation at risk.

&Ensure ambient tempera-

tures above 0 ºC and below

35 ºC.

&Prevent air contamination by

halogenated hydrocarbons

(e.g. as contained in paints,

solvents or cleaning fluids)

and excessive dust (e.g.

through grinding/polishing

work).

&Avoid continuously high

humidity levels (e.g. through

frequent drying of washing).

&Never close existing ventila-

tion apertures.

Ancillary components, spare and

wearing parts

!Please note

Components which are not

tested with the heating system

mayleadtodamagetothe

heating system, or may affect

their various functions.

Installation or replacement

must only be carried out by

qualified personnel.

For your safety (cont.)

Safety instructions

5592 550 GB

Introductory information

Commissioning........................................................................................... 5

Your system is preset at the factory............................................................. 5

Certification details ..................................................................................... 5

General Description.................................................................................... 5

Where to find the controls

Summary of controls and indicators ............................................................ 6

&Control and display elements ................................................................... 6

&Display indications................................................................................... 6

Changing the room temperature ................................................................. 7

Start-up/shutdown

Starting the heating system......................................................................... 8

Settings

Heating ...................................................................................................... 9

DHW .......................................................................................................... 9

Displays

Heating water temperature ......................................................................... 10

Switching OFF

Switching OFF Vitodens with frost protection............................................... 11

Shutting down the heating system............................................................... 11

What to do if...

System characteristics................................................................................ 12

Fault display ............................................................................................... 13

Maintenance

Cleaning..................................................................................................... 14

Inspection and maintenance ....................................................................... 14

Energy saving tips .................................................................................... 15

Keyword index .......................................................................................... 16

Index

5592 550 GB

The commissioning and matching of

the control unit to local and structural

conditions must be carried out by your

local CORGI registered gas installer.

Your system is preset at the factory

The control unit is factory-set to stan-

dard operation.

This means that your heating system

is ready for use.

The factory-selected standard set-

tings can be modified to your indivi-

dual requirements.

Note

All data is saved in case of power fail-

ure.

Certification details

The Vitodens 100-W is certified to

comply with the requirements of rele-

vant European Directives (90/396/

EEC, 73/23 EEC and 92/42/EEC) for

use in Great Britain and Ireland with

gas category I2H (G20 with a gov-

erned gas supply at 20 mbar (8 in.wg)

inlet pressure).

The appliance classification is either

C13x or C33x depending upon whether

a horizontal or vertical flue terminal is

used.

General Description

The Vitodens 100-W is a fully auto-

matic, wall mounted, fan assisted

balanced flue condensing boiler for

use with natural gas (G20) at 20 mbar

(8 in.wg) supply. For use in sealed or

open vent systems.

The unit provides central heating with

output between 8.0 kW to 13.0/18.0

kW/240.0 kW. If required, the central

heating heat output can be range-

rated to suit the system requirements.

Heat output is automatically con-

trolledaccordingtodemand.

Commissioning

Introductory information

5592 550 GB

Control and display elements

Atr Rotary selector "Heating

water temperature"

BFault display/reset button

CDisplay

Display indications

ADisplay value or fault code

BCirculationpumpinoperation

CBurner in operation

DCurrent burner output

EBoiler primary water temperature

in °C (combined with display

value)

FFault

GEmissions test switch (only for

qualified personnel)

Summary of controls and indicators

Wheretofindthecontrols

5592 550 GB

In addition to the boiler control unit, a separate room temperature controller

must be installed in one of the living rooms to comply with part L of the building

regulations if the heating system is to be regulated in accordance with the

required room temperature.

Make adjustments using the appropri-

ate operating instructions.

Please also note:

It is not recommended that thermo-

static radiator valves are intalled in

the same room as the controller.

If thermostatic radiator valves are

installed in the room where the con-

troller is fitted they must be fully open.

Changing the room temperature

Wheretofindthecontrols

5592 550 GB

The initial start-up must be carried out by your heating contractor.

Before you switch ON a heating system that has been switched OFF for longer

periods, it would be advisable to contact your CORGI registered gas installer.

Switch ON the mains power.

Your heating system and, if installed,

your room temperature controller

Vitotrol 100 or similar programmable

room thermostat are now ready to

operate.

Starting the heating system

Start-up/shutdown

5592 550 GB

If the room temperature controller Vitotrol 100, or similar programmable room

thermostat is connected, then the room temperature is controlled from there.

Observe the separate operating instructions.

Should the room temperature controller not produce sufficient heat (e.g. when

it's very cold), the heating temperature can be changed at the rotary selector

"tr".

Switching ON:

Set rotary selector "tr"tothe

required heating temperature.

Switching OFF:

Turn heating rotary selector "tr"to

"9".

DHW

When in operation with a separate DHW cylinder, DHW temperature is regu-

lated at the temperature control on the DHW cylinder. This DHW cylinder ther-

mostat is a required under part L of the building regulations

Heating

Settings

5592 550 GB

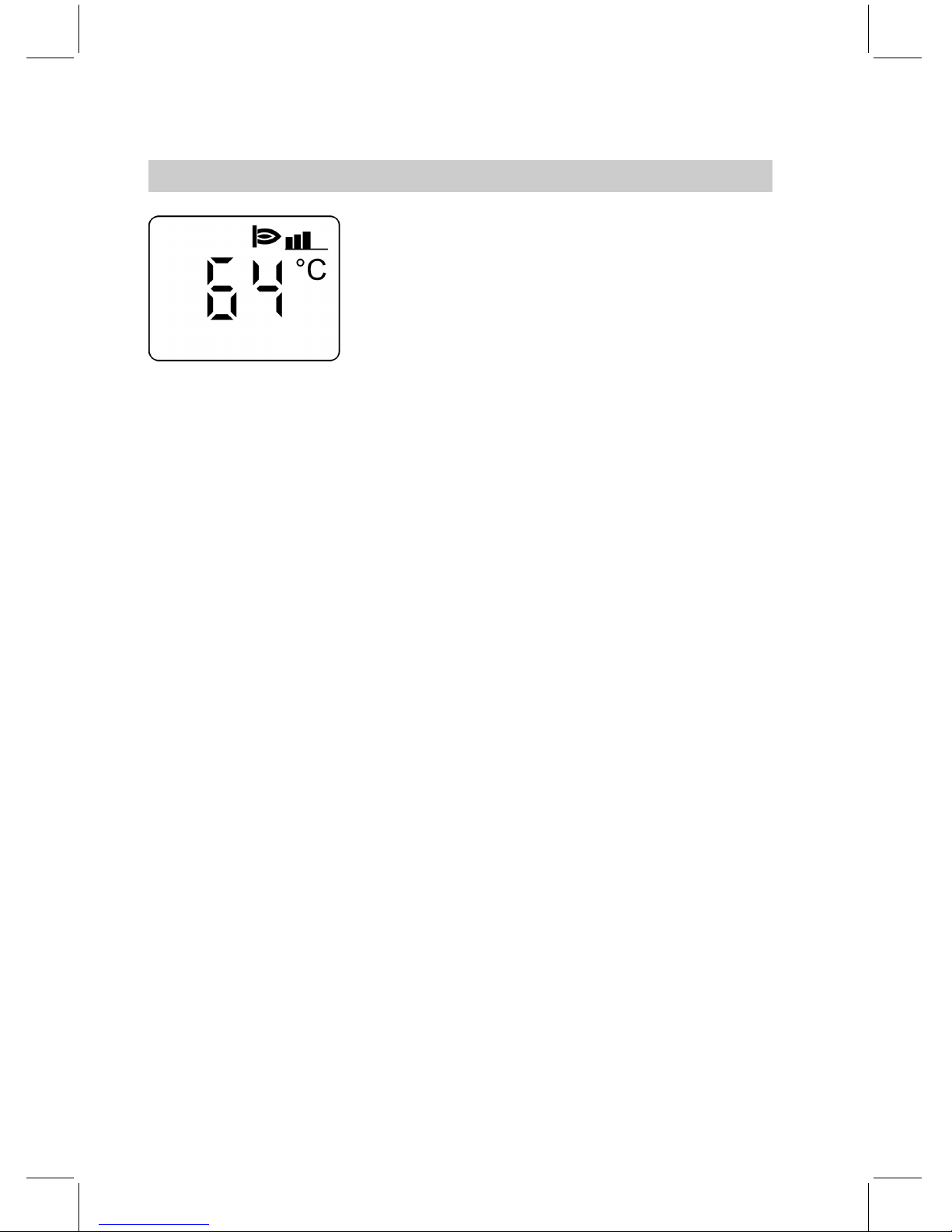

Checking the heating temperature

During operation, heating water tem-

perature is constantly displayed.

Heating water temperature

Displays

5592 550 GB
