VITODENS 300

Gas fired condensing boiler

4.5 to 66.0kW

as multi−boiler system up to 264kW

Vitodens300

TypeWB3A

Gas fired wall mounted condensing boiler,

with modulating MatriX−compact gas burner,

for open or balanced flue operation

For natural gas and LPG

Datasheet

Part nos. and prices: see price list

5822304 GB5/2004

Product information

2VITODENS 300

VITODENS 300

The combination of top technology:

The modulating MatriXcompact gas

burner and the proven stainless steel

InoxRadial heating surface guarantee a

standard efficiency up to 109%. This

reduces heating costs and protects the

environment.

Like all wall mounted condensing boilers

from Viessmann, Vitodens300 too is

equipped with a stainless steel

InoxRadial heating surface. And it

incorporates all advantages of the heat

transfer principle, of its design and its

high self−cleaning effect.

With its modulation range of 1:4, the

MatriXcompact gas burner saves in

terms of energy consumption and

emissions. Its extremely clean

combustion lets it perform substantially

better than the limits set for the "Blue

Angel".

Vitodens300 is equipped with automatic

flue gas adaptation. This constantly

adapts to changing conditions, for

example weather changes. And that

ensures permanently good combustion.

The MatriX−compact gas burner with its

quite combustion and the modulating,

electronic BUS−controlled pump

operating with reduced flow noise,

ensure a pleasantly quiet operation.

The combi version of Vitodens300 is

equipped with a comfort plate heat

exchanger. This delivers DHW at a

constant outlet temperaturewithout

delay.

Benefits at a glance

HGas fired condensing boiler as wall

mounted model, 4.5 to 66kW.

HStandard efficiency: up to 109%.

HThe stainless steel InoxRadial heating

surface ensures high operational

reliability and a long service life.

HMatriXcompact gas burner,

modulation range 1:4.

HThe emissions fall substantially below

the limits set for the "Blue Angel"

certificate of environmental excellence.

HLow power consumption through

governed AC fan and heating circuit

pump.

HAs a condensing combination boiler:

High DHW convenience as a result of its

integrated DHW Quick−System and

comfort controli.e. instant hot water

at a constant temperature.

HVitotronic control units for room

temperature−dependent or weather−

compensated mode, with integral

diagnostic system and Optolink laptop

interface; capable of communicating

with Vitodata.

With the Vitotronic333 cascade control

unit, rated outputs up to 264kW are

feasible.

HParticularly easy to install, maintain and

service, due to modular design

generous wiring chamber.

HAutomatic flue gas adaptation ensures

permanently high efficiency.

HParticularly quiet operation.

HSpace saving, because clearances at the

boiler sides are no longer required.

HVitodens300 with 4.5 to 12.0kW

automatically regulates to achieve

optimum combustion values. The gas

family or type require no selection.

HFlexible connections to adapt third

party boiler installations enable easy

replacement of alternative makes.

Vitodens300

49 and 66kW

Tested quality

VDE designation approval applied

for.

CE designation in accordance with

current EC Directives.

Clean combustion. Performs significantly

better than the limits set by the "Blue

Angel" certificate of environmental

excellence to RALUZ61.

5822304 GB

Product information

Cut−away illustration

VITODENS 300 3

Modulating MatriX

compact burner

for extremely

clean combustion

InoxRadial heating surfaces

made from stainless steel

for high operational reliability,

long service life and

high output on the

smallest footprint

Integral, variable speed

heating circuit pump

Standby plate

heat exchanger

(for combi boilers)

Gas and water connections

Digital boiler control unit

Vitodens300

12 to 35kW

5822304 GB

Vitodens300

4VITODENS 300

Specification

Gas fired boiler, seriesB and C,

CategoryI2ELL (natural gas version)

CategoryII2ELL3P (LPG version)

Gas fired boiler Gas fired

combination boiler

Rated output range*1

TV/TR=50/30ºC

TV/TR=80/60ºC

4.512.0/16.0*2,*3

411

6.626.0

623.7

8.735.0

832

12.249.0

1144.6

16.666.0

1560.1

6.626.0

623.7

Rated thermal load kW 4.216.7 6.324.7 8.333.3 11.546.3 15.662.2 6.324.7

Product ID CE0085BO 0338

Gas supply pressure

Natural gas

LPG

mbar

Max. permiss. gas supply pressure*4

Natural gas

LPG

mbar

25.0

57.5

25.0

57.5

25.0

57.5

25.0

57.5

25.0

57.5

Max. power consumption

(incl. circulation pump for 4 to

35kW)

W 120 120 85 85 120

Weight kg 50 52 90 90 55

Capacity heat exchanger litres 5.0 5.6 9.5 9.5 5.0

Heating water volume flow

at 200mbar residual head

l/h 1050 1380 *5 *5 1050

Max. volume flow

(limits for the use of a low loss header)

l/h 1400 1600 3500 3500 1400

Rated circulation water volume

at DT=20K

l/h 1032 1376 1892 2580 1032

Permiss. operating pressure bar 3 3 3 3 3

Connections

Boiler flow and return

Safety valve

G(male thread)

R(female thread)

G(male thread)

¾"



¾"



1½"



1½"



¾"



Dimensions

Length

Width

Height

Height incl. flue pipe bend (accessory)

Height with DHW cylinder installed

below the boiler

380

480

850

1066

1925

380

480

850

1066

1925

550

600

900

1200



550

600

900

1200



380

480

850

1066



Gas connection R(male thread) ½" ½" ¾" ¾" ½"

Standby instantaneous water heater*6

Capacity DHW

Capacity Heating water

litres



1.00

0.70

Hot and cold water connections G(male thread)      ½"

Permissible operating pressure

(DHW side)

Outlet temperature (adjustable)

Continuous DHW output

for DHW temperature rise

from 10 to 45ºC

Drawing rate

bar

ºC

l/h

litres/min



3857

590

38

*1Details toEN677.

*2Rated output for DHW heating.

*3Available from October2004. Specification on request.

*4If the gas supply pressure is higher than the maximum permitted value, a separate gas governor must be installed upstream of the

system.

*5Heating circuit pump available as accessory.

*6Minimum pressure of the cold water connection 1bar.

5822304 GB

Vitodens300

VITODENS 300 5

Gas fired boiler Gas fired boiler Gas fired

combination boiler

Rated output range

TV/TR=50/30ºC

TV/TR=80/60ºC

4.512.0/16.0*1

411

6.626.0

623.7

8.735.0

832

12.249.0

1144.6

16.666.0

1560.1

6.626.0

623.7

Connection values

relative to max. output

with gas with HuB

Natural gasE 9.45kWh/m3m3/h

34.01MJ/m3

Natural gasLL 8.13kWh/m3m3/h

29.25MJ/m3

LPG 12.79kWh/m3kg/h

46.04MJ/m3

2.65

3.08

1.94

3.52

4.10

2.59

4.90

5.64

3.62

6.69

7.77

4.94

2.65

3.08

1.94

Flue gas values*2

Flue gas value group to G635/G636 G52/G51 G52/G51 G52/G51 G52/G51 G52/G51

Temperature (at a return

temperature of 30ºC)

 at rated output

 at partial load

Temperature (at a return

temperature of 60ºC)

Mass flow rate

 for natural gas

 at rated output

 at partial load

 for LPG

 at rated output

 at partial load

Available draught

ºC

kg/h

mbar

47.3

11.8

46.4

11.5

100

1.0

63.2

15.7

61.0

15.4

100

1.0

81.2

21.1

78.2

18.0

100

1.0

110.6

27.7

106.7

26.6

100

1.0

47.3

11.8

48.4

11.5

100

1.0

Standard efficiency

T

V/TR=40/30ºC

T

V/TR=75/60ºC

109

104

109

104

109

104

109

104

109

104

Average condensate volume

for natural gas and

T

V/TR=50/30ºC

T

V/TR=80/60ºC

litres/day

1113

810

1517

1012

1419

1115

2328

1822

1113

810

Internal diameter of pipe to

expansion vessel

safety valve

Condensate connection Hose coupling

∅mm 2024 2024 2024 2024 2024

Flue outlet Internal ∅mm 80 80 100 100 80

Ventilation pipe External ∅mm 125 125 150 150 125

*1Rated output for DHW heating.

*2Calculation values for sizing the flue gas system to EN13384.

Flue gas temperatures measured as gross values at 20ºC combustion air temperature.

The details for partial load refer to an output of 30% of rated output. Calculate the flue gas mass flow rate accordingly when the

partial load differs from that stated above (subject to the burner mode).

The flue gas temperature at a return temperature of 30ºC is decisive for sizing the flue gas system.

The flue gas temperature at a return temperature of 60ºC is used to determine the application range of flue pipes with maximum

permissible operating temperatures.

"For the specification of DHW cylinders and Viessmann system design components, see separate datasheets.

5822304 GB

Vitodens300

110

OKFF

+15

− 0

1925 (OKFF recommendation)

380

(length)

850 (height)

876

902

177

240

302

370

480 (width)

240

OKFF

+15

− 0

1925 (OKFF recommendation)

850 (height)

850

861

177

240

302

370

480 (width)

240

137

2062

150

ADG ADG

HV GA HR

SRL/

SVL/

SIV

HV GA HR

SRL/

SVL/

SIV

KAS

1020

ATR

Finished wall

6VITODENS 300

Vitodens300, 12.0 to 35.0kW

Installation on finished walls Installation on unfinished walls

*1Obligatory in conjunction with DHW cylinders installed below the boiler. Otherwise, recommendation only.

Key to symbols

ADG Expansion vessel G¾"

ATR Drain funnel connection

E Drain

GA Gas connection

HR Heating return

HV Heating flow

KAS Boiler adaptor

OKFF Top edge finished floor

SIV Safety valve

Gas fired combination boilers only:

KW Cold water G½"

WW Hot water G½"

Gas fired boilers only:

SRL Cylinder returnG¾"

SVL Cylinder flowG¾"

Note

Prior to the boiler installation, prepare the connections Route the required electrical supply cables

on site. on site and into the boiler at the points indicated (see page17).

5822304 GB

Vitodens300

212

OKFF

ATR

550 (length)

1925 (OKFF recommendation)

300

HV GA HR

SRLSVL

187

300

413

525

600 (width)

900 (height)

1012

1113

119 7

600

300

approx. 984

1030

ADG

KAS

SIV

VITODENS 300 7

Vitodens300 from 49kW

Key to symbols

ADG Expansion vessel (G1")

ATR Drain funnel connection

GA Gas connection

HR Heating return

HV Heating flow

KAS Boiler adaptor

OKFF Top edge finished floor

SIV Safety valve

SRL Cylinder returnG1½"

SVL Cylinder flowG1½"

Multi−boiler systems

For details regarding multi−boiler

systems, see Vitodens Technical Guide

and price list.

Note

Prior to the boiler installation, prepare the connections Route the required electrical supply cables.

on site and into the boiler at the points indicated (see page17).

5822304 GB

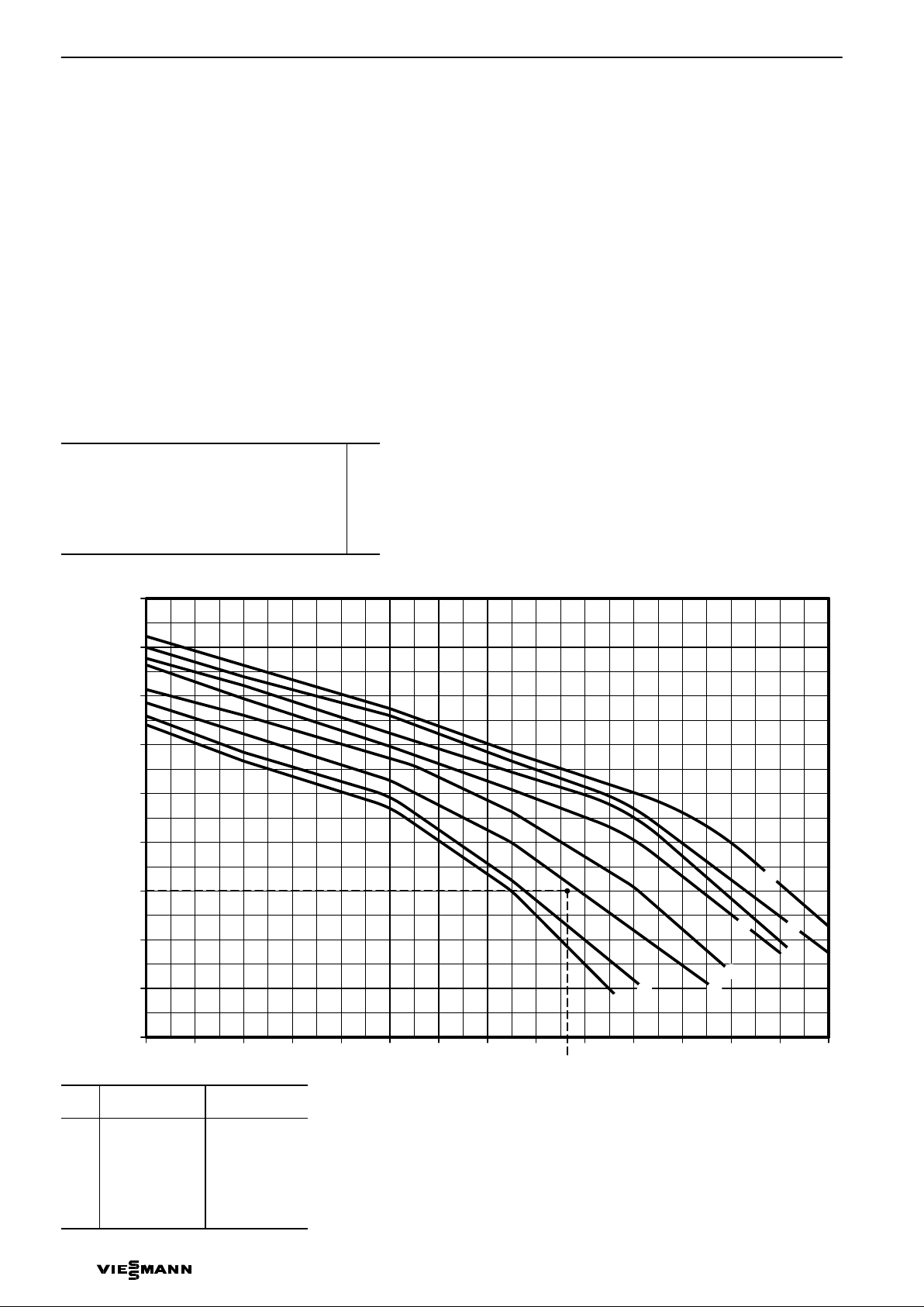

Specification  circulation pumps and heads

Residual head in mbar

kPa

0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400

Volume flow in litres/h

100

150

200

250

300

350

400

450

ABC

8VITODENS 300

Specification  circulation pumps and heads

Vitodens300, 4.5 to 12.0kW on request

Variable speed heating circuit pump

The pump speed and therefore the flow

rate is relayed to the pump, and is set by

the control unit subject to outside

temperature and switching times for the

central heating or reduced mode via an

internal data BUS.

Individually match the minimum and

maximum speed plus the speed during

reduced mode to the existing heating

system using the control unit codes.

In the delivered condition, the minimum

pump capacity (code addressE7) is set to

30%, and the maximum pump capacity

(code addressE6) to 50% for 26kW or to

70% for 35kW.

Using the diagram, the flow rate can be

adjusted to the respective system

conditions.

Matching the flow rate of the circulation

pump to the individual system conditions

reduces the power consumption of the

heating system.

Vitodens300, 6.6 to 35.0kW

Circulation pump VIUPE 60BUS

Rated voltage

Rated current

Power

consumption

V ~

Amax.

Amin.

Wmax.

Wmin.

Was delivered condition

W 26kW

W 35kW

230

0.45

0.21

100

Residual head of the integral circulation pump

Curve Capacity

Circulation pump

Setting

Code address E6

30%

40%

50%

60%

70%

80%

90%

100%

E6:030

E6:040

E6:050

E6:060

E6:070

E6:080

E6:090

E6:100

Example

HVitodens300, 6.6 to 26.0kW

HDesign temperatures 75/55ºC

HRadiator heating system,

heat demand 20kW

¢Volume flow 860litres/hK

HPressure drop 150mbarL

HDesign pointM

Optimum pump curve according to diagram:

C=code addressE6:050.

5822304 GB

Specification  circulation pumps and heads

0 200 400 600 800 1000

Volume flow in litres/h

1200 1400 1600 1800 2000 2200 2400 2600

100

200

300

400

500

600

700

Residual height in mbar

kPa

B C D E F G H

10 A

VITODENS 300 9

Vitodens300 from 49kW

Circulation pump VIRS7BUS

variable speed, ready to plug in

for installation into the boiler or as

external pump for pipe installation.

Rated voltage

Rated current

Condenser

Power

consumption

V ~

Amax.

Amin.

Wmax.

Wmin.

Was delivered condition

230

0.55

0.37

3.5

126

Residual head of the circulation pump

Curve Capacity

Circulation pump

Setting

Code addressE6

30%

40%

50%

60%

65%

70%

80%

90%

100%

E6:030

E6:040

E6:050

E6:060

E6:065

E6:070

E6:080

E6:090

E6:100

5822304 GB

130

Specification  circulation pumps and heads

0 500 1000 1500

100

200

300

400

500

600

700

800

900

1000

Pressure drop on the water side in mbar

100

kPa

2000 2500 3000 3500

Flow rate in litres/h

10 VITODENS 300

Pressure drop (primary circuit)

For the design of an on−site heating circuit pump.

AVitodens300 to 35.0kW

BVitodens300 from 49.0kW

5822304 GB

Andere Handbücher für Vitodens 300

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Viessmann Kessel Handbücher

Viessmann

Viessmann VITODENS 200 Bedienungsanleitung

Viessmann

Viessmann Vitocrossal 300 CA3B Montageanleitung

Viessmann

Viessmann VITODENS 050-W Kurzanleitung

Viessmann

Viessmann Vitomax HS M73 Schulungshandbuch

Viessmann

Viessmann VITODENS 200 Betriebsanleitung

Viessmann

Viessmann Vitodens 222-F Betriebsanleitung

Viessmann

Viessmann VITOCROSSAL 300 Betriebsanleitung

Viessmann

Viessmann B1KA Kurzanleitung

Viessmann

Viessmann VITODENS 333 Betriebsanleitung

Viessmann

Viessmann Vitodens 111-W Kurzanleitung

Viessmann

Viessmann Vitodens 200-W System Bedienungsanleitung

Viessmann

Viessmann Vitodens 300 Bedienungsanleitung

Viessmann

Viessmann Vitodens 200-W System Betriebsanleitung

Viessmann

Viessmann Vitodens 050-W BP JD Kurzanleitung

Viessmann

Viessmann VITOCELL 300B Betriebsanleitung

Viessmann

Viessmann Vitodens 200-W System Gebrauchsanweisung

Viessmann

Viessmann VITOROND 200 Bedienungsanleitung

Viessmann

Viessmann VITOCROSSAL 300 Bedienungsanleitung

Viessmann

Viessmann WB1A007 Kurzanleitung

Viessmann

Viessmann Vitocrossal 200 CM2 246 Bedienungsanleitung

Viessmann

Viessmann Vitocell 140-E Kurzanleitung

Viessmann

Viessmann VITOCELL 100-U Betriebsanleitung

Viessmann

Viessmann Vitodens 100-W Bedienungsanleitung

Viessmann

Viessmann VITOCROSSAL 200 Betriebsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung

Radiant

Radiant R2K 55 Handbuch
