Viessmann VITOLIGNO 300-P Betriebsanleitung

Service instructions

for contractors

VIESMANN

Vitoligno 300-P

Type VL3B

Pellet boiler

For applicability, see the last page

VITOLIGNO 300-P

5692 891 GB 6/2011 Please keep safe.

Please follow these safety instructions closely to prevent accidents and mate-

rial losses.

Safety instructions explained

!Please note

This symbol warns against the

risk of material losses and envi-

ronmental pollution.

Note

Details identified by the word "Note" con-

tain additional information.

Target group

These instructions are exclusively

designed for qualified contractors.

■ Work on electrical equipment must

only be carried out by a qualified elec-

trician.

■ The system must be commissioned by

the system installer or a qualified per-

son authorised by the installer.

Regulations

Observe the following when working on

this system:

■ National installation requirements

■ Legal instructions regarding the pre-

vention of accidents

■ Legal instructions regarding environ-

mental protection

■ The Code of Practice of relevant trade

associations

■ All current safety regulations as

defined by DIN, EN, DVGW, VDE and

all locally applicable standards

aÖNORM, EN and ÖVE

cSEV, SUVA, SVTI and SWKI

Working on the system

■ Isolate the system from the power sup-

ply (e.g. by removing the separate fuse

or by means of a mains isolator) and

check that it is no longer 'live'.

■ Safeguard the system against unau-

thorised reconnection.

!Please note

Electronic assemblies can be

damaged by electrostatic dis-

charges.

Before beginning work, earthed

objects, such as heating or water

pipes, must be touched to dissi-

pate any static charge.

Repair work

!Please note

Repairing components that fulfil a

safety function can compromise

the safe operation of your sys-

tem.

Replace faulty components only

with original Viessmann spare

parts.

Safety instructions

5692 891 GB

Auxiliary components, spare and

wearing parts

!Please note

Spare and wearing parts that

have not been tested together

with the system can compromise

its function. Installing non-author-

ised components and making

non-approved modifications or

conversions can compromise

safety and may invalidate our

warranty.

For replacements, use only orig-

inal spare parts supplied or

approved by Viessmann.

Safety instructions

Safety instructions (cont.)

5692 891 GB

Commissioning, inspection, maintenance

Steps - commissioning, inspection and maintenance.......................................... 5

Further details regarding the individual steps....................................................... 6

Codes

Resetting codes to their delivered condition......................................................... 54

Code 1.................................................................................................................. 54

Code 2.................................................................................................................. 60

Service scans

Service functions.................................................................................................. 80

Temperatures, boiler coding card and brief scans............................................... 80

Scanning operating conditions and sensors ........................................................ 85

Troubleshooting

Fault display......................................................................................................... 86

Repairs................................................................................................................. 95

Function description

Display and control elements............................................................................... 114

Control functions.................................................................................................. 114

Allocation of heating circuits to remote control..................................................... 129

Vacuum supply system........................................................................................ 130

Pellet combustion sequence chart....................................................................... 131

Designs

Connection and wiring diagram............................................................................ 133

Parts lists............................................................................................................ 139

Commissioning/service reports........................................................................ 150

Specification....................................................................................................... 151

Certificates

Declaration of conformity...................................................................................... 153

Keyword index.................................................................................................... 154

Index

5692 891 GB

For further information regarding the individual steps, see the page indicated

Commissioning steps

Inspection steps

Maintenance steps Page

•1. Filling the heating system.............................................. 6

••• 2. Checking all connections on the heating water side

for leaks

•3. Completing the commissioning checklist

•4. Switching the power on................................................. 6

•5. Language selection........................................................ 11

• • 6. Setting the time and date............................................... 12

•7. Configuring the supply system..................................... 12

•8. Commissioning the supply system.............................. 12

•9. Setting supply times for fuel supply (with vacuum

system)............................................................................ 13

•10. Matching the control unit to the heating system ........ 13

•11. Checking outputs (actuators) and sensors.................. 39

•12. Adjusting the heating curves........................................ 41

•13. Integrating a control unit into the LON......................... 44

• • 14. Shutting down the system............................................. 46

• • 15. Cleaning the combustion chamber............................... 47

•16. Cleaning secondary heating surfaces.......................... 48

•17. Cleaning the flue gas fan and Lambda probe.............. 49

• • 18. Emptying the ash container (if required)...................... 50

• • 19. Checking the diaphragm expansion vessel and

system pressure............................................................. 51

••• 20. Checking the function of safety valves

•21. Display "Maintenance"................................................... 52

•22. Instructing the system user........................................... 53

Commissioning, inspection, maintenance

Steps - commissioning, inspection and maintenance

5692 891 GB

Filling the heating system

1. Check the pre-charge pressure of the

diaphragm expansion vessel.

If the pre-charge pressure is lower

than the static system pressure, top

up with nitrogen until the pre-charge

pressure has risen 0.1 to 0.2 bar.

Adjust the pre-charge pressure

accordingly if it is too high.

2. Open the check valves.

3. Top up your heating system with

water and vent until the charge pres-

sure is 0.1 to 0.2 bar higher than the

pre-charge pressure of the dia-

phragm expansion vessel.

Permiss. operating pressure: 3 bar

Test pressure: 4 bar

4. Mark the charge pressure at pressure

gauge A.

5. Return the check valves to their oper-

ating position.

Switching the power on

After switching the power on, a commissioning sequence commences:

■ Select language

■ Set time and date

■ Supply system configuration

■ Supply system commissioning

When configuring the supply system, the

following are available for selection:

Commissioning, inspection, maintenance

Further details regarding the individual steps

5692 891 GB

– "Only holding hopper" for pellet sup-

ply only from the boiler hopper with man-

ual charging (not shown).

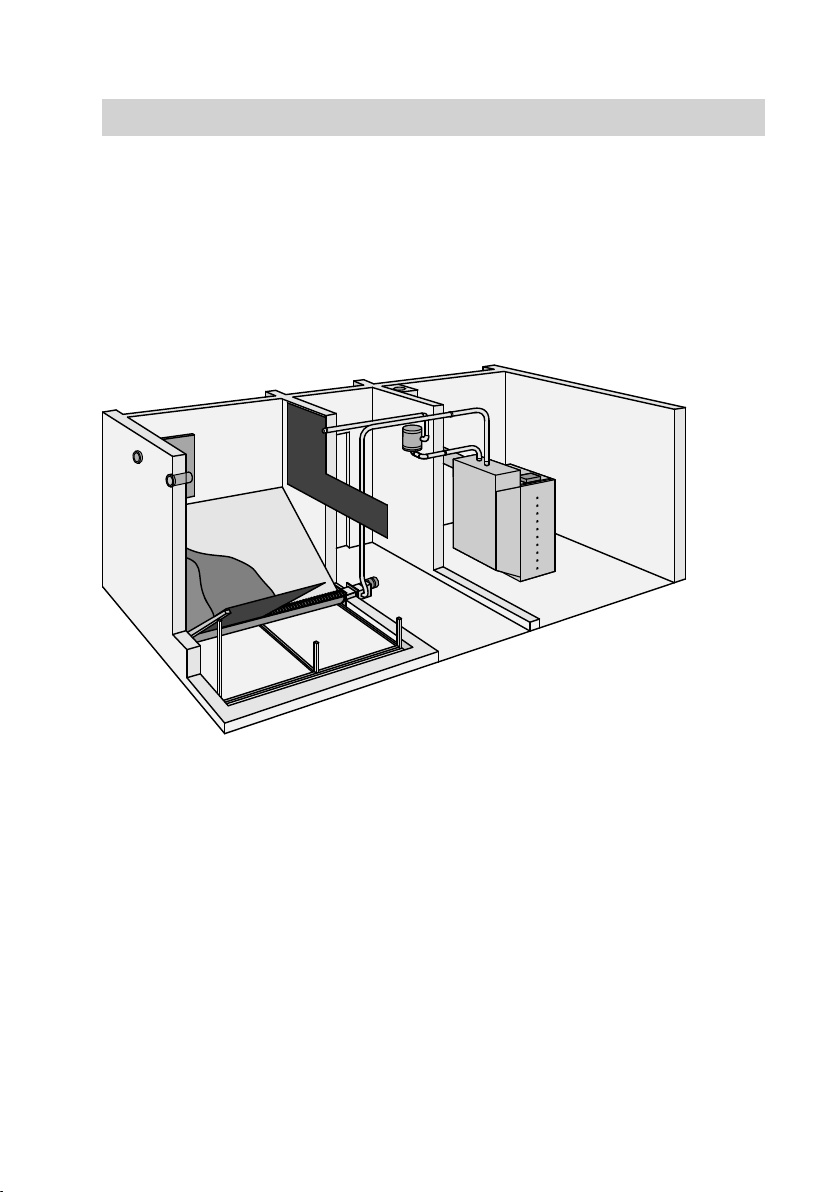

– "Suction system" for pellet supply via

screw conveyor discharge from a pellet

store and onward transportation via a

vacuum system:

Commissioning, inspection, maintenance

Further details regarding the individual steps (cont.)

5692 891 GB

– "Auger system" for pellet supply via

screw conveyor supply system from a

pellet store:

Commissioning, inspection, maintenance

Further details regarding the individual steps (cont.)

5692 891 GB

– "Suction system + silo" for pellet

supply from a pellet silo via vacuum sup-

ply system:

Commissioning, inspection, maintenance

Further details regarding the individual steps (cont.)

5692 891 GB

– "Auger + silo" for pellet supply from a

pellet silo via screw conveyor supply sys-

tem:

Commissioning, inspection, maintenance

Further details regarding the individual steps (cont.)
