Operating instructions

for the system user

VIESMANN

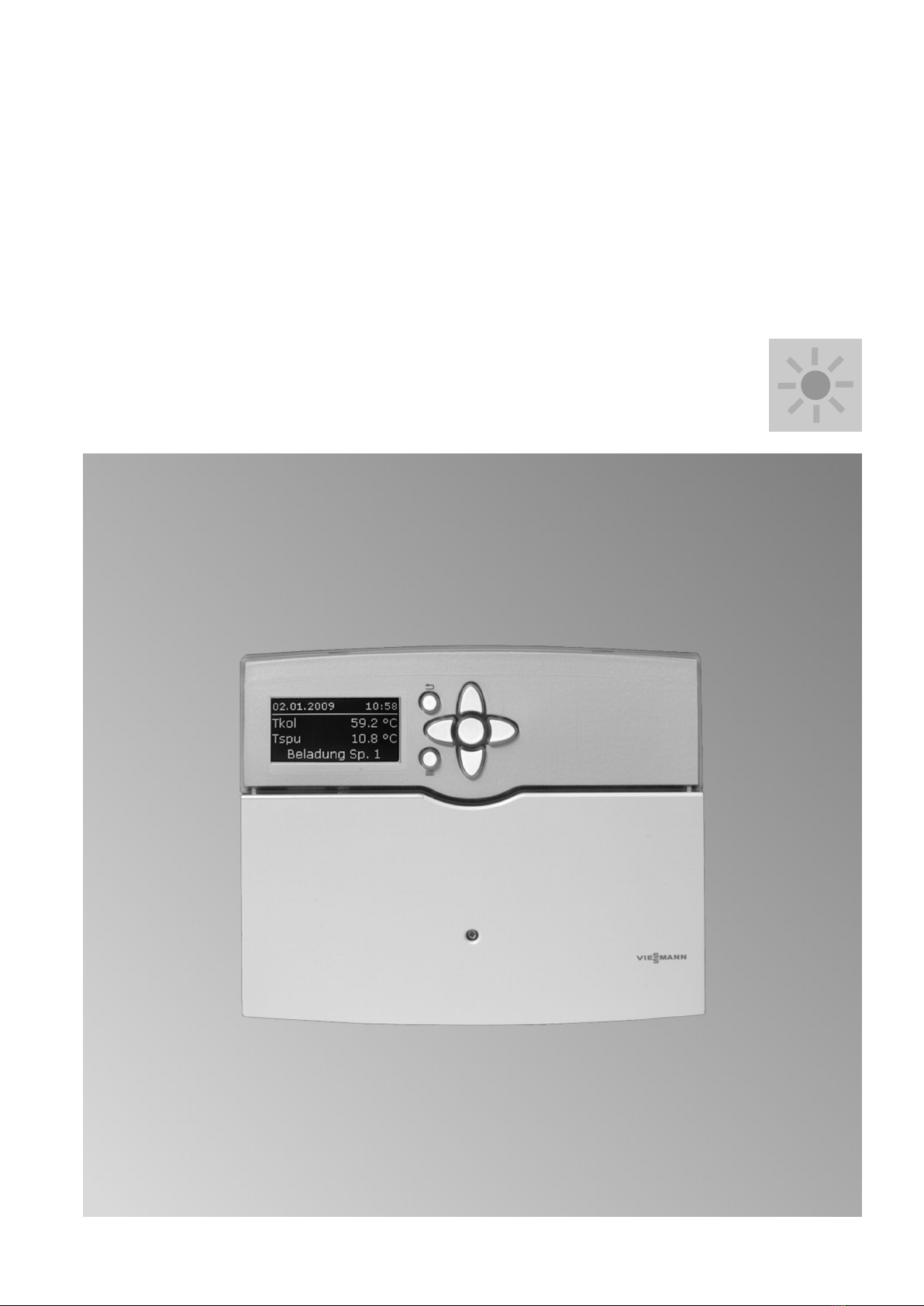

Control unit for solar thermal systems

VITOSOLIC 200

5608 437 GB 4/2014 Please keep safe.

Please follow these safety instructions closely to

prevent accidents and material losses.

Safety instructions explained

Danger

This symbol warns against the risk of injury.

!Please note

This symbol warns against the risk of material

losses and environmental pollution.

Note

Details identified by the word "Note" contain additional

information.

Target group

These operating instructions are intended for system

users.

This appliance can also be operated by children of 8

years and older, as well as by individuals with reduced

physical, sensory or mental faculties or those lacking

in experience and knowledge, provided such individu-

als are being supervised or have been instructed in the

safe use of this appliance as well as in any risks aris-

ing from it.

!Please note

Supervise children in the proximity of the appli-

ance.

■Never permit children to play with the appli-

ance.

■Cleaning and maintenance must not be car-

ried out by unsupervised children.

Appliance connection

■The appliance may only be connected and commis-

sioned by authorised contractors.

■Observe the specified electrical connection require-

ments.

■Modifications to the existing installation may only be

carried out by authorised contractors.

Danger

Incorrectly executed work on the system can

lead to life-threatening accidents.

Work on electrical equipment must only be car-

ried out by a qualified electrician.

Work on the appliance

■All settings and work on the appliance must be car-

ried out as specified in these operating instructions.

Further work on the appliance may only be carried

out by authorised contractors.

■Never open the appliance.

■Never change or remove fitted accessories.

In case of fire

Danger

Fire presents a risk of burns and explosion.

■Switch the system OFF.

■Use a tested fire extinguisher, class ABC.

Auxiliary components, spare and wearing parts

!Please note

Components that were not tested with the sys-

tem may cause system damage, or may affect

its functions.

Have all installation or replacement work carried

out by qualified contractors.

Safety instructions

For your safety

5608 437 GB

The commissioning and adjusting of the control unit to

local conditions and to building characteristics, plus the

instruction of the user in operating the system, must be

carried out by your heating contractor.

Introductory information

Commissioning

5608 437 GB

Controls

30.04.2009

Tcol

Tcylb

10:59

47.7 °C

35.4 °C

Fig. 1

AStandard display

The standard display is shown automatically

after approx. 4 min.

BOK key; to confirm your selection or save the

setting.

Takes you to the previous step in the menu or

cancels a setting that has been started.

/ Cursor keys

To scroll through the menu.

/ Cursor keys

To adjust values.

To change between standard display and main

menu.

The display only shows 4 lines of text. The arrow on

the left of the display highlights the available menu

item.

Use / to scroll through the menu.

Operation

5608 437 GB

Press the following keys:

1. for the "Main menu".

2. OK the first 3 actual values will be displayed.

3. / for the following actual values, subject to sys-

tem equipment level.

4. until the "Main menu" appears.

"Actual values:" Explanation

"Tcol" Collector temperature in °C

"Tcol2" Collector temperature in an additional collector array in °C

"Tcylb" Actual cylinder temperature in °C

"Tcyl2b" to "Tcyl4b" Actual cylinder temperature for additional consumers (e.g. 2nd DHW cylinder) in °C

"Tby" Bypass temperature in °C

"T-HE" Temperature in an external heat exchanger in °C

"Cyl. add." Additional function for DHW heating

"Time"

"Date"

"Relay" Condition of relays

"Sensors" Temperature at the respective sensor in °C

Note

If the sensor inputs are not connected, the breaking value (indicating a lead break)

is displayed.

"Intens." Radiation intensity in conjunction with a solar cell

Note

If the input is not connected, the breaking value (indicating a lead break) is dis-

played.

A diagram in the standard display enables you to

check the collector and actual cylinder temperatures

over the course of the day. If your heating contractor

has enabled the heat meter, a diagram is also dis-

played showing the heat amount for the past 7 days.

Repeatedly press , this brings up the following dia-

grams:

Actual cylinder temperature curve

Tcylb today

Fig. 2

Collector temperature curve

Tcol today

Fig. 3

Heat amount in kWh

HM 1

5 5

Fig. 4

Note

The bar on the very right indicates the value in kWh for

the current day.

Scanning options

Calling up actual values

5608 437 GB

Press the following keys:

1. for the "Main menu".

2. for "Messages".

3. OK to confirm.

4. to display further messages (see table below).

"Messages:" Explanation

No fault There is no fault at the solar control unit.

"Loading cyl"

(only with several consumers)

The display shows which consumer is being heated.

"Pause cyl"

(only with several consumers)

Only if the "Cyclical heating" function has been enabled by your heating

contractor:

Pause in the heating of the displayed consumer.

"Cyl. set" The consumer displayed has reached its set value.

"Fault" A fault has occurred at the solar control unit (to check the cause, see

page 9).

"SW version" Software version (only for service engineers)

"HW version" Hardware version (only for service engineers)

Scanning statement values

Press the following keys:

1. for the "Main menu".

2. for "Solar".

3. OK to confirm.

4. for "Statement".

5. OK to confirm.

6. / for the following statement values, subject to

system equipment level.

7. until the "Main menu" appears.

"Statement" Explanation

"Colmax" Maximum collector temperature in °C

"Col2max" Maximum collector temperature in an additional collector array in °C

"Cylmax" Maximum cylinder temperature in °C

"Cyl2max" to "Cyl4max" Maximum cylinder temperature for additional consumers (e.g. 2nd DHW cylinder)

in °C

"Relay 1" to "Relay 7" Hours run of the actuators connected at the relay (e.g. solar circuit pump at R1)

"Days" Days in operation, solar control unit

To reset the values, except value for days in opera-

tion:

Whilst the value is displayed, press the following keys:

1. OK "Delete?""Yes" is displayed.

2. OK to confirm

Scanning options

Calling up messages

5608 437 GB

Press the following keys:

1. for the "Main menu".

2. for "HM".

3. OK to confirm.

4. for "HM 1" or "HM 2".

5. OK to confirm.

6. / for the following values, subject to system

equipment level.

7. until the "Main menu" appears.

"HM ..." Explanation

"Tflow" Flow temperature in °C

"Tretn" Return temperature in °C

"Heat" Heat amount in Wh

"Heat" Heat amount in kWh

"Heat" Heat amount in MWh

Note

Add the heat values together.

The values are not calibrated.

If there is a power failure, the displayed value showing

the heat amount may be up to 6 hours old.

To reset the heat amount values:

Whilst the value is displayed, press the following keys:

1. OK "Delete?""Yes" is displayed.

2. OK to confirm

Scanning options

Calling up the heat amount

5608 437 GB

Cause Remedy

The ON/OFF switch is switched off. Switch the ON/OFF switch ON.

The solar control unit MCB has responded (mains volt-

age is present, display is not illuminated).

Inform your local heating contractor.

Collector limit temperature or set cylinder temperature

has been reached.

Wait until the relevant temperature has fallen below its

respective limit.

The solar control unit is in "Manual mode". Select "Auto" as follows:

1. Press .

2. Press until "Manual mode" is displayed.

3. Press OK to confirm.

4. Press until "Relay 1" etc. is displayed.

5. Press OK to confirm.

6. Press the / keys for "Auto".

7. Press OK to confirm.

8. Press until "Main menu" is displayed.

There is no DHW available

Cause Remedy

The solar control unit is faulty. Inform your local heating contractor.

Collector temperature is too high; safety shutdown by

the solar control unit.

Wait until the collector temperature has dropped.

The set cylinder temperature (set DHW temperature)

has been set too low.

Inform your local heating contractor.

The solar circuit pump is faulty. Inform your local heating contractor.

The DHW cylinder is not being reheated:

The operating and time program is incorrectly set at the

boiler control unit.

Enable DHW heating.

Operating instructions of the boiler control unit

The display is dark

Cause Remedy

Power failure The solar control unit automatically returns to operation

once the power supply has been restored.

The power distribution MCB (main domestic MCB) has

responded (no mains voltage is present).

Check the MCB and inform your heating contractor if

necessary.

The display illumination flashes

Cause Remedy

Solar thermal system fault. Call up the fault (see following chapter) and contact

your local heating contractor if necessary.

What to do if...

The solar thermal system does not start

5608 437 GB

If any faults have occurred in your solar thermal sys-

tem, the display illumination flashes and "Fault"

appears on the standard display.

30.04.2009

Tcol

Tcylb

10:59

47.7 °C

35.4 °C

Fault

Fig. 5

Press the following keys:

1. for the "Main menu".

2. for "Messages".

3. OK to confirm.

4. / for causes of the current fault.

5. Make a note of the cause of the fault.

This enables the heating contractor to

be better prepared for the service call

and may save additional travelling

costs.

6. until the "Main menu" appears.

Example of a fault message

Lead break, cylinder temperature sensor

Messages:

Cyl set

! Interruption

>Sensor 2<

Fig. 6

What to do if...

Calling up faults

5608 437 GB

DHW cylinder (if installed)

Standards DIN 1988-8 and EN 806 specify that main-

tenance and cleaning should be carried out no later

than 2 years after commissioning and as required

thereafter.

Only a qualified heating contractor should clean the

inside of a DHW cylinder and the DHW connections.

If any water treatment equipment (e.g. a sluice or

injection system) is installed in the cold water supply of

the DHW cylinder, ensure this is refilled in good time.

In this connection, observe the manufacturer's instruc-

tions.

In addition for Vitocell 100:

We recommend that the correct function of the sacrifi-

cial anode is checked annually by your heating con-

tractor.

The function of the sacrificial anode can be checked

without interrupting the system operation. The heating

contractor will check the earth current with an anode

tester.

Safety valve (DHW cylinder)

The function of the safety valve must be checked

every six months by the user or a contractor through

venting (see valve manufacturer's instructions). The

valve seat may become contaminated.

Water may drip from the safety valve during a heat-up

process. The outlet is open to the atmosphere and

must not be closed off.

Potable water filter (if installed)

To maintain high hygienic standards, proceed as fol-

lows:

■Replace filter element on non-back flushing filters

every six months (visual inspection every

two months).

■On back flushing filters, back flush every

two months.

Damaged cables / lines

If there is damage to the connecting cables or lines of

the appliance or externally installed accessories, these

must be replaced with special cables or lines. Only use

Viessmann cables / lines as replacement. For this,

notify your qualified contractor.

Upkeep

Inspection and maintenance

5608 437 GB

Andere Handbücher für VITOSOLIC 200

Inhaltsverzeichnis

Andere Viessmann Steuereinheit Handbücher

Viessmann

Viessmann VITOSOLIC 200 Kurzanleitung

Viessmann

Viessmann VITOTRONIC 100 GC1B Kurzanleitung

Viessmann

Viessmann Vitotronic 100 GC1 Kurzanleitung

Viessmann

Viessmann EM-EA1 extension Betriebsanleitung

Viessmann

Viessmann VITOSOLIC 100 Bedienungsanleitung

Viessmann

Viessmann 5204 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 100 Betriebsanleitung

Viessmann

Viessmann VITOTRONIC SPS Bedienungsanleitung

Viessmann

Viessmann Vitovolt 300 Kurzanleitung

Viessmann

Viessmann VITOTRONIC 200 Betriebsanleitung

Viessmann

Viessmann PS10 Kurzanleitung

Viessmann

Viessmann LB1 Betriebsanleitung

Viessmann

Viessmann 5561 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 100 Kurzanleitung

Viessmann

Viessmann EM-P1 Betriebsanleitung

Viessmann

Viessmann 5205 Bedienungsanleitung

Viessmann

Viessmann VITOCONNECT OPTO2 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 100 Gebrauchsanweisung

Viessmann

Viessmann VITOTRONIC 300-K Bedienungsanleitung

Viessmann

Viessmann 5221 Bedienungsanleitung

Viessmann

Viessmann Vitocal WPR 300 Betriebsanleitung

Viessmann

Viessmann 5224 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 100 Bedienungsanleitung

Viessmann

Viessmann EM-S1 Betriebsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
