Preface

Dear model railroader,

congratulations on the purchase of the

Viessmann Commander! With the Com-

mander you can easily and comfortab-

ly control your locomotives and also the

whole range of operations on your lay-

out. The unique track diagram of the Com-

mander allows you a quick and intuitive

access to all operations on your comple-

te layout.

Choosing the Commander you purchased

a device which is perfectly prepared for

the future. The existing infrastructure

of your layout can be integrated. User-

friendliness avoiding all indications by

bits and bytes and t avoiding any use of

an soldering device is featuring the Com-

mander. Experience unexpected possibi-

lities of control. You can completely con-

centrate upon the operations on your

layout.

By the way, for actual information and

software updates we have a special Com-

mander-Homepage

www.viessmann-commander.de

We wish you much fun and success !

Your Viessmann-Team

Symbol key

Attention!

To follow absolutely!

Info, advice, tip

Not allowed!

Contents of delivery

Please, check the following list. If some-

thing is missing, please contact the spe-

cialist dealer where you purchased this

device.

• this Quick Start guide

• DVD „Commander-attachments“

• Viessmann Commander

• power supply, mains connection

cable included

• connection plugs for track and booster

• electronic pen

Viessmann Commander

Table of content

Important information 4

Possibilities of use 4

Correct use of the product 4

Safety instructions 4

Intention of the operating instruction 5

Explication of the symbols 5

Survey of the Commander 7

Schematic overview 7

On/Off and Emergency Stop 7

Switching the Commander on and off 7

Control panels 8

Touchscreen 9

Connection 10

Connection jacks of the device 10

Wiring diagram 11

Display modes

on the Commander 12

Mode track diagram & loco 12

Mode locomotives 12

Mode track diagram 13

Direct mode 13

Running the system /

Quick start in 5 steps 14

1. Taking out of the packaging 14

2. Connections 14

3. Switching On 14

4. Put the locomotive on the track 14

5. Running a train! 15

Basic functions 15

Running a locomotive 15

Switching turnouts and signals 17

Feedback 18

Editors 20

Locomotive editor 20

Turnout- and signal editor 23

Track diagram editor 25

Route editor 27

System set-up 31

Language 31

Display-brightness 31

Starting mode 31

Protocols 31

Model-time 31

Software-update 31

Information 33

Technical specications 33

Conformity declaration 33

Pollution control / disposal 33

Warranty information 34

Further informations 34

Appendix 35

Overview of the menues 35

Overview of touch elds 36

4 Quick Start

Important information

This product is not a toy. Not suitable for

children under 14 years!

Please, read this operating instructing

completely and with attention before using

the product for the  rst time or installing it.

Please keep this operating instruction, it is

part of the product.

Possibilities of use

With the Commander you can control your

whole layout. The Commander is s desi-

gned for the comfortable control of your

locomotives as well as for the switching of

turnouts, signals and other functional

devices. The Commander can be used for

the data formats Märklin-Motorola old and

new and for the format of NMRA/ DCC.

The Commander  ts for all scales.

Correct use of the product

The Commander has to be used strictly in

conformity with this operating instruction.

This product is intended:

• For connection to a model railroad

layout in conformity with this operating

instruction

• For connection to the included

power supply

• For operation in dry areas

• For use in compliance with the safety

instructions below.

Using the product for any other purpose is

not approved and is considered as incor-

rect. The manufacturer cannot be held re-

sponsible for any damage resulting from

the improper use of this product; liability in

such case rests with the user.

There are no parts inside the cabinet to

be maintained or cleaned.

Never try to open the Commander.

In this case the guaranty will expire.

Incorrect use of the Commander can

destroy the device.

Safety instructions

• Newer use the Commander unatten-

ded. The Commander must not be

used for the control of any device

driving or carrying persons.

• The Commander is not a toy. Please

make sure that it is used by children

only under supervision.

• For the power supply of the

Commander only use the included

power supply.

Viessmann Commander

• Please check regularly if there are

any damages to the cabinet or to the

cables. Newer use obviously

damaged parts and never try to

repair them yourself.

• The display is a very sensitive com-

ponent. Never rest on it. Don’t touch

it with any hard or sharp pointer.

• If necessary clean up the

Commander only with a soft cloth

wet with folk and without uffs.

Never use household cleaners, they

may corrode the surface.

• Please ensure that there is enough

ventilation for the power supply and

the Commander. The installation in

a closed compartment or drawer will

lead to a dangerous overheating

and re risk.

• The environment of the

Commander must be rain proofed,

dry, dust-free and not exposed to

direct solar radiation. Please avoid

any great variations in temperature

• Taking the Commander from cold to

warm rooms, the device needs at

least 1 hour of acclimatisation.

Intention of the

operating instruction

The Commander is intended for an

intuitive operating. To allow a quick start

we intentionally made this operating

instruction short. But the digital model rail-

way is a complex theme. For detailed infor-

mation please look at the included DVD.

The DVD contains a multimedia

instruction. You can play it on a DVD-

player or on your PC. Choose the terms of

reference you want (e. g. drawing a track

diagram). Step by step a movie will show

you what to do. Additionally the DVD

includes this short operating instruction as

a PDF-document and software programs

(computer programs) for the Commander.

Explication of the symbols

Most of the control commands of the

Commander are entered by touch elds on

the display. You will nd the most important

touch eld symbols and a schematic over-

view of the menus on the inside of the

folding backside-cover from this booklet.

6Quick Start

Speed-Control Knob

Colour Display

Display

mode menu

NavigatorDirection-Buttons

Zoom-menu

System-menu

On / Off and Emergency Stop

Operating

mode

Speed-Control Knob

Viessmann Commander

Survey of the Commander

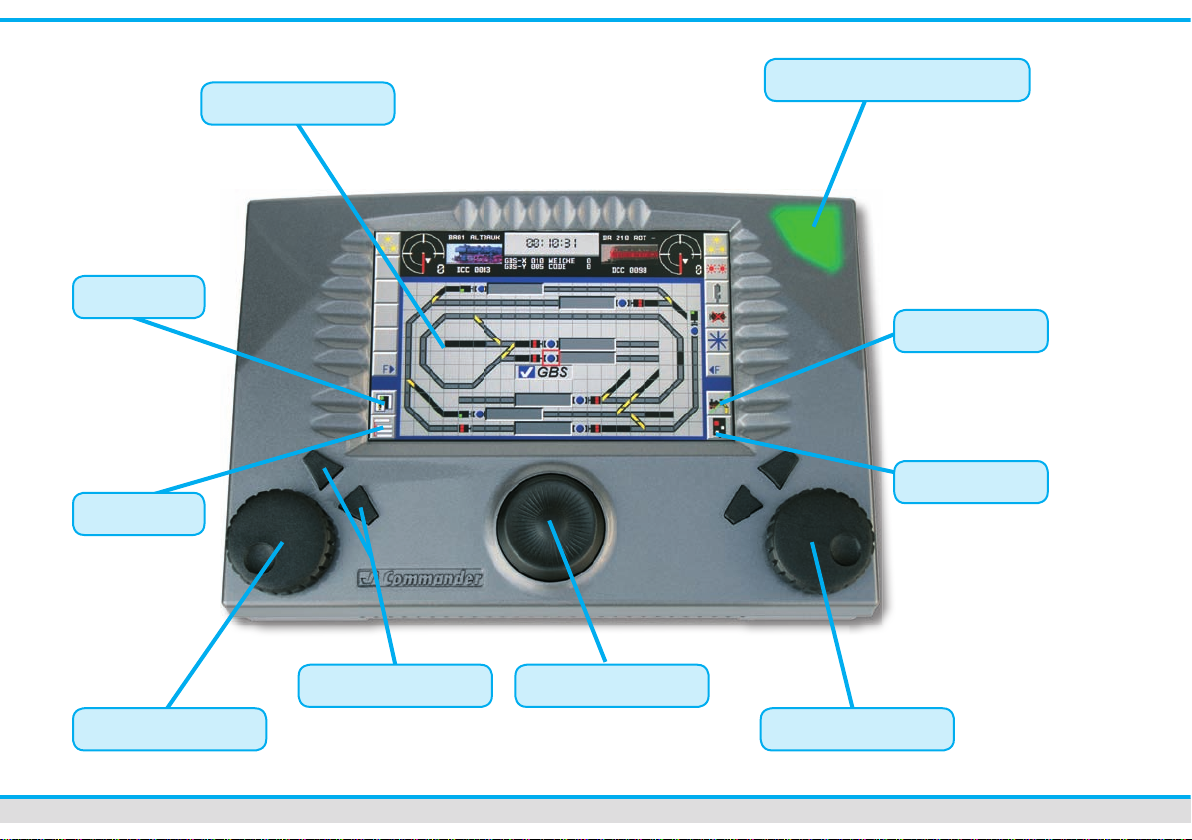

Schematic overview of the

Commander and the touch elds

To start with, you will nd a schematic

overview of the Commander and the touch

elds on the left side.

On/Off and Emergency Stop

You switch the Commander on and off with

this pushbutton. Additionally you can

activate two different emergency stop

functions. The operating status of the

device is indicated by the illumination of

the pushbutton

Switching the Commander

on and off

Switching on:

Push the pushbutton until it´s blinking

green (approx. 1-2 seconds).

Switching off:

Hold down the pushbutton until the illumi-

nation is switched off (> 3 seconds).

The display gets darker until it goes com-

pletely out.

Emergency stop 1:

This emergency status stops automatically

all trains. The track power is still on.

• To activate the emergency stop 1, press

shortly the on/off emergency-push-

button. To deactivate the emergency

stop press the pushbutton shortly.

• Letting loose the pushbutton the emer-

gency stop is deactivated and the

illumination is green again.

Emergency stop 2:

This emergency status stops automatically

all trains and cuts off the track power.

• To activate the emergency stop 2, press

the on/off emergency-pushbutton till the

illumination is permanently red.

• To deactivate the emergency stop press

the pushbutton shortly again.

Button Function (explication)

Off Device is off

blinking

green Device is starting

green Device switched on,

normal operating mode

blinking

red-green Device switched on, emer-

gency stop, track power on

red Device switched on, emer-

gency stop, track power off

blinking

red Shutdown

8 Quick Start

Control panels

The 2 control panels of the Commander

are equivalent one to another. They are on

the right and on the left side of the

display and composed of the following

components:

Speed- control knob with intelligent turn

stop. Turning clockwise the train runs

quicker. You slow down the train by

turning anti-clockwise. Just press the

speed-control knob and the actually

controlled locomotive will stop immedia-

tely (emergency stop).

Two direction-buttons in order to

change the direction of travel.

Function-touch  elds in order to choose

the additional functions of the

locomotive by a  ngertip.

Locomotive-selection- eld to call up

the list of locomotives. The Comman-

der shows a locomotive icon of your

free choice in this  eld as well as the

address and the name of the

locomotive.

Speed indication  eld: The Commander

indicates the actual speed of the loco-

motive (speedometer and speed step).











Viessmann Commander

Touchscreen

The colour display of the Commander is a

touch screen. The input can be done with

your  ngers ( ngertip) or with the

electronic pen included.

Please don’t touch the display with any

hard or sharp pointer like a ballpoint,

pencil or needles.

This may scratch the display.

All touch  elds of the display are sensi-

tive. Additionally, switching- elds are set

off specially. The Commander opens either

another menu or carries out an operation

just by a simple  ngertip on a touch  eld.

Maintenance service of the

touchscreen

Please avoid to scratch the sensitive

surface of the display.

The Commander is to clean up only with a

soft cloth without  uffs and wet with folk or

with a throw away cloth for glasses.

Take care that no drops of water are left on

the touch screen. This may cause a disco-

loration of the surface of the touch screen.

Never expose the touch screen to very

bright sunlight or to ultraviolet radiation.

10 Quick Start

USB 2.0

HighSpeedBus

LowSpeedBus

s88-Bus

Märklin-Booster

DCC-Booster

Programming track

Main track

Power supply

Connection

Connecting the Commander please

respect the following advices.

Apply them also in case of modi cation of

the wiring e. g. if you change or add

signals or tracks.

All connection and installation work has

to be performed with the operating

voltage switched off, except when

connecting new devices to the Viess-

mann SpeedBus connection jacks!

They should be connected during the

running system in order to make

possible the autocon guration.

The power source must be protected so

that no cable  re can occur in case of

a short circuit. Use only model railway

transformers build in compliance with

VDE/ EN!

Make sure that the cross section of the

cable is large enough when performing

electrical connections.

Connection jacks of the device

Andere Handbücher für Commander 5300

Inhaltsverzeichnis

Andere Viessmann Controller Handbücher

Viessmann

Viessmann 5547 Bedienungsanleitung

Viessmann

Viessmann 5232 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 200 Bedienungsanleitung

Viessmann

Viessmann 5268 Servocontrol Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 100 Abmessungen und Installationsanleitung

Viessmann

Viessmann 5223 Bedienungsanleitung

Viessmann

Viessmann PLC VITOCAL 350-HT PRO Betriebsanleitung

Viessmann

Viessmann 4100 H0 Bedienungsanleitung

Viessmann

Viessmann Vitotronic 300 Series Bedienungsanleitung

Viessmann

Viessmann Fillstation medium Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 300 Bedienungsanleitung

Viessmann

Viessmann SCU124 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 300 Bedienungsanleitung

Viessmann

Viessmann VITOTROL 100 UTDB Bedienungsanleitung

Viessmann

Viessmann 4551 Bedienungsanleitung

Viessmann

Viessmann 5268 Bedienungsanleitung

Viessmann

Viessmann Vitotronic 300K GW6B Bedienungsanleitung

Viessmann

Viessmann KW10 Leitfaden

Viessmann

Viessmann VITOCONNECT OPTO2 Bedienungsanleitung

Viessmann

Viessmann VITOTRONIC 300-K Bedienungsanleitung

Viessmann

Viessmann KW10 Abmessungen und Installationsanleitung

Viessmann

Viessmann 5268 Bedienungsanleitung

Viessmann

Viessmann vitotronic 200-h Kurzanleitung

Viessmann

Viessmann Vitotronic 11 CC1E Kurzanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
