Installation instructions

for contractors

VIESMANN

Vitoplanar EI2/EI3/EI5

Type EI2.A180DI to EI2.A700DI, EI2.A500M to EI2.A1000M, EI2.A350B to

EI2.A700B, EI3.A500GW to EI3.A1000GW, EI3.A350B to EI3.A700B,

EI5.A250S to EI5.A1000S

Infrared heater

VITOPLANAR EI2/EI3/EI5

5855601 GB 2/2020

Please follow these safety instruc-

tions closely to prevent accidents

and material losses.

Safety instructions explained

Danger

This symbol warns against the risk

of injury.

!Please note

This symbol warns against the risk

of material losses and environmen-

tal pollution.

Note

Details identified by the word "Note"

contain additional information.

Target group

These instructions are exclusively inten-

ded for qualified contractors.

Installation and commissioning as well

as repairs and service work may only be

carried out by a licensed contractor or a

qualified person in compliance with all

safety regulations. This person must first

check whether the electrical system in

the building complies with the applicable

standards. The responsibility of the

manufacturer is limited to the delivery of

the appliance.

This appliance can also be operated by

children aged 8 and older, as well as by

individuals with reduced physical, sen-

sory or mental faculties or those lacking

in experience and knowledge, provided

such individuals are supervised or have

been instructed in the safe use of this

appliance and any risks arising from it.

Regulations to be observed

■National installation regulations

■Statutory regulations for the prevention

of accidents

■Statutory regulations for environmental

protection

■Codes of practice of the relevant trade

associations

■Relevant country-specific safety regu-

lations

Work on the appliance

■Work on electrical equipment may only

be carried out by a qualified electrician.

■Only connect appliances to correctly

installed sockets.

■When working on the appliance, dis-

connect the power plug.

■Isolate the appliance from the power

supply (e.g. by removing the separate

fuse or by means of a mains isolator)

and check that it is no longer live.

■Safeguard the appliance against

reconnection.

Safety instructions

5855601

Danger

Hot surfaces on the appliance can

cause burns.

Before maintenance and service

work, switch off the appliance and

let it cool down.

Operation of the appliance

Danger

Damaged equipment poses a

safety hazard.

Check the appliance for external

damage. Never start up a damaged

appliance.

■The appliance may only be operated in

its original condition without modifica-

tions and in perfect technical condition.

All protection equipment must work

faultlessly and be freely accessible.

■To prevent the appliance overheating,

do not cover it.

■Children younger than the age of 3

must be kept away from the appliance

unless they are constantly supervised.

Children between the ages of 3 and 8

may only switch the appliance on and

off if they are supervised or have been

instructed in the safe use of the appli-

ance and have understood the result-

ing risks, provided that the appliance is

placed or installed in its normal posi-

tion of use. Children between the ages

of 3 and 8 must not plug the appliance

into a wall socket, regulate the appli-

ance, clean the appliance or carry out

maintenance.

■The appliance may only be commis-

sioned once it has been installed.

■The appliance must not be used in the

immediate vicinity of a bathtub, shower

or swimming pool.

■The appliance must not be used in

small rooms inhabited by persons who

cannot leave the room independently,

unless constant monitoring is ensured.

Danger

Covering the surface can cause

a fire hazard.

■Do not cover the appliance,

whether partially or wholly,

e.g. with a towel.

■Do not dry any objects on the

appliance.

!Please note

Even covering parts of the front can

lead to overheating and damage to

the heating element.

■Do not cover the appliance,

whether partially or wholly, e.g.

with a towel.

■Do not dry any objects on the

appliance.

!Please note

Mechanical loads can damage the

appliance.

■Do not lean against the appliance

■Do not lean objects against the

appliance

Auxiliary components and individual parts

For replacement, use only spare parts

supplied or approved by Viessmann.

Safety instructions (cont.)

5855601

1. Information Disposal of packaging ............................................................................ 5

Symbols ................................................................................................. 5

Intended use .......................................................................................... 5

Product information ................................................................................ 5

■Vitoplanar EI2 (DI = Design) ............................................................... 5

■Vitoplanar EI2 (M = Mirror) ................................................................. 6

■Vitoplanar EI2 (B = Bathroom) ............................................................ 6

■Vitoplanar EI3 (GW = Glass White) .................................................... 6

■Vitoplanar EI3 (B = Bathroom) ............................................................ 6

■Vitoplanar EI5 (S = Steel) ................................................................... 6

2. Preparing for installation Before installation .................................................................................. 7

Clearance dimensions ........................................................................... 7

■Installation room requirements ........................................................... 7

3. Installation sequence Mounting the appliance on the wall ....................................................... 8

Position of mounting brackets ................................................................ 9

■Vitoplanar, type EI5.A250S and EI2.A180DI ...................................... 9

■Vitoplanar, type EI_.A500_, EI2.A350DI, EI2.A350B and EI3.A350B 9

■Vitoplanar, type EI_.A750_, EI2.A500DI, EI2.A500B and EI3.A500B 10

■Vitoplanar, type EI_.A1000_, EI2.A700DI, EI2.A700B and

EI3.A700B .......................................................................................... 11

Electrical connection .............................................................................. 12

■Connection via wall junction box ........................................................ 12

■Connection with standard plug ........................................................... 12

Commissioning and instructing the user ................................................ 12

4. Appendix Specification .......................................................................................... 13

■Energy consumption data ................................................................... 14

Final decommissioning and disposal ..................................................... 15

Declaration of Conformity ...................................................................... 15

Index

5855601

Please dispose of packaging waste in line with statu-

tory regulations.

Symbols

Symbol Meaning

Reference to another document containing

further information

Warning of material losses and environ-

mental pollution

Intended use

The appliance may only be used for its intended pur-

pose in areas where the occupants can leave the

rooms independently or where constant monitoring is

ensured.

It is intended exclusively for room heating.

Using the appliance if it is not installed or for any pur-

pose other than room heating shall be deemed inap-

propriate.

Intended use presupposes that a permanent installa-

tion in conjunction with permissible components

designed for this purpose has been carried out.

The appliance should be able to radiate freely into the

room.

The appliance must not be used in the immediate

vicinity of a bathtub, shower or swimming pool.

All other use is deemed inappropriate. Any resulting

losses are excluded from the manufacturer's liability.

Any usage beyond this must be approved by the man-

ufacturer in each individual case.

Intended use also includes adherence to maintenance

and inspection intervals.

Product information

Direct electric heating for rapid heating of living spaces

■Optimised insulation reduces proportion of convec-

tion

■Large infrared radiant surface

■Maintenance-free, no magnetic field

■Plug & play system for simple, individual control

■Horizontal and vertical installation

Vitoplanar EI2 (DI = Design)

Type Output in kW

EI2.A180DI 0.18

EI2.A350DI 0.35

EI2.A500DI 0.5

EI2.A700DI 0.7

Infrared heater, glass, design

■Individually designable glass surface

■TSG as an excellent radiation emitter

■Optimised surface temperature (70 °C)

Disposal of packaging

5855601

Vitoplanar EI2 (M = Mirror)

Type Output in kW

EI2.A500M 0.5

EI2.A750M 0.75

EI2.A1000M 1

Infrared heater, glass, mirror

■Infrared heater as mirror version

■Glass is an excellent emitter of radiation

Vitoplanar EI2 (B = Bathroom)

Type Output in kW

EI2.A350B 0.35

EI2.A500B 0.5

EI2.A700B 0.7

Infrared heater, glass, mirror, bathroom version

■Infrared heater as mirror version

■Bathroom version with towel holder

■Optimised surface temperature (70 °C)

Vitoplanar EI3 (GW = Glass White)

Type Output in kW

EI3.A500GW 0.5

EI3.A750GW 0.75

EI3.A1000GW 1

Infrared heater, glass, pure white

■Infrared heater as glass version

■Glass is an excellent emitter of radiation

Vitoplanar EI3 (B = Bathroom)

Type Output in kW

EI3.A350B 0.35

EI3.A500B 0.5

EI3.A700B 0.7

Infrared heater, glass, bathroom version

■Infrared heater as glass version

■Bathroom version with towel holder

■Optimised surface temperature (70 °C)

Vitoplanar EI5 (S = Steel)

Type Output in kW

EI5.A250S 0.25

EI5.A500S 0.5

EI5.A750S 0.75

EI5.A1000S 1

Infrared heater, steel, white

■Infrared heater as steel version

■Version only suitable for wall mounting

Product information (cont.)

5855601

Danger

The appliance may fall off the wall if unsuitable

fixing materials are used. This may result in dan-

gerous injuries and damage to the appliance.

Secure the appliance only with the mounting

brackets for wall mounting included in the stand-

ard delivery.

Only use screws and rawl plugs that are suitable

for the type of wall (masonry, concrete, plaster-

board, etc.).

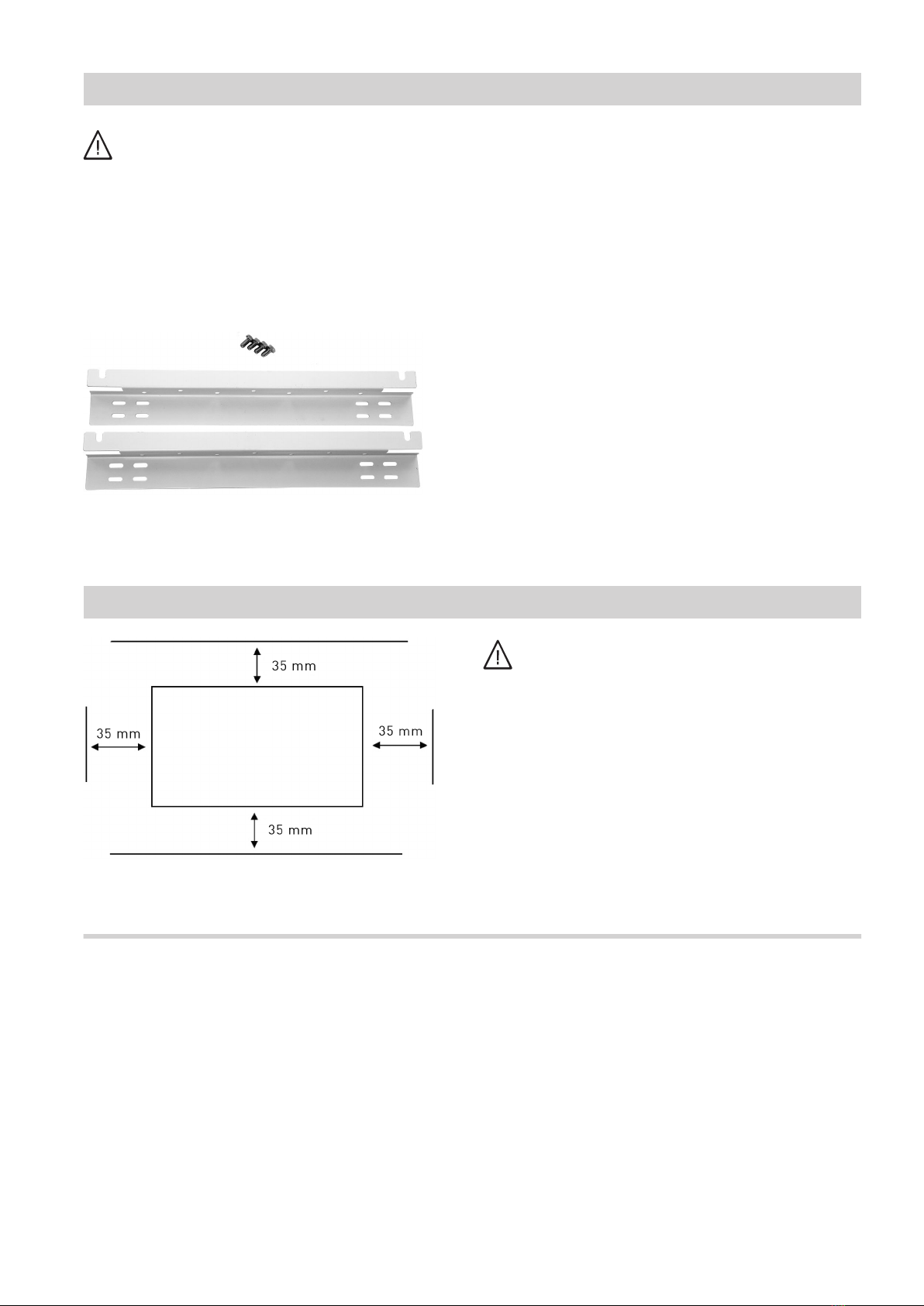

Fig. 1 Mounting brackets and hexagon screws

(standard delivery)

!Please note

Installation on uneven surfaces can cause dam-

age to the heating surface due to stress.

Only fit the appliance to level walls.

Standard delivery for wall mounting:

■2 x mounting brackets

■4 x hexagon screws M8 x 16

Clearance dimensions

Fig. 2 Minimum clearances

Danger

If the appliance is operated without maintaining

the minimum clearances, flammable objects

may catch fire.

Observe the specified minimum clearances.

Note

When installing the appliance in bathrooms, observe

the safety zones according to DIN VDE 0100 part 701!

Note

Horizontal or vertical installation is possible.

Installation room requirements

!Please note

Impermissible ambient conditions can lead to

damage to the appliance (risk of overheating)

and to a fire hazard.

■Do not use the appliance in the immediate

vicinity of a bathtub, shower or swimming pool.

■Do not install the appliance directly below a

wall socket.

■The appliance must not be used in small

rooms inhabited by persons who cannot leave

the room independently, unless constant moni-

toring is ensured.

Before installation

5855601

1. Select the position for the mounting brackets

depending on the product type and installation

type. See page 9 onwards.

2. Mark the drill holes using a spirit level and drilling

template (standard delivery).

!!!

8 x

3. Drill holes.

8 x

4. Secure the mounting brackets using suitable rawl

plugs and screws.

Danger

The appliance may fall off the wall if unsuita-

ble fixing materials are used. This may result

in dangerous injuries and damage to the

appliance.

Secure the appliance only with the mounting

brackets for wall mounting included in the

standard delivery.

Only use screws and rawl plugs that are

suitable for the type of wall (masonry, con-

crete, plasterboard, etc.).

5. Place the infrared heater on the mounting bracket

and secure with screws.

!Please note

Mechanical stress on the surface, e.g. if

people or objects lean against it, can lead to

damage.

Prevent force being applied to the surface.

Mounting the appliance on the wall

5855601

Vitoplanar, type EI5.A250S and EI2.A180DI

Vertical

Fig. 3

Horizontal

Fig. 4

Vitoplanar, type EI_.A500_, EI2.A350DI, EI2.A350B and EI3.A350B

Vertical

Fig. 5

Drill holes

Fig. 6

Position of mounting brackets

5855601

Horizontal (only type EI_.A500_ and EI2.A350DI)

Fig. 7

Vitoplanar, type EI_.A750_, EI2.A500DI, EI2.A500B and EI3.A500B

Vertical

Fig. 8

Drill holes

Fig. 9

Horizontal (only type EI_.A750_ and EI2.A500DI)

Fig. 10

Position of mounting brackets (cont.)

5855601

Andere Handbücher für VITOPLANAR EI2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Viessmann Heizung Handbücher

Viessmann

Viessmann VITOPLANAR EI2 Bedienungsanleitung

Viessmann

Viessmann VITOPLANAR EI2 Bedienungsanleitung

Viessmann

Viessmann VITOPLANAR EI2 Betriebsanleitung

Viessmann

Viessmann VITOPLANAR EI6 Bedienungsanleitung

Viessmann

Viessmann Vitoplanar EC4 Series Bedienungsanleitung

Viessmann

Viessmann EHE Betriebsanleitung

Viessmann

Viessmann VITOPLANAR EI2 Bedienungsanleitung

Viessmann

Viessmann VITOLADENS 300-T Bedienungsanleitung

Viessmann

Viessmann Vitoplanar EC4 Series Bedienungsanleitung

Viessmann

Viessmann VITOLADENS 300-T VW3B Betriebsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
