30x Optical Zoom Camera Gimbal
Images are for reference only, please subject to the actual product.
Q30F
-1-
Q30F Pinpoint-precision Gimbal
1.Gimbal introduction ……………………………………………………………2
2.Object tracking function (Optional)……………………………………………2
3.Gimbal description …………………………………………………………… 3
4.Packing list………………………………………………………………………4
5.Gimbal dimension………………………………………………………………4
6.Installing…………………………………………………………………………5
7.Mechanics@Electronic characteristics………………………………………5
8.Working characteristics ………………………………………………………5
9.Connection of control box and wiring instructions…………………………6
Contents
1.Camera introduction ..................................................................................10
2.Parameter index ........................................................................................10
3.Functional characteristics .........................................................................11
Q30F Camera
-2-
Object Tracking Function (optional )
Gimbal Introduction
Q30F is a pinpoint-precision professional 3-axis gimbal which features high
stability, small size, light weight and low power consumption. The 3-axis
gimbal based on FOC motor control technology, adopts pinpoint-precision
encoder in each motor.
The speed of Q30F gimbal is adjustable, LOW speed mode is used for large
zoom range, the control will be more accurate; Fast speed mode is used for
small zooming range, which makes the gimbal control sensitive and quick.
Also the one-key to center function will allow the gimbal return to initial
position automatically and rapidly.
Q30F supports PWM, S.BUS and serial command control, suitable for close
range remote control or remote data command control.
Build-in normalization, cross-correlation and tracking algorithm,
combining with object missing recapture algorithm, achieve stable
track of the target.
Support custom characters of user OSD, adaptive gate, cross cursor,
tracking information display.
2.Tracking performance
1.Function description
1)Update rate of deviation pixel 50Hz
2)Output delay of deviation pixel <15ms
3)Minimum object contrast 5%
4)The minimal signal-to-noise ratio (SNR) 4
5)Minimum object size 16*16 pixel
6)Maximum object size 160*160 pixel
7)Tracking speed 32 pixel/frame
8) The mean square root values of pulse noise in the object
position<0.5 pixel
-3-
[3]
[5]
[7]
[4]
[6]
[8]
[2]
[1]
SUB
!Please make sure that the motor is not stopped by any object during
the rotation, if the gimbal is blocked during rotation, please remove
the obstruction immediately.
[1]Gimbal fixed copper cylinder
[2] Damping ball
[3] Upper damping board
[4] Lower damping board
[5] YAW axis motorr
[6] Roll axis motor
[7] Pitch axis motor
[8] HD zoom camera
Gimbal Description
-4-
106
121
154.8
147
84
SUB
SUB
M3*5mm button head hexagon screw*12
( fixed copper cylinder and damping plate)

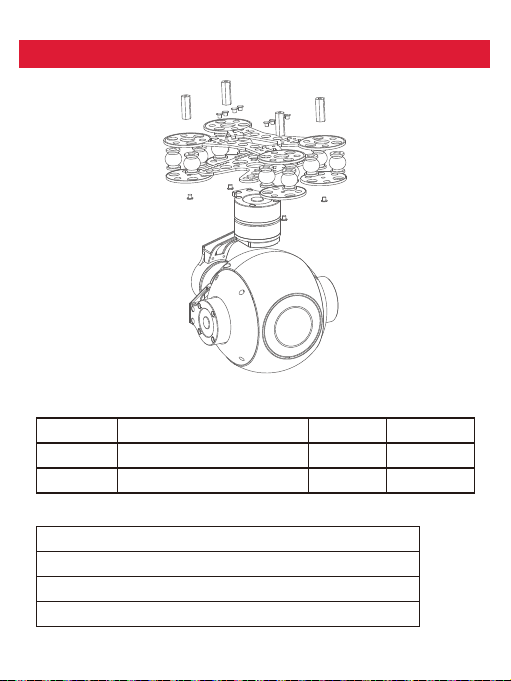

Packing list
Gimbal*1 Screw pack*1
Copper cylindersr*4 Damping balls*12
Gimbal Dimension
Unit ：mm
-5-
Input voltage
Dynamic current
Size
3S~ 4S
450mA@12V
L147*W121*H154.8mm
Idle current
Working
environment temp
Weight
330mA@12V
-20℃~ +80℃
670g
Working Characteristics
Mechanics@Electronic Characteristics
Pitch/Tilt: Pitch angle range of action : ±90
Roll: Roll angle range of action : ±85°
Yaw/Pan: Yaw angle range of action : ±150°
Vibration angle: Pitch/Roll: ±0.02°, Yaw：±0.03°
Installing
-6-
USB
1 2 3
S.bus/Rx
Roll/Tx
Pitch
Yaw
Mode
Zoom
Focus
Pic/Rec
Multi
Av
PWM in
5V output
GND
TTL 9600/8/1/N
USER BOARD
RX
TX
GND
SUB
HDMI: micro HDMI OUTPUT
1080P 60fps default
SD card: max 32G, class10
FAT 32 or exFAT format
Connection of Control Box and Wiring Instruction
-7-
1 pitch up
2 pitch stop
3 pitch down
We have protocol for
co n tro l the g i mba l
and camera, pl ease
contact our technical
support for detail
doc.
USER BOARD / GPS module
TX
GND
RX
TTL 9600/8/1/N
1 Yaw right
2 Yaw stop
3 Yaw left
S.bus/Rx: connect to Rx2 for track function.
Roll/ Tx: connect to Tx2 for track function.
Pitch: PWM in, pitch control
1 zoom tele
2 stop zoom
3 zoom wide
1 focus tele
2 stop focus
3 focus near
1
2
3
-8-
Position 1: Lowest speed for pitch and yaw.
Position 2: Middle speed for pitch and yaw.
Position 3: Highest speed for pitch and yaw. The speed is continuously quickly
from 1 to 3.
One click: Home position.
Two click: Look down.
Three click: Yaw not followed by frame.
Four click: Yaw followed by frame.
Five click: Restore the factory settings.
(Click = from 2 to 3 and back to 2 quickly)
ZOOM: Zoom the camera Focus: Focus the camera
Mode: Change the speed / home position
Pic/Rec ：picture / start record，stop record
1
2
3
Switch 2 to 1 camera mode change.
Picture mode:the number is quantity of SD card can storage;
Record mode:the time is recording time from star t record.
Switch 2 to 3:
A) take a picture.
B) Start record / stop record
:
Multi：backup PWM channel for customize
1
2
3
AV: AV output 。
-9-
