EXTENDER USER MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

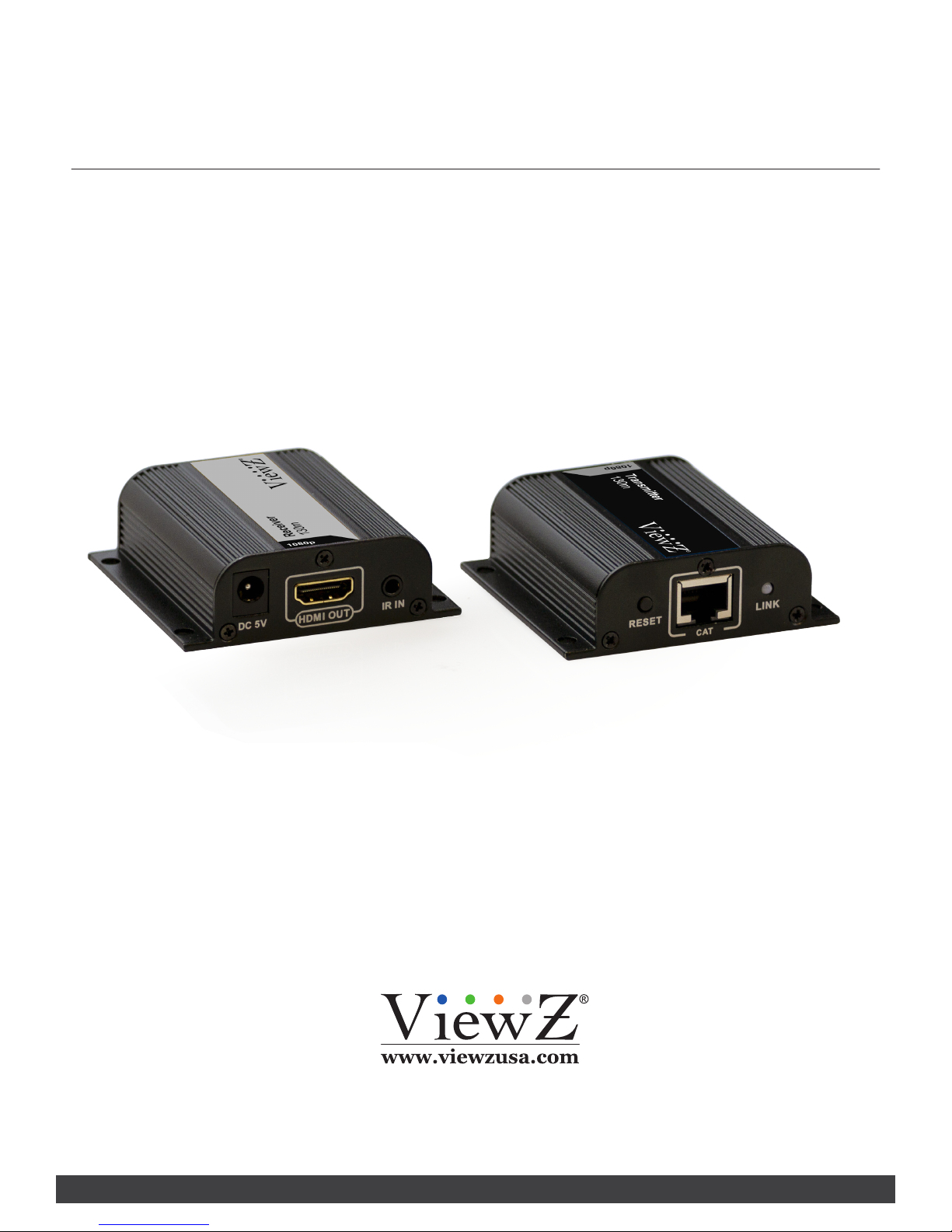

HDMI CAT 5e/6/7 Extender with IR

VZ-1TR X

2User ManualVisit the ViewZ USA website at https://www.viewzusa.com

This symbol is intended to alert the user to the presence of uninsulated & dangerous voltage

within the monitor’s enclosure that may be of sucient magnitude to constute a risk of

electric shock to persons.

This symbol is intended to alert the user to the presence of important operang and

maintenance (servicing) instrucons in the literature accompanying the monitor.

Important Safety Instruction

Mark Indication and Substance

Nominal Operating Temperature & Humidity

Warning

SAFETY INSTRUCTION

CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

1. Read all warnings.

2. Do not expose this unit to rain, heavy moisture, or liquid

3. Do not repair the device or open the enclosure without professional guidance to avoid electric shocks. Doing so

may void your warranty

4. Keep the product in a well-venlated locaon to avoid damage from overheang

5. Turn o the power and make sure the environment is safe before installaon

6. Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure

they are plugged into the correct ports

7. Use the included DC5V power adapters only. Make sure the specicaon matches if using 3rd-party DC power

adapters

The HDMI CAT5e/6 Extender with IR - 130m extends high denion 1080p HDMI signals from a source device to a

display device up to 130 meters (426) using an economical CAT 5e/6/7 cable.

• Operang Temperature : 32°F ~ 104°F / 0°C ~ 40°C

• Operang Humidity : 20 ~ 90% RH

3User Manual Visit the ViewZ USA website at https://www.viewzusa.com

The following tools may be required depending on your installaon.

Your ViewZ monitor is shipped with all proper installaon hardware and components. If there are parts missing and/or damaged,

please stop the installaon and contact ViewZ USA at (888)-998-4399.

Electronic Stud Finder Protecve Eye-wearPencil Level Phillips Screwdriver

Assembly Components - provided

Installation Tools

Transmier TX (Qty 1),

Receiver RX (Qty 1)

Power Supply (Qty 2) IR Receiver Cable (Qty 1),

IR Blaster Cable (Qty 1)

User Manual (Qty 1)

INSTALLATION

4User ManualVisit the ViewZ USA website at https://www.viewzusa.com

The following image is the descripon of interface input & output ports of 1TRX extender.

Receiver (RX) Transmier (TX)

Interface Input Ports

CONNECT EXTERNAL EQUIPMENTS

q r u aw t i se y o d

1. Turn o all devices including your HDMI source and HDMI display.

2. Connect your HDMI source to the Transmier's HDMI Input port with a HDMI cable (HDMI cable not included).

Oponal: Connect the IR Blaster Extension Cable to the Transmier's IR output port. Face the (IR Blaster) eye towards your

HDMI source's IR window. This connecon is needed if you want to control your HDMI source from the remote locaon.

3. Plug your CAT5e/6/7 cable between the Transmier's RJ45 Output and Receiver's RJ45 Input.

4. Connect your monitor to the Receiver's HDMI output port with a HDMI cable (HDMI cable not included).

Oponal: Connect the IR Receiver Extension Cable to the Receiver's IR input port. This connecon is needed if you want to

control your HDMI source from the remote locaon.

5. Plug the provided power adapters into the Transmier's and Receiver's power jacks (DC 5V), then plug both power

adapters into a reliable power source.

6. Turn on all connected devices.

7. The HDMI extender is ready for use.

1. RESET - Reset the receiver(RX)

2. RJ45 In -Connect to the transmier(TX)'s RJ45 output

port by using a CAT 5e/6/7 cable

3. LINK LED - Light up when RJ45 connected from TX. If

ashing, RJ45 is not connected from TX

4. DC5V - Connect to the provided power supply

5. HDMI Out - Connect to the monitor

6. IR In - Connect to the IR receiver (which provided)

Installation Process

7. RESET - Reset the transmier(TX)

8. RJ45 Out -Connect to the receiver(TX)'s RJ45 input

port by using a CAT 5e/6/7 cable

9. LINK LED - Light up when HDMI input source is

detected. If as, no HDMI input source is detected

10. DC5V - Connect to the provided power supply

11. HDMI In - Connect to the HDMI source device

12. IR Out - Connect to the IR blaster (which provided)

5User Manual Visit the ViewZ USA website at https://www.viewzusa.com

SPECIFICATION

INTERFACE

Transmission Distance

Net Weight

Audio Support

Gross Weight

IR Signal

Operating Temperature

Operating Humidity

Safety & EMC Certification

Electrical Ratings

IR Frequency Range

Power Consumption

Audio Support

Accessories

Network Cable

5V DC, 1A

20KHz ~ 60KHz

TX : 2 W / RX: ≤ 2 W

2 ch

Receiver RX - Power Input (DC 5V) x1, RJ45 In x1, HDMI Out x1, IR Out x1, Reset x1

CE / FCC / ROHS / IEEE568B

Transmitter TX - Power Input (DC 5V) x1, RJ45 Out x1, HDMI In x1, IR In x1, Reset x1

480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080p @50/60Hz

225MHz (10.2Gbps), HDMI 1.4a Compliance, HDCP 1.4 Compliance

Uncompressed with no latency

UTP & STP over Cat 5e / Cat 6/ Cat 7

CAT 6/7 - 426ft / 130m | CAT 5/5e - 328ft / 100m

TX - 0.16 lbs (74 g ) / RX - 0.17 lbs (77 g)

2ch

0.95 lbs (430 g )

20 ~ 60 kHz

32 - 104°F / 0 - 40°C

20 ~ 90% RH

Power Adapter x2, Transmitter TX x1, Receiver RX x1, User’s Manual x1,

IR Blaster Extension Cable x1, IR Receiver Extension Cable x1

Model No. VZ-1TRX

Resoluon

Video Bandwidth

Data Transmission

6User ManualVisit the ViewZ USA website at https://www.viewzusa.com

At start

We recommend that you test with dierent input sources when you have trouble with

the current input source. If symptom persists, follow the instrucons below. Aer

following the instrucons below, please contact us at 1-888-99-VIEWZ.

TROUBLESHOOTING GUIDE

- Check the following before calling for service.

- If the same problems connue aer checking, contact the reseller you purchased the monitor from.

No image or

Noise on the screen

Receiver's Link LED

is ashing

The extender is not

working properly

RX Link LED is on

but there is no image

- Make sure the cable is correctly plugged into the outlet

- Make sure the power cable is correctly plugged into the transmier & receiver

- Make sure the cable is correctly connected between monitor & receiver (RX)

- Check brightness and see if brightness is set to 'Ø'

- Check video source

- Press the Receiver's reset buon to reset the unit.

- Use the shorter network cable.

1) Make sure the network cable follows the IEEE-568B wiring standard.

2) Check the Transmier (TX) correctly connected HDMI input.

3) Reset both TX & RX and reconnect.

1) Please check the cable lengths:

HDMI cables: Up to 5m, Network cables (CAT5e/6): Up to 130m

2) Press the reset button on the TX/RX and reconnect.

1) Press RX reset button to reset the unit.

2) Make sure the HDMI cable is firmly connected to the monitor.

3) Make sure your HDMI monitor is set to the correct HDMI input.

4) Use the high quality network cable.

ViewZ USA intends to make this manual accurate and complete. However, ViewZ USA makes no claim that the informaon contained

herein covers all details, condions or variaons, nor does it provide for every possible conngency in connecon with the

installaon or use of this monitor. The informaon contained in this document is subject to change without noce or obligaon of

any kind. ViewZ USA makes no representaon of warranty, expressed or implied, regarding the informaon contained herein.

ViewZ USA assumes no responsibility for accuracy, completeness or suciency of the informaon contained in this document.

NORTH AMERICA

177 W. Orangethorpe Ave.

Placena, CA 92870

USA and Canada

Phone: 1-888-998-4399

Fax: 1-714-996-1138

Other Locaons

Phone: (001) 888-998-4399

Fax: (001) 714-996-1138

Disclaimer

7User Manual Visit the ViewZ USA website at https://www.viewzusa.com

NOTE

THANK YOU FOR CHOOSING VIEWZ

VIEWZUSA.COM
