VigilLink VL-SW41-1 Bedienungsanleitung
VL-SW41-1
4X1 HDMI2.0 Switch with Audio ARC 18Gbps
VER 1.1
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully
before connecting, operating, or adjusting this product. Please keep this
manual for future reference.
I. Introduction
This is a high-performance HDMI 4x1 switcher that supports HDTV formats
up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream
audio to separate digital and analog audio output. This product supports
HDCP repeater/CEC/ARC functions. Select any of the inputs by the front
panel button or IR Remote, the corresponding indicator LED on the front
panel will be illuminated.
2. Package
1 x HDMI 4x1 Switcher
1 x 5V/1APower Adapter
1 x 38KHz IR Rx cable
1 x Optical convert header (for SPDIF audio output)
1 x HDMI 4x1 IR Remote
1 x Operation Manual
3. Features
Compliant with HDMI 2.0a, DVI 1.0 standards
HDCP 2.2 and HDCP 1.4 compliant
Video formats up to 4Kx2K@60 and all HDMI 3D video formats
Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
Digital and analog audio output
Support smart EDID management(Auto/2CH/5.1CH/7.1CH selectable)
Support input port auto switching or manual switching mode
Audio Return Channel (ARC) supports
4. Specifications
Frequency Bandwidth 18Gbps
Input Ports 4 HDMI Female ports, 1 IR Receive port and 1RS232 port
Output port 1 HDMI Female port and 1 L/R & Optical port
HDMI Audio Output PCM2.1/5.1/7.1CH,Dolby5.1, DTS5.1, Dolby-TrueHD,
DTS-HD
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 180 (D) x85 (W) x 11.6 (H)
Weight (g) 300
Power Consumption Max 2.5W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
5. Switcher Operation controls and Functions

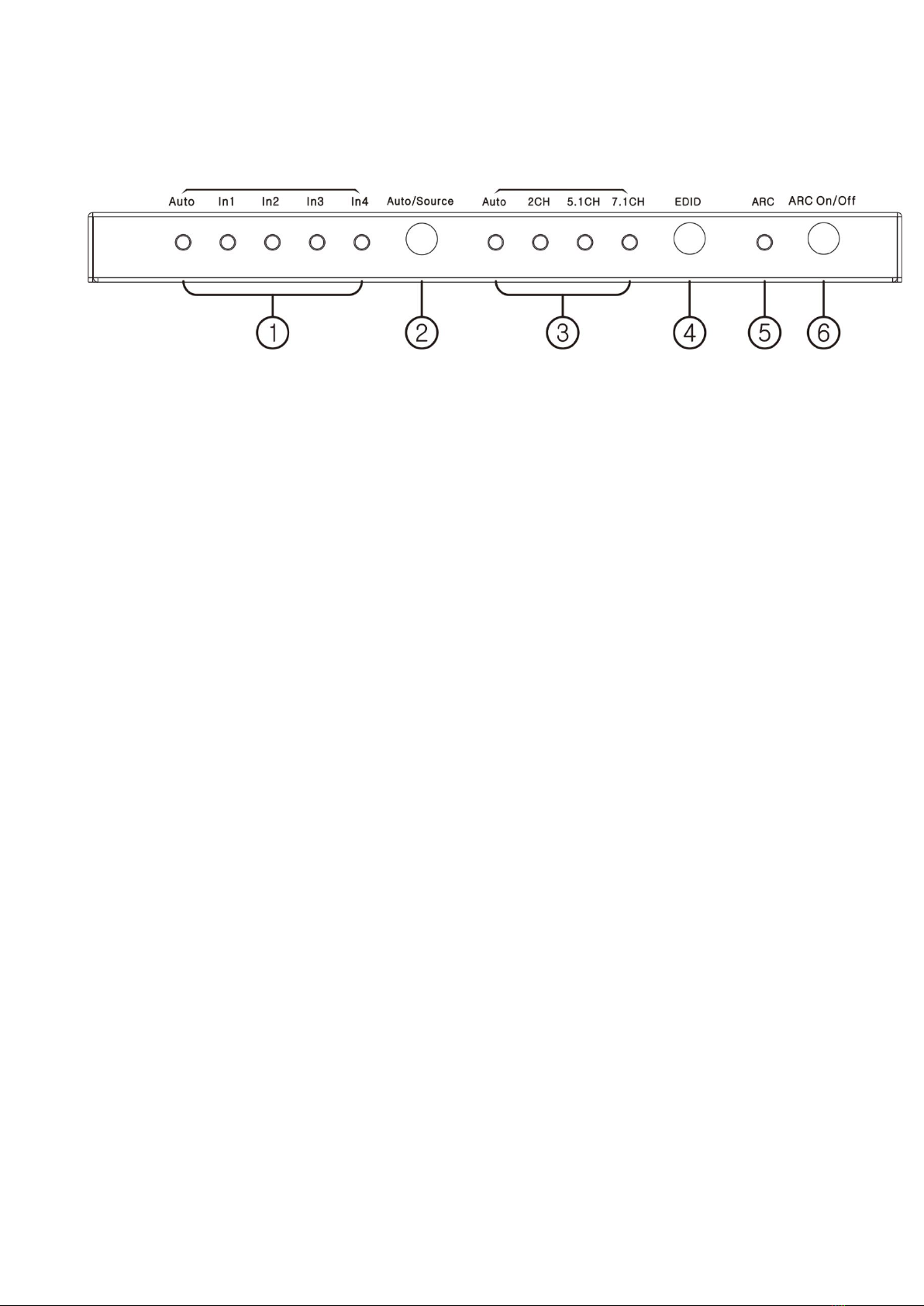

Front Panel:
①Input indicator LED, the corresponding port LED will be illuminated when
its port is selected.
②Auto or manual select button:
Press this button >2 seconds to select auto switching or manual switching
mode.
Under manual switching mode, short pressing this button to select the
input port.
③EDID status LED (Auto means using TV EDID).
④EDID select button (Press this button to select EDID mode
Auto/2.1CH/5.1CH/7.1CH)
⑤ARC status LED (this LED will be illuminated if ARC is enabled
successfully)
⑥ARC function on/off button

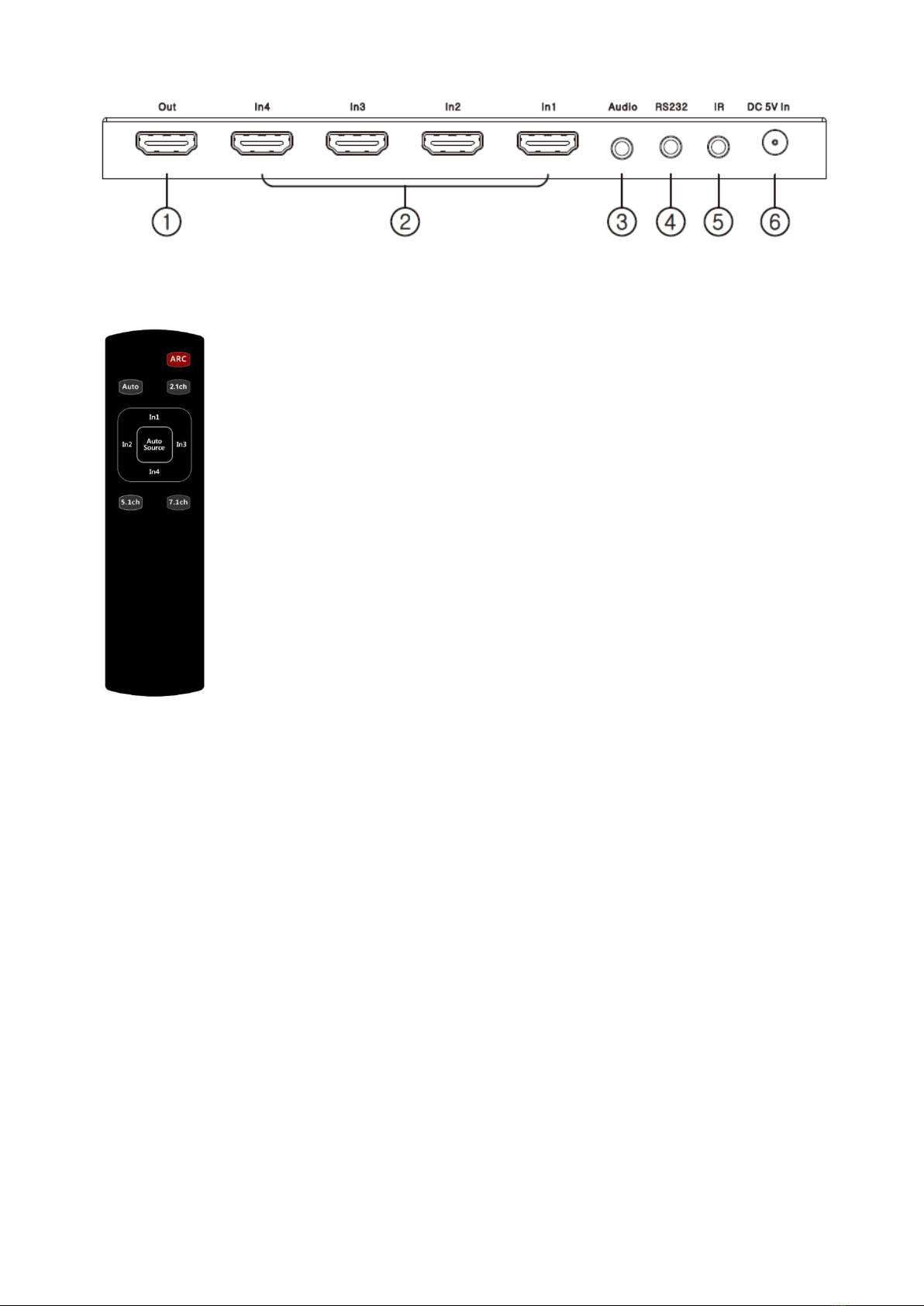

Rear Panel:
①HDMI output port, connect with HDTV or monitor by
HDMI cable
②HDMI input ports, connect with DVD, PS4, or Set-top Box
HDMI cable
③Audio output (including L/R analog and optical audio out)
④RS232 port
⑤IR receiver port
⑥DC 5V input port
6. IR Remote
ARC: Press this button to enable or disable the ARC function. ARC LED on
the front panel will be illuminated if the ARC function is enabled successfully.
Auto/2.1ch/5.1ch/7.1ch: Press these buttons to select different EDID
settings and the corresponding LED on the front panel will be illuminated.
Auto Source: Press this button to select auto switching or manual switching
mode.
In1/In2/In3/In4: Under manual switching mode, press this button to select the
input port.

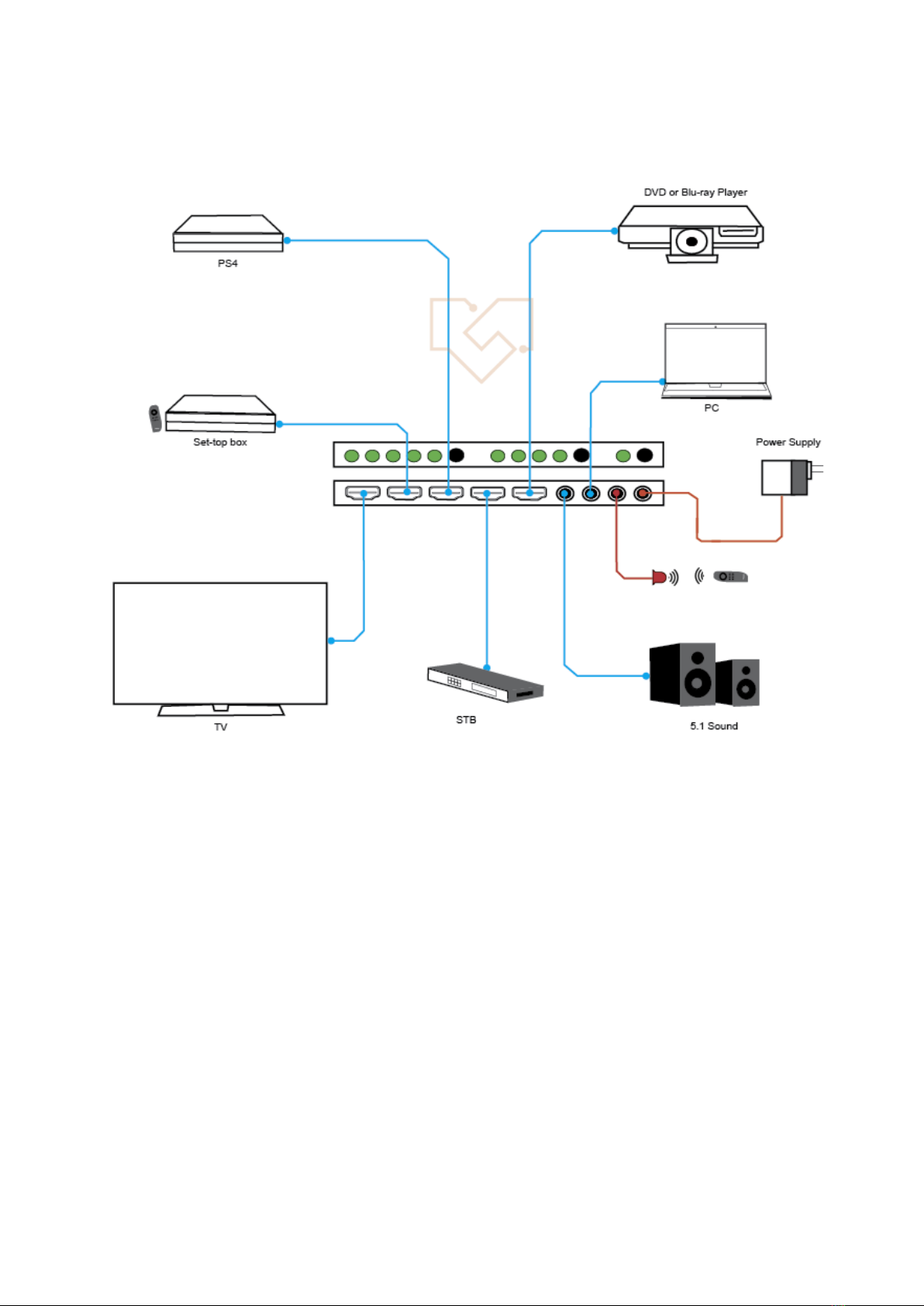

7. Application Example
