Viglen D965GF Bedienungsanleitung
Viglen Limited
Quick Start Guide
Viglen Product Description: Intel D965GF Motherboard
Viglen order Code: PMPGF001
Viglen System: Genie (S775)
Product Photograph:
Page - 1 - of 21
Product Specification
Motherboard Form Factor microATX (243.84 millimeters [9.60 inches] x 243.84 millimeters
[9.60 inches])
Motherboard chipset Intel® Q965 Express Chipset consisting of:
• Intel® 82G965 Graphics Memory Controller Hub (GMCH)
• Intel® 82801HB I/O Controller Hub (ICH8)
CPU connector type (s370,
slot1 etc) LGA 775
Number of CPUs supported 1
If >1 does it require a
terminator? N/A
Supported CPU types (C,
P3 or P4 etc) Support for the following:
• Intel® Core™2 Duo processor with 1066 or 800 MHz system bus
• Intel® Pentium® D processor with 800 or 533 MHz system bus
• Intel® Pentium® 4 processor with 800 or 533 MHz system bus
• Intel® Celeron® D processor with 533 MHz system bus
• Supports Intel® EM64T
Supported CPU speeds CPU No. CPU speed FSB L2 cache
E6300- E6400
E6600- E6700
1.86 –2.13GHz
2.40--2.66GHz
1066MHz
1066Mhz
2MB
4MB
805
820-840
915-960
2.66GhZ
2.80Ghz- 3.40GHz
2.80GHz-3.60GHz
533MHz
800MHz
800MHz
2MB
2MB
4MB
505-506
520-571
630-672
2.66GHz-2.66GHz
2.80GH – 3.80Ghz
3.00GHz-3.80GHz
533MHz
800MHz
800MHz
1MB
1MB
2MB
310-355
352,356
2.13-3.33GHz
320GHz-333GHz
533MHz
533MHz
256KB
512KB
Front side bus speed 1066MHz, 800MHz and 533MHz
Number of PCI slots 2
PCI slot speeds 33MHz
Number of PCI-E slots 1 x PCI-e x16
1 x PCI-e x1
Number of AGP slots 0
Number of AMR slots 0
Additional slots 0
On board video fitted?
Type Intel® Q965 Express Chipset with Intel® Graphics Media Accelerator
3000
Ram size? N/A
Upgradeable? N/A
Onboard audio fitted? Type
6-channel (5.1) onboard subsystem, featuring:
•Intel® High Definition Audio interface
•SigmaTel* STAC9227 audio codec
•HD Audio Link header
Front facing audio header
and type Yes
Page - 2 - of 21
Audio Upgradeable? Yes via PCI
Onboard network fitted?
Type Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the
Intel® 82566DM Gigabit Ethernet Controller
Intel® Active Management Technology (Intel® AMT) with System
Defence Feature
Number of network
connections? 1
Upgradeable? Yes via PCI
Onboard SCSI fitted? Type No
No of channels? N/A
Manufacturer? N/A
Model Number? N/A
Speed? N/A
Number of IDE channels One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
Maximum number of disks 2
Number of SATA Channels Six Serial ATA (SATA) channels (3.0GB/s), via the ICH8, one device per
channel.
Intel® Matrix Storage Technology (RAID 0, 1, 10, 5)
Diskette drive Interface 1
2 x USB connectors for 4 additional
USB 2.0 devices
1 x Chassis intrusion header
1 x HD Audio Link Header 1 x Front panel audio header
Internal connectors
1 x Serial port header
1 x Parallel Port 1 x RJ045 LAN Port
1 x VGA port 1 x Audio In
6 x USB 2.0 ports 1 x Audio Out
Rear I/O connectors
1 x MIC
Memory type DDR2
Supports:
•Unbuffered, non-registered single or double-sided DIMMs
•Non-ECC memory
•Serial Presence Detect (SPD) memory only
For RIMMs install CRIMM in
empty sockets N/A
Number of memory sockets Four 240-pin DDR2 1.8 V SDRAM Dual Inline memory Module (DIMM)
sockets
Maximum memory support • Support up to 8GB of system memory using DDR2 667 or DDR2 533
DIMMS
• Support up to 4GB of system memory using DDR2 800 DIMMS
Supported memory speed DDR2 800/667/533 MHz single or Dual channel DDR2 DIMMS
BIOS
Intel® Platform Innovation Framework for extensible firmware interface
• 16 Mbit symmetrical flash memory
• Support for SMBIOS
• Intel® Rapid BIOS Boot
• Intel® Express BIOS Update
Power
Management
Support for Advanced Configuration and Power Interface (ACPI)
• Suspend to RAM (STR)
• Wake on USB, PCI Express,, LAN, and front panel
Hardware
Management
• Intel® Quiet System Technology (Intel® QST) fan speed control
• Three fan headers
• Three fan sensing inputs used to monitor fan activity
• Remote diode temperature sensing
• Voltage sensing to detect out of range values
MTBF 117,142 hours
Page - 3 - of 21
Supported CPU List in Detail
See the table below for a complete list of supported processors.
Processor
Family Processor
Number Processor
Speed System Bus
Frequency L2 Cache Size
E6700 2.66 GHz 1066 MHz 4 MB
E6600 2.40 GHz 1066 MHz 4 MB
E6400 2.13 GHz 1066 MHz 2 MB
Intel® Core™2
Duo E6300 1.86 GHz 1066 MHz 2 MB
960 3.60 GHz 800 MHz 2x2 MB
950 3.40 GHz 800 MHz 2x2 MB
945 3.40 GHz 800 MHz 2x2 MB
940 3.20 GHz 800 MHz 2x2 MB
930 3 GHz 800 MHz 2x2 MB
925 3 GHz 800 MHz 2x2 MB
920 2.80 GHz 800 MHz 2x2 MB
915 2.80 GHz 800 MHz 2x2 MB
840 3.20 GHz 800 MHz 2x1 MB
830 3 GHz 800 MHz 2x1 MB
820 2.80 GHz 800 MHz 2x1 MB
Intel®
Pentium® D
805 2.66 GHz 533 MHz 2x1 MB
670 3.80 GHz 800 MHz 2 MB
661 3.60 GHz 800 MHz 2 MB
660 3.60 GHz 800 MHz 2 MB
651 3.40 GHz 800 MHz 2 MB
650 3.40 GHz 800 MHz 2 MB
641 3.20 GHz 800 MHz 2 MB
640 3.20 GHz 800 MHz 2 MB
631 3 GHz 800 MHz 2 MB
Intel®
Pentium® 4
630 3 GHz 800 MHz 2 MB
360 3.46 GHz 533 MHz 512 KB
356 3.33 GHz 533 MHz 512 KB
355 3.33 GHz 533 MHz 256 KB
352 3.20 GHz 533 MHz 512 KB
351 3.20 GHz 533 MHz 256 KB
Intel®
Celeron® D 350 3.20 GHz 533 MHz 256 KB
Page - 4 - of 21
346 3.06 GHz 533 MHz 256 KB
345J 3.06 GHz 533 MHz 256 KB
341 2.93 GHz 533 MHz 256 KB
340J 2.93 GHz 533 MHz 256 KB
Intel®
Celeron® D 336 2.80 GHz 533 MHz 256 KB
Upgrading and ESD precautions
Page - 5 - of 21
WARNING
Unplug the system before carrying out the procedures described in this document.
Failure to disconnect power before you open the system can result in personal
injury or equipment damage. Hazardous voltage, current, and energy levels are
present in this product. Power switch terminals can have hazardous Voltages
present even when the power switch is off.
The procedures assume familiarity with the general terminology associated with
personal computers and with the safety practices and regulatory compliance
required for using and modifying electronic equipment.
Do not operate the system with the cover removed. Always replace the cover
before turning on the system.
As the colours of the wires in the mains lead of this computer may not correspond with the coloured
markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked by the letter E or by the safety Earth symbol Ωor coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
Make sure you are earthed and free of static charge before you open the computer case. If you are
unsure about upgrading your computer, return it to Viglen so a qualified engineer can perform the
upgrade.
CAUTION!
The Viglen D965GF motherboard
and associated components are
sensitive electronic devices. A small
static shock from your body can
cause expensive damage to your
equipment.
Make sure you are earthed and free of static charge before you open the
computer case. If you are unsure about upgrading your computer, return it to
Viglen so a qualified engineer can perform the upgrade.
STEPS TO TAKE TO PREVENT STATIC DISCHARGE:
Page - 6 - of 21
1. The best way to prevent static discharge is to buy an anti-static strap from
your local electrical shop. While you are wearing the strap and it is earthed,
static charge will be harmlessly bled to ground.
2. Do not remove the component from its anti-static protective packaging until
you are about to install it.
3. Hold boards by the edges - try not to touch components / interface strips
etc.
Note:
We recommend that you return your computer to the service department for
upgrading. Any work carried out is fully guaranteed. Upgrades should only be
carried out by persons who are familiar with handling IC's, as incorrect
installation will invalidate the guarantee.
•System Board Components
Page - 7 - of 21
Figure 1 - Motherboard Layout & Components
Table 1
Item Description Item Description
A Front panel audio header (HD or AC97) P Battery
B PCI Conventional bus add-in card
connector 1
Q Front chassis fan header
C PCI Express x1 connector R Chassis intrusion header
D PCI Express x16 connector S Intel 82801HO I/O Controller Hub
(ICH8DO)
E Back panel connectors T BIOS Setup configuration jumper block
F Processor core power connector U Auxiliary front panel power LED header
G Rear chassis fan header V Front panel header
H LGA775 processor socket W Serial ATA connectors [6]
I Intel 82Q965 GMCH X Front panel USB header
J Processor fan header Y Speaker
K DIMM Channel A sockets Z Front panel USB header
L Serial port header AA Parallel ATE IDE connector
M DIMM Channel B sockets BB PCI Conventional bus add-in card
connector 2
N Diskette drive connector CC High Definition Audio header
O Main Power connector - -
•Back Panel Connectors 5.1 SigmaTel audio STAC9227
The Motherboard external IO connectors are attached to a metallic I/O shield.
This shield serves several purposes:
Page - 8 - of 21
•It protects the sensitive Motherboard from any external EMC interference.
•It stops the computer from interfering with other electrical devices.
•It allows the Motherboard to be easily upgraded in the future without
having to resort to buying a whole new case. Simply change the I/O shield
to match the Motherboard.
The I/O shield provides external access to onboard VGA port, Parallel Port,
six USB connectors as well as one LAN Port and audio connectors.
Figure 2 - Back Panel Connectors
Table 2
Item Description Item Description
A Parallel port (Burgundy) E Audio line in/Retasking Jack
[Blue]
B VGA port (blue) F Line out/retasking jack
[Green]
C USB 2.0 ports (six) G Mic in/retasking jack
[Pink]
D LAN (RJ45) - -
•Internal headers
There are connector headers on the motherboard for Front Panel, Alternative
front panel Power LED, USB1/USB2, HD Audio Link, Audio and Serial
Page - 9 - of 21
connector headers. The location and or details of these internal headers are
shown below (Figure 3).

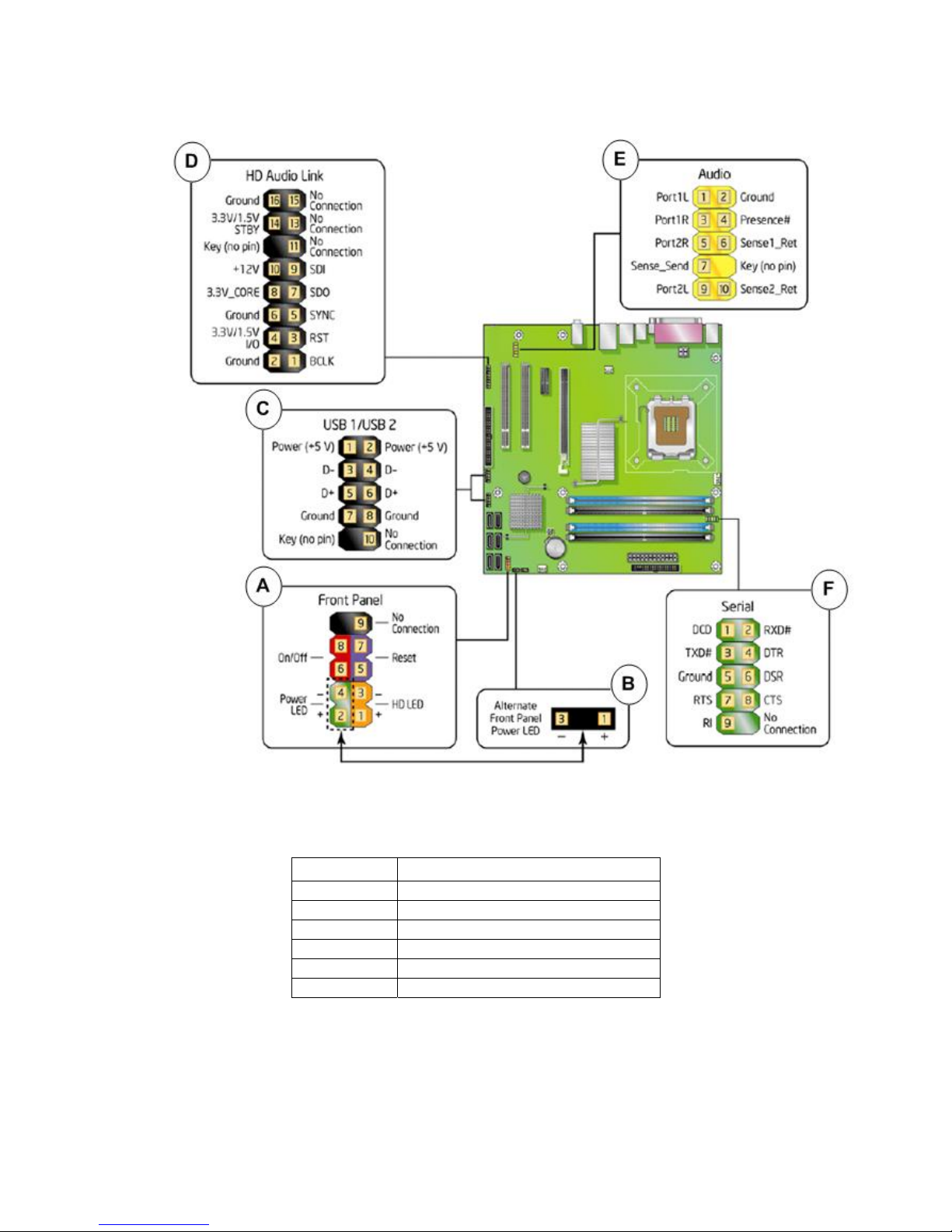

Figure 3 - Internal Headers
Table 3
Item Description
A Front Panel connectors
B Alternative Front Panel Power LED
C USB1/USB2
D Intel HD Audio Link
E Audio (HD/AC’97)
F Serial
•Front Panel connections
Page - 10 - of 21
Inhaltsverzeichnis
Andere Viglen Hauptplatine Handbücher
Viglen
Viglen VIG820S Bedienungsanleitung
Viglen
Viglen D925XCV Bedienungsanleitung
Viglen
Viglen Vig850G Bedienungsanleitung
Viglen
Viglen Vig451J Bedienungsanleitung
Viglen
Viglen Vig665W Bedienungsanleitung
Viglen
Viglen Vig760S Bedienungsanleitung
Viglen
Viglen Vig550B Bedienungsanleitung
Viglen
Viglen Vig535b Bedienungsanleitung
Viglen
Viglen Vig395p Bedienungsanleitung
Viglen
Viglen Intel D955XBK Bedienungsanleitung
Viglen
Viglen N440BX Bedienungsanleitung
Viglen
Viglen Vig680M Bedienungsanleitung
Viglen
Viglen Vig560s Bedienungsanleitung
Viglen
Viglen Vig645M Bedienungsanleitung
Viglen
Viglen Vig710W Bedienungsanleitung
Viglen
Viglen Vig750s Technisches Handbuch
Viglen
Viglen VIG590M Bedienungsanleitung
Viglen
Viglen Vig770S Bedienungsanleitung
Viglen
Viglen Vig103M Bedienungsanleitung
Viglen
Viglen D915GHA Bedienungsanleitung
Beliebte Hauptplatine Handbücher anderer Marken
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Bedienungsanleitung
Gigabyte
Gigabyte GA-9IVDT Bedienungsanleitung
Texas Instruments
Texas Instruments ADS8372EVM Bedienungsanleitung
Commell
Commell MS-C73 Bedienungsanleitung
IBT Technologies
IBT Technologies MB860 Bedienungsanleitung
Nvidia
Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung
