PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

Both models include

• Updated commercial-type styling

incorporates refined detailing

• Sealed burners with brass flame ports,

porcelain/cast iron caps, and

automatic ignition/re-ignition

• Durable metal knobs with childproof,

push-to-turn safety feature

• 16,000 BTU burner for faster heat-up

4B model includes

• Dimensioned to fit virtually all 30”W.

cooktop cutouts

• Four burners

o Left front—16,000 BTU high/3,400

BTU low

o Left rear—12,000 BTU high/1,700

BTU low

o Right rear— ,000 BTU high/1,200

BTU low

o Right front—6,000 BTU high/950

BTU low

• Two separate spill collection areas—

each holds 3-1/2 c. liquid spills

6B model includes

• Dimensioned to fit virtually all 36”W.

cooktop cutouts—the only

“countertop cutout” six-burner

cooktop in 36”W.

• Six burners

o Left front—16,000 BTU high/3,400

BTU low

o Left rear—12,000 BTU high/1,700

BTU low

o Center front—12,000 BTU

high/1,700 BTU low

o Center rear—12,000 BTU high/1,700

BTU low

o Right rear— ,000 BTU high/1,200

BTU low

o Right front—6,000 BTU high/950

BTU low

• Two separate spill collection areas—

each holds 4-1/2 c. of liquid spills

VGSU104-4B

30”W. Four-Burner Cooktop

• Brass Trim Option (BR)—nameplate,

knob bezels, and control panel frame.

Brass components have a durable

protective coating for maintenance-

free normal use.

FINISH DETAILS FOR BOTH MODELS

• Stainless Steel (SS) and Black (BK)

o Finish designates top. Stainless steel

trim/frame and control panel.

o Black porcelain grates, porcelain

burner caps, and knobs.

• White (WH)

o Finish designates top. Dark gray

porcelain grates and porcelain burner

caps, with white knobs.

VGSU164-6B

36”W. Six-Burner Cooktop

Standard Features & Accessories

Model Options

COOKING

Pro essional Built-In Gas 30”/36”W. Cooktop

R E V I S E D 5 / 1 1 / 1 1

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGSU104-4BSS). If ordering optional brass trim, specify code at end (VGSU104-4BSSBR).

If ordering optional LP conversion, specify code at end (

VGSU104-4B

SSBRLP).

21”

(53.3cm)

30-3/4”

(78.1cm)

30-3/4”

(78.1cm)

5”

(12.7 cm)

21”

(53.3 cm)

36-3/4”

(93.3cm)

36-3/4”

(93.3cm)

5”

(12.7 cm)

COOKING

Pro essional Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

✪

Please see

Installation Notes &

Accessories

for important

installation

information,

including

conversion kits.

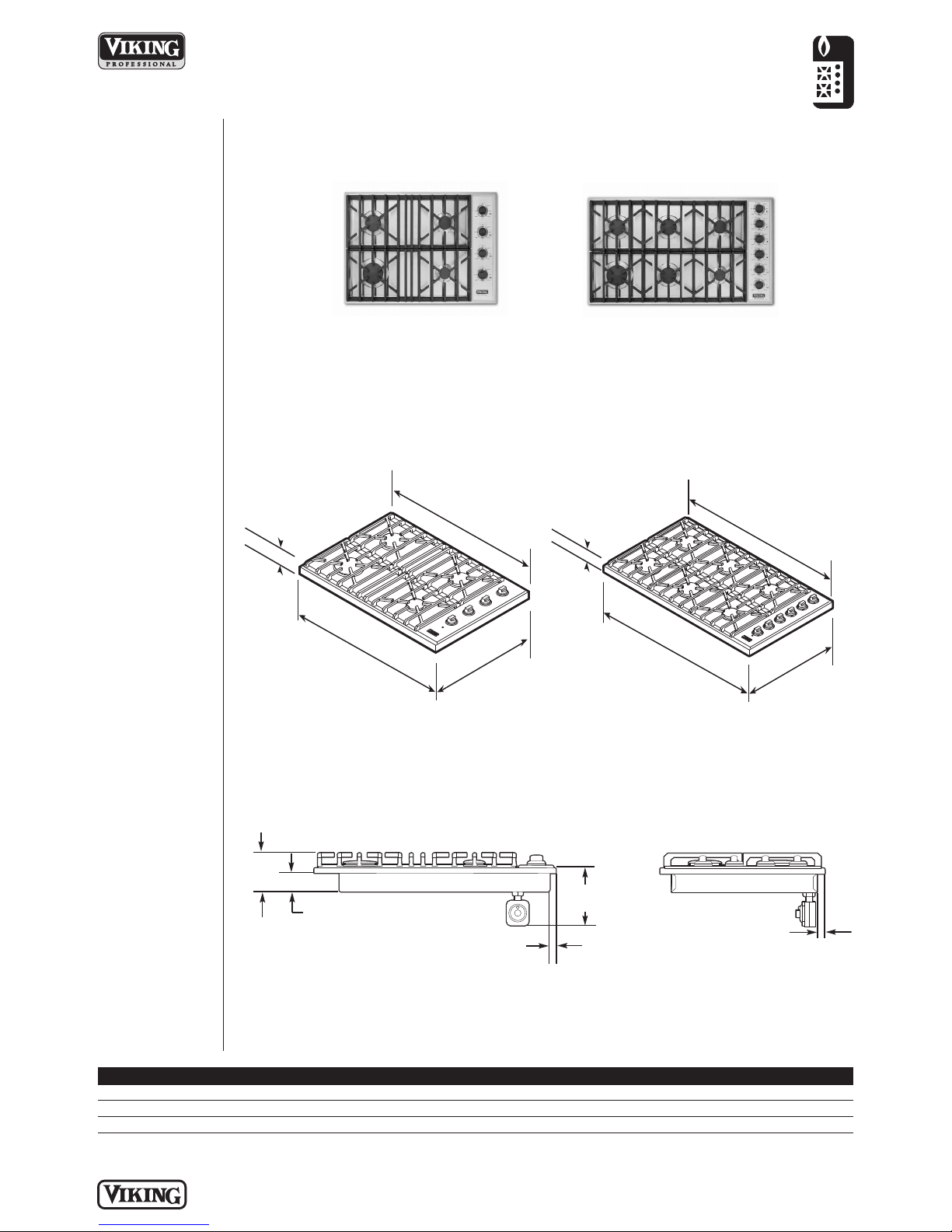

Dimensions & Speci ications

OVERALL PRODUCT DIMENSIONS

30”W. Models 36”W. Models

VGSU104-4B

30”W. Four-Burner

Cooktop

VGSU164-6B

36”W. Six-Burner

Cooktop

1”

(2.5 cm)

2-1/2”

(6.4 cm)

5”

(12.7 cm) 13/16”

(2.1 cm)

6-19/32”

(16.7 cm)

FRONT VIEW SIDE VIEW

VGSU104-4B VGSU164-6B

Overall width 30-3/4 (78.1 cm) 36-3/4 (93.3 cm)

Overall height (top of grate to bottom) 5” (12.7 cm)

Overall depth (from rear) 21” (53.3 cm)

R E V I S E D 5 / 1 1 / 1 1

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

COOKING

Pro essional Built-In Gas 30”/36”W. Cooktop

3-1/2”

(8.9cm)

36”min.

(91.4cm)

3-1/8”

(7.9cm)

36”min.

(91.4cm)

18”min.

(45.7cm)

13”max.

(33.0 cm)

8”min.

(20.3cm)

Minimum clearances from ad acent

combustible construction

• Sides— ” (20.3 cm)

• Rear—3-1/2” ( .9 cm) min.

• Within ” (20.3 cm) side clearance; wall

cabinets no deeper than 13” (33.0 cm)

• Must be minimum 1 ” (45.7 cm) above

countertop

• Wall cabinets directly above cooktop

must be minimum 36” (91.4cm) above

the countertop.

1. The cooktop may be installed directly

to existing base cabinets.

2. The cooktop cannot be installed

directly adjacent to sidewalls, tall

cabinets, tall appliances, or other side

vertical surfaces above 36” (91.4 cm)

high. There must be a minimum of ”

(20.3 cm) side clearance from the

cooktop to such combustible surfaces

above the 36” (91.4 cm) counter

height.

3. Within the ” (20.3 cm) side clearance

to combustible vertical surfaces above

36” (91.4 cm), the maximum wall

cabinet depth must be 13” (33.0 cm)

and wall cabinets within this ” (20.3

cm) side clearance must be 1 ” (45.7

cm) above the 36” (91.4 cm) high

countertop.

4. Wall cabinet above the cooktop must

be a minimum of 36” (91.4 cm) above

the countertop for a full width of the

cooktop. This minimum height

requirement does not apply if a hood

is installed over the cooking surface.

5. A 120-volt wall receptacle should be

located approximately 6” (15.2 cm)

below the countertop cutout and

12” (30.5 cm) from the right side of

the cutout.

The bottom of the hood should be 30”

(76.2 cm) min. to 36” (91.4 cm) above

the countertop. This would typically

result in the bottom of the hood being

66”(167.6 cm) to 72” (1 2.9 cm) above

the floor. Refer to the hood installation

instructions for further information.

Warning

The use of cabinets for storage above

the appliance may result in a potential

burn hazard. If a cabinet storage is to be

provided the risk can be reduced by

installing a hood that projects

horizontally a minimum of 5” (12.7 cm)

beyond the bottom of the cabinets.

Dimensions & Speci ications

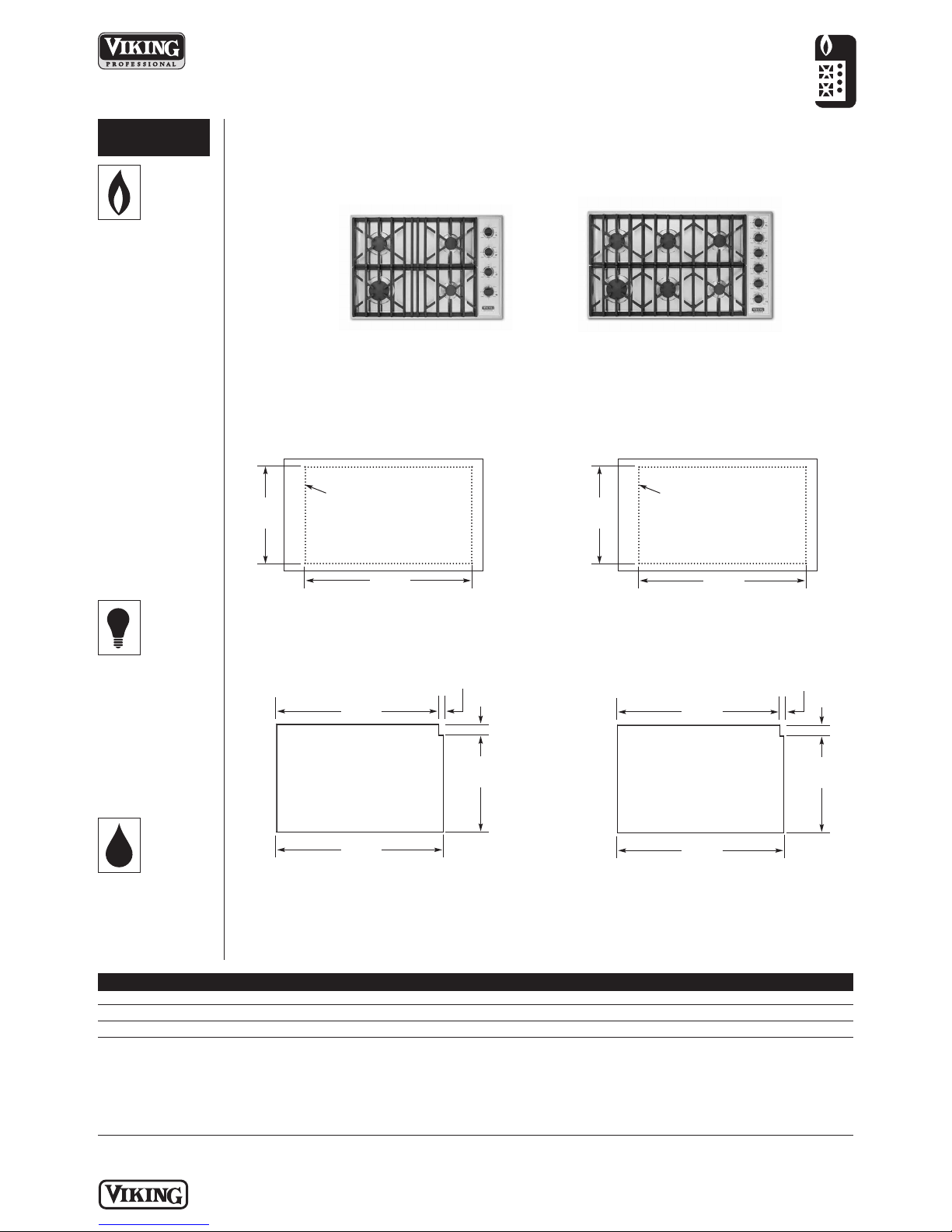

CLEARANCE DIMENSIONS

R E V I S E D 5 / 1 1 / 1 1

18-5/8”

(47.3 cm)

26-7/8”

(68.3 cm) min.

29-7/8”

(75.9 cm) max.

27”

(68.6 cm)

1-1/16”

(2.7 cm)

3” (7.6 cm)

28-1/16”

(71.3 cm)

Cutout

Opening

18-3/4”

(47.6 cm)

VGSU104-4B VGSU164-6B

Cutout width 26-7/8 (68.3 cm) min. to 29-7/8 (75.9 cm) max. 34-3/8 (87.3 cm) min. to 35-7/8 (91.1 cm) max.

Cutout height 2-1/2” (6.4 cm) min.

Cutout depth 18-5/8” (47.3 cm) min. to 20-1/8” (51.1cm) max.

Surface burner rating

Left front 16,000 BTU Nat. (4.8 kW)/15,500 BTU LP (4.65 kW)

Left rear 12,000 BTU Nat. (3.6 kW)/11,500 BTU LP (3.45 kW)

Right rear 8,000 BTU Nat. (2.4 kW)/7,500 BTU LP (2.25 kW)

Right front 6,000 BTU Nat. (1.8 kW)/5,500 BTU LP (1.65 kW)

Center front/rear N/A 12,000 BTU Nat. (3.6 kW)/11,500 BTU LP (3.5 kW)

COOKING

Pro essional Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

UTILITY

REQUIREMENTS

GAS

• Shipped natural gas

standard; to field

convert from natural

or LP/Propane, the

orifice spuds and

regulator must be

physically changed.

o Order conversion

kit NKPDC to

convert natural

and LPKPDC to

convert to LP

•Accepts standard

residential 1/2”

(1.3 cm) ID gas

service line

•Gas manifold

pressure

o Natural gas 5.0”

W.C.P.

o LP/propane 10.0”

W.C.P.

ELECTRICAL

• 4-foot (121.9 cm)

cord included with

cooktop

• 3-wire with

ground/3-prong plug

• 120 V/60 Hz

• Maximum amp

usage—2.0

PLUMBING

Not applicable

Installation Requirements

ACCESS REQUIREMENTS

VGSU104-4B

30”W. Four-Burner

Cooktop

VGSU164-6B

36”W. Six-Burner

Cooktop

34-3/8”

(87.3 cm) min.

35-7/8”

(91.1 cm) max.

33”

(83.8 cm)

18-5/8”

(47.3cm)

1-1/4”

(3.2 cm)

3” (7.6 cm)

34-1/4”

(87.0 cm)

Cutout

Opening

18-3/4”

(47.6 cm)

30”W. Cutout 36”W. Cutout

30”W. Cutout w/Downdraft 36”W. Cutout w/Downdraft

R E V I S E D 5 / 1 1 / 1 1

Conversion Kits

• For field conversion between gas fuel types

• Kit includes all hardware necessary to convert a 30”W. or 36”W. VGSU cooktop

Compliance In ormation

WARRANTY INFORMATION*

• Three-year full warranty—complete product (Professional Series)

• Five-year limited warranty—surface burners

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

COOKING

Pro essional Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

V I K I N G R A N G E . C O M • 1 - - V I K I N G 1

✪Installation Notes & Accessories

Model Description Approx. ship wt. lbs. (kg)

LPKPDC Natural to LP/propane conversion kit 1 (0.5)

NKPDC LP/propane to natural conversion kit 1 (0.5)

R E V I S E D 5 / 1 1 / 1 1
