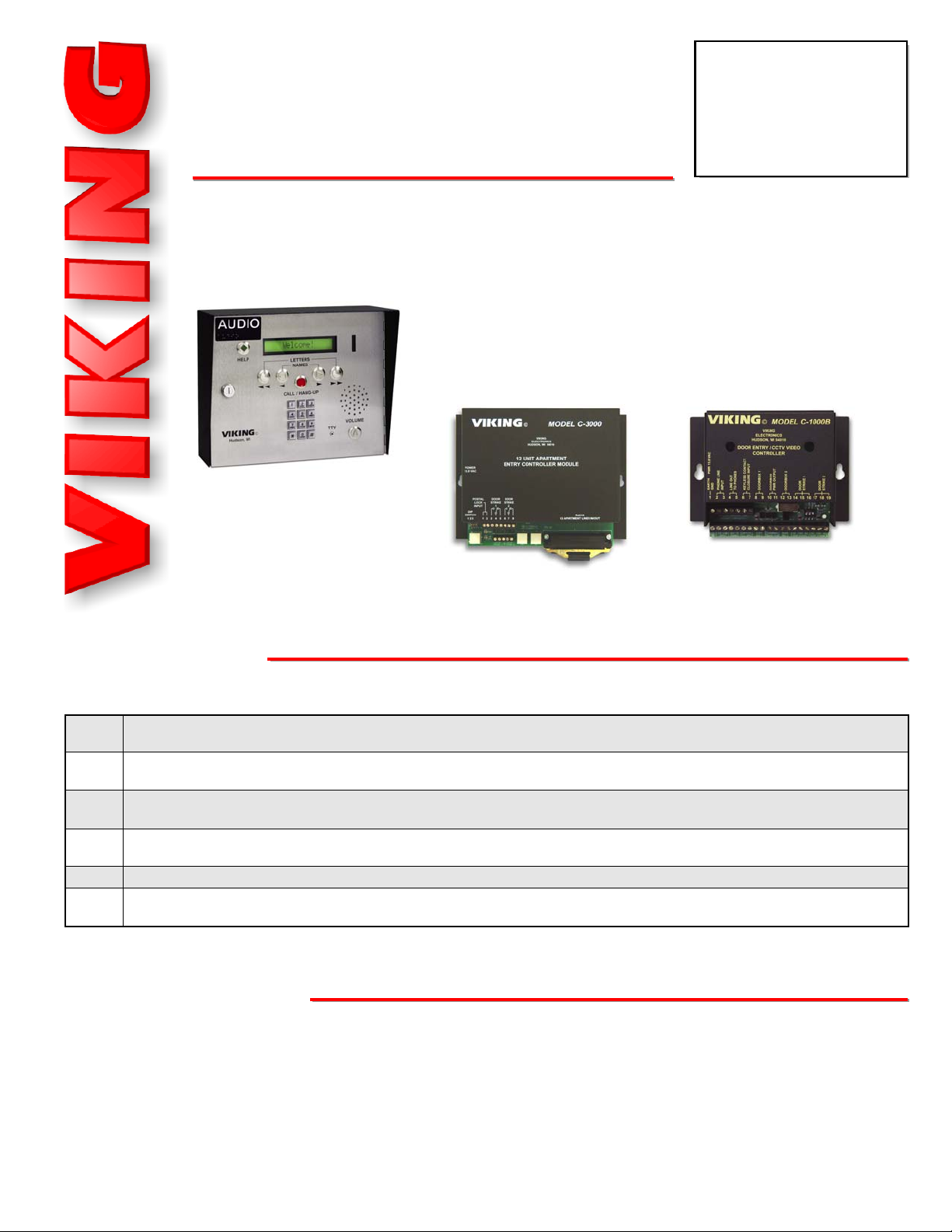

Using the AES-2000

with Multiple C-3000

Controllers

November 9, 2007

Expand Capacity of the AES-2000/C-3000

Combination from 96 Tenants Up to 288 Tenants

APPLICATION

A bank of eight C-3000’s has a 96 tenant capacity. By using

a C-1000B, three groups of eight C-3000’s can be com-

bined, expanding tenant capacity up to 288.

Model AES-2000

Model C-1000B

Model C-3000

Step 1. Connect a pair of wires from the AES-2000’s C-3000 screw terminals to the C-1000B’s LINE OUT TO PHONES screw

terminals.

Step 2. To connect the first group of eight C-3000s: Connect the C-1000B’s LINE IN screw terminals to the Master 1 C-3000’s

ENTRY 1 screw terminals.

Step 3. To connect the second group of eight C-3000s: Connect the C-1000B’s DOOR BOX 1 terminals to Master 2 C-3000’s

ENTRY 1screw terminals.

Step 4. To connect the third group of eight C-3000s: Connect the C-1000B’s DOOR BOX 2 terminals to Master 3 C-3000’s

ENTRY 1 screw terminals.

Step 5. Set DIP switch 3 of the C-1000B to the OFF position.

Step 6. A telephone line can be connected to the AES-2000’s CO screw terminals for remote AES-2000 programming or calling

tenants that do not have phone service.

Note: Connect the group of eight C-3000s in a Master/Slave configuration as shown in the C-3000 Technical Practice.

The following steps are to be used in conjunction with the diagram on the following page (page 2).

For the AES-2000 and the C-3000 to work in harmony, program them to have identical phone entry Call Times and Ring Counts. Failure

to do so will result in unexpected disconnect. The AES-2000 Call Time and Ring Count fields are found in the Building Selection’s “Setup”

pull down menu, under “Parameters.” See the C-3000 Technical Practice, Programming section Bfor programming the Call Time and

Ring Count on the C-3000s.

When programming the AES-2000’s Apartment Selection screen, a “C” in entered before the tenant’s phone number to access the first

C-3000 group. The second and third C-3000 groups require a”C” and a “#1” or a “#2” before the tenant’s phone number.

For Example: C01 - C96 for group one, C#1,01 - C#1,96 for group two, C#2,01 - C#2,96 for group three.

Important: The comma shown in the dialing string is for a 2 second pause, which is required for the C-1000A to switch to group 2 or 3.
