Hardware Components

Enhanced Vision

Merlin Mini User Manual iii

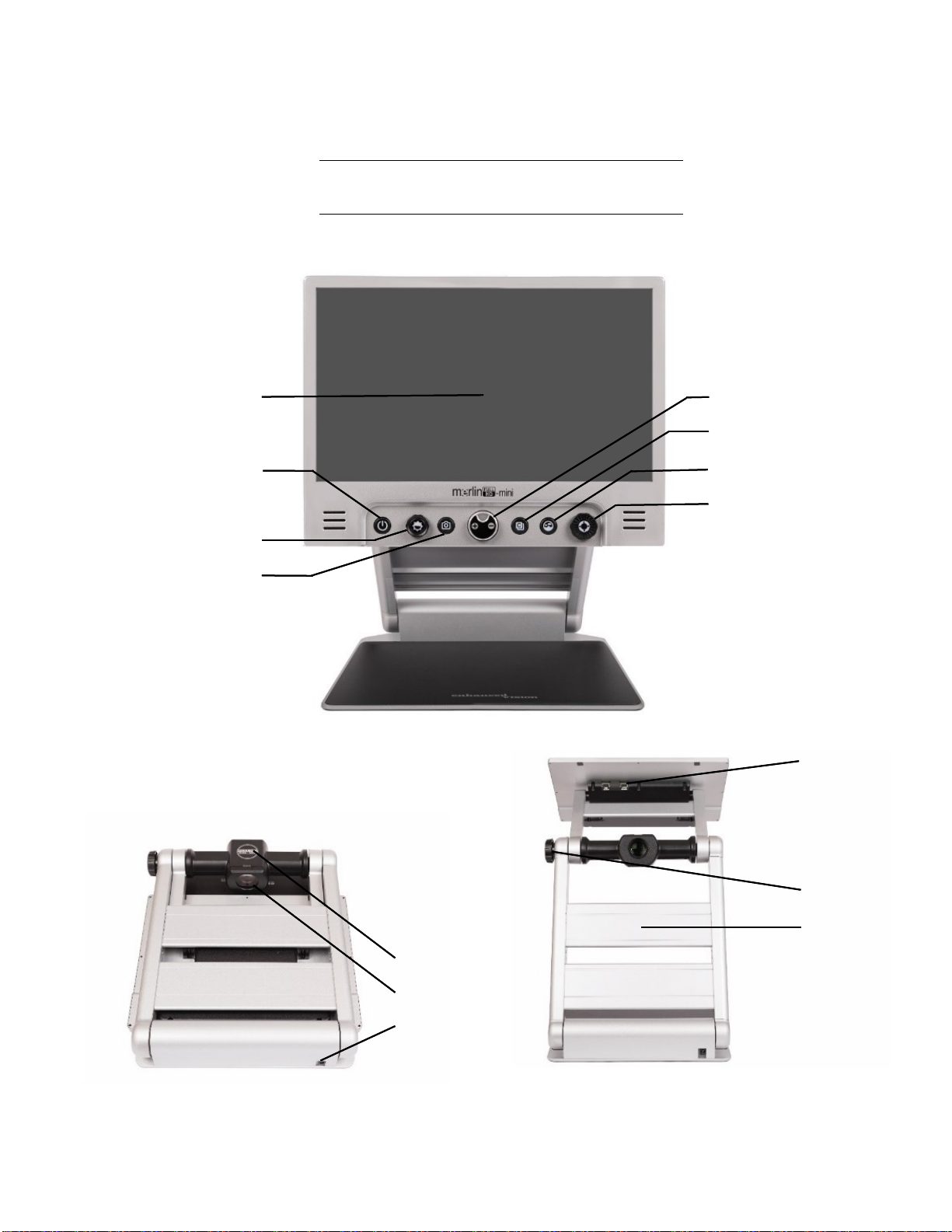

Hardware Components

1. LCD screen

2. Power on/off

3. Image optimizer wheel (adjusts brightness and contrast)

4. Image capture

5. Zoom wheel

6. Color mode

7. Natural color

8. Super Function Key

9. Camera

10. Close up lens (open this lens for distance view)

11. DC jack (insert the power adapter here to charge the battery)

12. HDMI output

13. Camera Positioning wheel

14. LED lights

Note: With the camera ⑨, be careful not to allow foreign material to adhere to the

camera lens. If any foreign material is on the lens, wipe it off with the provided

microfiber cloth.

Enhanced Vision

iv Merlin Mini User Manual

Product enhancements and revisions are an integral part of

what we do here at Enhanced Vision. Visit us at

https://www.enhancedvision.com/support/user-

manuals.html and select your Enhanced Vision product. You

will find the

most up-to-date version of your User Manual here.

www.enhancedvision.com

(800) 440-9476 (US Office, toll free)

(714) 465-3400 (US Office)

+44 (0) 115 9442317 (UK Office)

Fax + 49 (0) 6078 96982733 (DE Office)

Tel. + 49 (0) 6078 9698270 (DE Office)

Part # 441018-001 x1

April 2020

Enhanced Vision
Merlin Mini User Manual  v
Contents
Hardware Components................................................................................................iii
Notes...........................................................................................................................vi
Introduction..................................................................................................................1
About This Manual........................................................................................................1
What’s in the Box..........................................................................................................1
Instructions Before Use.................................................................................................2
Opening the Merlin Mini...............................................................................................2
Closing the Merlin Mini.................................................................................................3
Camera Positions...........................................................................................................4
Buttons.........................................................................................................................5
Hot Keys & Features......................................................................................................7
Line & Mask ..................................................................................................................7
Battery Status................................................................................................................8
HDMI OUT Mode...........................................................................................................8
Scroll the Frozen Image.................................................................................................8
Power Saving Mode.......................................................................................................9
Color Mode Selection....................................................................................................9
Self-View & Distance-View Mode..................................................................................9
Menu..........................................................................................................................10
Navigating the Menu...................................................................................................10
Menu Options .............................................................................................................10
More Settings..............................................................................................................11
FCC Compliance Notice................................................................................................13
Safety and Care ..........................................................................................................14
Precautions for Use.....................................................................................................14
Caring for Merlin Mini.................................................................................................15
Susceptibility to Interference ......................................................................................15
Additional Electrical Safety Precautions ......................................................................16
Transporting Merlin Mini.............................................................................................16
Merlin Mini 15” Specifications ....................................................................................17
Merlin Mini 17” Specifications ....................................................................................18
Warranty Statement & Contact Information ...............................................................19

Enhanced Vision

vi Merlin Mini User Manual

Notes

Enhanced Vision

Merlin Mini User Manual 1

Introduction

Merlin Mini offers the same reading comfort, ease of use, and functionality as a desktop

video magnifier, but in a compact, foldable and portable design. It is the ideal solution

for people who need magnification at different distances. With Merlin Mini, you can

comfortably read text and view objects at home, in the office, in the classroom, or on

the go. Its foldable and lightweight design makes it extremely portable.

About This Manual

This manual familiarizes you with the Merlin Mini features and operation. Please read it

thoroughly before using your Merlin Mini.

Some features are accessed by pressing a button or a combination of buttons. When

steps refer to a button on the device or its control console, the button name is

capitalized, such as the Zoom wheel.

When steps refer to text displayed on the Merlin Mini screen, the text is bold. For

example, the More Settings menu is in boldface, as well as the Power Saving Mode

option on that menu.

If you have any questions or suggestions concerning the use of this product, contact

your Enhanced Vision distributor or Enhanced Vision’s service center (see page 19).

What’s in the Box

The Merlin Mini packaging contains the following.

•Merlin Mini foldable and portable magnifier

•Power adapter

•Carrying case (15” model only)

•User manual

•Microfiber cloth for cleaning the display

Note: If any of these items are missing from your package, please contact your

distributor.

Enhanced Vision

2 Merlin Mini User Manual

Instructions Before Use

The battery must be fully charged prior to the initial use. Connect the supplied power

adapter to the DC input jack to charge the battery. While charging, a red light is

illuminated. When fully charged, the light is green.

Remove the LCD protection film before using the unit. Be careful not to allow foreign

material to adhere to the camera lens. If any foreign material is on the lens, wipe it off

with the provided microfiber cloth.

Opening the Merlin Mini

1. Place the folded Merlin Mini on a stable surface such as a table.

2. Press on the base plate with one hand, while the other hand lifts the top of the

body frame.

3. Lift the arm until it locks in place.

4. Put both hands on the left and right sides of the LCD monitor.

5. Pull the LCD monitor towards you.

6. Push the LCD monitor up using both hands and adjust it to a suitable position.

Enhanced Vision

Merlin Mini User Manual 3

Closing the Merlin Mini

1. Put both hands on the left and right sides of the LCD monitor.

2. To close the Merlin Mini, lower the LCD monitor using both hands.

3. Push the LCD monitor toward the main body frame.

4. Place both hands on top of the body frame.

5. Lower the top of the body frame until it is closed.

Enhanced Vision

4 Merlin Mini User Manual

Camera Positions

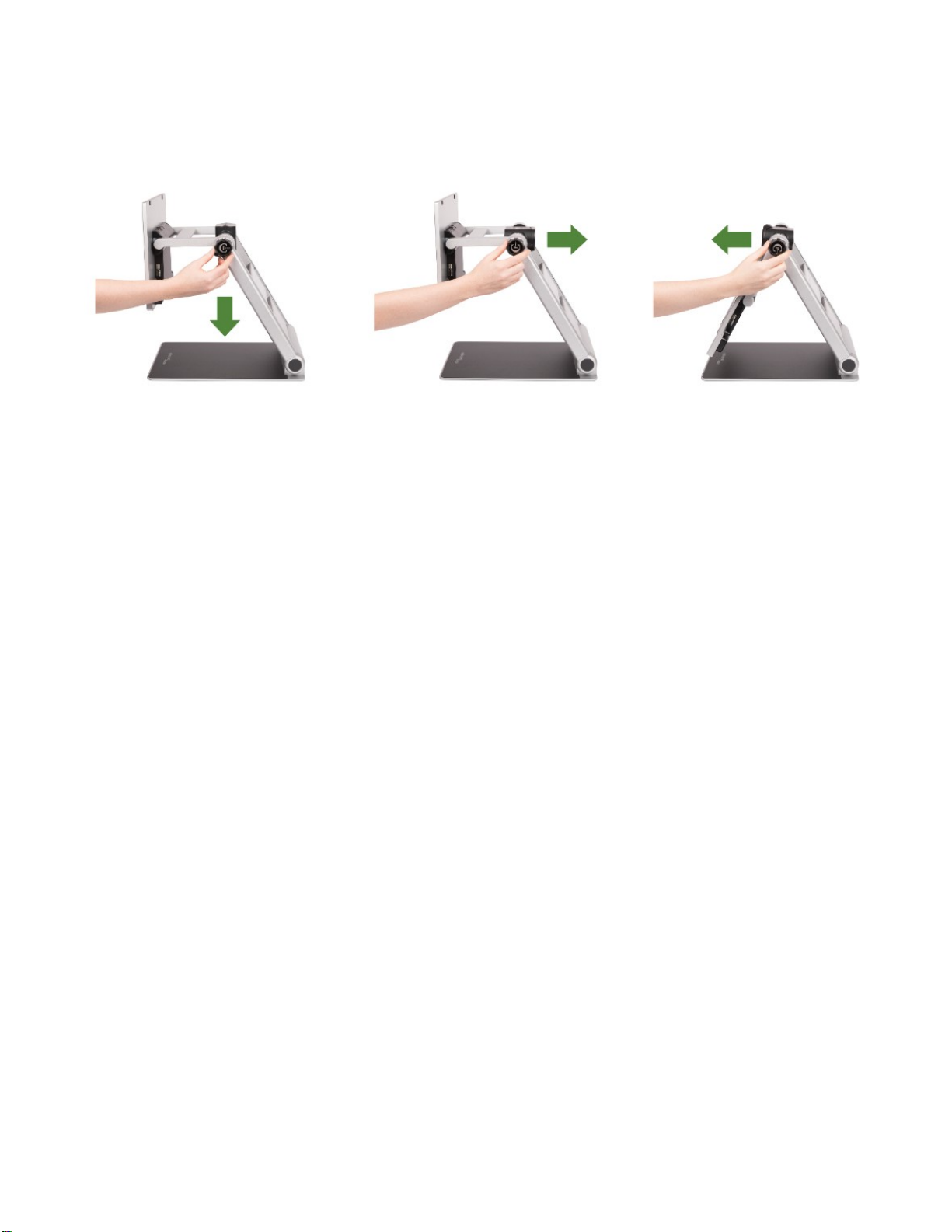

You can switch between modes by rotating/adjusting the camera using the Camera

Positioning wheel.

1. Reading / Desktop mode

2. Distance-View mode (open the close-up lens for distance viewing)

3. Self-view mode (use like a mirror)
