1. Get to know your camera

1.1 Features

8.0 Mega pixels resolution

Video clips

Audio record

Web camera

Built-in Microphone Voice recorder

Built-in flash Light

TV output

2.4” LTPS real color display

Internal 16MB flash memory and SD card support

Driver free for Windows XP/Vista and MAC 9.x and X.x

Macro mode

1.2 Specifications

Senso

CMOS senso

8.0 Mega pixels: (3264x2448) (Hardware Interpolation)

5.0 Mega pixels: (2560x1920)

3.1 Mega pixels: (2048x1536)

1.3 Mega pixels: (1280x960)

Image resolution

300K pixels: (640x480)

Lens F/2.8 f=8.5mm

Focus range 0.5m. ~ Infinity

Macro mode 11cm – 18cm

Digital zoom 8x

Flash strobe Built-in (Auto/force/off)

LCD display 2.4” real color LTPS TFT

White balance Auto/Daylight/cloudy/Tungsten/Fluorescent

Video mode 30fps@QVGA &20fps@VGA

Built-in memor

16MB Flash memor

VGA: (640x480) –138 Pictures

1.3M: (1280x960) – 54Pictures

3.1M: (2048x1536) – 28 Pictures

Picture Capacity in 16M

memory (The quantity of

pictures varies and

depends on the complexity 5.0M: (2560 x 1920) – 21 Pictures

of the scene) 8.0M: (3264x2448) – 14 Pictures

External memor

card SD card su

orts u

to 8GB

File format Picture: JPEG, Video: AVI, Voice: WAV

Self timer 2/10/10+2 seconds

PC interface USB 2.0

TV-out NTSC/PAL

Power source 2xAAA alkaline batteries.

1.3 System requirement

Windows XP

Vista or above

Operating System Mac 9.x or X.

CPU Pentium III or above

RAM At least 64MB

Interface USB

ort

CD 4x s

eed CD ROM or above

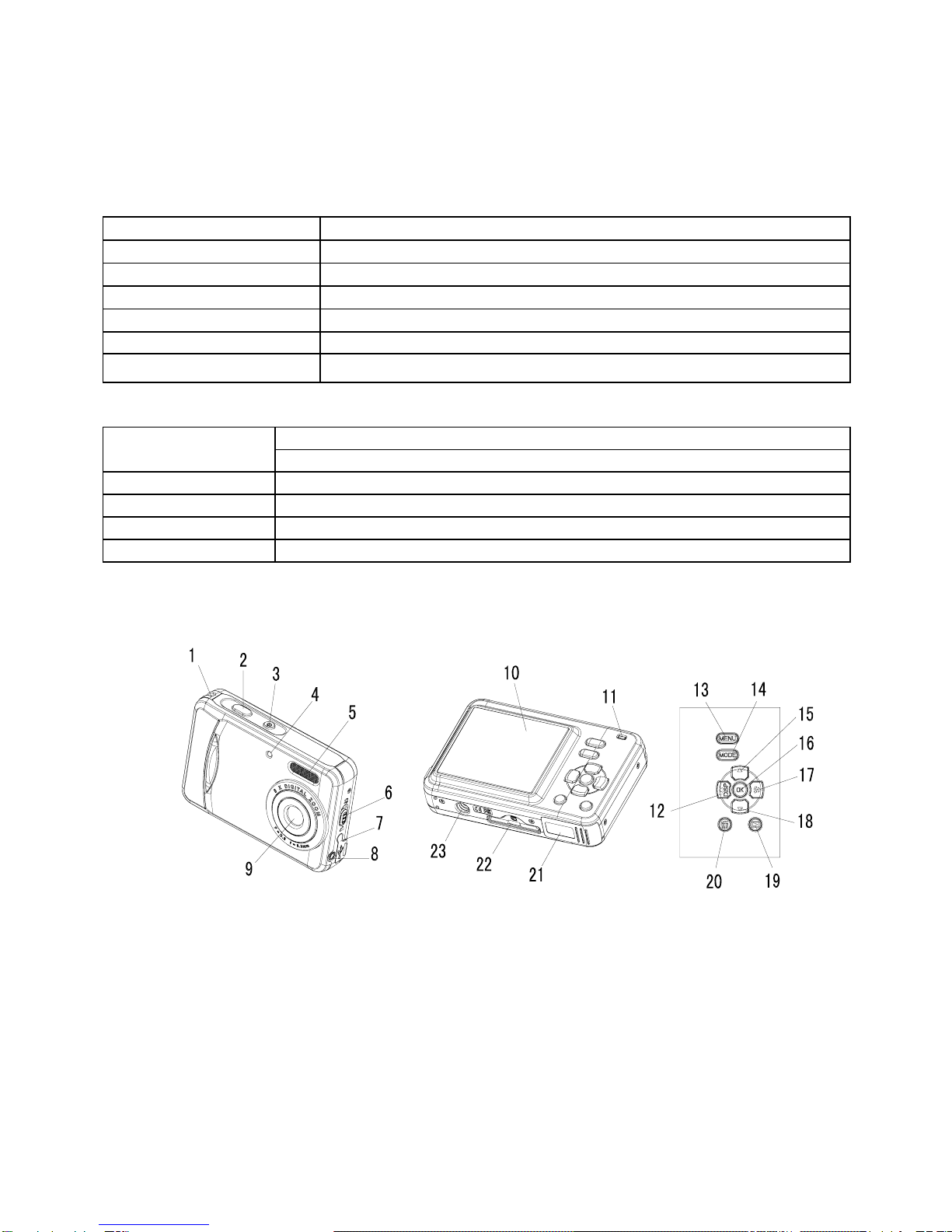

2. Functional parts:

1 Strap hook Hook for attaching the wrist strap to the camera.

2 Shutter Press this button to take photographs or to start/stop recording a short

video clip.

3 Power on/off

button Press this button to turn on, press again to turn off.

4 Self-timer

indicator Blinking when the self-timer function is operating.

5 Flash light Use the built-in flash to give the subject extra lighting if it is in dark

surroundings (the best flash distance is recommended within 1.5m.).

6 Macro

switch

Macro mode: Select this mode to take close-up photographs

(distance 11cm – 18cm).

Normal mode: Select this mode to take photographs from 0.5m – infinity

7 USB

interface Via this connection, you can download photographs and video clips to a

computer.

8 AV port For television connection.

9 Lens

Records the image to be taken.

Note: Keep the lens clean. Dirt and fingerprints will affect the quality of

the picture.

10 LCD screen Display photographs, video clips, camera setting and menu.

11 Busy LED When the indicator is lit, the camera is busy.

12 Left/ display For menu LEFT selection, and LCD display on / off.

13 Menu For camera setting.

14 Mode Press it to select different mode.

15 UP UP & Digital zoom in

16 OK Press it to confirm changes.

17 Right/flash

light For menu right selection, and selection of flash light mode.

18 Down Down & Digital zoom out

19 Playback Press it to enter playback mode.

20 Delete Press it to delete the photo in playback mode.

21 Battery door 2xAAA alkaline batteries

22 SD card slot SD card slot.

23 Tripod

connector To fix the camera on tripod.

3. Details for camera setting

8.0M pixel resolution 3264 x 2448

5.0M pixel resolution 2560 x 1920

3.1M pixel resolution 2048 x 1536

1.3M pixel resolution 1280 x 960

Size

VGA resolution 640 x 480

Quality Fine(Default)/Standard/

Economy Picture quality set

Scene mode Auto(Default)/Sport/Night/

Portrait/Landscape/Backlight Scene set

Exposure

value

+/-2, +/-5/3, +/-4/3,

+/-2/3,+/-1/3 +/-1,

0(Default)

Level of exposure

Auto (Default) Automatic white balance

Daylight White balance selected for daylight

surrounding

Cloudy White balance selected for cloudy

surrounding

Tungsten White balance selected for tungsten

lighting

White

balance

Fluorescent White balance selected for fluorescent

surrounding

ISO Auto(Default)/100/200 Sensitivity select

Color Standard (Default) / Vivid /

Sepia / Monochrome Color setting

Saturation Normal(Default) / High /

Low Saturation setting

Sharpness Normal(Default) / Hard /Soft Sharpness setting

2s Set the delay time at 2s to take a picture

10s Set the delay time at 10s to take a picture

Self timer

10+2s

Set the delay time at 10s to take a picture,

and then every 2s to take pictures

automatically.

Date Input Off(Default)/Set DD,MM,YYYY

SET

Capture

Time Stamp Off(Default)/Date Only/

Date & Time Show the date and / or time on the pictures

Continuous

shoot Continuous shoot Can continuously shoot up to 3 pictures

within 10 seconds.

Format Execute/cancel Format the memory card.

Language

English(Default)/T-Chinese/

S-Chinese/French/German/

Italian/Spanish/Portuguese

Select display language

Auto power

off 1/3/5 min and Off Auto power off in1min, 3min(default) or

5 min if no operation

Sys. Reset Execute/cancel Restore default setting

50Hz Main European electricity frequencyLight-

Frequency

(Flicker) 60Hz Main American electricity frequency

NTSC American and Japanese video format

TV- Out PAL European video format.

PC Cam Work as a web camera.

Setup

USB Disk Drive Act as a portable disk.

Note: The camera will remain the last setting when it is turned off.

4. Explanation of the status icons

Item Function Description

1 Battery indicator The batteries are full.

The batteries are empty.

2 Recording mode Setting for photographs taking

Setting for videos capture

3 Date stamp Displays the date day/month/year

4 Memory or SD card

indicator

Indicates memory or SD card

:Pictures stored in built-in memory

:Pictures stored in SD card

5 Photo / Video counter

Photo mode :No. of balance picture can be taken;

Video mode: Balance of recording time in second;

Playback mode: The No. of pictures or video clips

6 Selected Resolution

8M= 3264x2448;

5M=2560x1920;

3.1M = 2048x1536;

1.3M=1280x960;

VGA=640x480;

7 Flash indicator

: Force flash.

: Auto Flash: The camera determines if the flash

must be used or not.

: No Flash: The flash is turned off.

8 Picture quality

The quality is fine (Default).

The quality is standard.

The quality is economy.

9 Brightness Alert Alert user to hold the camera steadily.

10 Normal / Macro

mode indicator Normal mode (0.5m – infinity)

Macro mode (11cm –18cm)

11 View center

5. Using the camera

5.1 Installing the batteries

1. Open the battery door.

2. Insert 2 AAA alkaline batteries into the camera.

3. Turn on the camera.

Press the POWER button to turn it on (press it again to turn off).

5.2 Inserting a memory card (not included)

This camera has built-in internal memory. This memory can be extended with a SD memory card (not

included).

Follow the instructions given below to insert the optional SD memory card into the camera.

1. Turn off the camera first.

2. Insert the SD card into the camera.

Note: There is only one right direction to insert the SD memory card into the slot. Do not force the card

into the slot, or else it may damage both the camera and the SD memory card.

Note: The SD memory card must be formatted before taking photographs. See the following sections for

more information.

5.3 Formatting the memory or SD card

1. Press Menu button

2. Select Setup setting by right key.

3. Press OK to confirm and select by up or down key.

4. Press OK to format the card or memory.

5.4 Setting the resolution

The camera can be set to different resolutions.

1. Press MENU to set proper resolution.

Resolution: VGA(640X480),1.3M(1280x960),3.1M (2048X1536),

5M (2560 x 1920), 8M (3264x2448)

2. Six different resolutions will be displayed. Select the desired resolution by using the ▲or ▼buttons

and then press the OK button to confirm the selection.

5.5 Taking photographs

1. Turn on the camera by pressing the ON/OFF button.

2. Press MODE to set the camera to photo mode ( ).

3. Depending on the distance to the object being photographed, use Macro switch to adjust the

distance. Select the flower symbol ( ) if you wish to take a close-up photograph (11cm –18cm).

If you wish to take photograph of surroundings or people (0.5m – infinity), set the Macro switch to

Normal mode ( ).

4. If you are not sure if there is enough lighting, turn the automatic flash ( ) on by pressing the flash

button. (If the battery power is too low, the flash won’t be activated).

5. Use the LCD screen to aim the object you wish to photograph.

6. Press Shutter button and hold the camera steadily for 2 to 3 sec, until the LCD display turn on again.

Caution: 1) Taking picture for fast-moving object is not recommended.

2) Image may be distorted when taking picture in a moving vehicle.

5.6 Zoom in and out

The camera can zoom in up to 8 times.

1. Zoom in by pressing the ▲or▼button, a number will appear on the display. 8.0 is the maximum

zoom.

2. You can zoom in by pressing the UP or DOWN button.

5.7 Taking photographs using self-timer function

You can use the self-timer function when you wish to take a photograph for yourself or when you wish to

photograph for an object where the camera must be as still as possible, for example on the stand.

1. Set the camera to photo mode.

2. Press the MENU button. The quick menu will appear.

3. Press

▼to self-timer mode, press OK and ▲or ▼to set the delay time: 2seconds / 10 seconds /

10+2seconds or off.

4. Press the OK button to confirm. The self-timer function is now ready for use.

5. Aim at the object you wish to photograph.

6. Press the SHUTTER button to take a photograph.

7. The self-timer indicator LED in the front will blink.

8. The photograph will be taken after the timer reaches the delay time that you pre-set, and the camera

will beep once.

5.8 Recording video clips

1. Press the MODE button to select the video clip mode.

2. Press the SHUTTER button to start recording video, press the SHUTTER button again to stop

recording. The video clip will now be saved as an AVI file in the camera memory.

3. Press MENU to set proper resolution, EV and WB, and press OK to confirm.

5.9 Playback photographs

1. Press PLAYBACK button, press or to select the video clip or photo.

2. Press ▲,it will go to 2x zoom, press ▲again to 3x zoom…… up to 8x.

3. Press “OK” and then Press ▲,▼,or to shift the image.

4. Press MENU to select SLIDE SHOW, and then press OK to confirm. The pictures saved in your

camera or your SD card will be displayed in sequence automatically.

5.10 Playback video clips

1. When video clips are displayed, press OK to play, and press DOWN key to stop.

2. Press OK to pause the playback

3. Press Playback key to exit.

5.11 Recording voice

1. Press MODE button to select the voice recording mode,

2. Press SHUTTER to start voice recording and press it again to stop.

5.12 Delete photographs and video clips

You can choose to delete a single photograph / video clip, or delete all the photographs / video clips in

the memory.

5.12.1 Delete photograph

Follow the instructions given below to delete photograph.

1. Press PLAYBACK to enter the playback mode.

2. Press the MENU button and select Delete One/Delete All, press OK to confirm.

3. If you select Protect picture, your current file or images can not be deleted.

4. Press MENU to exit.

NOTE: Select ‘Deleting All’ and Press OK to confirm, all the pictures will be deleted.

5.12.2 Shortcut to delete one picture

1. Press PLAYBACK to enter Playback mode.

2. Select the photo (video) you want to delete, press DELETE button.

3. Press OK to confirm.

6. Installing the camera driver

The driver in the CD has to be installed, under following applications:

For Windows XP and Windows Vista: Using as a PC cam only. (Download picture /video is driver free)

Inhaltsverzeichnis

Andere VistaQuest Digitalkamera Handbücher

VistaQuest

VistaQuest VQ-3005 Bedienungsanleitung

VistaQuest

VistaQuest VQ5218 Bedienungsanleitung

VistaQuest

VistaQuest VQ1030Ts Bedienungsanleitung

VistaQuest

VistaQuest VQ5320 Bedienungsanleitung

VistaQuest

VistaQuest VQ1100 Bedienungsanleitung

VistaQuest

VistaQuest VQ515 Bedienungsanleitung

VistaQuest

VistaQuest VQ 5020 Bedienungsanleitung

VistaQuest

VistaQuest VQ5115 Bedienungsanleitung

VistaQuest

VistaQuest VQ-8920 Bedienungsanleitung

VistaQuest

VistaQuest VQ-2000 Bedienungsanleitung

VistaQuest

VistaQuest VQ-7015 Bedienungsanleitung

VistaQuest

VistaQuest VQ-5015 Bedienungsanleitung

VistaQuest

VistaQuest VQ-1005R Bedienungsanleitung

VistaQuest

VistaQuest VQ-2000 Bedienungsanleitung

VistaQuest

VistaQuest VQ300B/P Bedienungsanleitung

VistaQuest

VistaQuest VQ 5020 Bedienungsanleitung

VistaQuest

VistaQuest VQ-3110 Bedienungsanleitung

VistaQuest

VistaQuest VQ1224 Bedienungsanleitung

VistaQuest

VistaQuest VQ1005 Bedienungsanleitung

VistaQuest

VistaQuest VQ200 Bedienungsanleitung

VistaQuest

VistaQuest VQ815S Bedienungsanleitung

VistaQuest

VistaQuest VQ6100 Bedienungsanleitung

VistaQuest

VistaQuest VQ5115 Bedienungsanleitung

VistaQuest

VistaQuest VQ1000 Bedienungsanleitung

Beliebte Digitalkamera Handbücher anderer Marken

Mercury

Mercury 350K Bedienungsanleitung

Pentax

Pentax Optio LS 465 Bedienungsanleitung

Sanyo

Sanyo VPC-S1085 Bedienungsanleitung

GE SMART A1255 Bedienungsanleitung

Point Grey

Point Grey Gazelle Bedienungsanleitung

Nikon

Nikon COOLPIX A Bedienungsanleitung

Pentax

Pentax P-5 Bedienungsanleitung

BlazeVideo

BlazeVideo A280 Bedienungsanleitung

Sony

Sony MCA-20 Bedienungsanleitung

Sony

Sony Alpha DSLR-A290 Bedienungsanleitung

ATIK Cameras

ATIK Cameras One Bedienungsanleitung

CohuHD Costar

CohuHD Costar 3930 Series Bedienungsanleitung

Leica

Leica M10-R Bedienungsanleitung

FujiFilm

FujiFilm FinePix A700 Bedienungsanleitung

Lorex

Lorex LNZ81P25 Series Bedienungsanleitung

GE J1470S Bedienungsanleitung

Sony

Sony A6700 Benutzerhandbuch

Canon

Canon EOS ELAN7 Bedienungsanleitung
