Vivo Link VLSPSB100 Montageanleitung
Mount instructions for Vivolink Soundbar
Mount instructions for wall mount:
1) Use a bobble level and make four marks for screws on wall
2) Horizontal distance between holes should be 36 cm,vertical4,5cm
3) Mountthetwosuppliedwallbracketsonwallasindicatedbelow
4) Mount the two supplied rubber bricks on back side of the speaker, one in each side
Mount instructions in VESA brackets
Use the two supplied rails if sound bar should be mount on VESA brackets

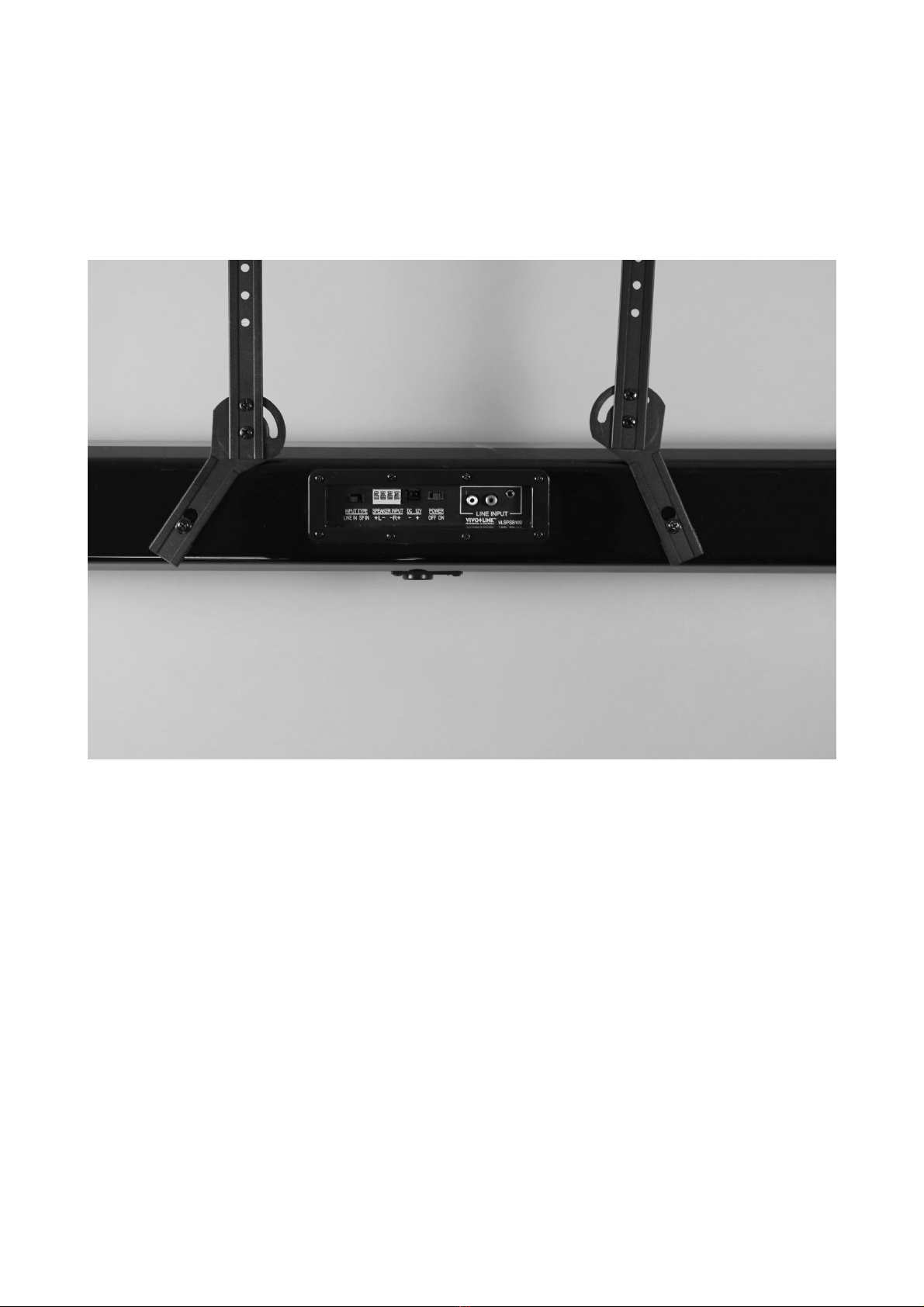

Brackets should be mount this way
If screen is already installed on the wall, it is necessary to take screen down from the wall and mount the
rails between screen and wall mount rails
Put the screen on the floor on a soft carpet with screen facing down on the floor, be careful not to damage
or scratch the screen.
When speaker is mounted, careful lift the screen up on the wall again.
It is strongly recommended to be two persons for this operation.
