Vivo MOUNT-VBHA1 Bedienungsanleitung

VESA Ball Head Adapter for Monitor Arms

Instruction Manual

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

https://vivo-us.com/products/mount-vbha1

SKU: MOUNT-VBHA1

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage

or injury caused by improper mounting, incorrect assembly, or inappropriate use.

WARNING!

ASSEMBLY STEPS

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

PACKAGE CONTENTS

A(x1)

Mounting

Bracket

B(x1)

Ball Head

S-B (x1)

3/8" Screw

STEP 1

Connect Mounting Bracket (A) to exisiting

monitor arm VESA Plate using M4x10mm Screws

(S-E), M4 Washers (S-F), M4 Nut (S-D), and

4mm Allen Wrench (T-A).

Phillips

Screwdriver

TOOLS NEEDED

S-A (x1)

1/4" Screw

6.6lbs

(3kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

S-C (x1)

5/8" Screw

S-D (x4)

M4 Nut

S-F (x4)

M4 Washer

S-E (x4)

M4x10mm

Screw

T-A (x1)

4mm Allen

Wrench

T-A

S-E

S-F

S-D

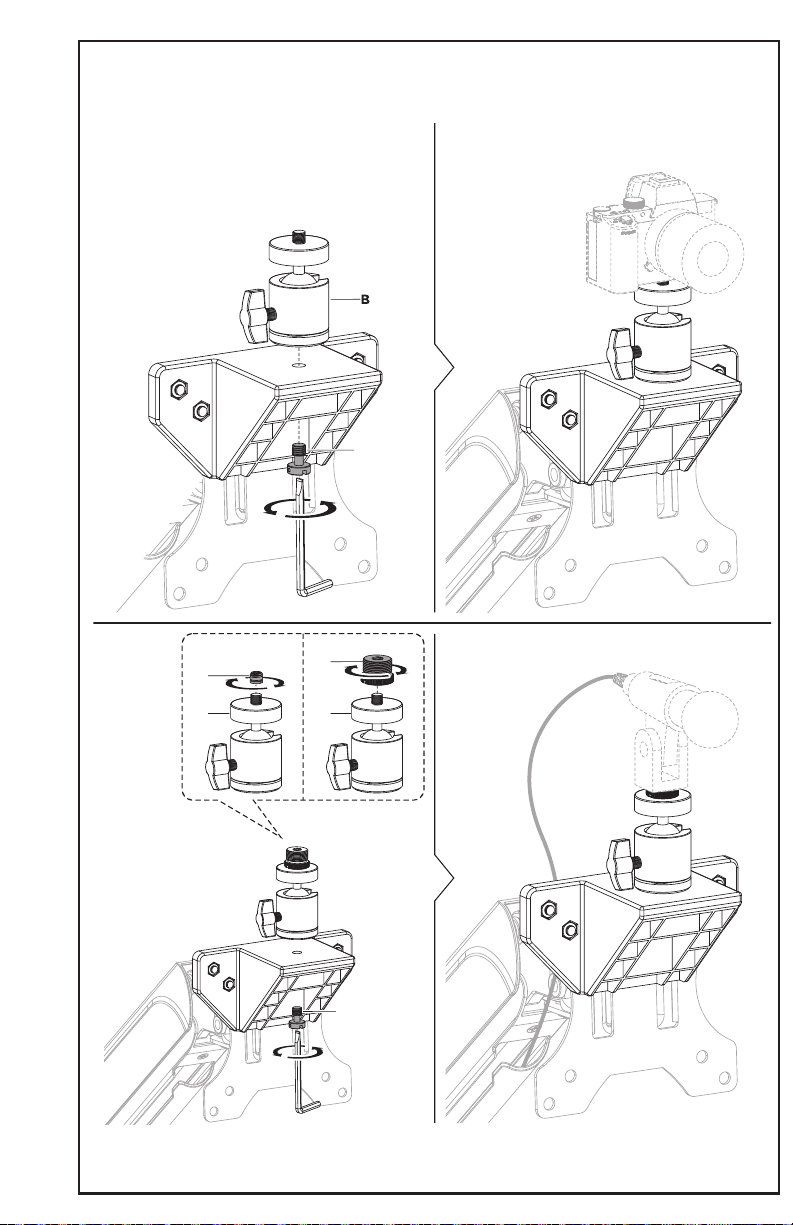

STEP 2

Connect Ball Head (B) to Mounting Bracket (A) using 1/4" Screw (S-A) and 4mm Allen Wrench (T-A).

Optional: 3/8" Screw (S-B) and 5/8" Screw (S-C) may be installed on Ball Head (B) to accomdate

mounting threads of device.

S-B

S-C

S-A

LAST UPDATED: 07/18/2022

REV1.1
