Vivotek AI-101 Bedienungsanleitung

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

1. Product Introduction

Package Contents:

A. IR illuminator (AI-101) * 1 pcs (including stand

plate and power plug)

B. Screw * 2 pcs

※You should purchase power cable

suitable for your local plug with

enough cable length, as shown on

the right:

2. Installation

Step 1:

a. Take Network Camera (including the stand).

b. Attach the AI-101 (including locking screws) to

the side of the Network Camera.

Step 2:

a. As shown on the left, loosen the fixing screws of

the stand and the Network Camera. Open the

Network Camera.

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

Step 3:

a. Loosen the fixing screw of the stand (A, as

shown on the left). Adjust the angle and lean the

stand joint forward to its maximum.

b. Pass the AI-101 control cable and power cable

into the opening of the stand, as shown on the

left.

Step 4:

a. Pass the power cable through the bottom of the

stand (A, as shown on the left)

b. Pass the control cable to the opening of the

stand. (B, as shown on the left)

Step 5:

a. As shown on the left, take the components of the

waterproof connector from the Network Camera

stand pack.

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

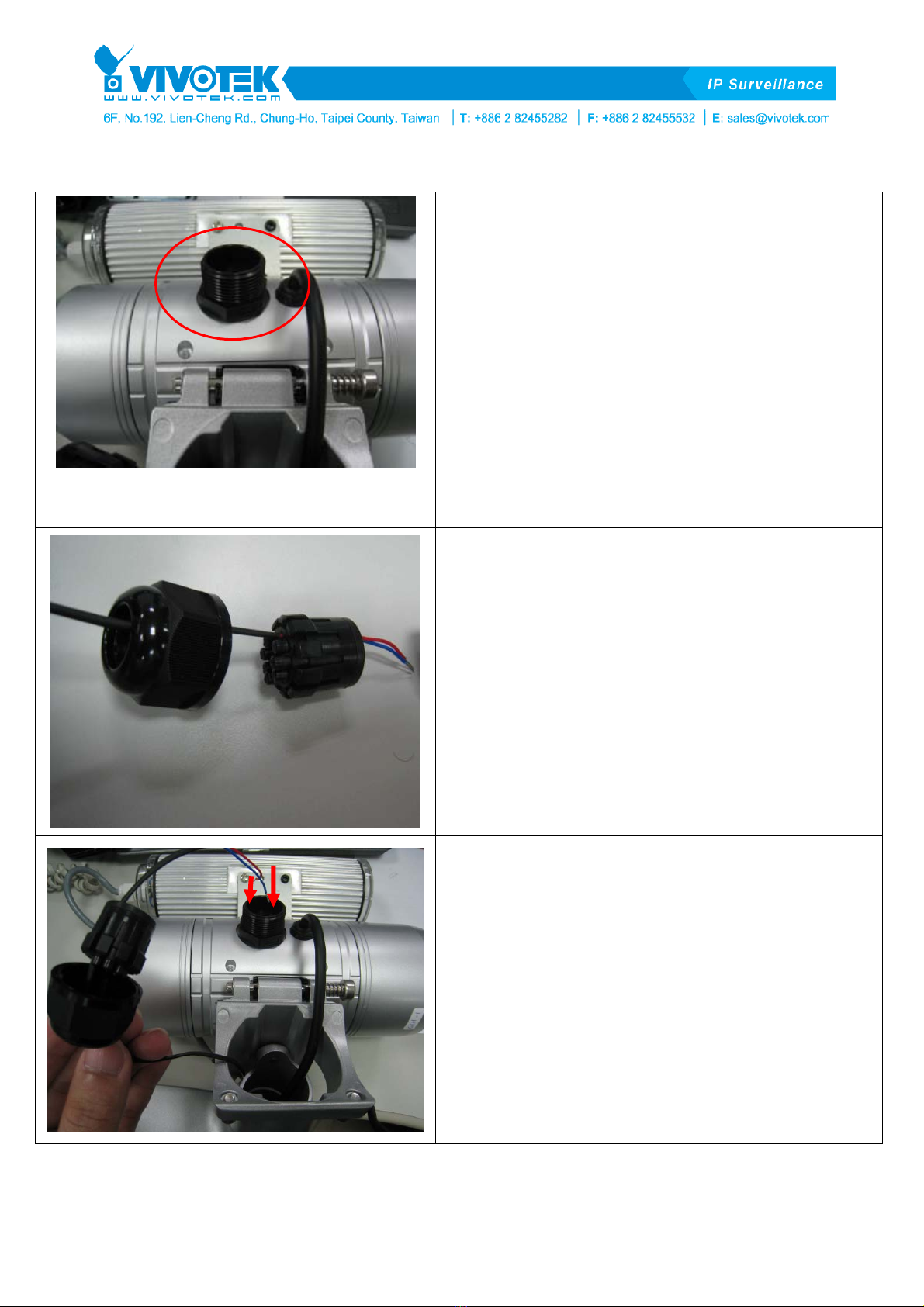

Step 6:

a. Open the waterproof connector seal of the

Network Camera.

b. Secure the bottom of the waterproof connector

seal.

※Make sure that the waterproof connector to the

Network Camera is secured tightly.

Step 7:

a. Pass the control cable through the components

of the waterproof connector one by one.

Step 8:

a. Pass the control cable into the bottom of the

Network Camera.

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

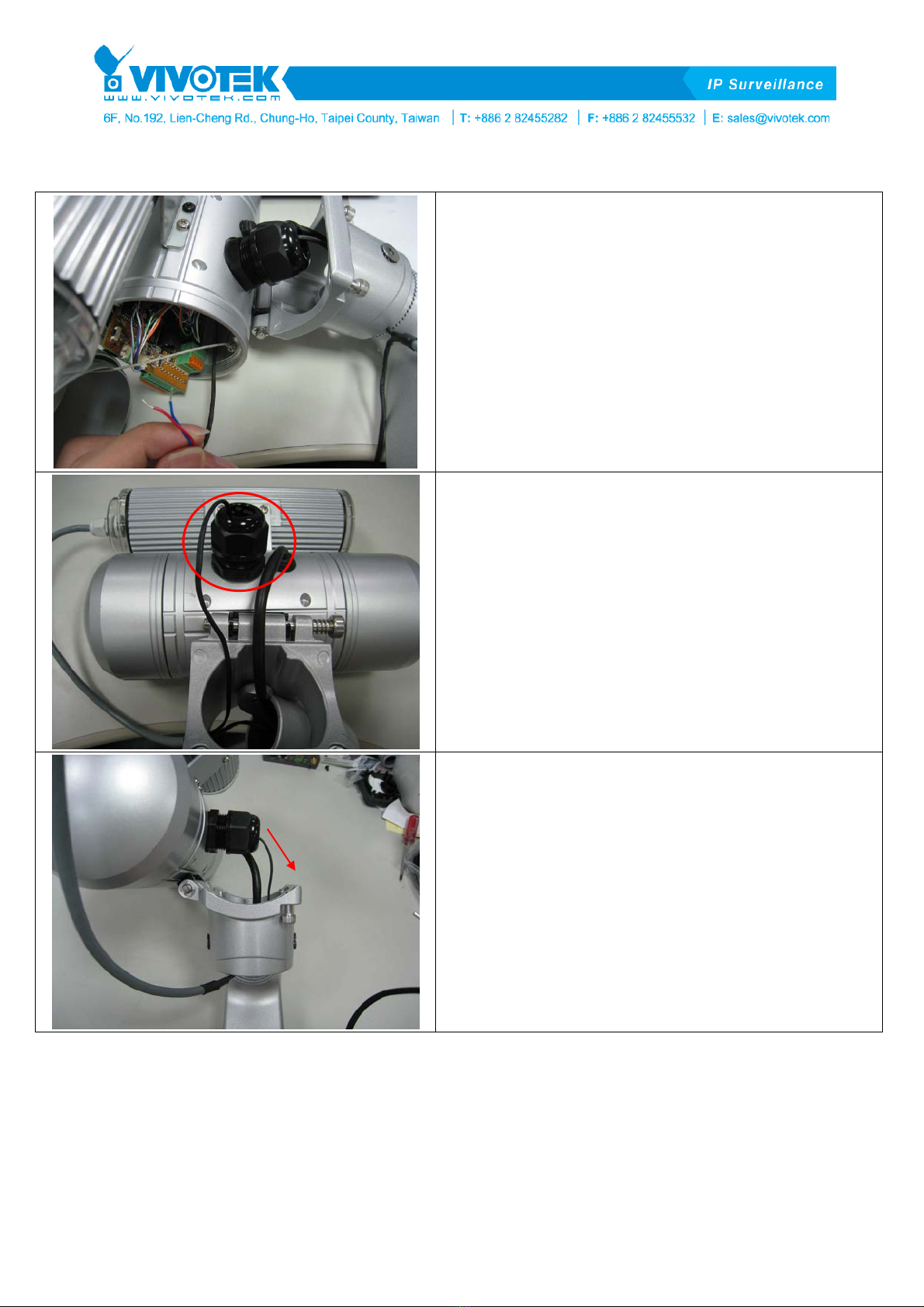

Step 9:

a. Tuck the remaining part of the control cable into

the case as much as possible.

※The back cover of the Network Camera can be

opened so that control cable can be pulled out.

Step 8:

a. Secure the waterproof connector tightly.

※Make sure that the waterproof connector to the

Network Camera is secured tightly.

Step 10:

a. Secure the waterproof connector completely.

b. Attach the Network Camera body to the stand as

indicated by the arrow mark.

※Make sure that the waterproof connector is

secured tightly.

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

Step 11:

a. Secure the fixing screws of the stand and the

Network Camera tightly.

b. Open the back cover of the camera.

c. Step 12:

d. Connect the control cable as shown in

the ”General I/O Terminal Block” section of the

User’s Manual.

※ Blue: Connect Blue Ctrl ─to “Ground”

※ Red: Connect Red Ctrl ┼to “Digital Output”

Step 13:

a. Secure the back cover of the Network Camera.

※Make sure that the cables are not jammed when

you screw the back cover.

Step 14:

a. Connect the power cable you bought to the

adapter of the IR illuminator.

※ The cable should be connected based on

polarity.

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

Step 15:

a. Once you complete the steps above, attach the

camera to the stand plate and fix it on the wall

(as shown on the left).

3. Setting

Step 1:

a. As shown in the QIG (User’s Manual), log on to the

homepage.

b. Enter ”Configuration”, then click “Advanced mode.”

c. Enter ”Audio and video” setting page.

d. Unfold ”Day/Night settings:”, check

and save

the setting, then in the night mode, the AI-101

should be activated.

IR illuminator (AI-101) Quick Installation Guide 2012/04/05

V1.0

Note:

a. There is only one DO connector on this Network

Camera. If the external IR illuminator is used, no

other DO devices can be connected.

b. When you check the “Turn on external IR

illuminator” option, a warning message will appear.

Click “Yes” to enable the IR illuminator. Please

note, however, all events about DO trigger in the

Event Setting will be cleared after enabling.

c. Once you enable the IR illuminator, the Digital

output option on the System page will be disabled.

d. Once you enable the IR illuminator, the Digital

output option on the homepage will be disabled.

※ If DO function is needed, please uncheck the

option in

the “Day/Night settings:”. Then the DO function

can be used again.
