Volkswagen NEW BEETLE - Bedienungsanleitung
zEngine, removing and installing
zAssembly mountings
zEngine and gearbox mountings, aligning
zInstallation notes
zRemoval notes
zSecuring engine to assembly stand
zTightening torques
zVehicles with air conditioner, additional information and removal instructions
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
10 Engine-Assembly (Page GR-10)
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Technical data (Page 10-1)
Special tools and equipment
VW 313 Support clamp
VW 540 Engine and gearbox support
2024 A Lifting tackle
3180 Retainer (for engine code AGU)
V.A.G 1202 A Workshop crane
V.A.G 1306 Drip tray
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-2)

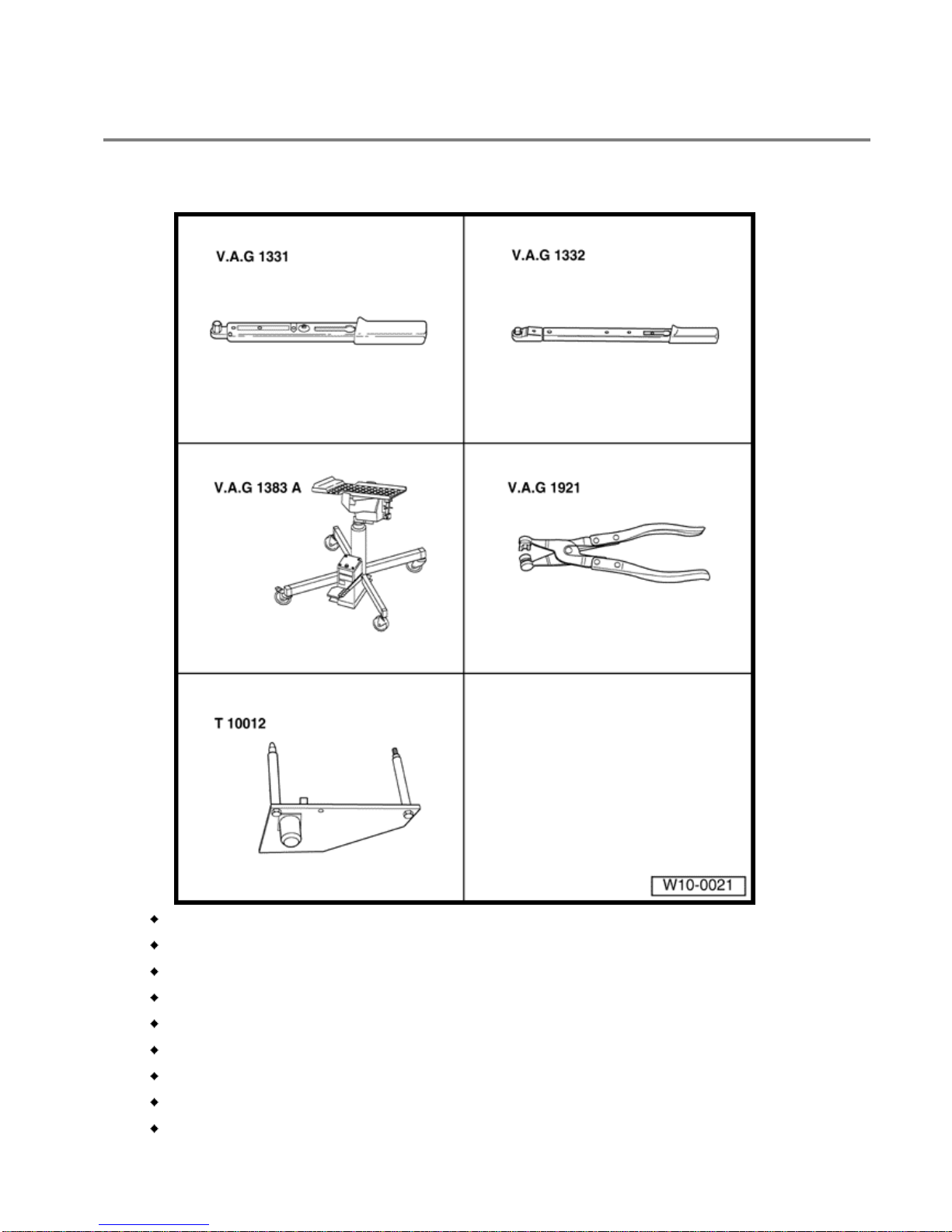

V.A.G 1331 Torque wrench (5-50 Nm)
V.A.G 1332 Torque wrench (40-200 Nm)
V.A.G 1383 A Engine/gearbox jack
V.A.G 1921 Spring - type clip pliers
T10012 Engine bracket
V.A.S 5085 Step ladder
G 000 100 grease (vehicles with manual gearbox)
Bolt M10 X 25 / 8.8
Cable tie
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-3)
Removal notes
- First check whether a coded radio is fitted. If this is the case obtain the anti - theft
coding.
The engine is removed downward together with the gearbox.
- With ignition switched off, disconnect battery Ground strap.
All cable ties which are opened or cut open when removing engine must be replaced in
the same position when installing engine.
- Remove engine cover.
- Remove air cleaner:
Repair Manual, 1.8 Liter 4 -Cyl. 5V Turbo OBDII Fuel Injection & Ignition, Repair
Group 24
- Remove intake hose between air mass meter (G70) and throttle valve control part
(J338).
Repair Manual, 1.8 Liter 4 -Cyl. 5V Turbo OBDII Fuel Injection & Ignition, Repair
Group 24
- Remove power steering fluid reservoir from battery holder without disconnecting
hoses.
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-4)
- Fasten reservoir to lock carrier.
- Remove battery and battery retainer.
- Pull vacuum and breather hoses off engine.
WARNING!
Fuel supply pipes are under pressure! Before removing from hose connection wrap
a cloth around the connection. Then release pressure by carefully pulling hose off
connection.
- Pull off fuel supply line - 1 - and fuel return line - 2 - at disconnecting location by
applying pressure to the disengaged buttons.
- Seal the pipes so that the fuel system is not contaminated by dirt etc.
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-5)
- Loosen and remove intake hose (between charge air cooler and throttle valve
control unit) at throttle valve control unit.
- Disconnect harness connector for intake air temperature (G42), - 1 - and - 4 - for
throttle valve control unit (J338) below throttle valve control unit.
- Pull connector off Hall sender (G40) - arrow - .
- Unbolt vacuum canister from cylinder head cover and pull from bracket.
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-6)
- Disconnect fuel injectors harness connector and unclip bracket rail from fuel
distributor.
- Unscrew Ground wire between ignition coil - 1 - and - 2 - .
- Disconnect connectors from ignition coils.
- Disconnect connector for speedometer vehicle speed sensor (G22) at rear of
transmission.
- Remove center, left and right insulation tray:
Repair Manual, Body-Exterior, Repair Group 50
- Remove air duct to charge air cooler at lower right of long member.
Vehicles with manual gearbox
- Disconnect selector mechanism from gearbox.
Repair Manual, Manual Transmission 02J, Repair Group 34
- Remove hydraulic clutch slave cylinder.
Repair Manual, 5 -Speed Manual Transmission 02J, Repair Group 30
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-7)
Notes:
Clutch pedal must not be depressed.
Vehicles with automatic gearbox
- Remove selector lever cable from gearbox:
Repair Manual, Automatic Transmission 01M, Repair Group 37
Continued for all vehicles
- Drain coolant Page 19-13
- Pull radiator coolant hoses off engine using hose clip pliers V.A.G 1921.
- Remove coolant hoses at heater core.
- Remove coolant hose to coolant pipe at throttle valve control unit.
- Remove additional fan at right side of vehicle if present.
- Disconnect both harness connectors for cooling fan at notch at left bottom.
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-8)
- Remove inter - connecting, coolant, vacuum and intake hoses on engine.
- Remove secondary air pump motor and bracket.
- Disconnect all electric wires from gearbox, alternator and starter and move clear.
- Remove securing clamps for power steering pressure pipe.
- Remove ribbed belt Page 13-8 .
- Remove power assisted steering vane pump with bracket and lay to side; hoses
remain connected.
Repair Manual, Suspension, Wheels, Steering, Repair Group 48
Vehicles with air conditioner
WARNING!
The air conditioner refrigerant circuit must not be opened.
- Remove air conditioner compressor.
- Observe additional notes and assembly work Page10 -15.
- Remove generator.
Repair Manual, Electrical Equipment, Repair Group 27.
- Remove compact bracket including tightening element for ribbed V - belt page
13-7 , item 19.
Volkswagen New Beetle
1.8 Liter 4-Cyl. 5V Turbo OBD II Engine Mechanical
Engine, removing and installing (Page 10-9)
Continued for all vehicles
- Remove protective cover for right - hand inner constant velocity joint from engine.
- Remove right - hand drive shaft and disconnect left - hand drive shaft at gearbox.
Repair Manual, Suspension, Wheels, Steering, Repair Group 40

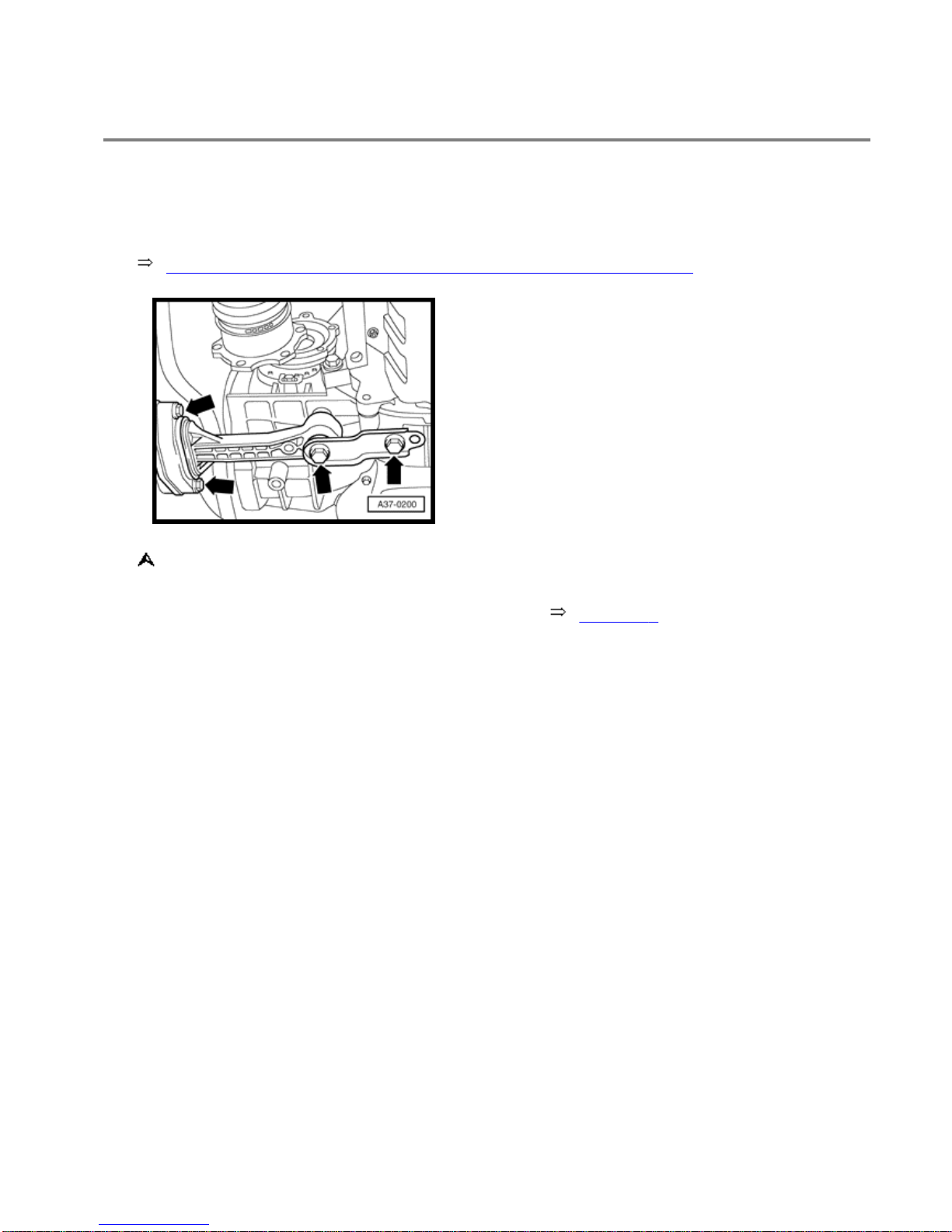

- Remove pendulum support - arrows - .
- Remove front exhaust pipe with catalytic converter page 26-2 .
