Voltera NOVA Bedienungsanleitung
Setup Guide & Manual
NOVA SETUP GUIDE & MANUAL
2

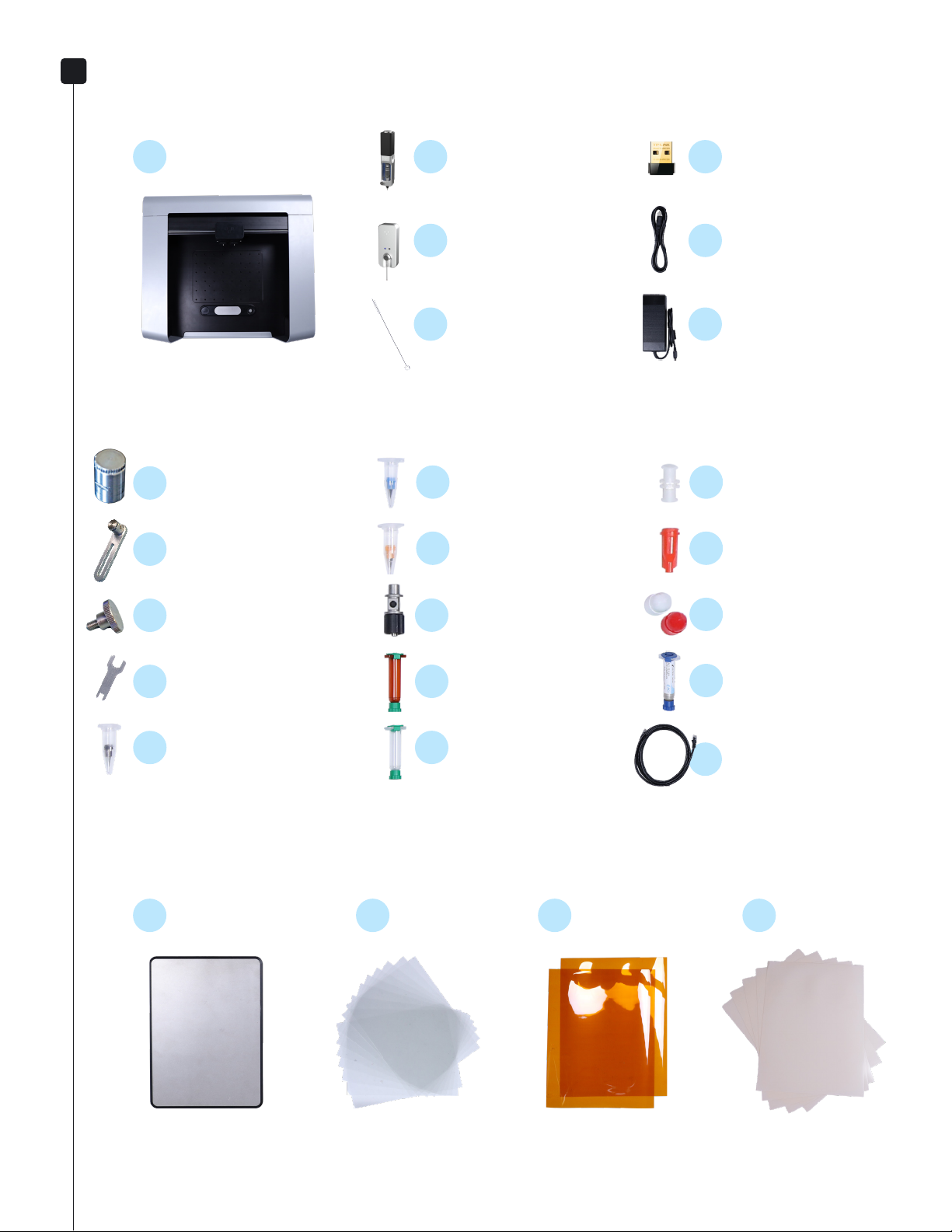

What’s in the Box
Voltera NOVA Smart Dispenser1x
1x
1x 1x
1x
1x1x Wi-Fi Dongle
Smart Probe Power Cable
Brush Power Adapter
225 µm Nozzle
Anchor Mount
Pressure Sensor
Tip Cap
150 µm Nozzle
Swivel Mount
UV Blocking Cartridges
Pistons
100 µm Nozzle
Thumbscrews
Clear Cartridges
Conductive Ink
Nozzle Wrench
Luer Couplers
4x
3x
4x
4x
4x
4x
1x
4x
4x
3x
8x
16x
4x
1x
Vacuum
Module
1x Polyimide TPUPET10x
Ethernet Cable
2x 5x
1x
NOVA SETUP GUIDE & MANUAL
3
2
3
1
4
5
6
7
Printer Anatomy
NOVA
Smart Dispenser
Smart Probe
Pressure Sensor
Vacuum Module
1. Power button
2. The bridge
3. Mounting grid
4. Module hub
5. Drawer
6. XYZ positioner
7. Calibration plate
8. Module port
9. Smart Dispenser
10. Connection ports
1. Actuator override dial
2. Actuator
3. Dispenser body
4. Plunger
5. Dispenser door lock
6. Dispenser door
7. Status indicator LEDs
8. Module side interface
1. Status indicator LEDs
2. Probe stylus
3. Module side interface
1. Pressure sensing
membrane
2. Nozzle lock
1
10
6
7
5
4
3
2
9
8
8
1
2
3
1
2
NOVA SETUP GUIDE & MANUAL
4
First Time Setup Guide
2
Plug wi dongle
in to NOVA’s
USB port
3
4
Plug in
Power Cable
Power on
NOVA
Proceed to Step 5
of the document
5
Connect NOVA
to computer with
ethernet cable
1
NOVA SETUP GUIDE & MANUAL
5
Step 5
1. Make sure your laptop has a stable Wi-Fi connection.
2. Open your browser and navigate to https://www.myvoltera.io/
3. Follow the instructions to create a Voltera account.
4. Your device should be available in the Wired Devices section.
Click on the device, and follow the instructions to connect NOVA to Wi-Fi.
When connecting your computer to NOVA with an ethernet cable, your computer
will typically view NOVA as a router and try to connect to the internet through NOVA.
If NOVA does not have a stable connection, this can cause your computer to lose
internet connection, and your browser may indicate an interrupted connection
(see below, for example, on Chrome).
If your computer internet connection is interrupted, proceed to step 5a (for Windows
users) or b (for MacOS).
NOVA SETUP GUIDE & MANUAL
6
Step 5a -
For Computers Running Windows
1. Wait for the System to Recover
In the majority of cases, Windows computers will restore their internet
connection in 2-3 minutes. If the connection doesn’t recover, continue to
the following steps.
2. Refresh your Wi-Fi Connection
Refresh your Wi-Fi connection. Disable your Wi-Fi adapter, wait 10 seconds,
then re-enable your adapter. If necessary, reconnect to your preferred Wi-Fi
network. Your Wi-Fi icon should now show a connected state.
Open a new browser window, and try to access the internet (for example,
https://www.google.com). If you are still not able to connect to the internet,
contact support.
NOVA SETUP GUIDE & MANUAL
7
Step 5b -
For Computers Running MacOS
Unlike Windows, computers running MacOS will not typically recover on their own.
When your computer connects to NOVA over an ethernet cable, it will automatically
congure NOVA as a new ethernet connection, which has a higher priority than Wi-Fi
by default. When this happens, your browser will give an error — for example, in Safari:
Follow the steps below to give priority to your computer’s stable internet connection.
Change Port Priority
To re-establish an internet connection, you have to manually give your Wi-Fi network or
other stable internet connection top priority. A guide for changing port priority can be
found on the Apple support website, but instructions are also included below.
1. Ensure that a USB Wi-Fi Dongle
is plugged into NOVA.
2. Power off NOVA.
3. Connect your computer to NOVA
with an ethernet cable.
4. On your Mac, choose Apple
menu > System Preferences,
then click Network.
5. Power on NOVA; when it boots,
conrm that a new network
connection is available in the
Network panel options.
6. Click the three dots in the bottom
left of the network panel to open
the Action Pop-up Menu, and
select Set Service Order.
NOVA SETUP GUIDE & MANUAL
8
Step 5b -
For Computers Running MacOS
7. Drag your stable internet connection (typically Wi-Fi) to the top of the list,
and drag NOVA’s connection to the bottom.
8. Click OK, then click Apply to make the new settings active.
Your computer should now have internet access, you can proceed with setup.
If you are still not able to access the internet, contact Voltera Support. If you’re trying to
connect to the Internet at an institution that has a dedicated IT Department, refer to the
User Manual (4.0).
NOVA SETUP GUIDE & MANUAL
9
NOVA User Manual
1.0 Introduction 10
2.0 Safety Markings & Warning Statements 11
2.1 Pinch, Crush and Sharp Surface Hazards
2.2 Hot Surfaces
2.3 Two Person Lift
2.4 Use Personal Protective Equipment
2.5 Electric Shock
11
11
11
12
12
3.0 Physical Installation & Setup 13
4.0 Getting NOVA Online (For IT Department Involvement) 14
4.1 NOVA’s MAC Address
4.2 Static vs. Dynamic IP Lease
4.3 Connecting NOVA via Wi-Fi
4.4 Connecting NOVA to a Mobile Wi-Fi Hotspot
4.5 Connecting NOVA via Ethernet
14
14
14
15
15
5.0 Hardware Overview & Network Capabilities 17
6.0 Communications 17
7.0 Privacy Policy 18
8.0 Data NOVA Collects 19
9.0 Service & Maintenance 19
10.0 Specications 23
11.0 Company and Product Identication 25
NOVA SETUP GUIDE & MANUAL
10
1.0 Introduction
NOVA is a modular, benchtop precision dispensing system, specically designed for
prototyping and development of additive electronics. This system includes two (2)
module slots, a built-in camera for alignment and inspection, multiple connection ports,
Wi-Fi or Ethernet network connectivity, a dedicated priming area for ow calibration,
and an optical breadboard work area for custom xturing with a drop-in vacuum table.
NOVA is a exible and accessible platform which is designed to be easy to use. However,
proper training and supervision is required to ensure safe operation. As with any lab
equipment, NOVA and the accompanying materials and modules should be handled
with care, and you should read this manual carefully before using NOVA.
NOVA is for use as-is. Any modications to the machine or improper use without explicit
approval or direction from Voltera may damage the machine, may cause bodily harm,
and will void your warranty.
In case of emergency or prior to performing any maintenance, please ensure that the
power cable is disconnected from NOVA.
