Instruction No Version Part. No.
30623006 1.0
Combined radio/carphone antenna
G3902733
Instruction No Version Part. No.
30623006 1.0
Combined radio/carphone antenna
G3902733
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 1 / 11

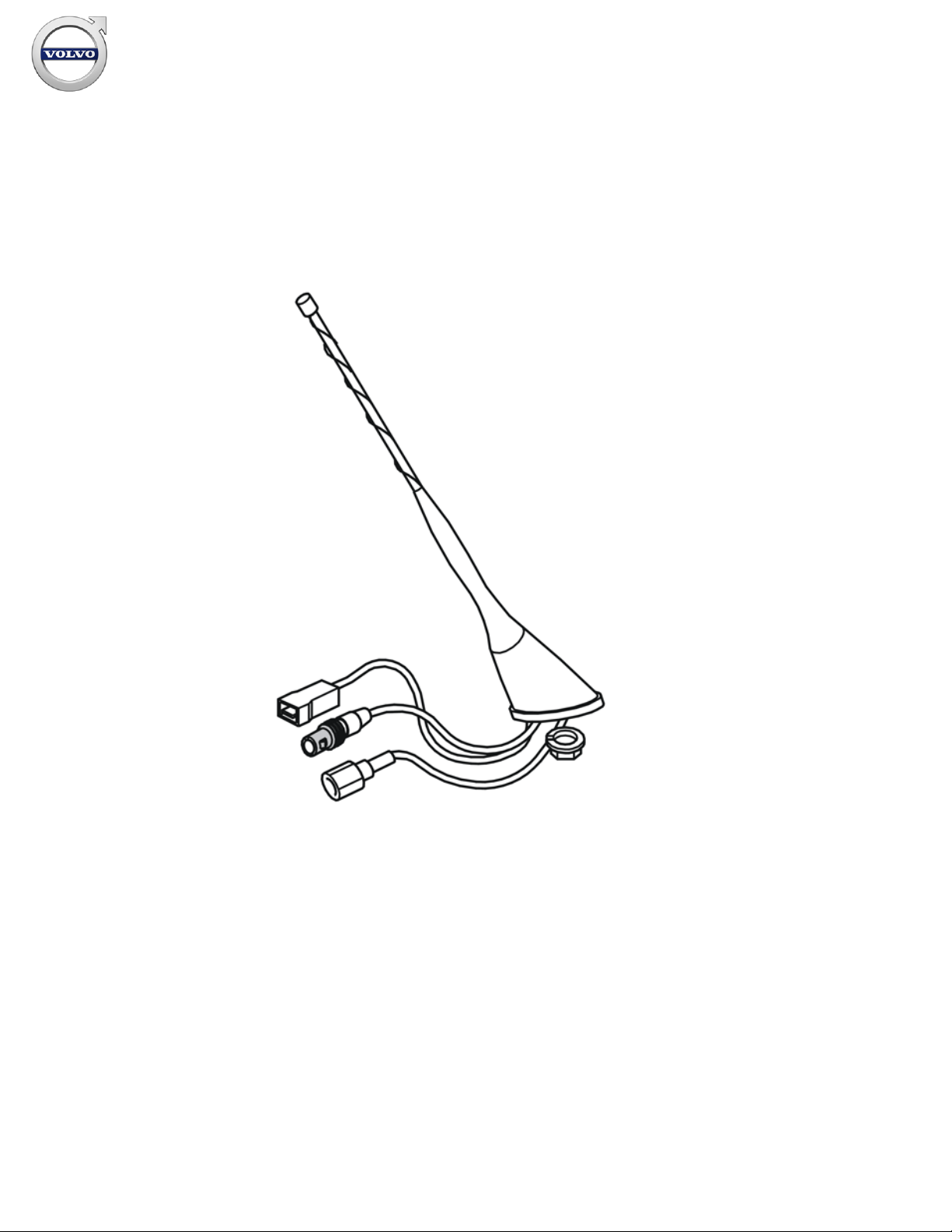

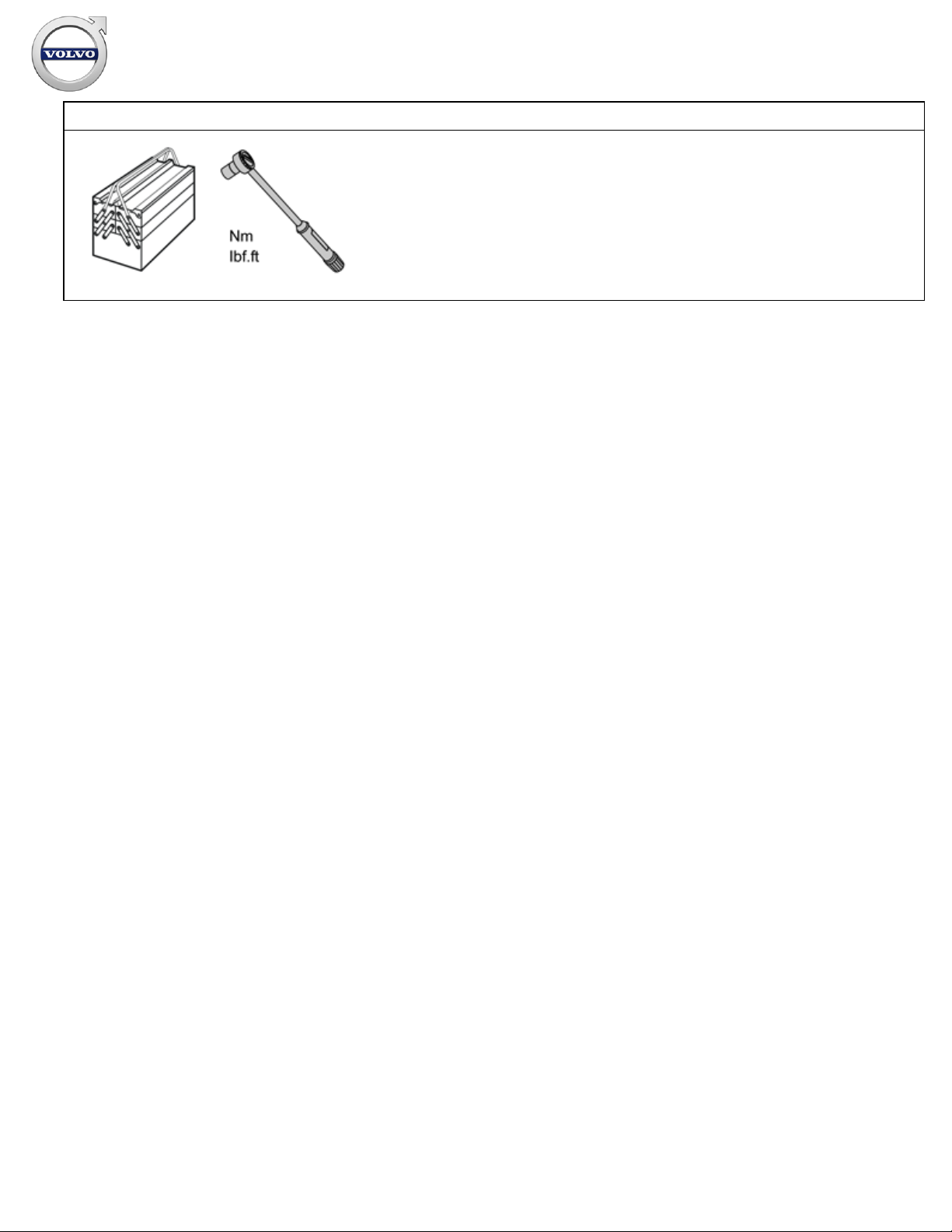

Equipment
A0000162 A0000161
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 2 / 11
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.

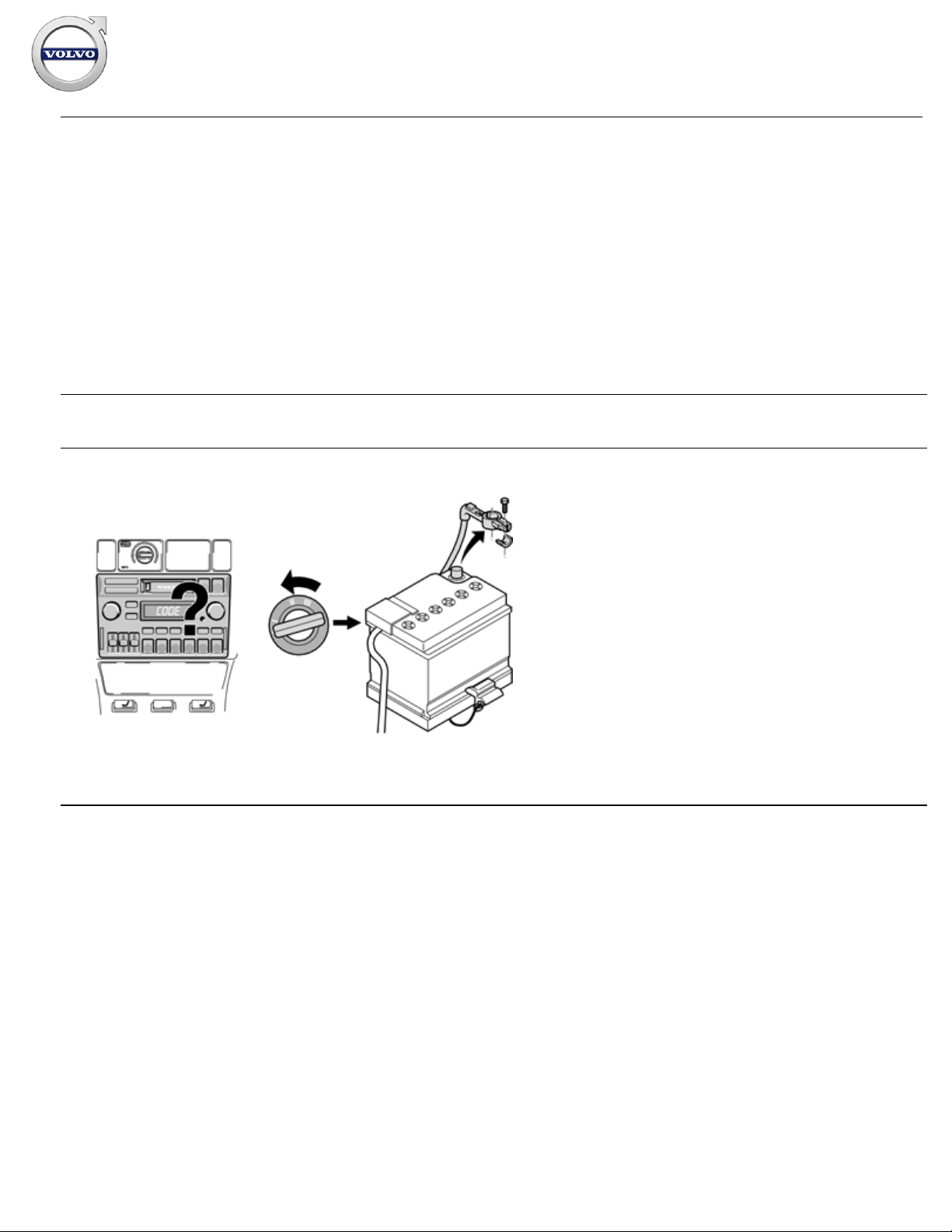

Preparations
1
H8801153
Preparations
Note the radio code if an anti-theft coded radio is installed.
Turn the ignition key to position 0.
Disconnect the negative battery lead.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 3 / 11

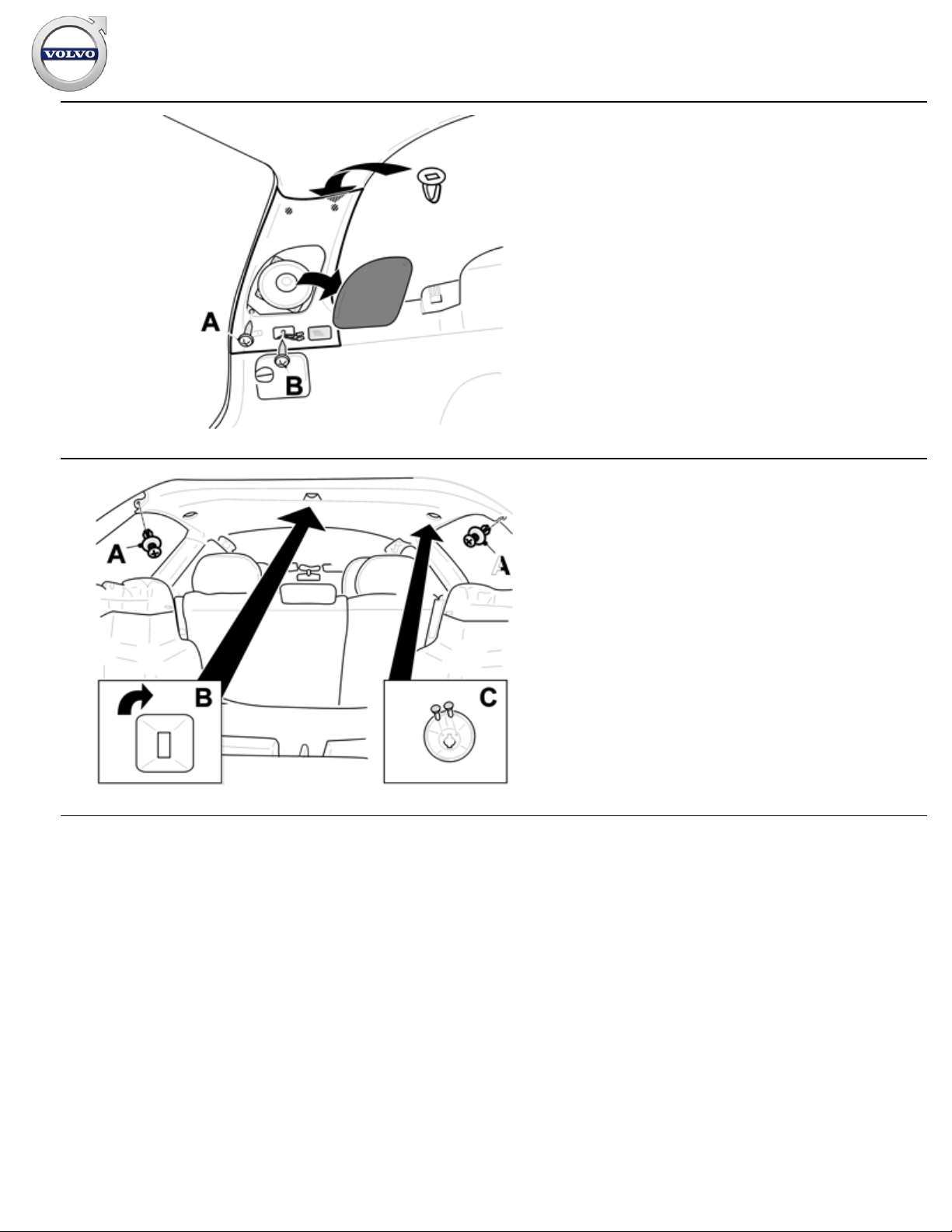

2
H3901356
Remove the parcel shelf.
Remove the loudspeaker grille and screw (A).
Remove the cargo compartment lighting and release the wiring.
Remove screw (B) and carefully take the panel away.
The same procedure applies on the right side.
3
H3901357
Remove the two clips (A).
Remove clamp (B) by turning it 1/4 of a turn.
If applicable: Remove cover (C) from the protection net on the
left and right side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 4 / 11

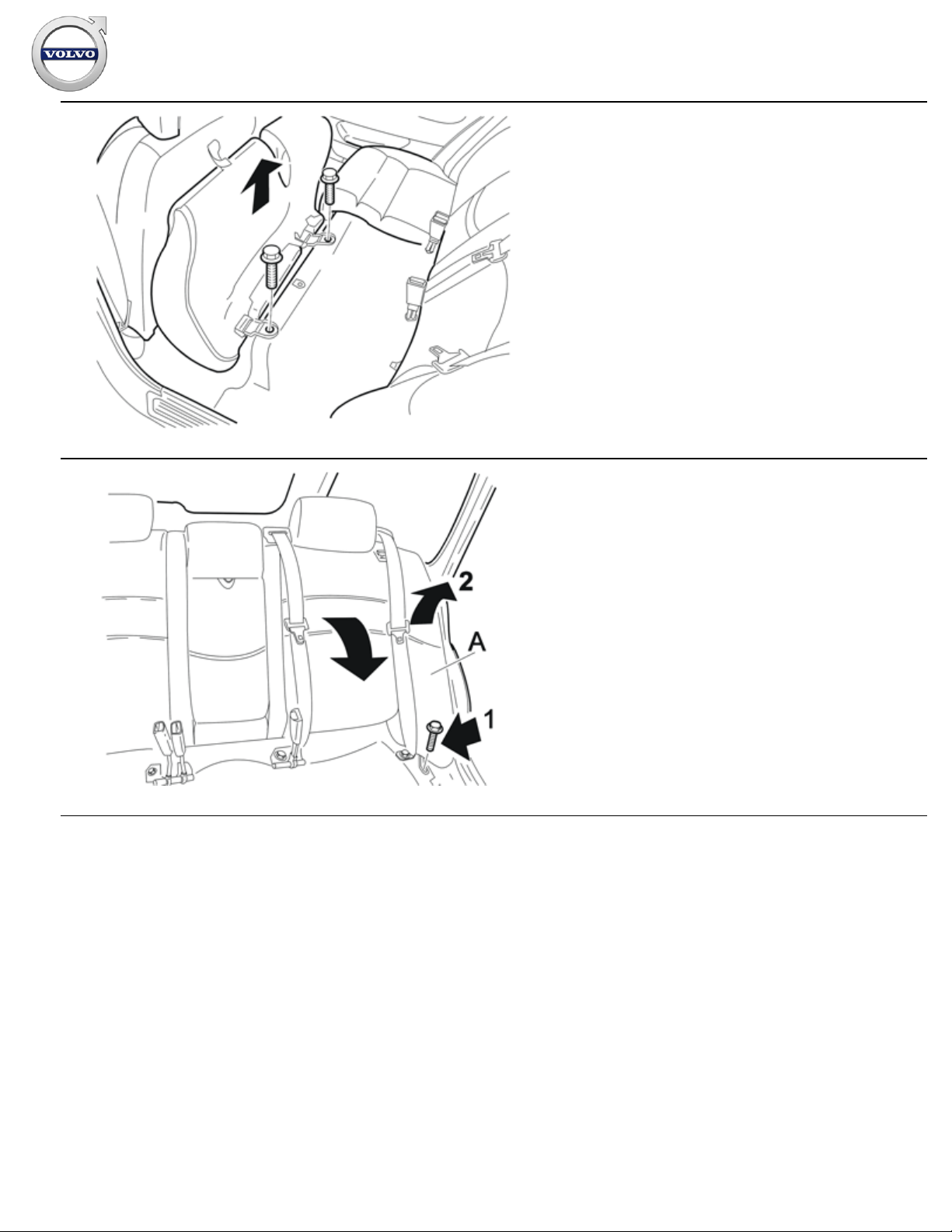

4
H3901358
Fold the rear seat forward and remove the securing bolts.
Remove the rear seat.
Remove the sill trim panel on the left side.
5
H8502573
Fold down the backrest on the left side.
Remove the fixed section (A) of the backrest on the left side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 5 / 11

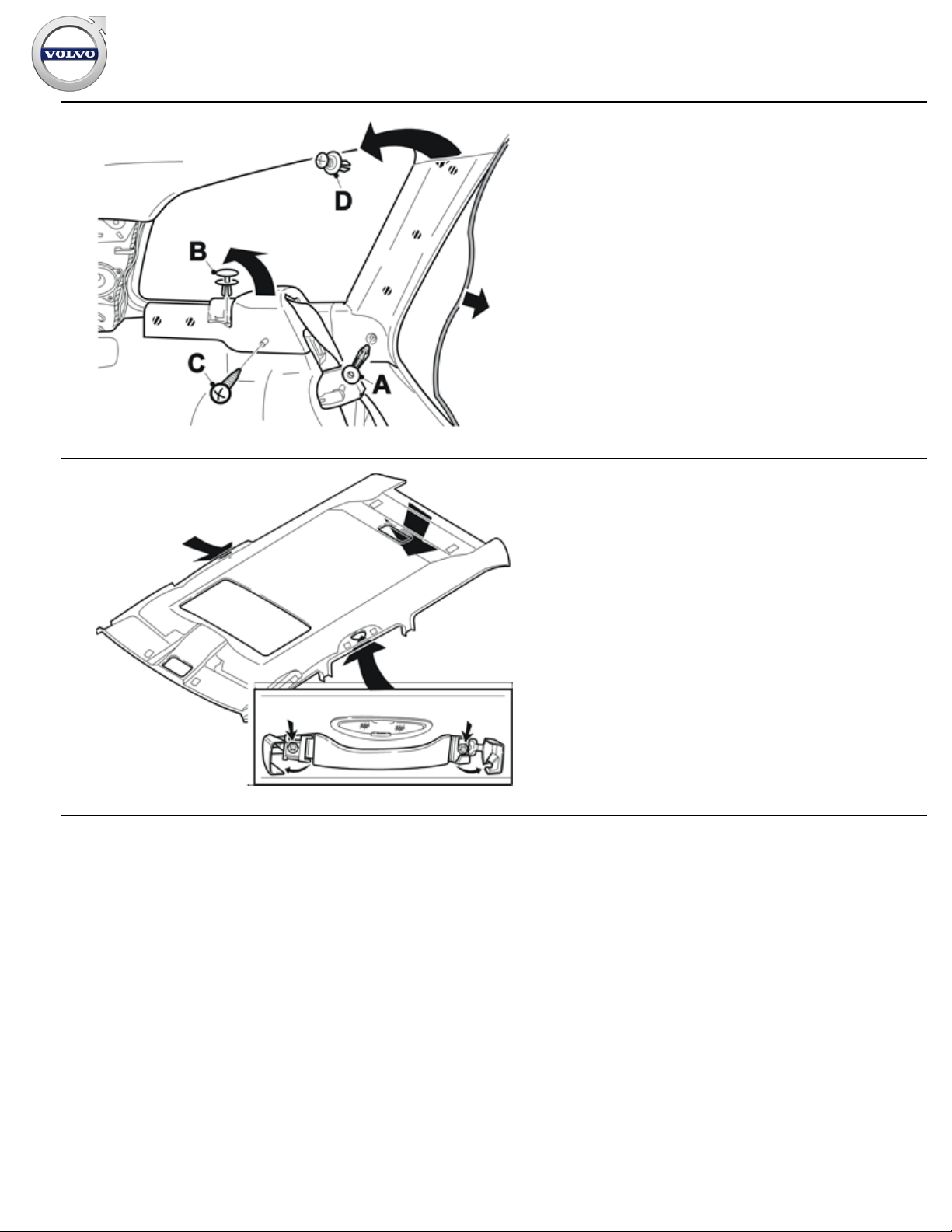

6
H3902194
Remove clips (A and B) and screw (C).
Pull off the rubber strip from the panel and remove the panel.
Remove clip (D) from the headlining.
The same procedure applies on the right side.
7
H3901360
Remove the handle from the headlining on the left and right
side.
Carefully lower the rear edge of the headlining. Take care not to
fold it.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 6 / 11

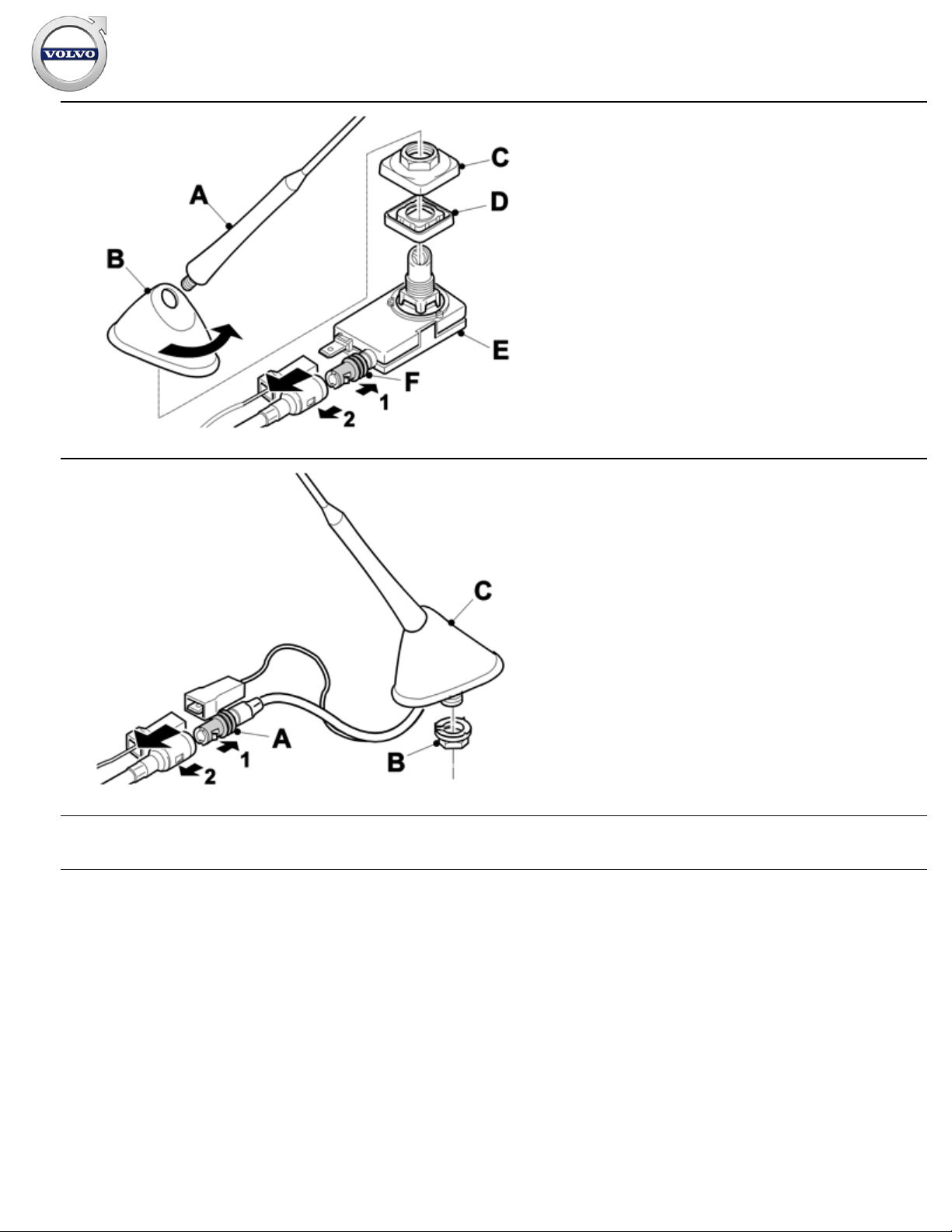

8
H3902195
Up to chassis number 156907:
Press down lock (F) and remove the antenna cable and the
positive cable.
Remove antenna rod (A), cover (B) (by turning it 1/4 of a turn),
nut (C), rubber (D) and antenna amplifier (E).
These components (A,B,C,D and E) are not to be used again.
9
H3902196
From chassis number 156907:
Remove the antenna cable from the clip.
Press down lock (A) and remove the antenna cable and the
positive cable.
Remove nut (B) at the inside, and remove the antenna amplifier
(C). These components (B and C) are not to be used again.
Installation
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 7 / 11

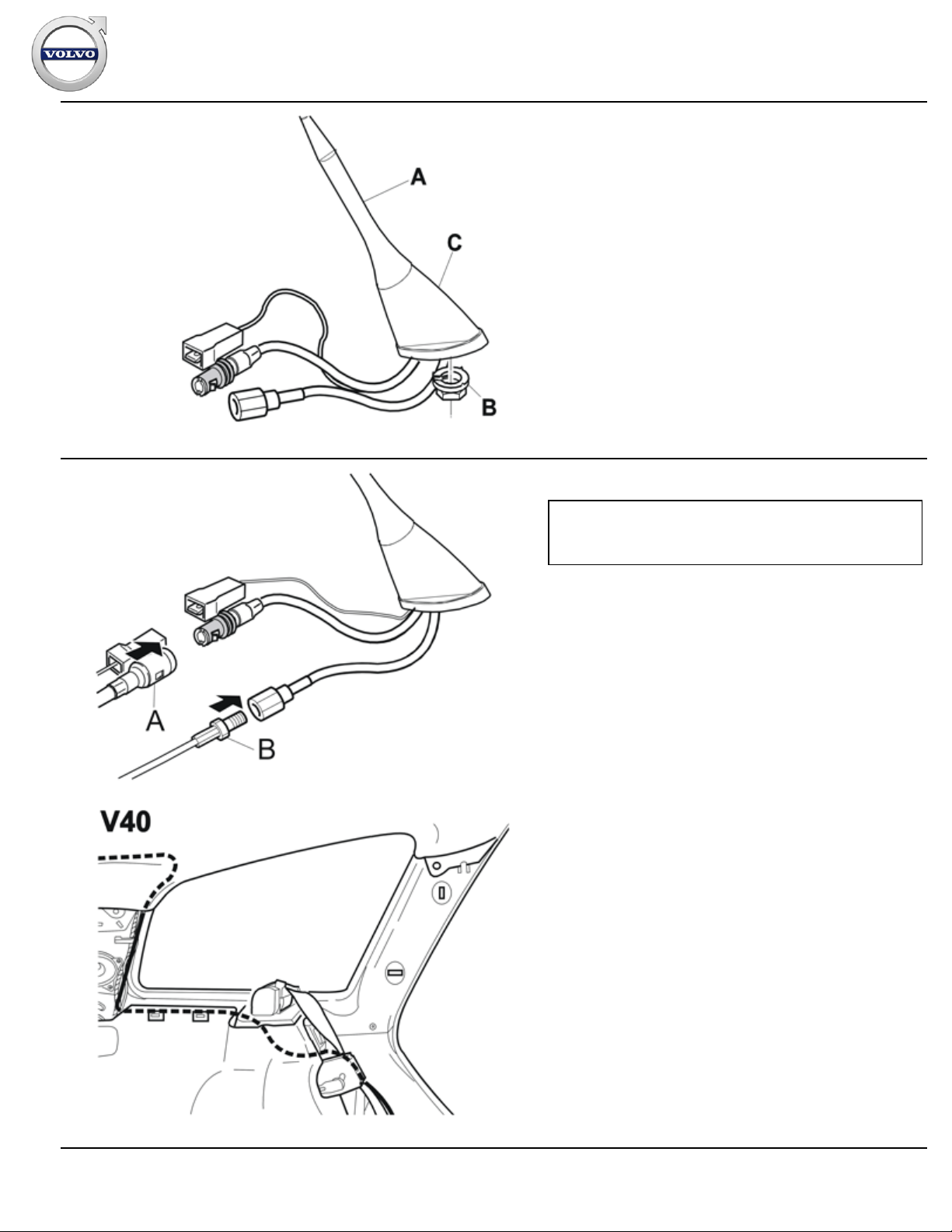

10
H3902734
Installation
Install the combined antenna amplifier (C).
Install the nut (B) and tighten to 5 Nm (4 lbf ft).
Install the combined antenna rod (A).
11A
H3902735
11B
H3901364
Warning!
Make sure that the telephone cable is not routed over the
inflatable curtain.
Install the antenna cable and the positive cable (A).
Connect the telephone cable (B).
Pull the telephone cable along the existing harness through the
cargo compartment and via the rear seat.
Secure the telephone cable with tie straps.
Carefully push the headlining into place. Install the clips and
handle on the headlining on the left and right side.
Reinstall the panels.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 8 / 11

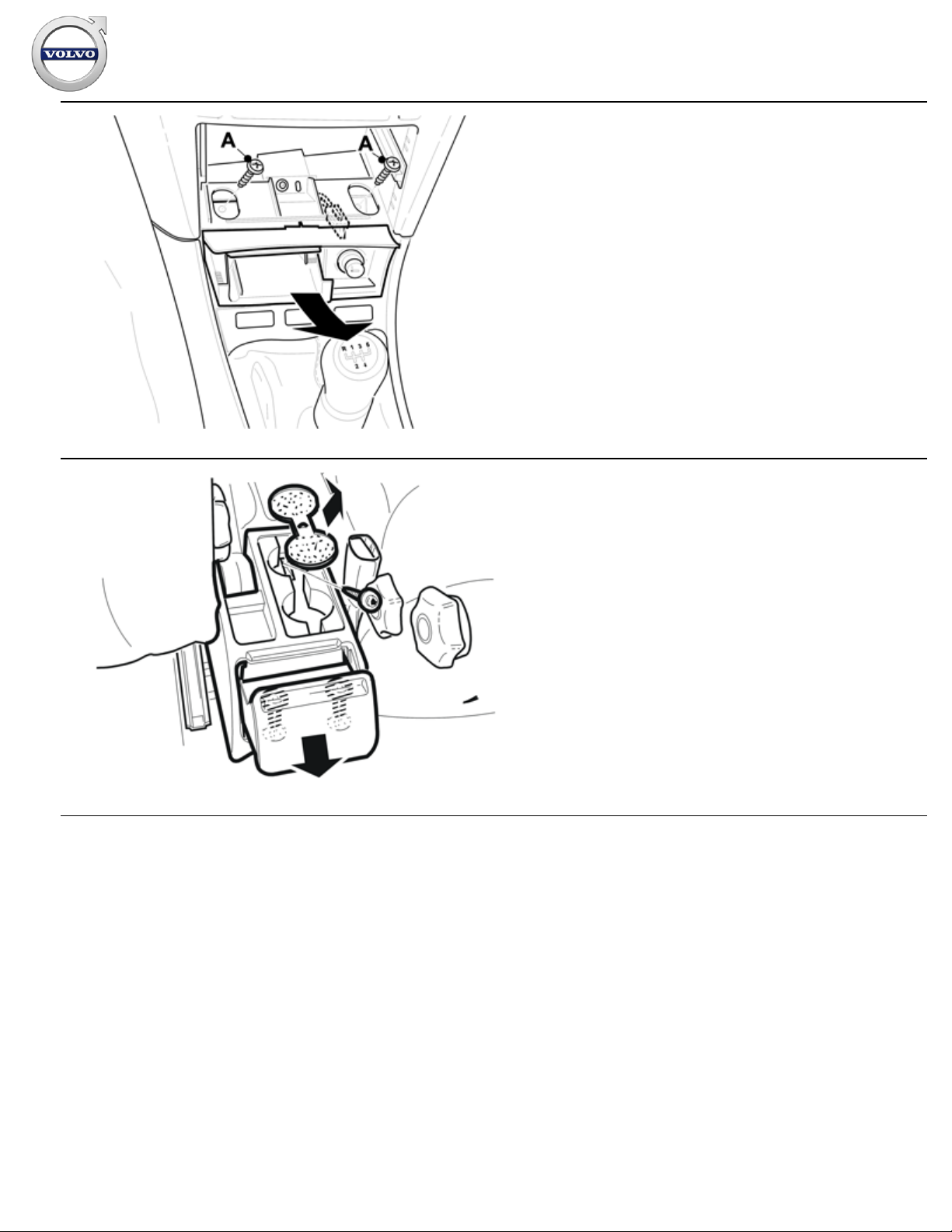

12
H8801459
Up to chassis number 600 000:
Remove the radio.
Remove the connectors and the antenna cable.
If applicable, remove the center console storage compartment.
Remove the ashtray.
Remove two screws (A) and remove the holder.
Disconnect the cigarette lighter connector.
13
H3902965
Up to chassis number 600 000:
Remove the litter bin and the rubber mat from the cup holder.
Remove the screws (3x).
Remove the rear part of the center console.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 9 / 11

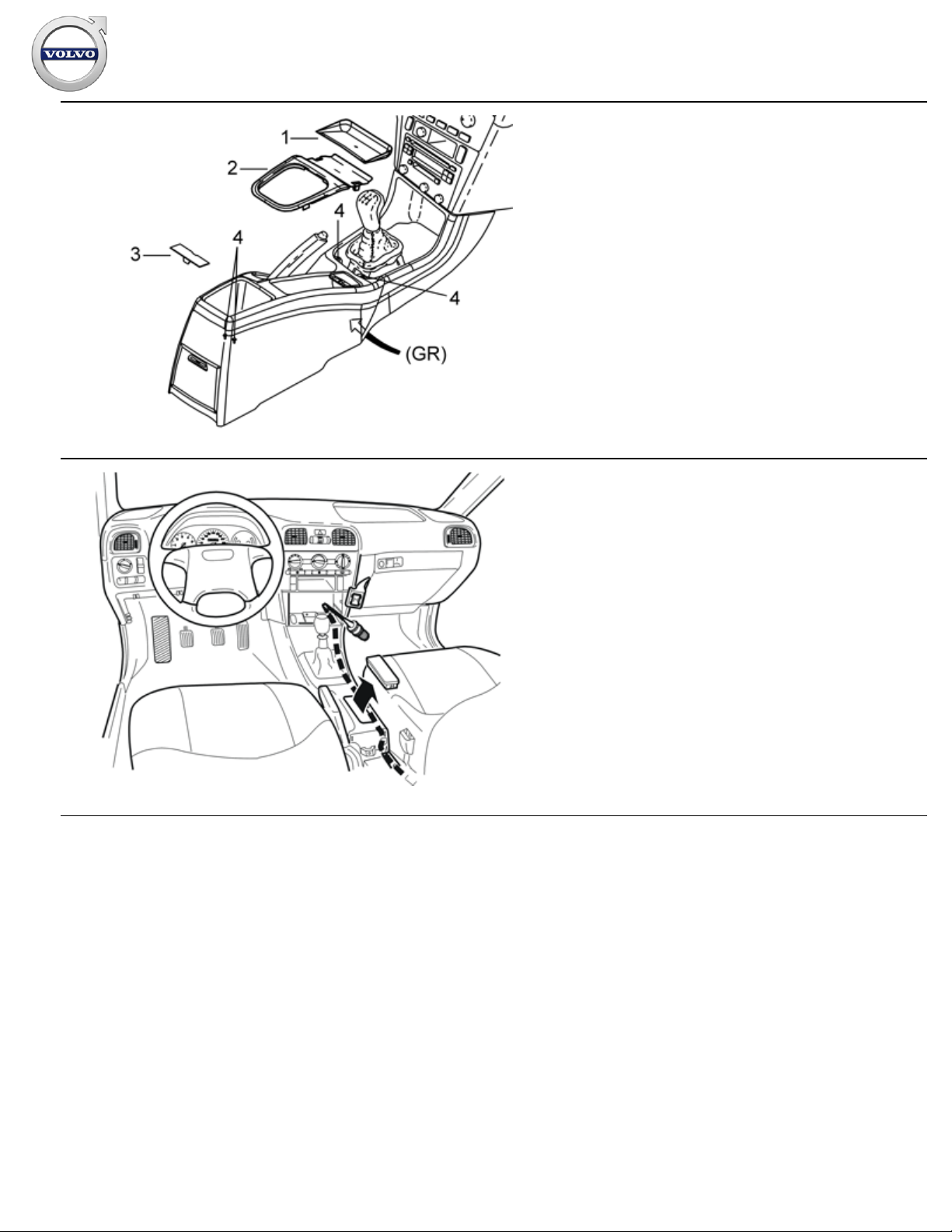

14
G8503321
From chassis number 600 000:
Remove the rubber pad (1).
Remove the gear lever panel (2) by pressing in the locking lips
and taking it out. (For manual gearbox: Press the locking lips in
and remove the sleeve).
Apply the parking brake.
Remove cover (3) and the screws (4).
Pull up the front of the rear center console and remove the grey
connector (GR).
Remove the rear center console completely.
15
H3901392
Pull the telephone cable under the floor carpet along the
tunnel/center console as illustrated.
Secure the telephone cable with tie straps and ensure that it is
free of the handbrake.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Combined radio/carphone antenna- 30623006 - V1.0
Page 10 / 11
