Parking assistance, camera, rear, (Ch -175378)
IMG-302783
Instruction No Version Part. No.
30756319 1.2 30756314, 31201135
Parking assistance, camera, rear, (Ch -175378)
IMG-302783
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 1 / 87
Equipment
IMG-242205 IMG-345497 IMG-239664 IMG-239660 IMG-239981 IMG-326754
IMG-326756 IMG-326757 IMG-352231
IMG-328933
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 2 / 87
IMG-302785
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 3 / 87
IMG-328934
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 4 / 87
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
Some steps in these installation instructions are presented
with illustration only.
1
IMG-332193
Applies to all models
Set the ignition key to position 0.
Note!
Wait at least one minute before unplugging the connectors or
removing other electrical equipment.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 5 / 87

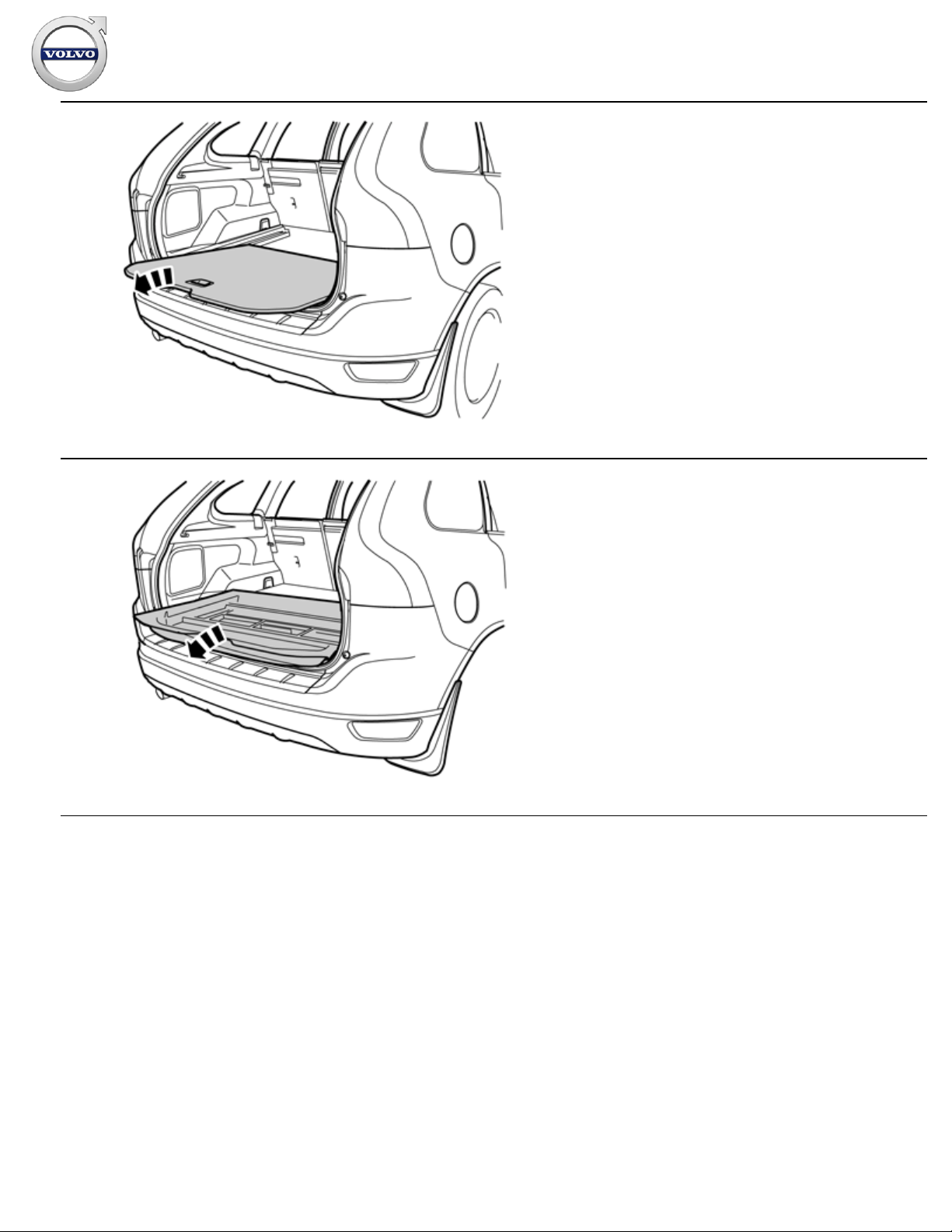

2
IMG-291603
3
IMG-291604
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 6 / 87
4
IMG-303067
Remove the screw at the lower edge of the boot lid's upper
panel. Perform on both sides.
5A
IMG-302788
5B
IMG-302789
Illustrations A and B
Detach the panel's lower, outer and inner ends from the lower
panel, and pull it from the clip at the sides.
Repeat the operation on the other side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 7 / 87

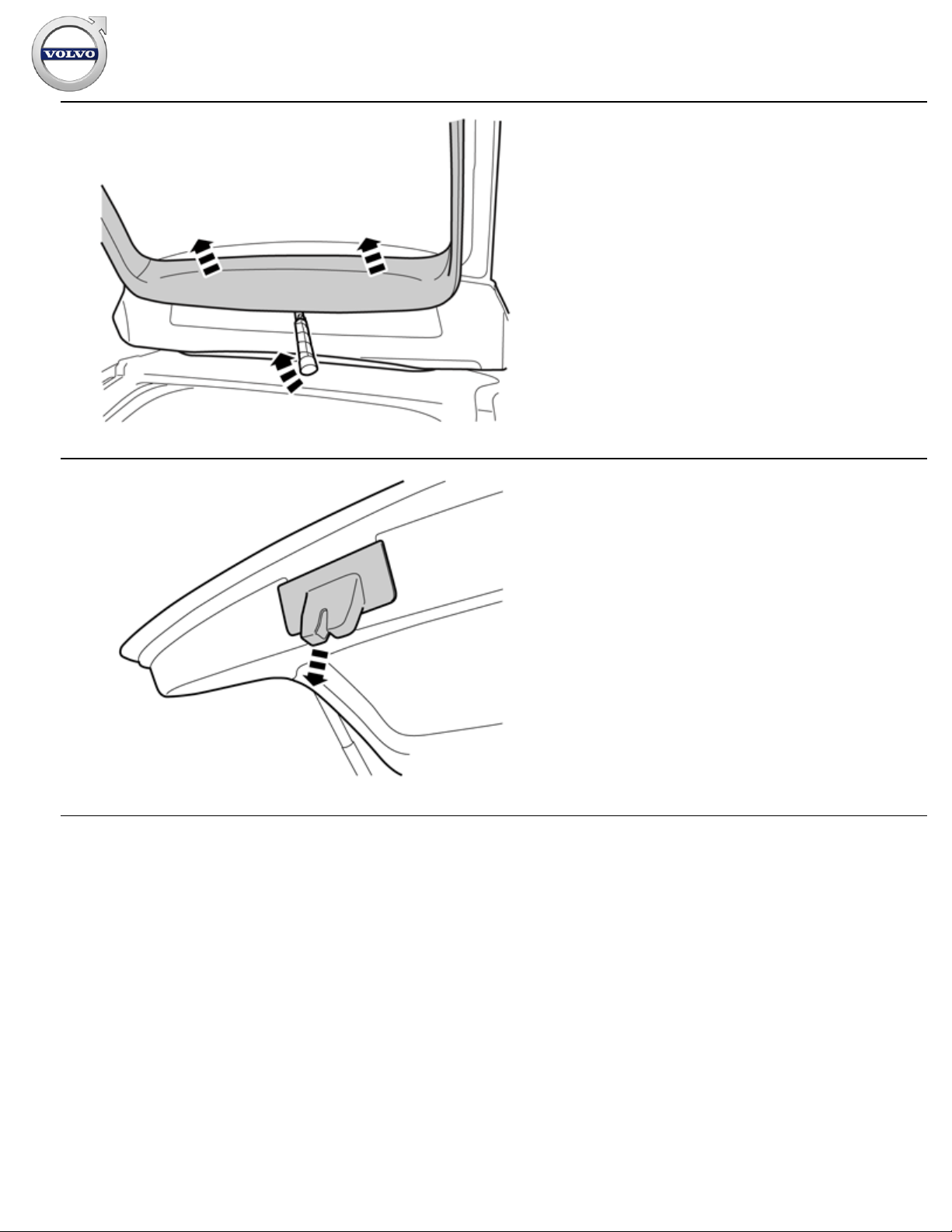

6
IMG-302790
Detach the boot lid's upper panel at the upper edge by using a
weatherstrip tool until the clips release.
Place the panel to one side.
7
IMG-302983
Remove the panel for the boot lid's lock.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 8 / 87

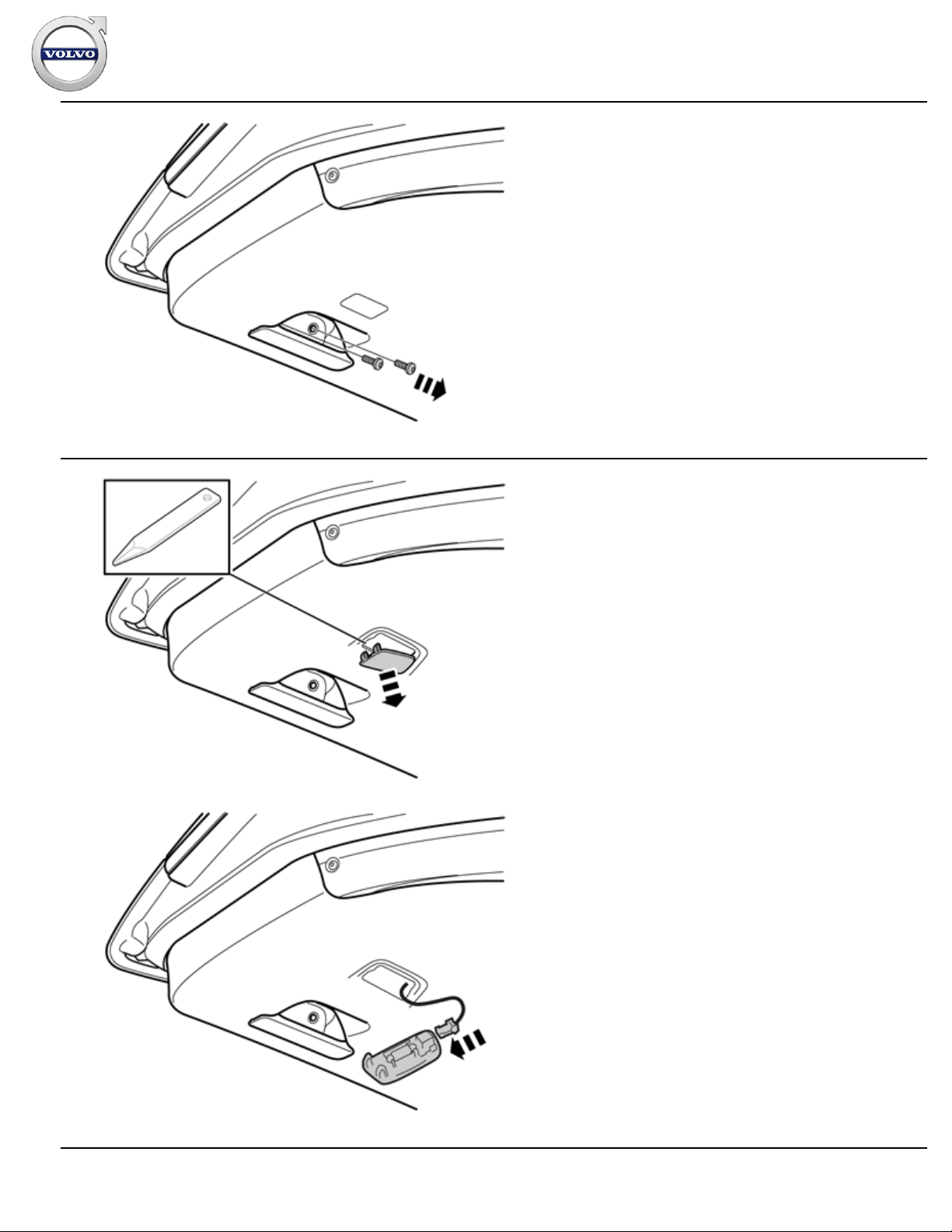

8
IMG-303807
Remove the two screws from the opening handle.
9A
IMG-302984
9B
IMG-302985
Illustrations A and B
Carefully pry off the lighting, detach the connector and place to
one side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 9 / 87

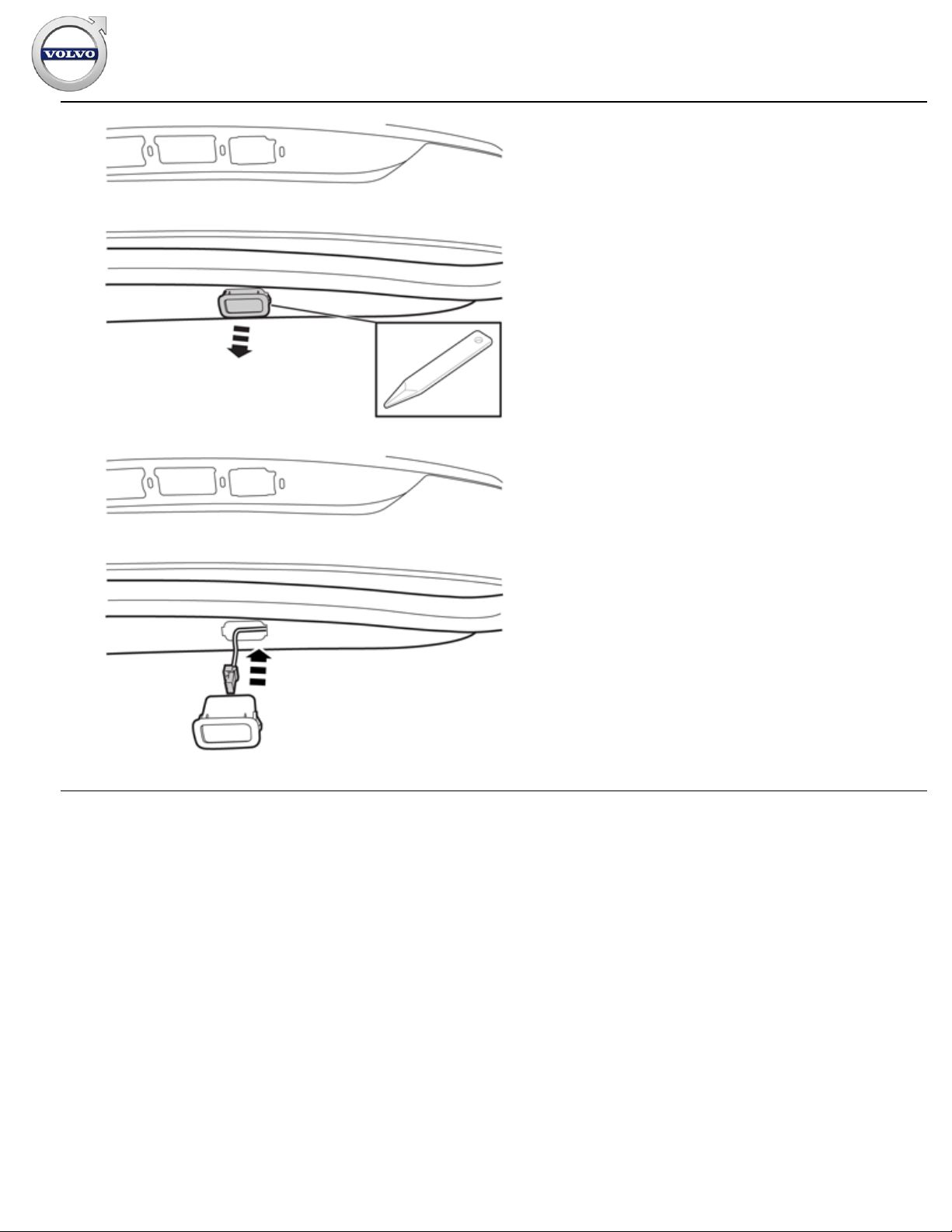

10A
IMG-302986
10B
IMG-302987
Applies to cars with electric boot lid opener
Illustrations A and B
Carefully pry off the connector from the panel using a
weatherstrip tool.
Unplug the connector from the contact and place to one side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear, (Ch -175378)- 30756319 - V1.2
Side 10 / 87
