VonHaus 3500077 Bedienungsanleitung

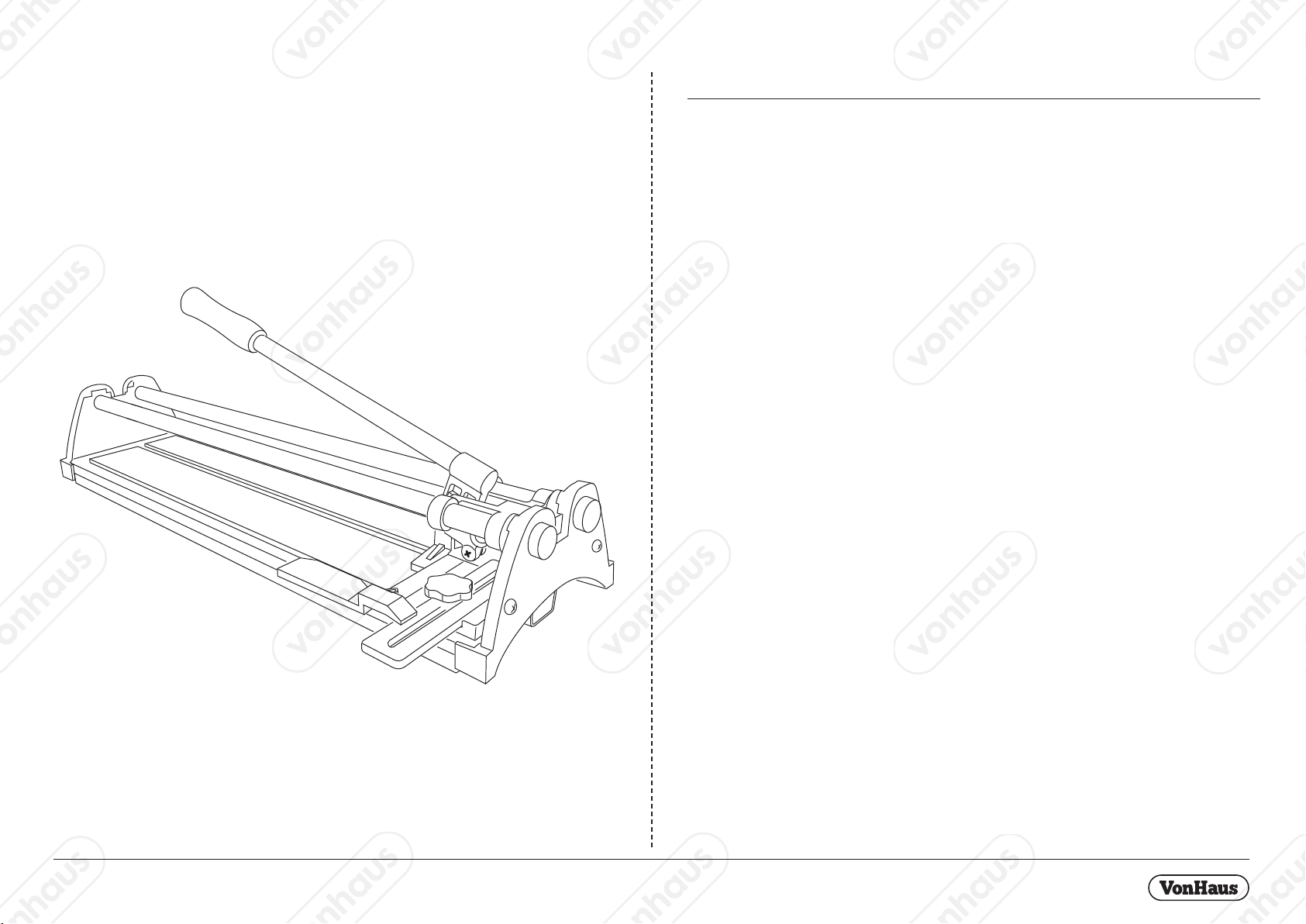

TILE CUTTER

430MM

3500077 - Instruction Manual Safety Information/Safety Symbols 1

Specification 2

Operation 3

Cleaning & Maintenance/Warranty 4

CONTENTS

IMPORTANT SAFETY INFORMATION

Do not use the tool for any purpose other than which it is designed for.

The tool is not a toy. Children should be supervised to ensure that they do not play

with the tool.

The use of knives or attachments which are not recommended may result in

product damage or the risk of personal injury.

Always keep hands away from the blade.

Always wear safety glasses during the use of the laminate cutter.

Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.

WARNING Do not operate your laminate cutter until it is completely assembled and

working according to the instruction manual.

NEVER FORCE It will do the job better and safer at the rate for which it was

designed.

ALWAYS KEEP WORK AREA CLEAN Cluttered areas and benches invite accidents.

Make sure the floor is clean and not slippery due to wax or sawdust build-up.

DO NOT LIFT the laminate cutter by the handle. Always use on a level surface.

CAUTION The assembly pack contains small parts which can pose a choking hazard

to children and pets.

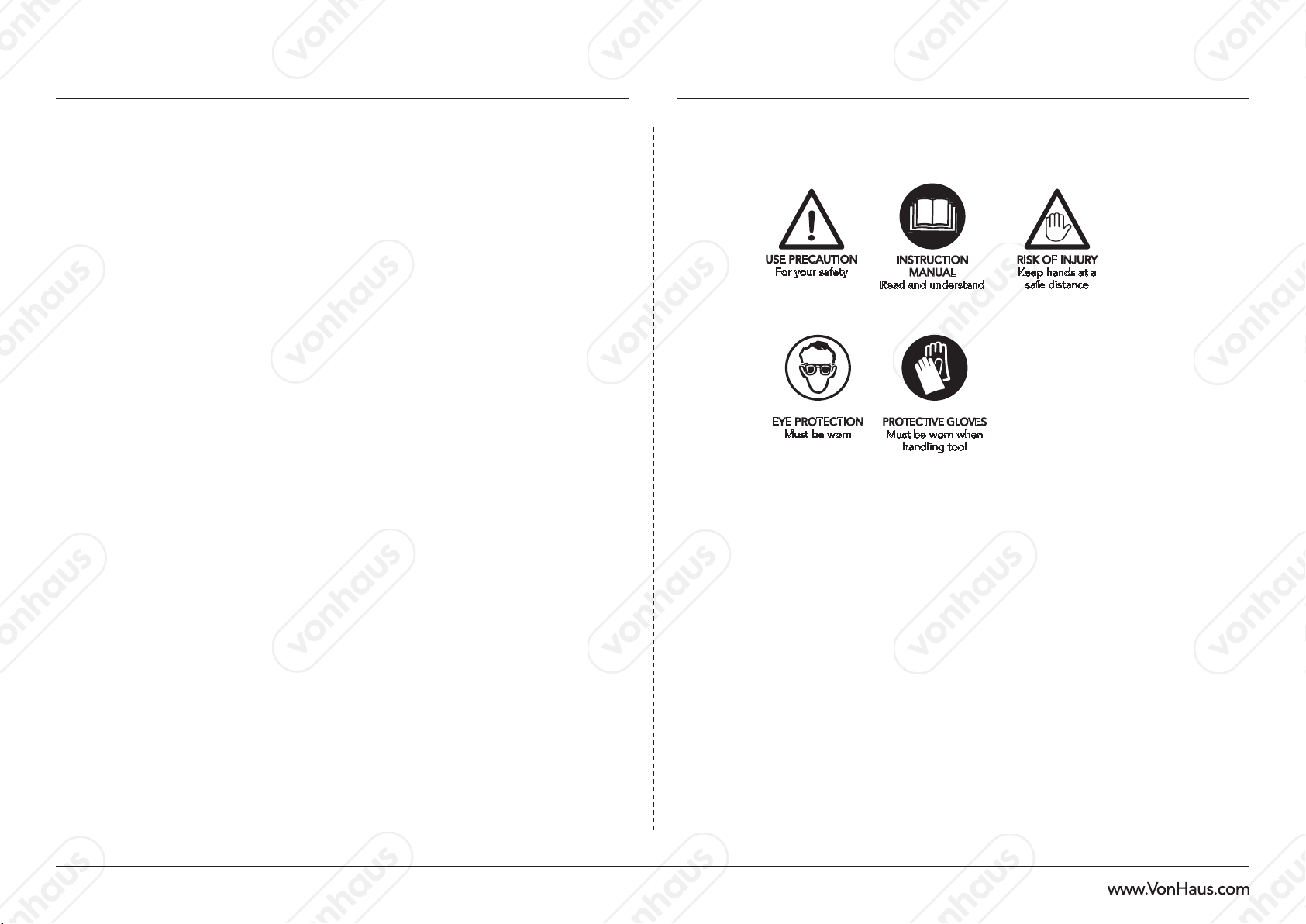

SAFETY INFORMATION SAFETY SYMBOLS

USE PRECAUTION

For your safety

EYE PROTECTION

Must be worn

PROTECTIVE GLOVES

Must be worn when

handling tool

INSTRUCTION

MANUAL

Read and understand

RISK OF INJURY

Keep hands at a

safe distance

These symbols may appear on

your product.

SPECIFICATION

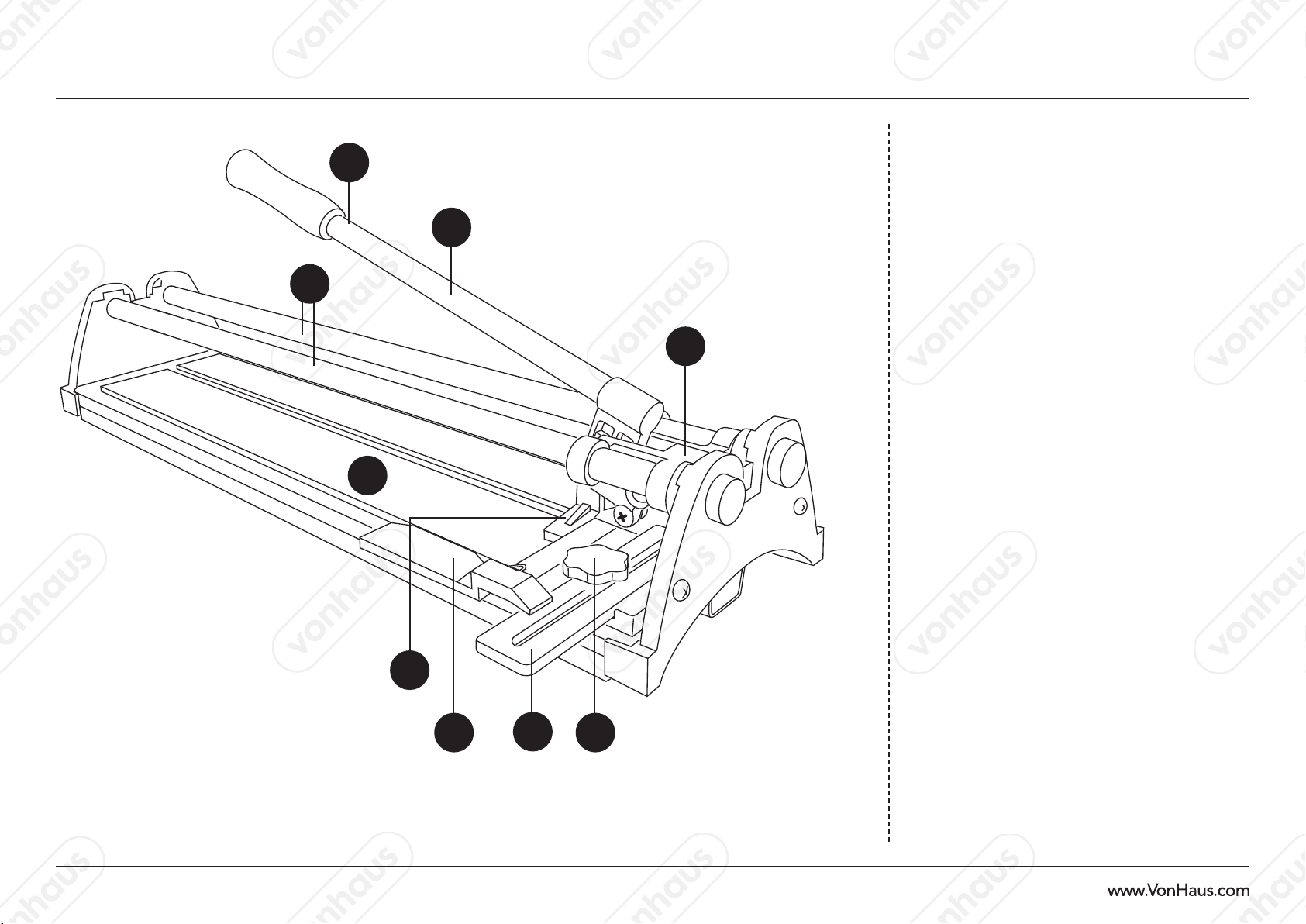

1. Grip x1

2. Handle x1

3. Breaker Bar x1

4. Slide Assembly x1

5. Rail Bars x2

6. Sponge Cushion x2

7. Slide Rule x1

8. Width Guide x1

9. Width Guide Dial x1

NOTE The Handle Assembly (1,2) will

require attaching to the Breaker Bar

Assembly (3) before first use.

Screw the thread of the Handle

Assembly (1,2) in an anti-clockwise

direction onto the Breaker Bar

Assembly (3).

8 9

TIP When possible, use a sample piece to familiarise yourself with the tool before

commiting to your intended workpiece.

RIP CUT

Place the tile at the front edge against the front stop.

Position the tile so the line of cut is directly over the scoring line, which is the line

between the left and right pad.

Adjust the cutting guide by loosening the Width Guide Dial (9) and sliding it left or

right to the desired cutting position, and lock the cutting guide in place.

MAKING THE CUT

Place the cutting wheel on the rear edge of the tile.

Then slide the wheel forward by pushing the handle down with medium pressure,

scoring the tile surface glaze as the handle is pushed forward.

NOTE It is important to make one continuous motion, scoring the surface only once

per tile. After scoring, and without moving the tile, position the handle so that the

Breaker Bar (3) is slightly in from the front edge of the tile and front stop. Apply

OPERATION WARNING Always keeps hands and fingers away from the Blade.

Slide to score surface glaze

SCORING

SNAPPING

Breaker Bar

Press Down

Scoring Line

Width Guide Dial

DISPOSAL INFORMATION

WARRANTY

CUSTOMER SERVICE

Please recycle where facilities exist. Check with your local authority for recycling advice.

All material in this instruction manual are copyrighted by DOMU Brands.

Any unauthorised use may violate worldwide copyright, trademark, and other laws.

To register your product and find out if you qualify for a free extended warranty please

go to

www.Vonhaus.com/warranty.

Please retain a proof of purchase receipt or statement as proof of the purchase date.

The warranty only applies if the product is used solely in the manner indicated in

the Warnings page of this manual, and all other instructions have been followed

accurately. Any abuse of the product or the manner in which it is used will invalidate

the warranty.

Returned goods will not be accepted unless re-packaged in its original packaging and

accompanied by a relevant and completed returns form. This does not affect your

statutory rights.

No rights are given under this warranty to a person acquiring the appliance second-

hand or for commercial or communal use.

If you are having difficulty using this product and require support, please contact

[email protected]

CLEANING & MAINTENANCE

Keep the cutter clean by wiping down with a clean damp cloth and store in a dry place

when not in use.

WARNING Take extra care to keep hands and fingers clear of the blade when performing

any cleaning or maintenance tasks.

Periodically check that all nuts and bolts are tight.

THANK YOU

Thank you for purchasing the Tile Cutter 430mm

VonHaus®is a registered trademark of DOMU Brands Ltd

Made in China for DOMU Brands Ltd M24 2RW.
