VXi V300 Quick-Start Guide

Updated 12/20/2016

Part # 204001

Table of Contents

1. V300 Headset Overview

2. V300 Base Unit Overview

3. Connect to Your Phone, Computer and Cell Phone

a. Connect Power to Base

b. Install Battery and Charge Headset

c. Connect and Configure Phone

d. Office Phone

e. Analog (Home) Phone

f. Connect to a Computer

g. Pair to a Cell Phone

h. Position Base

4. How to Wear

a. Changing Wearing Styles

b. Headset Positioning

5. Functions and Indicators Tables

204001X V300 Quick-Start Guide 122016.docx 2

1. Headset Overview

1. Mute

2. Call Control On/Off

3. Volume +/-

4. Earpiece

5. Battery Cover

6. Headset Charging Contacts

7. Microphone

<<Image of Headset with Callouts>>

<<Image of Headset Back with

Callouts>>

204001X V300 Quick-Start Guide 122016.docx 3

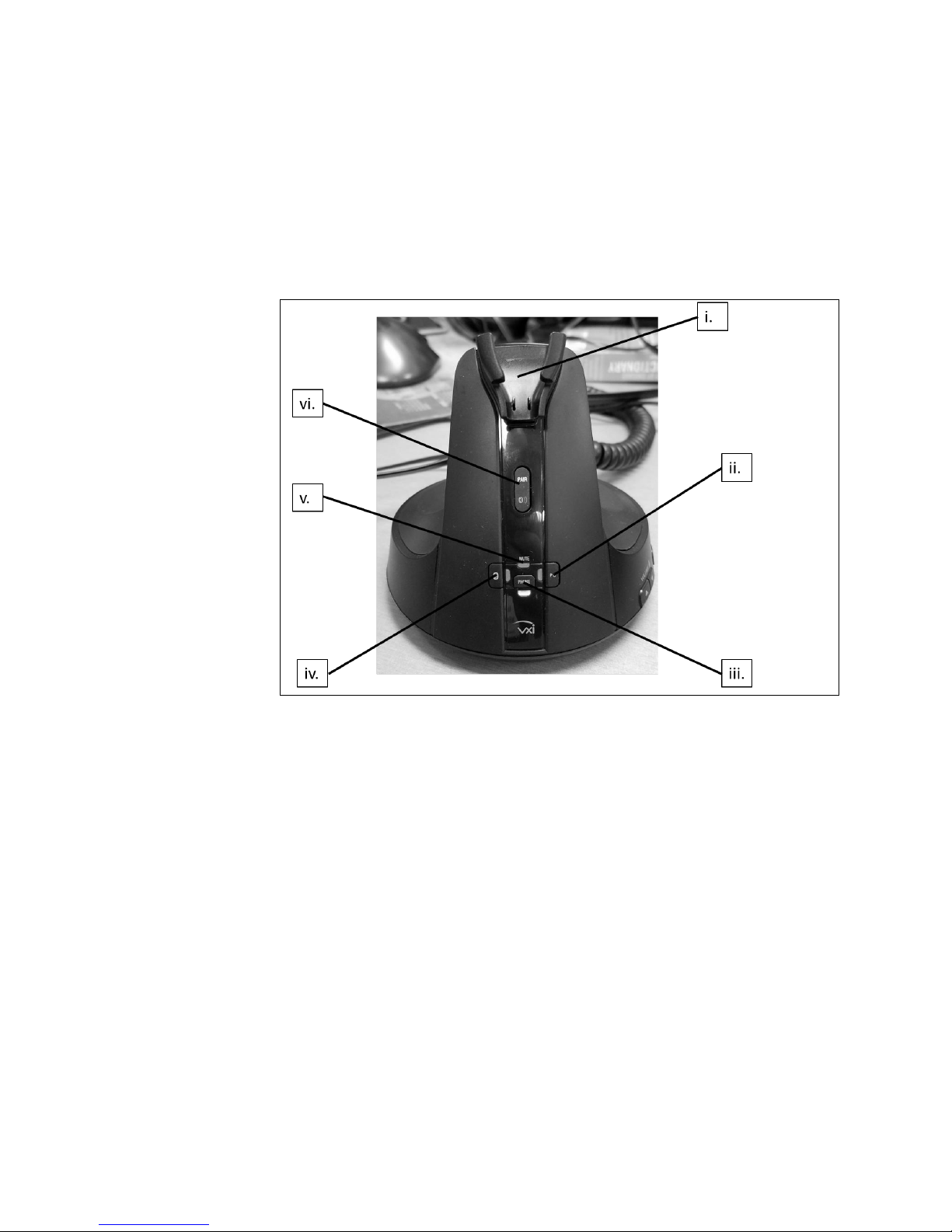

2. Base Overview <<Images of Base –Front, Back, Base. K-Lock Side>>

a. Front

i. Headset Docking/Charging Cradle

ii. PC Button/LED

iii. Phone Button/LED

iv. Bluetooth Button/LED

v. Mute LED

vi. Headset/Bluetooth Pairing Button

204001X V300 Quick-Start Guide 122016.docx 4

b. Back

i. Micro-USB Port

ii. EHS/Lifter Port

iii. Power Port

iv. Analog Telephone Port

v. Base Jack Port

vi. Handset Port

c. Right Side

i. Headset Microphone Level Adjustment Buttons

ii. Mode Button

iii. Micro-USB Port

204001X V300 Quick-Start Guide 122016.docx 5

d. Left Side

iv. Phone Compatibility Switch

204001X V300 Quick-Start Guide 122016.docx 6

3. Connect to Your Phone, Computer and Cell Phone

a. Connect Power to Base

<<Graphic –Removing Panel from

Base>>

<<Graphic –Connecting Power

Adapter to Base>>

1. Remove the panel from the bottom of the base.

2. Connect the power adapter cable into the base power port (green dot) and

plug the power adapter into an electrical socket.

204001X V300 Quick-Start Guide 122016.docx 7

b. Install Battery and Charge Headset

<<Graphic –Remove Headset Battery

Door>>

<<Graphic –Insert Headset Battery>>

1. Remove the battery cover from the headset.

2. Insert the battery into position with the label “THIS SIDE UP” facing up.

3. Connect the battery lead to the headset.

4. Replace the battery cover and place the headset in the charging cradle. The LED

on the headset will be red when charging and will change to blue when the

headset is fully charged.

c. Connect and Configure Office Phone

i. Remove the panel from the bottom of the base.

ii. Connect the base jack cable (orange flag) to the base jack port (orange dot) on the

base and the other end to the headset port of the phone. If you do not have a headset

port, you will need to use the handset port.

<<Graphic –Back of Base Unit to Phone Headset Port>>

204001X V300 Quick-Start Guide 122016.docx 8

iii. Check Configuration and Make a Test Call:

1. Set your desk phone volume to mid-range.

2. Make sure the base shows the phone output is selected. A green LED

indicates the mode is set for office phone use. If it is red, press the mode

button on the side of the base to change to the correct mode.

3. Check that the phone compatibility switch on the side of the base is correct

for your phone. Most phone makes use setting D (default), but many Cisco

phones will use setting A.

4. Open the headset line on your desk phone, or remove the handset from the

cradle if you are connected to the handset port.

5. While wearing the headset, press the call control button on the headset.

6. If you do not hear a dial tone (or tones) when pressing the dial pad buttons,

try the other base compatibility switch settings until you do.

7. Dial a test call from the desk phone.

i. You can fine-tune the earpiece volume using the headset volume

buttons.

ii. If additional microphone gain (speaking volume) is needed, or if you

hear your voice echo in the earpiece (excessive side tone), you can

adjust this with the microphone volume buttons on the side of the

base.

204001X V300 Quick-Start Guide 122016.docx 9

i. Other Connection Configurations

In addition to the standard setup, there are three more options for setting up the V300

with your phone:

a. Office Phone with EHS (sold separately)

b. Office Phone with L50 Lifter (sold separately)

c. Analog (Home) Phone

For more details, see the full user guide, available online at vxicorp.com/V300.

d. Connect to a Computer

i. Connect USB

1. Plug the small connector on the end of the USB cable provided into the micro

USB port on the side of the base.

2. Plug the other end into the USB port on your computer.

3. Wait for your operating system to indicate that it has recognized the headset

and that it is ready to use.

ii. Configure Computer Audio Settings

1. Press the PC button on the base. The PC indicator LED will be lit red.

2. Go to your computer’s audio settings and make sure that “VXi V300” is selected

under both playback and recording.

3. If necessary, make sure the “VXi V300” is also selected for use in your

communications software settings.

e. Pair to a Cell Phone

i. Press the Bluetooth button on the base. The Bluetooth indicator LED will be lit blue.

ii. Press the call control button on the headset.

iii. Press the Bluetooth icon at the bottom of the Pair button. You will hear the voice

prompt “Ready to Pair” and the blue LED on the Pair button will be flashing fast.

iv. Open the Bluetooth menu on your device and tell it to search or “scan” for new devices.

v. Select “VXi V300” to pair the base with your device.

vi. Successful pairing and connection will be indicated by the voice prompt “Device

Connected” and the Bluetooth icon on the Pair button will be lit solid blue.

f. Position Base

To reduce the possibility of noise and interference problems, position the base at least 6 inches away

from your desk phone and at least 12 inches away from your computer.

204001X V300 Quick-Start Guide 122016.docx 10

4. How to Wear

a. Changing Wearing Styles

The V300 office wireless headset is supplied with a choice of wearing styles:

1. Ear Hook

a. Choose the ear bud that fits your ear most comfortably.

b. Place the ear bud over the post on the ear hook.

c. Attach the ear hook to the headset by placing it over the

earpiece and gently pressing it into position.

d. Loop the ear hook over the ear and rotate the headset so the

microphone is angled toward the mouth.

<<Image of Earhook Attachment>>

<<Image of Earhook Positioning>>

2. Headband

a. Position the headset earpiece over the headband ring and press until

it clicks into place.

<<Image of Headband Attachment 1>>

<<Image of Headband Attachment 2>>
