Vxl TC15yy Installationshandbuch

Itona TC15yy

Hardware User Guide

Information in this document is subject to change without notice and does not represent a

commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted

in any form or means, electronic or mechanical, including photocopying and recording, for any

purpose, without the express written permission of the manufacturer.

Every effort has been made to make this guide as complete and as accurate as possible, but no

warranty or fitness is implied. The authors and the publisher shall have neither responsibility nor

liability to any person or entity with respect to loss or damages arising from the use of information

contained in this guide. This disclaimer does not apply in countries where such provisions are

inconsistent with local law.

All Trademarks are acknowledged.

Last Updated: September, 2012

Version: TC15yy/UG-37-12

VXL Instruments Ltd.,

House of Excellence,

No. 17, Electronics City,

Hosur Road,

Bangalore–560 100, INDIA.

www.vxl.net

Federal Communication Commission

(FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment Off and On, the user is encouraged to try to correct

the interference by one or more of the following measures:

Re-orient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio / television technician for help.

Each Thin Client is equipped with a FCC compliance label that shows only the FCC

identification number. The full information of the associated label is as follows:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

Energy Star Compliant Product

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and

the U.S. Department of Energy helping us all save money and protect the

environment through energy efficient products practices.

Products with the ENERGY STAR logo comply with the ENERGY STAR standard,

and the power management feature is enabled by default. The monitor and computer

are automatically set to sleep after 15 and 30 minutes of user inactivity. To wake your

computer, click the mouse or press any key on the keyboard.

Please visit http://www.energy.gov/powermanagement for detail information on power

management and its benefits to the environment. In addition, please visit

http://www.energystar.gov for detail information on the ENERGY STAR joint program

iii

Regulatory Certifications

Table of Contents

Federal Communication Commission (FCC) Statement i

Energy Star Compliant Product ii

Regulatory Certifications iii

1Introduction 1

Features 1

Optional Features 2

About the User Guide 2

Abbreviations and Acronyms 2

Chapters in the Manual 3

2Installation 4

Unpacking the Unit 4

Preparing to Connect 4

Connecting the Accessories and Power Supply 5

Connecting to the Server 6

3Specifications 8

Hardware 8

Mechanical 8

Environmental Operating 8

Electrical Power 8

4Troubleshooting 9

Appendix 10

1 Introduction

Thin Clients are terminal devices that connect to multi-user application servers operating

under Citrix MetaFrame and Windows Server 2000/2003 operating systems.

This guide covers installation procedure and hardware details of Itona TC 15yy series..

Figure 1: ItonaTC15yy

Itona TC 15yy series delivers smart and robust solutions for Thin Client computing. They are

aesthetically and ergonomically designed compact desktop, providing simultaneous full

screen connectivity to Windows and UNIX application servers–a powerful business

alternative to users using Win32 applications while continuing access to legacy UNIX

applications.

They communicate with application servers via the ICA protocol developed by Citrix Systems

Inc., Remote Desktop Protocol from Microsoft and a host of other popular connectivity

protocols. Please refer to the Software User’s Guide for information about connection

protocols supported by this model.

Features

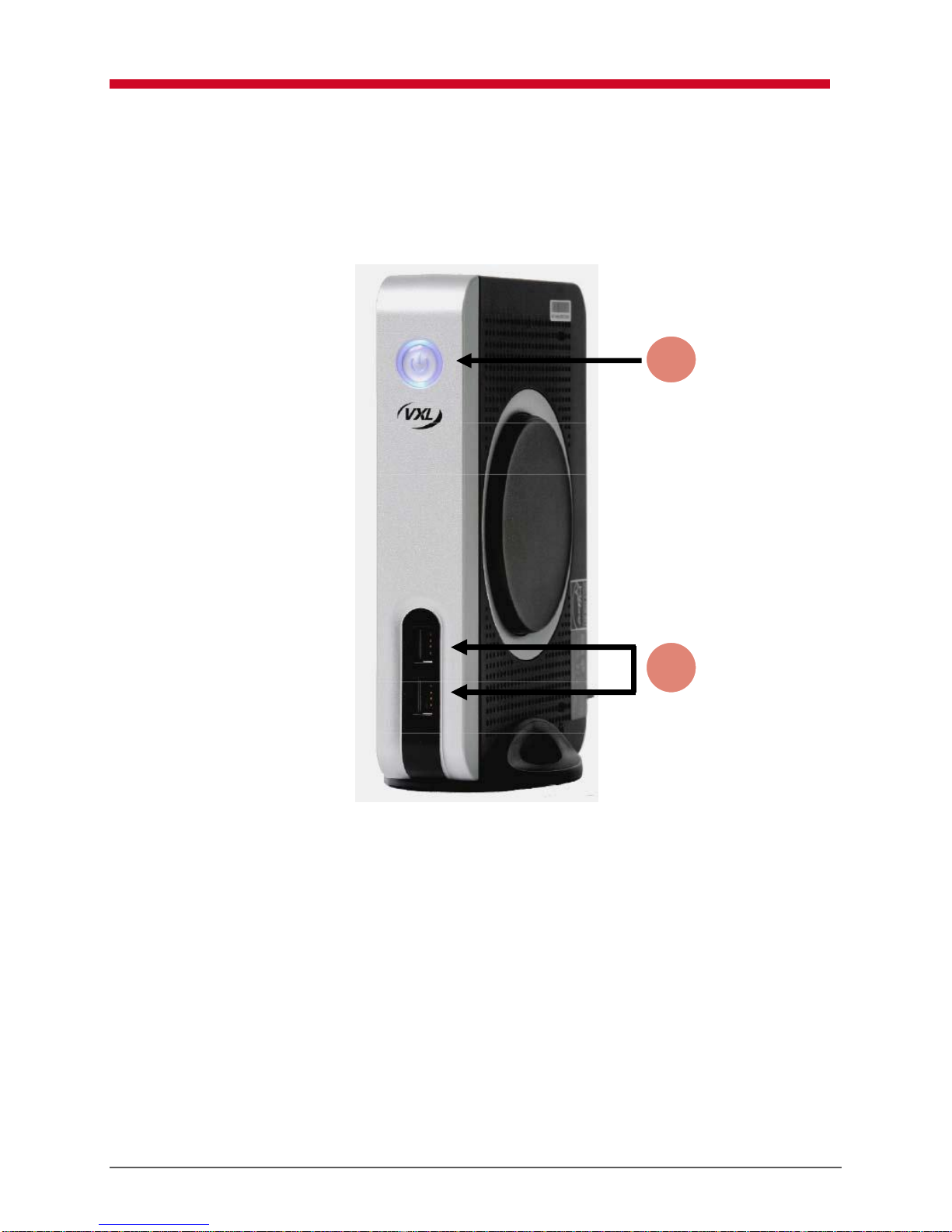

The product is equipped with a 10/100/1000 Ethernet port that gives an instant connection to

a multi-user Windows NT application server. Also provided video display port. USB

compatible keyboard/Mouse ports are available for quick setup and use.

1. Power Button.

2. USB Ports.

Introduction 2

Optional Features

Wireless LAN is an optional features available for Itona TC15yy series.

Note: The optional features cannot be upgraded after the purchase of the product.

Please contact the reseller or dealer from whom you purchased the product for

information about optional features.

About the User Guide

This User Guide provides step-by-step instructions to install TC15yy series hardware. The

specifications and troubleshooting steps are also included in this User Guide.

Abbreviations and Acronyms

Abbreviation

Expansion

Alternating Current

Direct Current

LAN

Local Area Network

LED

Light Emitting Diode

TCP/IP

Transmission Control Protocol/Internet Protocol

USB

Universal Serial Bus

VESA

Video Electronics Standards Association

VGA

Video Graphics Array

Table 1: Abbreviations and Acronyms

3 Introduction

Chapters in the Manual

Chapter No

Chapter Name

Description

Introduction

Contains an overview of the product,

information about this guide and

abbreviations used in this guide.

Installation

Contains the procedure to set up the

hardware.

Specifications

Contains hardware, mechanical, electrical,

interface and operating environment

specifications.

Troubleshooting

Contains solutions to problems that you

may encounter while using the product.

—

Appendix

Contains detailed specifications for

connectors and cables used with the

product.

Table 2: List of Chapters

Warning

Do not open enclosure, hazardous voltages present inside equipment.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

There is no user serviceable part inside. Do not open enclosure, hazardous voltages

present in the equipment’s components. Do not disassemble the equipment as this

can nullify your warranty.

This equipment must be earthed to prevent accidental electric shocks, connect a

three pin connector to ensure adequate earthing.

As a precaution, the AC socket outlet should be near the equipment and should be

easily accessible.

Sound Power Level is less than 60dB (A), when measured according to ISO 7779.

Caution

Ensure that all expansion slots (on the back or side of the client) are covered with

metal retaining brackets, and tightly attached to the computer cabinet.

Only equipment certified to comply with Class B (computer input/output devices,

terminals, printers etc.) should be connected to this equipment, and must have

shielded interface cables.

This equipment should not be used in electro-medical applications.

Do not operate this equipment in corrosive or explosive atmosphere.

Operate this equipment within specified temperature limits.

Installation 4

2 Installation

You have to install the client before you can use it. Installation involves setting up the

hardware and connecting the peripherals required for normal use.

To install the Itona TC15yy series hardware, perform the following steps:

1. Unpack the unit.

2. Prepare to connect.

3. Connect the accessories and power.

4. Connect to the server

Each step is explained in detail in this chapter.

Unpacking the Unit

Unpack the unit from its carton box, handle safely to ensue you do not damage any

components during unpacking.

The carton in which the product was shipped to you contains the following:

Itona TC15yy Series Thin Client

Power Adapter AC-DC 16V/2.5A

Power cord

Pedestal

DVI-I to VGA and DVI cable (optional)

Wall / VESA mounting bracket (optional)

Mouse (optional)

Hardware Installation Guide

Note: Please retain the original carton and packing material for future use.

Preparing to Connect

1. Ensure that the following are available at the site where you want to install the product.

100~240V AC, 0.65A, 50/60 Hz, 3-pin power inlet for power adapter.

Note: Ensure that the power inlet plug is regulated and earthed. A floating

ground/chassis could cause an electric shock.

Well ventilated, clean, dry and dust free atmosphere.

Specified environmental conditions. For more information see, Environmental Operating

Specifications on page 8.

Table or desk of suitable size.

2. Fix the pedestals at the bottom of the thin client.
