Thank you for purchasing this Ninebyfour lamp. This document lists all the
contents included in the box and instructions for installation. As you unpack
and prepare for assembly, place the contents on a carpeted or padded area
to protect them from damage. Note: 2 people are required to safely install
this product.
Please take your time to read this user manuel and installation guide. For our
terms of service please visit our website: store.waarmakers.nl/service
IMPORTANT SAFETY INSTRUCTIONS:
We recommend installation of this pendant lamp be performed by a licensed
electrician. Plugs for mounting the lamp are not included.
store.waarmakers.nl 2
B.
A.
Philips Led Tube
Caution
INSTALLATION INSTRUCTIONS
Before starting, turn off power at main circuit panel.
CAUTION!
The light source of this product is non-changeable light
diodes (LED). Do not disassemble the product, as the
light diodes can cause damage to the eyes.
CLEANING
Use a damp cloth, never a strong cleaning agent. Do not
immerse in water.
ALWAYS SWITCH OFF POWER BEFORE REMOVING
THE FITTING

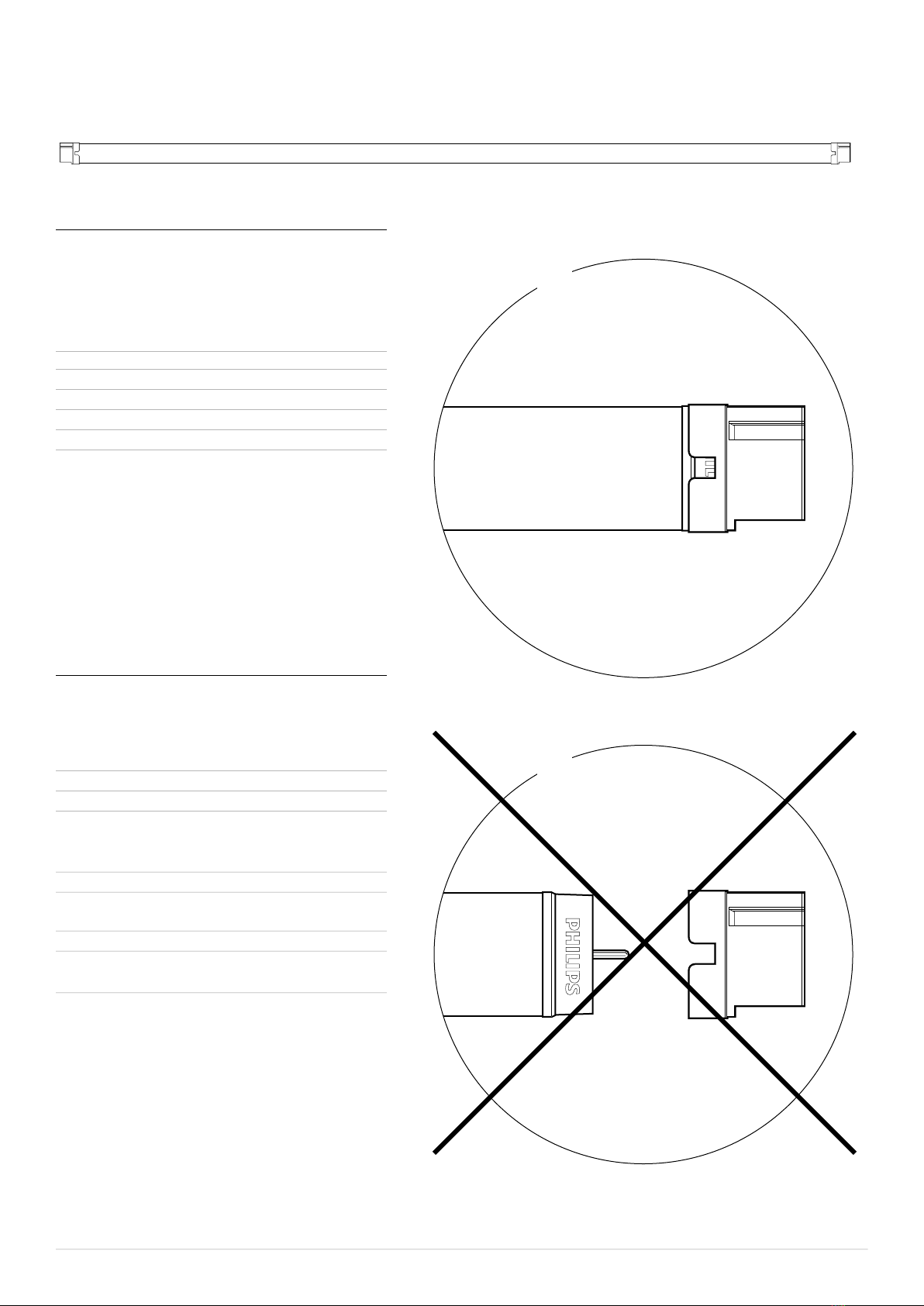

This page is not an assembly step for Ninebyfour. This
information is specific for the Philips Led tube used in
the Ninebyfour lamp.
IMPORTANT
Product is not dimmable.
Always switch off power supply before installing
Only apply in dry indoor usage and environments.
store.waarmakers.nl 3

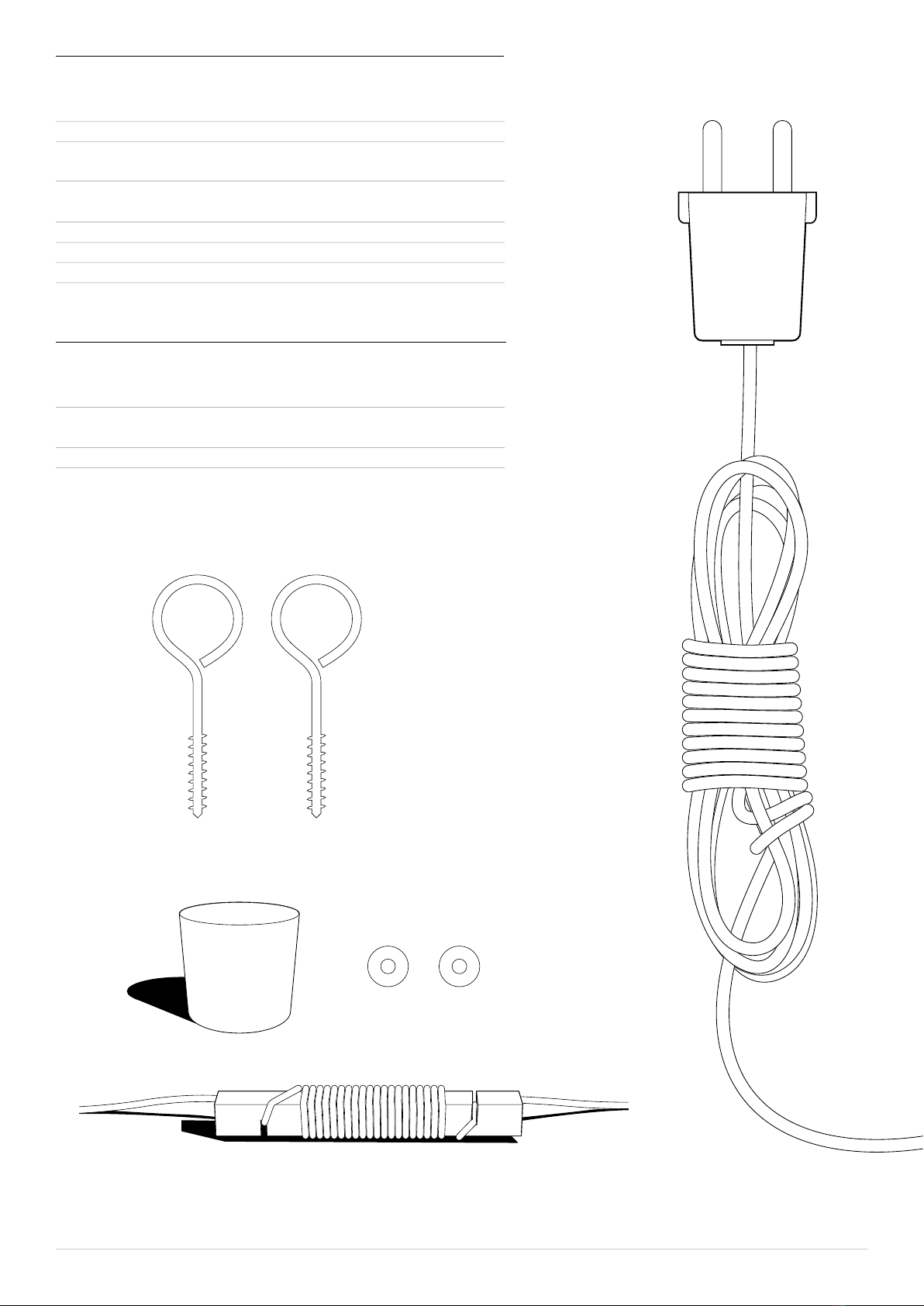

Components
eye-bolts (screw in hooks) M4 3x
spacers (wall and/or ceiling) 2x cork disks
12x7 mm + hole 4.5 mm
lamp stopper 2x conical cork
32.5x28.5x27mm
cable + plug 1x red cloth wire + 1x plug
stopper cork
philips LED tube 1x
height adjusting system wood (same tree)
82x10x12mm
cord 2mm waxed cotton
Pendant cord kit
store.waarmakers.nl 4
650
1. 2.
C.
B.
A.
D. 3.

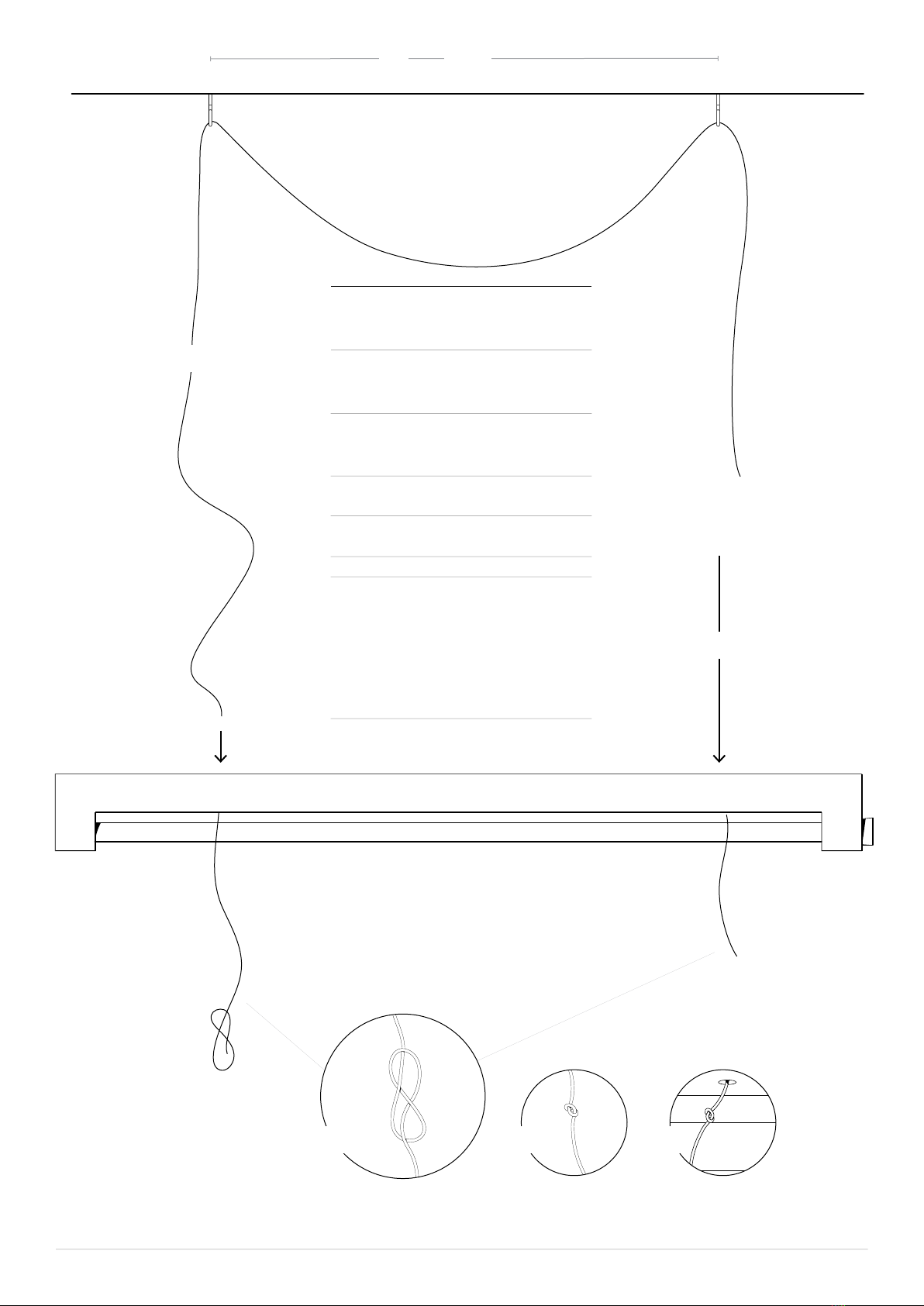

Mounting on ceiling
PLEASE NOTE: have this lamp installed by
a qualified professional.
Step A. Screw in both eye-bolts in the ceiling.
Use appropriate mounting method for your
ceiling. (plugs not included)
Step B. Guide the cotton cord through the
hooks.
Step C. Guide the cotton cord through the
holes in the wooden fixture.
Step D. Tie a knot to secure.
Step E. Hanging the lamp horizontal:
This is, and obviously so, a natural material.
It might occur that the lamp is not perfectly
horizontal the first try. To adjust, turn the
knot in step 3. (bottom right of this page) a
half or a quarter turn. This might take a little
tinkering.
store.waarmakers.nl 5
1. 2. 3.
Adjusting the height
Step 1. Clamp the wooden pen at the
bottom end on the cotton cord.
Step 2. Wrap the cord around the pen until
reaching the desired height.
Step 3. Fix the cord by clamping the cord in
the top end op the wooden pen.
store.waarmakers.nl 6
A.
Remove plug if installing power cord on the ceiling.
If needed, use extra eye-bolt to hold the excess length of power cord
(situation A.)
Power cord
store.waarmakers.nl 7
650
A.
C.
B.
D.
E.

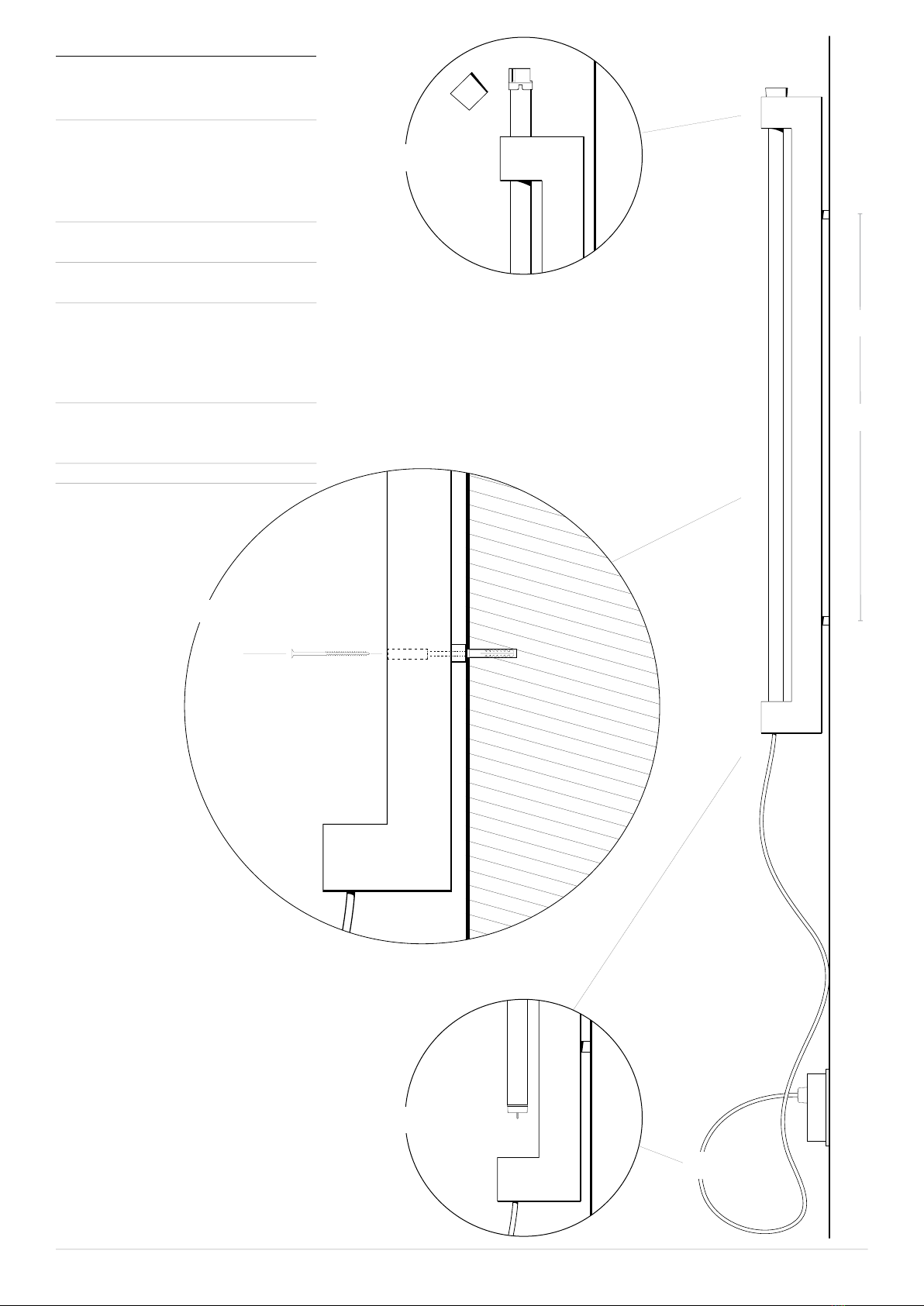

Mounting on wall
Please note: have this lamp installed by a
licenced professional.
Drill holes at a distance of 650mm.
Step A. Insert plugs into holes in wall
(plugs not included)
Step B. Remove cork-stop from lamp, then
carefully remove the led tube.
Step C. Place the bolts through the wooden
light-fixture and place the spacers (cork
disks) over the ends of the bolts. Align the
light-fixture against the wall by fixing the
bolts inside the wall.
Step D. With the lamp mounted, place the
led-tube back in the fixture and close with
cork-stop.
Step E. Plug in the light to turn on.
store.waarmakers.nl 8
30
6
3 3
8 8
4737
43
45
90
950
650
overall dimensions 950x90x40mm
red cloth wire 2m
cord length 4m
Dimensions
