THIS INSTRUCTIONS APPLY TO THE MODELS BELOW:

INSTALLATION INSTRUCTION

Landscape 12V Outdoor Tape

8011/8051/8101

8011

8051

8101

8000

*Note: Transformer is required to power the xture. (sold separately)

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY 12, 2016 6:35 PM

waclighting.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

LANDSCAPE 12V OUTDOOR

• Determine the installation area and material, based on dierent mounting materials (wood or concrete), dierent mounting

accessories will be needed.

WIRING AND INSTALLATION:

Please refer to installation diagrams shown on next page.

1. Determine the number of separately powered runs needed. Calculate the number of power supplies.

Min. / max. tape run length 1ft / 40ft per run

Current 180 mA/ft

Power consumption 2 Watts/ft

Input 9-15V AC

Fuse amperage 5A

2. Measure the length of each run and round it o to the nearest 1 foot interval.

Determine the necessary quantities of 1ft, 5ft, and 10ft sections, joiner cables and X or Y connectors.

Note: Tape light may be eld cut every 1 inch at end of run.

3. Connect external power supply to lead wire in accordance to power supply specications.

4. Connect output female connector of the lead wire with the male connector of the landscape 12V outdoor tape or connector.

5. Male/Female connectors of each InvisiLED component can be connected together to form a run.

6. Terminate each separately powered run with an end cap. Install the end cap with silicon ensuring watertight seal.

INSTALLATION INSTRUCTION

Landscape 12V Outdoor Tape

8011/8051/8101

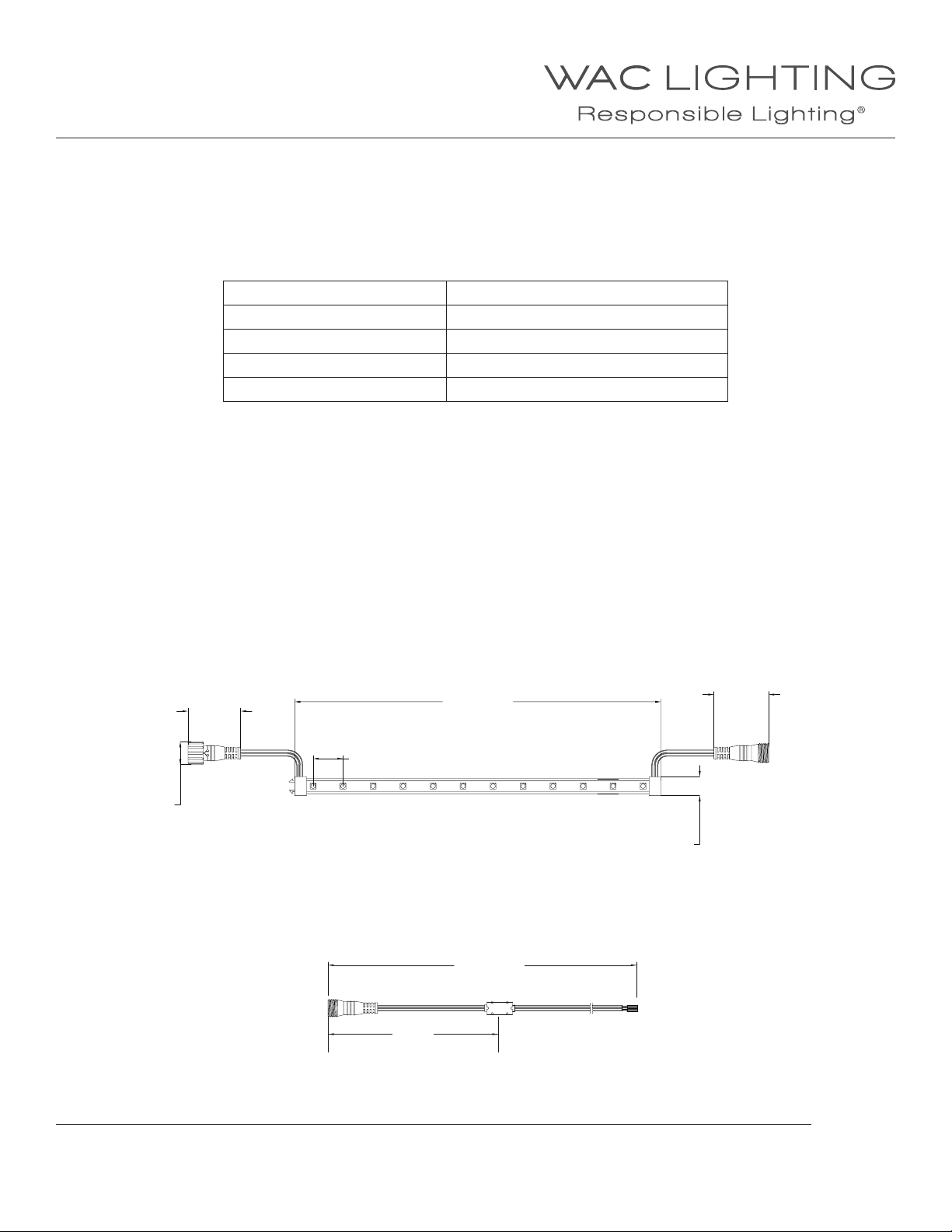

Tape section:

Male

Connector

1w”

1m”

s”

w”

8011 - 1’

8051 - 5’

8101 - 10’

800-06BK - 6”

800-10BK - 10”

Female

Connector

Lead wire with fuse:

6”

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY 12, 2016 6:35 PM

waclighting.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

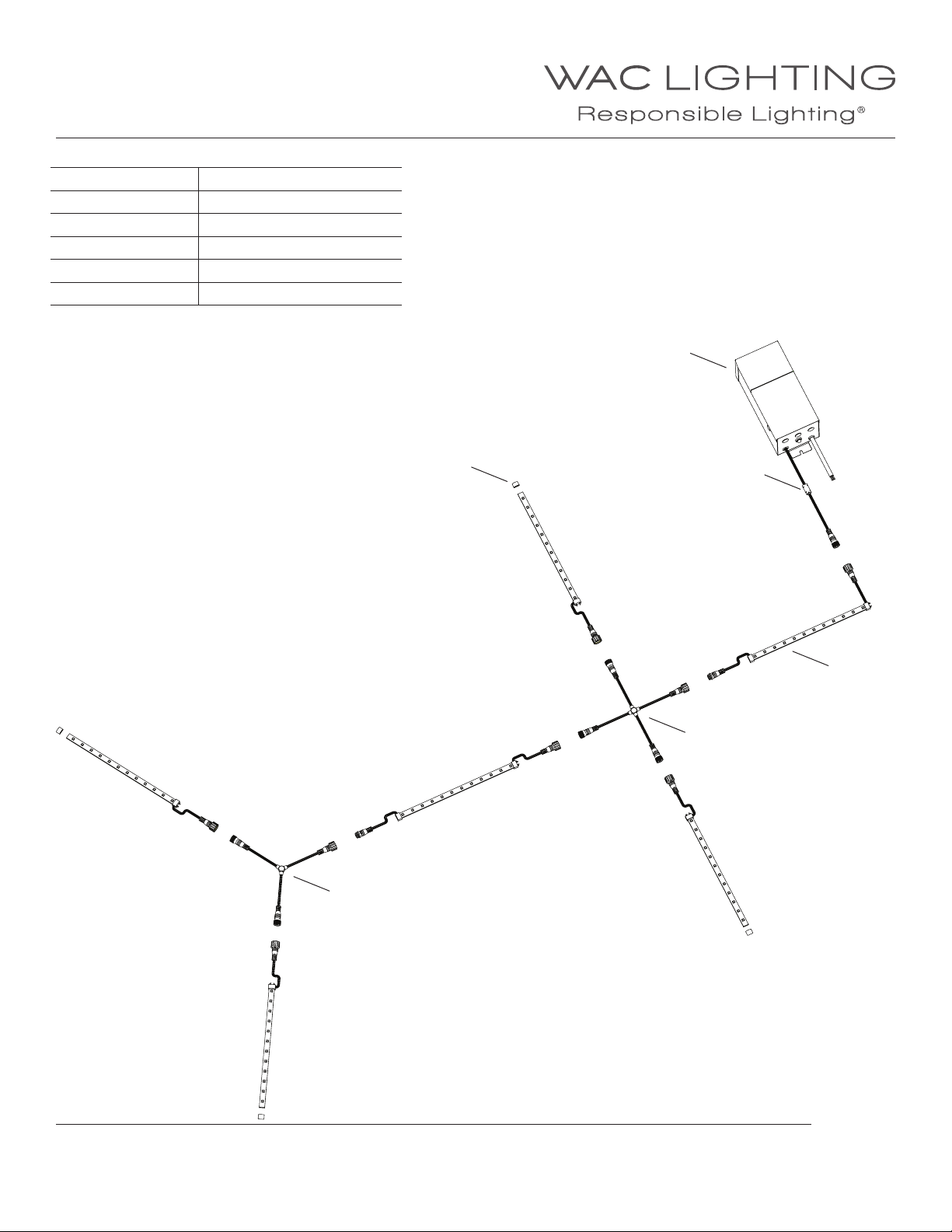

SAMPLE LAYOUT

A External Power Supply

B 800006/10 6 or 10 ft lead wire with fuse

C 8011/8051/8101 1, 5, or 10ft tape section

D 8003 X Connector

E 8002 Y Connector

F LEDTO24EC End Cap

HARD WIRE A

INSTALLATION INSTRUCTION

Landscape 12V Outdoor Tape

8011/8051/8101

800006/10

8011/8051/8101

8003

8002

LEDTO24EC

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY 12, 2016 6:35 PM

waclighting.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

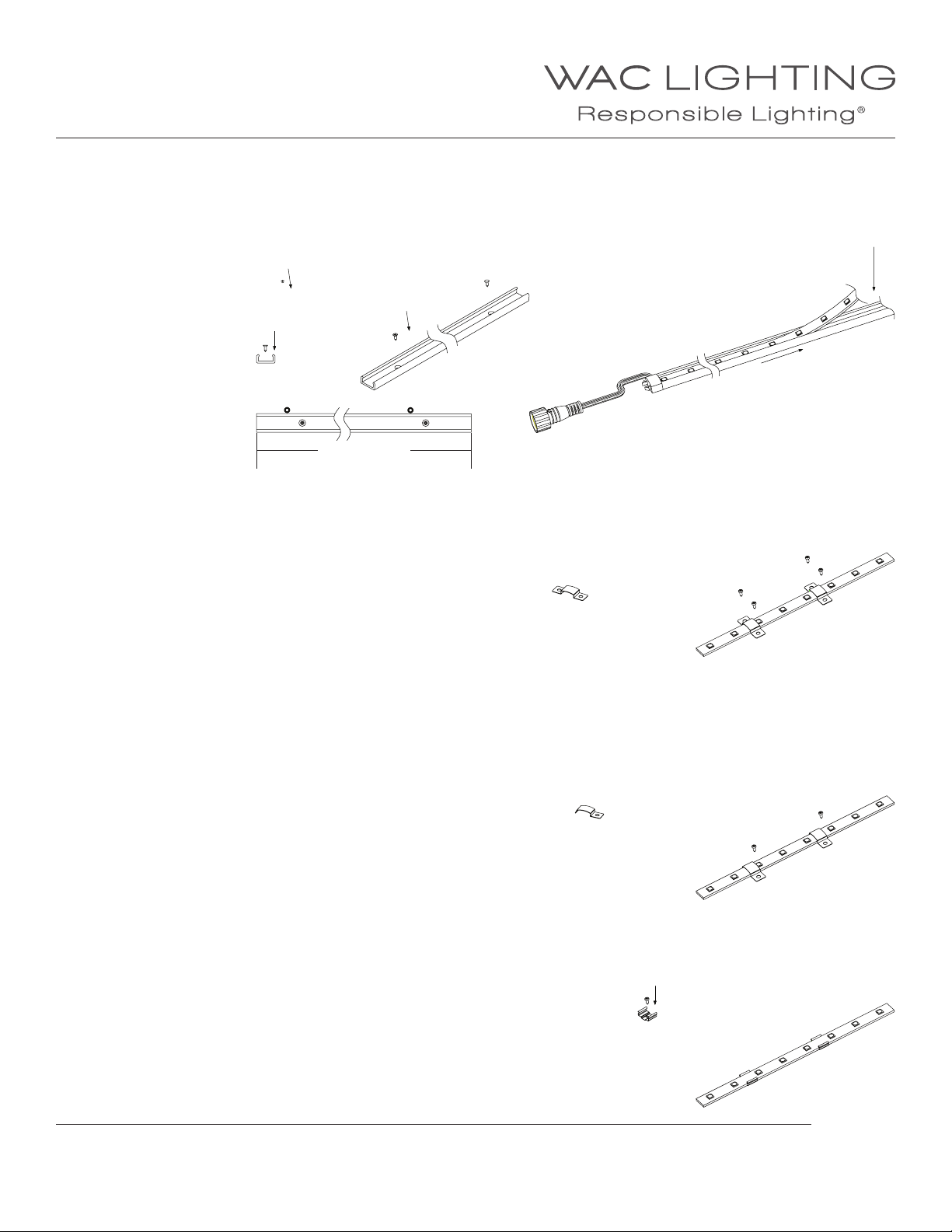

1. INSTALLATION CHANNEL LEDTO24CH1/5
