Notice for this product
Install the driver software for correct pen and this product.
The following Help and Support information provides information about this product.
Help and Support information Description
User's Manual PDF
document
The User's Manual is downloaded to your computer when the driver software is installed.
Refer to the User's Manual to learn the useful information such as changing cables, using a
VESA mount, troubleshooting and so on.
Important product information PDF
document
The Important product information is included in the installation CD. It contains precautions,
product specifications, and other important information.
Quick Start Guide
(This document)
Printed
document
The Quick Start Guide provides a general overview of this product, including information such
as how to use the product, and how to connect it to a PC.
•
•
DTH-2400.indd 2 2011/03/25 13:27:18
1
Welcome message
Dear Customer,
Thank you for buying this product pen display.
Many customers tell us that this product is critical to helping them be both more productive and more creative. For them, this product has
become an essential part of their workflow. We appreciate the trust you place in us and our responsibility to provide you with the best creative
tools possible.
To bring this latest product to market we have spent many hours talking to customers and incorporating your feedback. For example we have
increased the size, resolution and color gamut over the earlier product models.
We also noticed that many of you work many hours a day, often struggling to meet a deadline while juggling numerous projects. Some of you
experience aches and pains as a result. Consequently we have designed the ergonomics of this product for unparalleled flexibility on how it
can be positioned on your desk. It has been one of our major goals that the product you are about to use will be comfortable and easy to use.
There are many other enhancements and improvements in this latest product. We encourage you to read this Quick Start Guide and at least
scan the manual which will help you get the most out of your purchase.
We wish you the best of success in your creative endeavors.
Sincerely
This product Development Team
DTH-2400.indd 1 2011/03/25 13:27:18
2
Supplied accessories
Accessories not supplied with all models. Check the contents listed on the product packaging.
See the User's Manual to replace pen nib and personalize your pen.
See the User's Manual for information on attaching the VESA Mount.
DTH-2400.indd 2 2011/03/25 13:27:19
3
Connecting this product
1Turn off your computer.
2Connect the DVI-D cable or DisplayPort cable to the corresponding connector on your computer. Note that the DisplayPort cable is
shipped inside the stand. See the following page for instructions.
Connections can also be made with the included DVI-I to VGA cable. See the User's Manual for more information.
DTH-2400.indd 3 2011/03/25 13:27:19
4

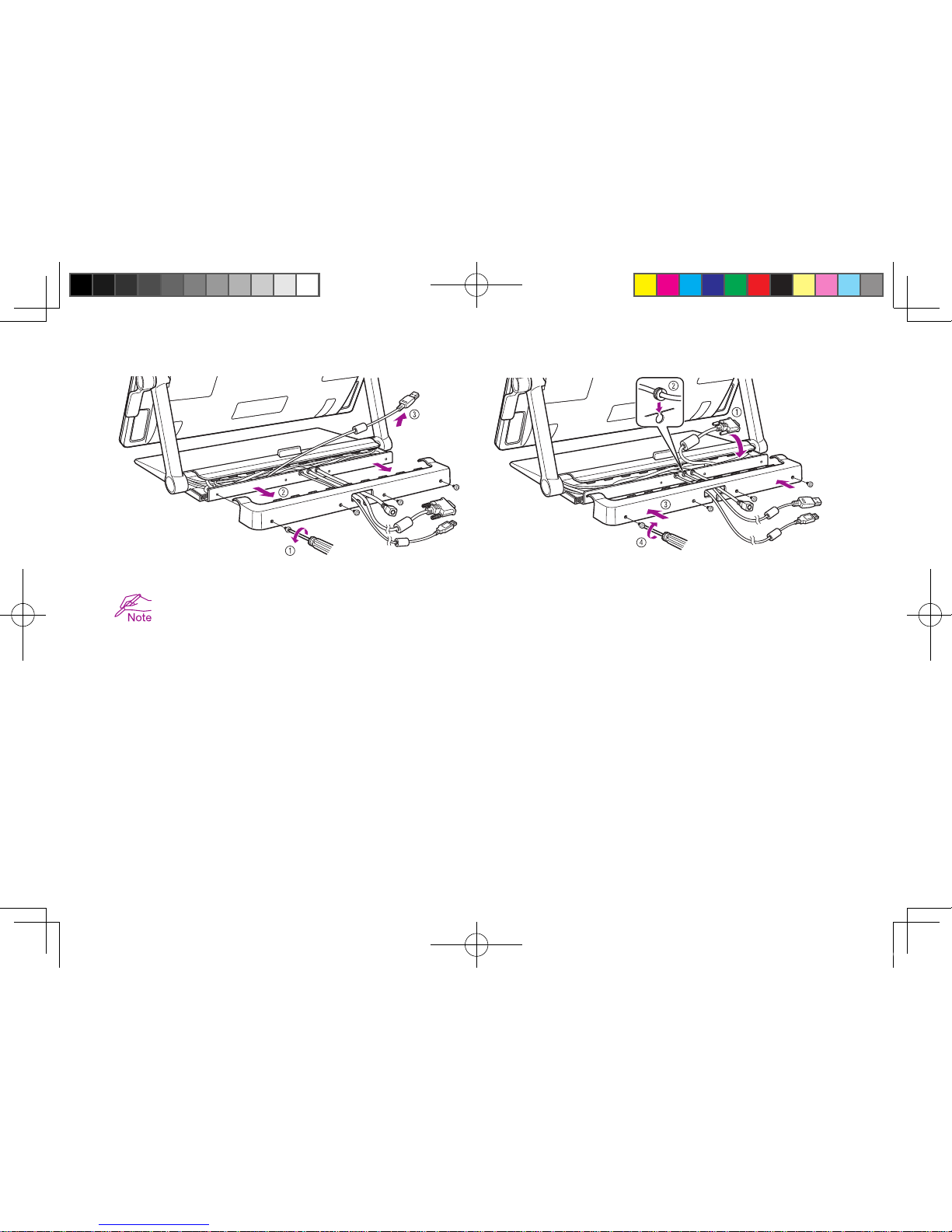

When using the DisplayPort cable, remove from the stand as shown.
3Plug the USB connector into an available USB port on your computer or a USB hub attached to your computer.
DTH-2400.indd 4 2011/03/25 13:27:19
5
4Plug the power cable into the power adapter and then into an AC outlet.
DTH-2400.indd 5 2011/03/25 13:27:20
6
5Turn on this product. The power LED will change from orange to blue.
6Turn on your computer.
If a DVI-I to VGA cable is connected, configure the color resolution and size settings while looking at the display.
Then, open the menu screen, and select [Screen Setting] > [Auto Adjust].
For information on how to open the menu screen, see the User's Manual.
DTH-2400.indd 6 2011/03/25 13:27:20
7
Installing the tablet driver
Save your work and close all open applications.
1Insert this product installation CD. If the software installer menu is not automatically displayed, double-click on the Install icon located
on the CD.
2In the displayed dialog, click Install Tablet and follow the prompts.
The User's Manual is downloaded to your computer when the driver software is installed.
Click the Important Product Information menu in the dialog to view the Important Product Information guide for this product.
It includes product safety precautions, specifications, and other important information.
DTH-2400.indd 7 2011/03/25 13:27:20
8
Calibrating this product
For optimum performance, you must calibrate this product to align the screen cursor with the position of the pen on the display screen. This is
required to compensate for the viewing angle, and to adjust for parallax. Set this product in its working position, then follow the procedure below.
1Open the pen tablet's control panel.
See page 18.
2Click the [Position Adjustment] tab.
3Click [Calibrate...].
DTH-2400.indd 8 2011/03/25 13:27:20
