www.wahsega.com

IP Paging Zone Controller

with InformaCast®

User’s Guide

Getting Started

This step by step guide will help you setup and install your

Wahsega IP Paging Zone Controller with InformaCast.

Preface

Important Notice

This Manual and any examples contained herein are provided “as is” and are

subject to change without notice. Wahsega reserves the right to make changes

to its products without notice and advises its customers to obtain the latest

version of relevant information before placing orders and to verify that the

information being relied on is current.

No title to or ownership of the hardware, software and designs described in

this document or any of its parts, including patents, copyrights and trade

secrets, is transferred to customers. Wahsega makes no representations or

warranties regarding the contents of this document. Information in this

document is subject to change without notice and does not represent a

commitment on the part of Wahsega Labs, LLC.

Reproduction, adaptation, or translation of this manual is prohibited without

prior written permission of Wahsega Labs Company, except as allowed under

the copyright laws.

Trademarks

Wahsega and the Wahsega logo are trademarks of Wahsega Labs, LLC. All

other brand and product names are trademarks, service marks, registered

trademarks, or registered service marks of their respective companies.

Table of Contents

PREFACE ..............................................................................................................................................I

Important Notice

......................................................................................................................... i

Trademarks

.................................................................................................................................... i

CHAPTER 1: OVERVIEW.................................................................................................................. 2

Functionality

................................................................................................................................ 3

Quality Standards

....................................................................................................................... 4

CHAPTER 2: GENERAL HARDWARE INSTALLATION .......................................................... 5

Wiring

.............................................................................................................................................. 5

Dimensions

.................................................................................................................................... 8

Chapter 3: User Experience ......................................................................................................... 9

Software Capabilities

................................................................................................................ 9

Getting Started

.......................................................................................................................... 10

CHAPTER 4: CONFIGURATION AND WEB INTERFACE .................................................... 13

Output Settings

......................................................................................................................... 14

Account Settings

...................................................................................................................... 15

InformaCast Settings

.............................................................................................................. 17

Codec Selection

........................................................................................................................ 18

Network Configuration

.......................................................................................................... 19

General System Configuration

............................................................................................ 21

Firmware Management

.......................................................................................................... 23

APPENDIX A: FACTORY RESET ................................................................................................. 24

Software-Based Factory Reset

........................................................................................... 24

www.wahsega.com Page 2

Chapter 1

Overview

The Wahsega IP Paging Zone Controller with InformaCast®utilizes the

power of the InformaCast Advanced Notification System for multiple

notification scenarios, from bell schedules to emergency lockdowns.

Right out of the box, the InformaCast server software will recognize and

will instantly be able to receive pages in high or low-quality audio, both

live and pre-recorded.

The IP Paging Zone Controller with InformaCast is available in single-

channel or two-channel configurations. The two-channel zone

controller presents itself to the InformaCast server as two independent

speakers, so the server can control each channel independently. This

allows the user to play two separate audio announcements over

speakers in different zones across multiple floors or multiple areas of a

building.

The Wahsega IP Paging Zone Controller with InformaCast is perfect for

schools or any other large, multi-building campus.

www.wahsega.com Page 3

Functionality

Receive live or pre-recorded audio from the InformaCast server

Available in single or two-channel configurations

Simultaneously play up to 3 audio broadcasts per channel

Built in Web server

oAll configuration options accessible via easy-to-use HTTP web

interface

Easy installation

oStandard 1U rack mount

PoE 802.3af powered

o10/100 Ethernet port with Power-over-Ethernet (802.3af PoE)

o+9V to +16V DC input (if not using PoE)

High-quality (44.1kHz) and low-quality (8kHz) InformaCast audio

Multiple codecs for SIP calls, including G.711, G.726

(16/24/32/40kbps), G.722, DVI4 (narrow/HD/Ultra HD), Linear

PCM, iLBC, SILK and Speex

Reset to default software/configuration button

Remote firmware upgradeable

www.wahsega.com Page 4

Quality Standards

Wahsega Labs zone controllers achieve the highest standards of

performance in the market by utilizing our complete quality assurance

program encompassing software testing, product design and a multistage

automated factory test program.

Wahsega Labs’ ultimate goal is to provide a solution that is both cost effective

and unsurpassed in quality. By leveraging existing relationships with

suppliers to guarantee premium components at the lowest possible prices,

we are able to ensure Wahsega Labs products are the finest quality in the

market while still offered at highly competitive prices directly to installers.

In order to achieve the greatest possible voice clarity, all voice and related

algorithms have been individually tested to ensure the highest potential MOS

score. The accumulated error syndrome, which can cause poor voice quality,

is mitigated through this testing process.

Wahsega Labs’ engineering team utilizes a wide array of dedicated test

servers to pull and build the various software projects multiple times per day.

Each automatic build is then run through an extensive set of automated test

cases to ensure the highest performance of each and every firmware version

released. This test case coverage is expanded on a continual basis.

All Wahsega Labs products are 100% factory tested at the board level

through a bed of nails full functional test, not just an “is it close enough?”

flying probe test. Every finished product is 100% tested again after the final

assembly via an automated test station to ensure the highest production

quality product for installers.

To assure the highest quality standards, all Wahsega Labs products are

designed, developed and manufactured in the USA.

www.wahsega.com Page 5

Chapter 2

General Hardware Installation

Wiring

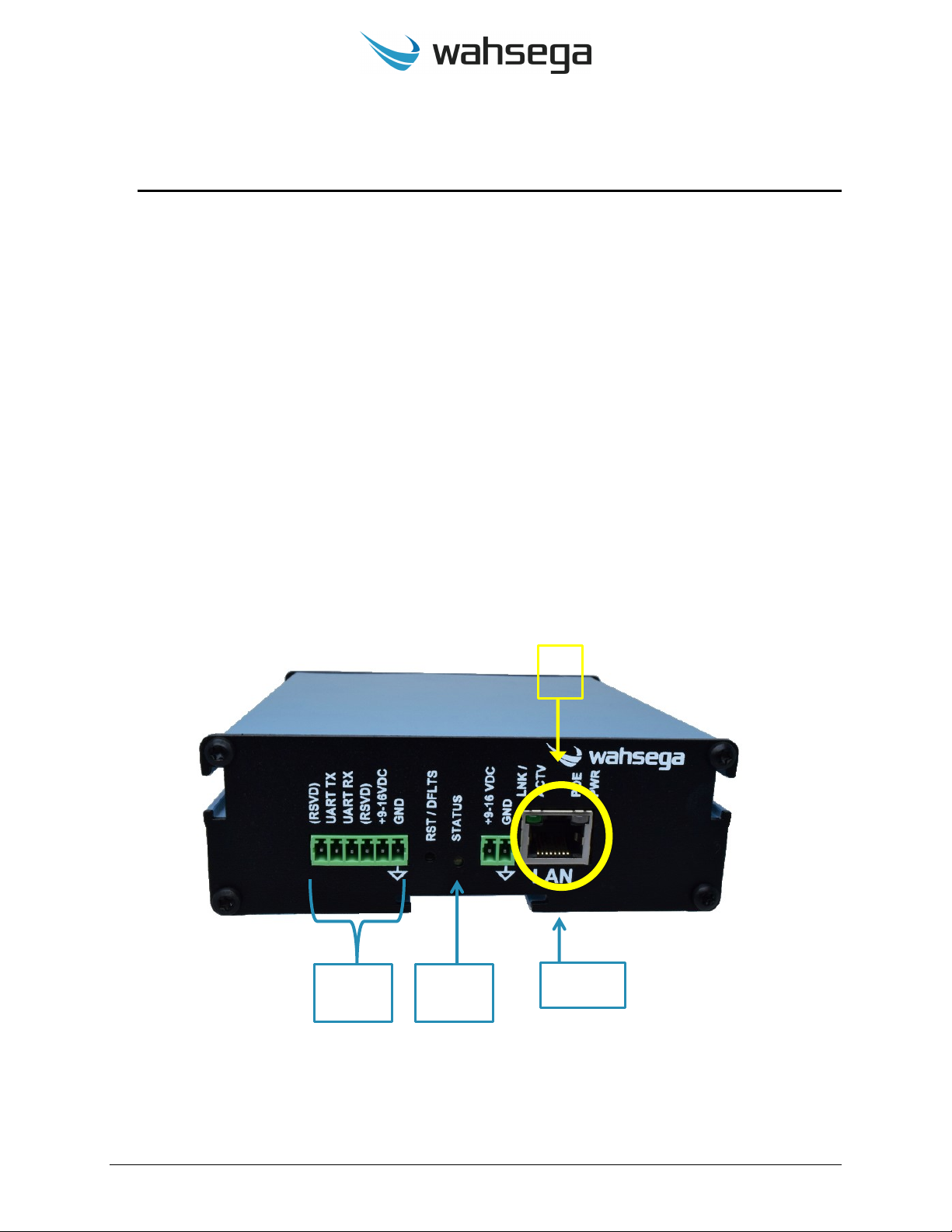

Power –Option A (preferred)

LAN - Using Power-over-Ethernet (PoE), route Cat 5 or Cat 6 Ethernet

cable through a PoE injector to the LAN port.

Apply power to your zone controller using either Option A or

Option B. The status LED will increase in brightness as the zone

controller is powering up and will remain steadily lit when the unit is

successfully powered.

Status

LED

Ethernet

Do Not

Use

www.wahsega.com Page 6

Power –Option B

9-16V DC - If using 9-16V DC power instead of PoE, plug in via 2-pin PCB

terminal connector.

Audio Outputs

Line 1 & Line 2 –Connect unbalanced, mono audio line out via RCA

mono connectors. Configure audio settings in software as described in

Chapter 4: Configuration and Web Interface.

Line 1 STAT & Line 2 STAT –Lit when audio is streaming.

Status LED

Do Not Use

www.wahsega.com Page 7

Ferrite Clamp

Secure included ferrite clamp over both cables within 4” of connectors,

as shown below.

1U Rack Mounting

The zone controller has 1U rack mount slots for easy mounting in any

orientation on bottom or side.

www.wahsega.com Page 8

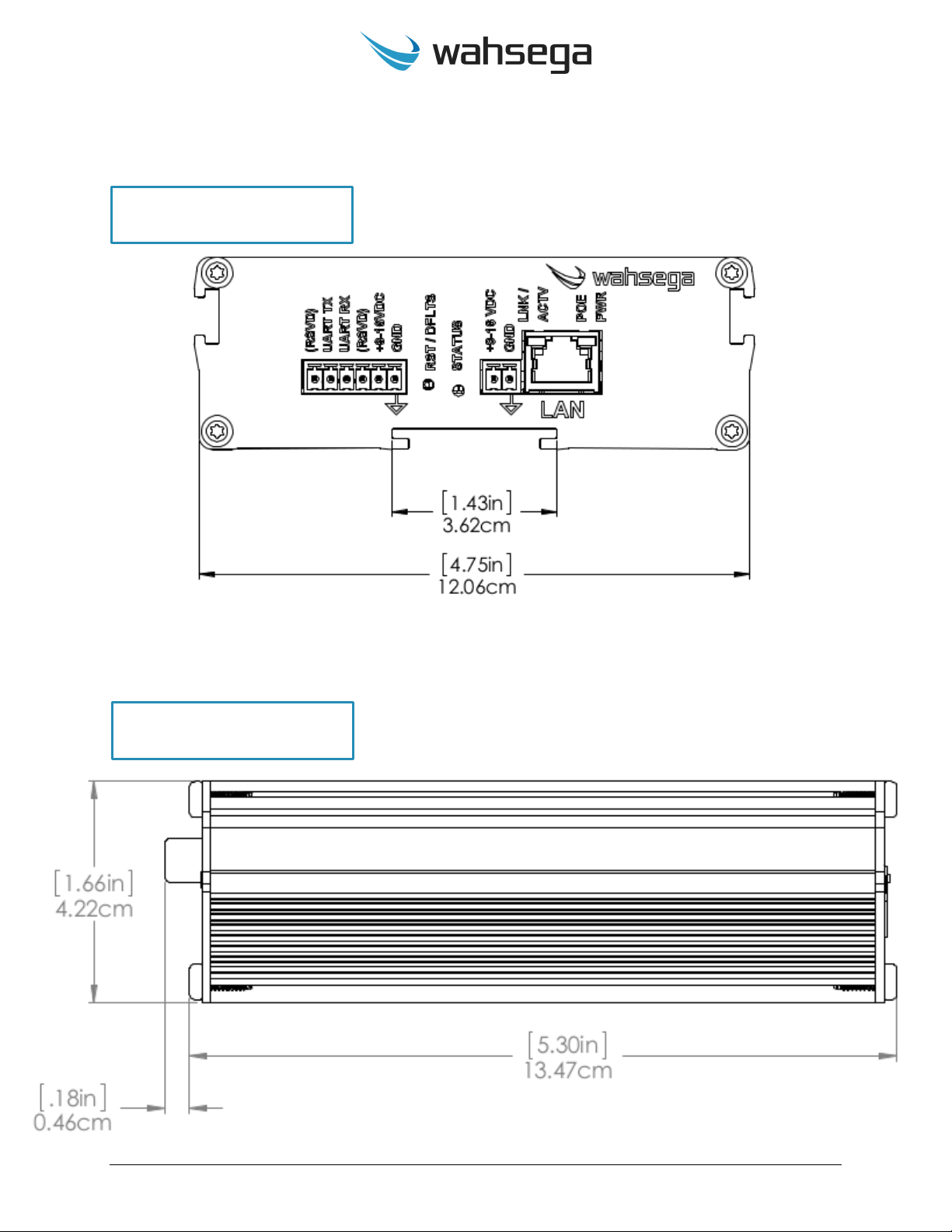

Dimensions

Width

Depth and Height
