Waldorf BP8080E Bedienungsanleitung
Installation and Operation Manual
Electric Bratt Pan
BP8080E BPL8080E
BP8080EE BPL8080EE
BP8120E BPL8120E
BP8120EE BPL8120EE
Date Purchased
Serial Number
Dealer
Service Provider
228687-11
For use in GB & IE
The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless qualified previously in
writing by the manufacturer.
In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice.
© Copyright Moffat Ltd. August 2009.
MANUFACTURED BY
Moffat Limited
PO Box 10001
Christchurch
New Zealand
Ph: (03) 389 1007
Fax: (03) 389 1276
WORLD-WIDE BRANCHES
UNITED KINGDOM
Blue Seal
Unit 67, Gravelly Business Park
Gravelly Park
Birmingham
West Midlands
B24 8TQ
Ph: (121) 327 5575
Fax: (121) 327 9711
UNITED STATES
Moffat Inc
3765 Champion Blvd
Winston-Salem
North Carolina 27115
Ph: (336) 661 0257
Fax: (336) 661 9546
CANADA
Serve Canada
22 Ashwarren Road
Downview
Ontario M3J1Z5
Toll Free:800 263 1455
Ph: (416) 631 0601
Fax: (416) 631 0315
www.servecanada.com
www.moffat.com
NEW ZEALAND
Christchurch Auckland
Moffat Limited Moffat Limited
PO Box 10-001 4 Waipuna Road
16 Osborne Street Mt Wellington
Christchurch Auckland
Ph: (03) 389 1007 Ph: (09) 574 3150
Fax: (03) 389 1276 Fax: (09) 574 3159
AUSTRALIA
Victoria New South Wales
Moffat Pty Limited Moffat Pty Limited
740 Springvale Road 3/142 James Ruse Drive, Rose Hill
Mulgrave, Melbourne PO Box 913, Smithfield
Victoria 3171 Sydney, N.S.W. 2142
Ph: (03) 9518 3888 Ph: (02) 8833 4111
Fax: (03) 9518 3838 Fax: (02) 8833 4133
Western Australia Queensland
Moffat Pty Limited Moffat Pty Limited
67 Howe Street 30 Prosperity Place
Osbourne Park Geebung, Brisbane
WA 6017 Queensland 4034
Ph: (08) 9202 6820 Ph: (07) 3630 8600
Fax: (08) 9202 6836 Fax (07) 3630 8623
Contents
Waldorf Electric Bratt Pan
BP(L)8080E Bratt Pan Manual Tilt, (80 ltr)
BP(L)8080EEBratt Pan Electric Tilt, (80 ltr)
BP(L)8120E Bratt Pan Manual Tilt, (120 ltr)
BP(L)8120EEBratt Pan Electric Tilt, (120 ltr)
Introduction ................................................................................................. 2
Specifications ............................................................................................... 3
Model Numbers Covered in this Specification
General
Electrical Supply Requirements
Electrical Connection
Water Supply Requirements
Dimensions
Installation.................................................................................................... 9
Installation Requirements
Unpacking
Location
Clearances
Assembly
Electrical Connection
Water Connection
Commissioning
Operation .................................................................................................... 12
Operation Guide
Description of Controls
Turning ‘On’ the Main Element and Setting the Desired Temperature
Water
Tilting the Pan
Turning ‘Off’ the Main Element
Cleaning and Maintenance.......................................................................... 15
General
After Each Use
Daily Cleaning
Weekly Cleaning
Periodic Maintenance
Fault Finding ............................................................................................... 17
Wiring Schematic ........................................................................................ 18
Replacement Parts List ............................................................................... 20
2
We are confident that you will be delighted with your WALDORF ELECTRIC BRATT PAN, and it will become
a most valued appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new WALDORF Appliance, there are two important
things you can do.
Firstly:
Please read the instruction book carefully and follow the directions given. The time taken will be well
spent.
Secondly:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your WALDORF dealer promptly. In many cases a phone call could answer your question.
CE Only:
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
WARNING:
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK
OF FIRE:-
• THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
• ITIS RECOMMENDED THAT AREGULAR INSPECTION IS MADE BY ACOMPETENT SERVICEMAN TO ENSURE
CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
• DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
C
AUTION
:
This appliance is;
•
For professional use and is to be used by qualified persons only.
•
Only qualified service persons are to carry out installation and servicing
operations.
•
Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.
•
DO NOT operate the appliance without the legs supplied fitted.
Introduction
3
Specifications
Model Numbers Covered in this Specification
BP[1]8080E/EE - Electric Bratt Pan Manual/Electric Tilt, 900 mm wide (80 ltr).
BP[1]8120E/EE - Electric Bratt Pan Manual/Electric Tilt,1200 mm wide (120 ltr).
NOTE:
[1]: - Back Options;
- - Standard Models.
L - Low Back Models.
General
BP8080E / EE (80 ltr) Models.
A commercial heavy duty, electric fired Bratt Pan fitted with an 80 ltr capacity pan, of full stainless steel
pan construction, with 3 x 4 kW stainless steel sheathed elements clad to the pan base giving even heat
distribution. This appliance features an electric thermostat burner control and over temperature safety
cut-out.
Created for compact modular kitchens, it is fitted with manual (BP8080E models) or electrical
(BP8080EE) operated tilting mechanism with burner cut-out when the pan is tilted.
BP8120E / EE (120 ltr) Models.
A commercial heavy duty, electric fired Bratt Pan fitted with an 120 ltr capacity pan, of full stainless
steel pan construction, with 3 x 5.66 kW stainless steel sheathed elements clad to the pan base giving
even heat distribution. This appliance features an electric thermostat burner control and over tempera-
ture safety cut-out.
Created for compact modular kitchens, it is fitted with manual (BP8120E models) or electrical
(BP8120EE models) operated tilting mechanism with burner cut-out when the pan is tilted.
Electrical Supply Requirements
BP8080E/EE - 12kW. 400-415V ac, 50/60Hz, 3P+N+E, 12.0 kW @ 415 V.
Phase loading; L1 = 16.4 A.
L2 = 16.4 A.
L3 = 16.4 A.
BP8120-E/EE - 17kW. 400-415V ac, 50/60Hz, 3P+N+E, 17.0 kW @ 415 V.
Phase loading; L1 = 23.2 A.
L2 = 23.2 A.
L3 = 23.2 A.
Electrical Connection
When connecting a Waldorf electric appliance to the main supply, ensure that the following is carried
out:-
• An isolating switch is fitted within 2 m of the appliance, but not on the appliance and in
such a position that the user does not have to reach across the cooking surface.
• Supply cord shall be oil-resistant, sheathed flexible cable and not lighter than ordinary
polychloroprene or other equivalent synthetic elastomer sheathed cord (as per AS / NZS
3191 part 2.10.11. or IEC 60245-IEC-57) e.g. HO5 RN-F Type.
• The branch supply line shall be individually overload protected to the correct current rating
and the supply chord shall be protected against any mechanical or thermal damage.
• A grommet is fitted around the wiring entry hole into the appliance.
• All wiring connections must be tight.
Refer to the appropriate wiring standards for the size of cable that is to be supplied to an appliance
for the current drawn on that line.
WARNING:
THIS APPLIANCE MUST BE EARTHED.IFTHE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY ASUITABLY
QUALIFIED PERSON IN ORDER TO AVOID AHAZARD.
4
Electrical supply connection point is located at the rear of the appliance, approximately 87 mm from
the left hand side, 557 mm from the rear and 335 mm (290 mm for BP8120E/EE) from the floor.
Water Supply Requirements
Cold water connection is 1/2" tube connection via 15 mm crox fitting located 280 mm from the LH side,
575 mm from rear and 241 mm from the floor.
The water supply must be protected by an 'In-Line' sediment filter / strainer, which should be fitted into
the pipeline prior to the Bratt Pan water connection.
Maximum water supply pressure 550kPa (80psi).
Maximum water inlet temperature - 80°C.
Specifications
5
Specifications
Dimensions BP
(L)
8080E Model Only
6
Specifications
Dimensions BP
(L)
8080EE Model Only
7
Specifications

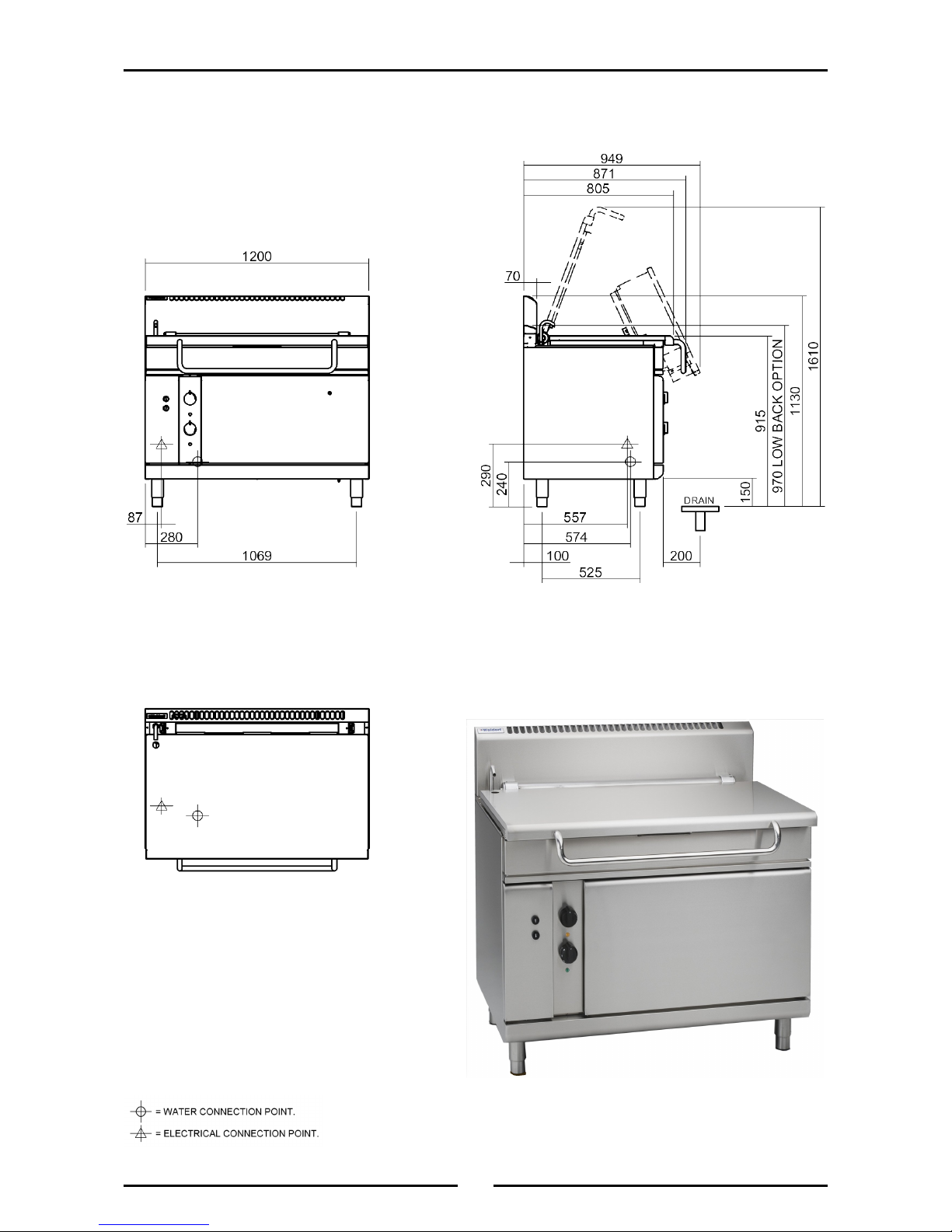

Dimensions BP
(L)
8120E Model Only
8
Specifications
Dimensions BP
(L)
8120EE Model Only
