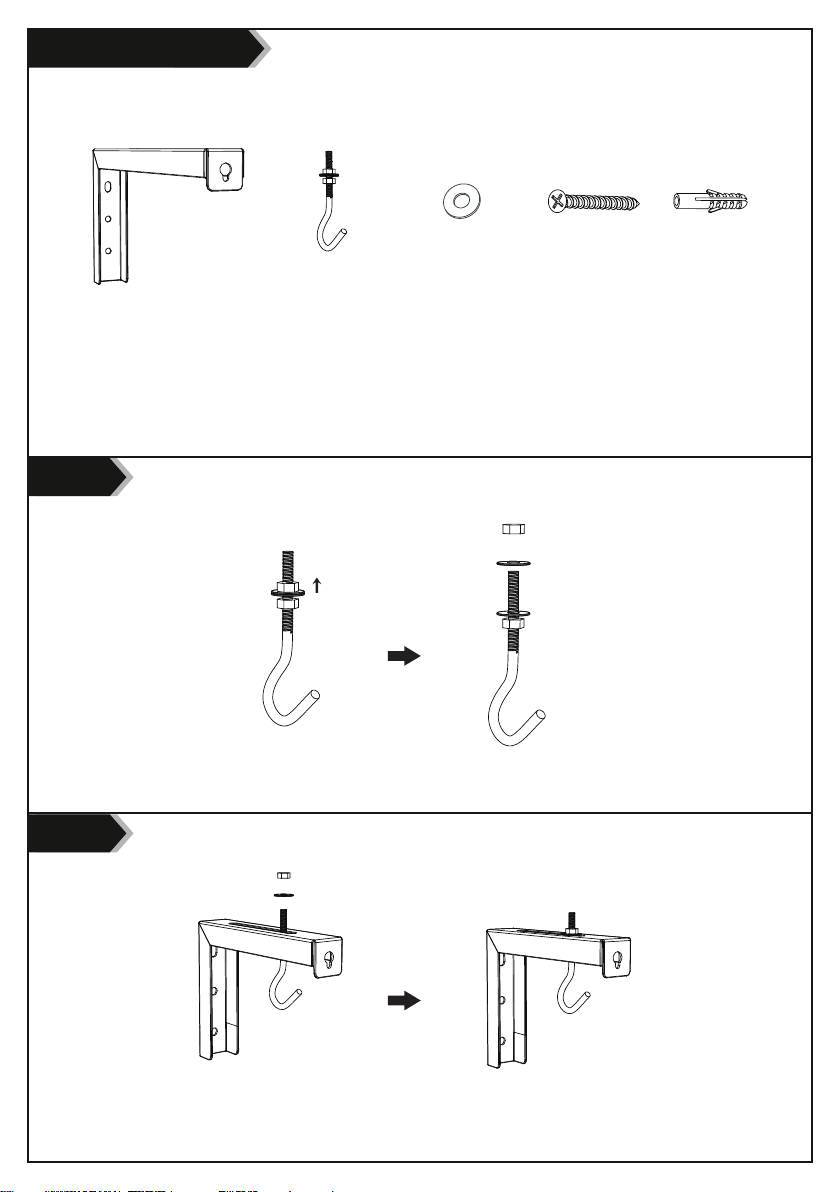

Supplied Parts List
2
Bracket
A(x2)
Washer
C(x4)
Hook
B(x2)
Bolt
D(x4)
Anchor
E(x4)
Step 1
Step 2
3
Step 3
D
C
D
50mm
2“
50mm
2“
Option A
Wood Stud
Mark the position with your Bubble Level & pencil on the wall. Drill 3/16"(4.5mm) diameter x 2”(50mm) length
holes at the marked position, attach the mount to wood stud and tighten using Bolt Dand Washer Cwith
screwdriver. (Screwdriver not included)
C
E
Option B Concrete/brick Wall
Mark the position with your Bubble Level & pencil on the concrete wall. Drill 5/16"(8mm) diameter x 2.2"(55mm)
length holes at the marked position, Insert Anchors Eand attach the mount to wall and tighten using Bolt Dand
Washer Cwith screwdriver. (Screwdriver not included)
8
5/16”
60
50mm
2“
55mm
2.2“
4
Installation Options
Option A
Wall Installation
Option B
Ceiling Installation
To install further away from the wall.
Securely mount to wood stud, brick or concrete ceilings. Can NOT mount to drywall.
（Hook not included)
！
