User Manual for your
FW60.2BL/SS 60 cm cooker hood
FW70.2BL/SS 70 cm cooker hood
FW90.3BL/SS 90 cm cooker hood
FW100.2BL/SS 100 cm cooker hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 30/10/09
3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 – 12
FW60.2BL/SS 8
FW70.2BL/SS 9
FW90.3BL/SS 10
FW100.2BL/SS 11
Optional extras (all models) 11 - 12
Using your cooker hood 12 - 13
Beforefirstuse 12
To use your cooker hood 12 - 13
Cleaning your cooker hood 13 - 14
The grease filters 14
Maintenance 14 - 17
Removing and cleaning the grease filters 14 - 15
Changingalightbulb 15-16
Fitting the carbon filters (ST1 carbon filters) 16 - 17
Installation 17 - 25
Electrical connection 17 - 18
Before beginning installation 18 - 19
Installing your cooker hood 19 - 21
Connecting to external ducting 22
Fitting the chimney 22 - 24
Completing the installation 25
Extraction mode or recirculation mode? 25
Troubleshooting 26 - 27
Contactdetails 29
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.

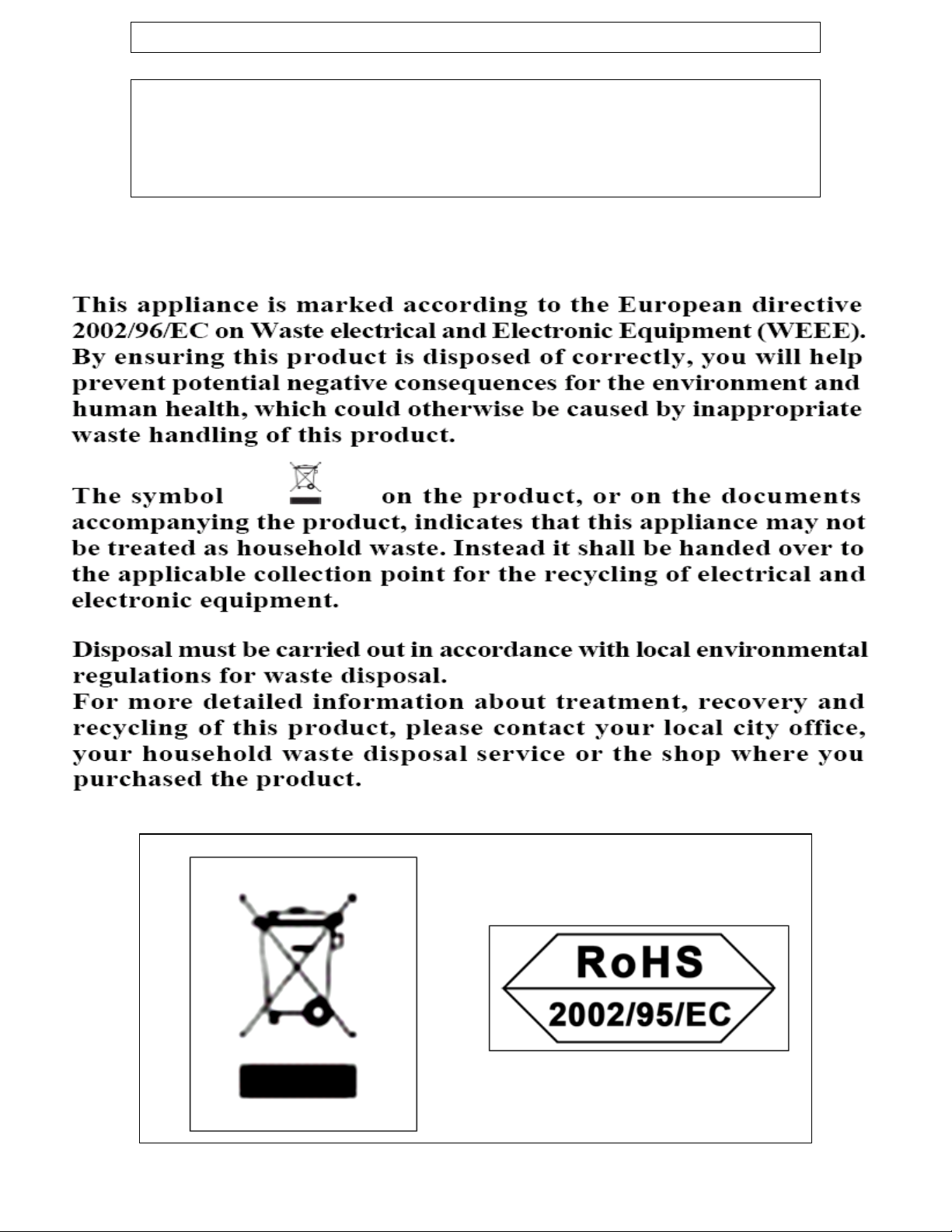

CONFORMITY TO W.E.E.E. DIRECTIVE
4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5
oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6
oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote: Your cooker hood is designed to remove cooking
odours from the room and not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7
Specifications of your cooker hood

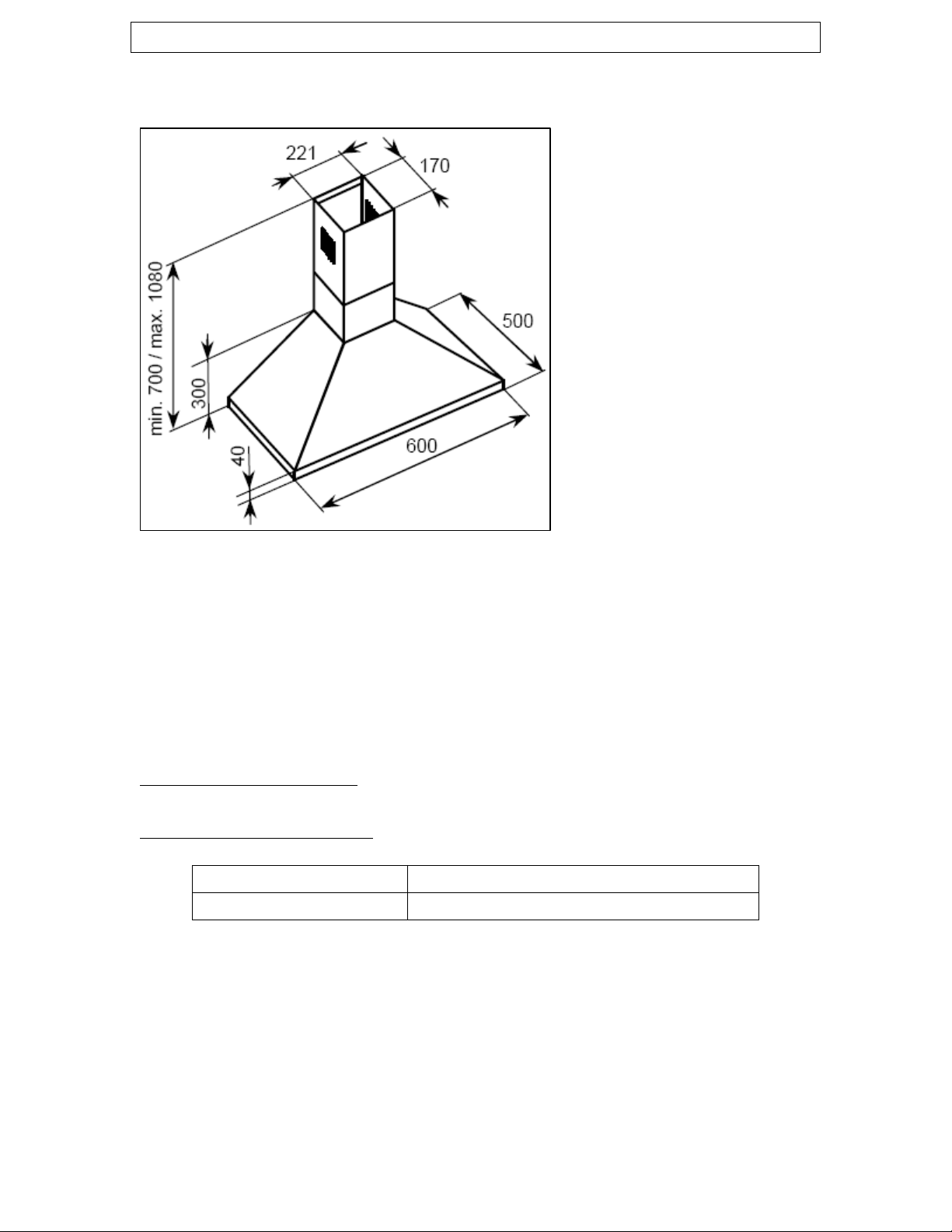

FW60.2BL/SS
PRODUCT
DIMENSIONS
Height: 700* mm –
1080 mm
Width: 600 mm
Depth: 500 mm
DIMENSIONS OF
CHIMNEY SECTION:
170 mm x 221 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o2 Metallic grease filters
o2 lights
Extraction capacity: 500 m³/hr
Noise level min/max: 54 – 62 dB
MODEL NUMBER
CARBON FILTER REQUIRED
FW60.2 ST1
*If you are using the appliance in recirculation mode, then PLEASE
NOTE that some of the vent in the upper chimney section must be
exposed. You will have to take this into account when calculating the
minimum height of the cooker hood when installed.
8

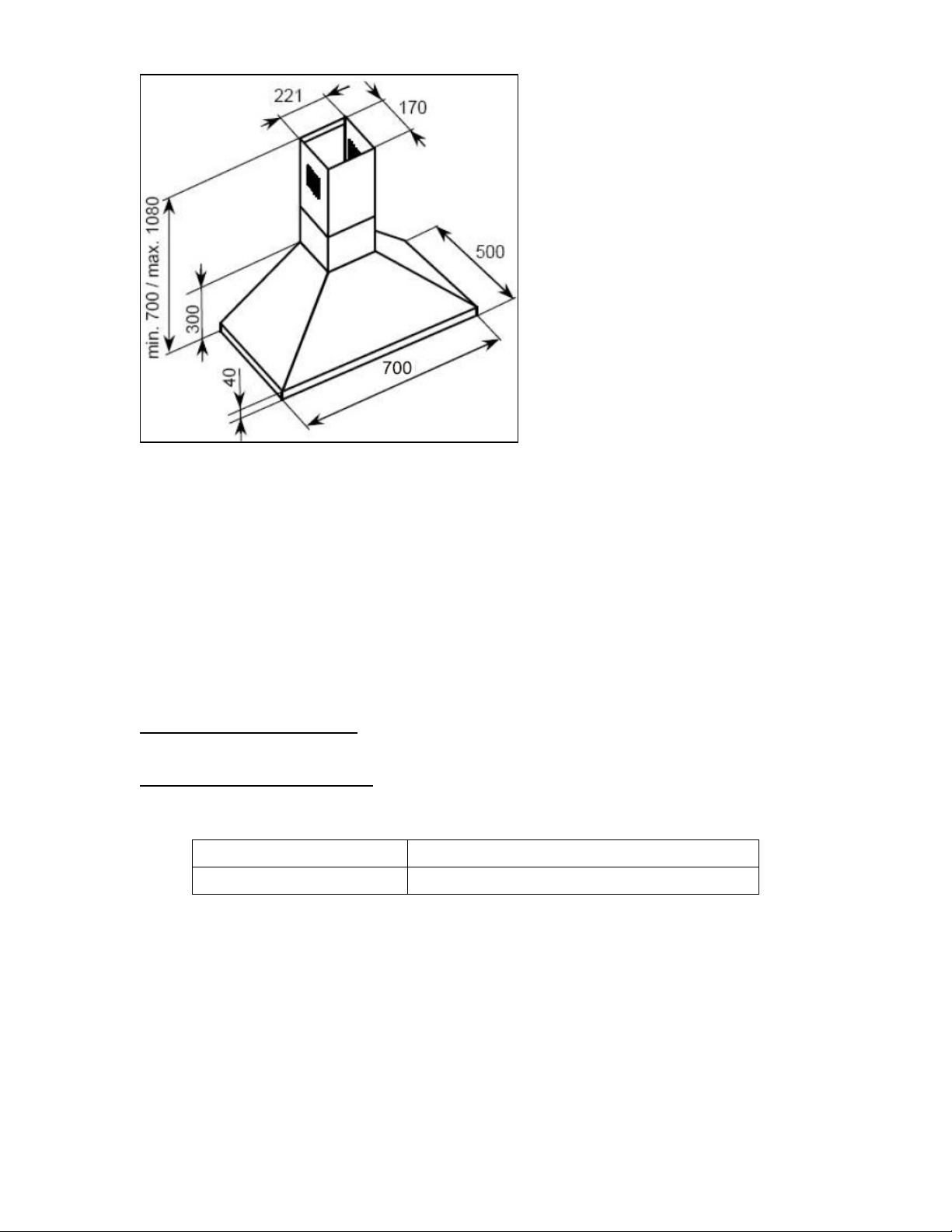

FW70.2BL/SS
PRODUCT
DIMENSIONS
Height: 700* mm –
1080 mm
Width: 700 mm
Depth: 500 mm
DIMENSIONS OF
CHIMNEY SECTION:
165 mm x 222 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o2 Metallic grease filters
o2 lights
Extraction capacity: 500 m³/hr
Noise level min/max: 54 – 62 dB
MODEL NUMBER
CARBON FILTER REQUIRED
FW70.2 ST1
*If you are using the appliance in recirculation mode, then PLEASE
NOTE that some of the vent in the upper chimney section must be
exposed. You will have to take this into account when calculating the
minimum height of the cooker hood when installed.
9

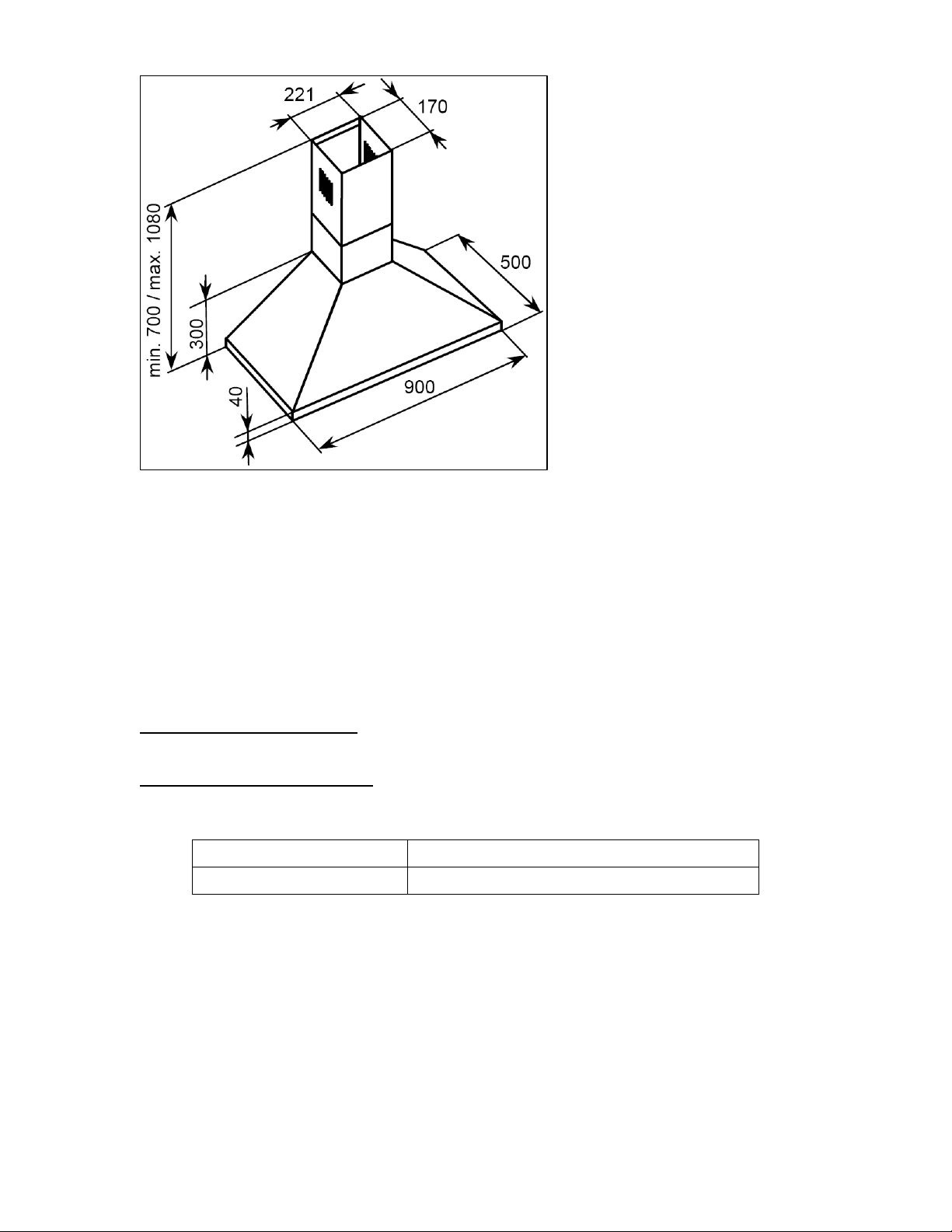

FW90.3BL/SS
PRODUCT
DIMENSIONS
Height: 700* mm –
1080 mm
Width: 900 mm
Depth: 500 mm
DIMENSIONS OF
CHIMNEY SECTION:
170 mm x 221 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o3 Metallic grease filters
o2 lights
Extraction capacity: 500 m³/hr
Noise level min/max: 54 – 62 dB
MODEL NUMBER
CARBON FILTER REQUIRED
FW90.3 ST1
*If you are using the appliance in recirculation mode, then PLEASE
NOTE that some of the vent in the upper chimney section must be
exposed. You will have to take this into account when calculating the
minimum height of the cooker hood when installed.
10

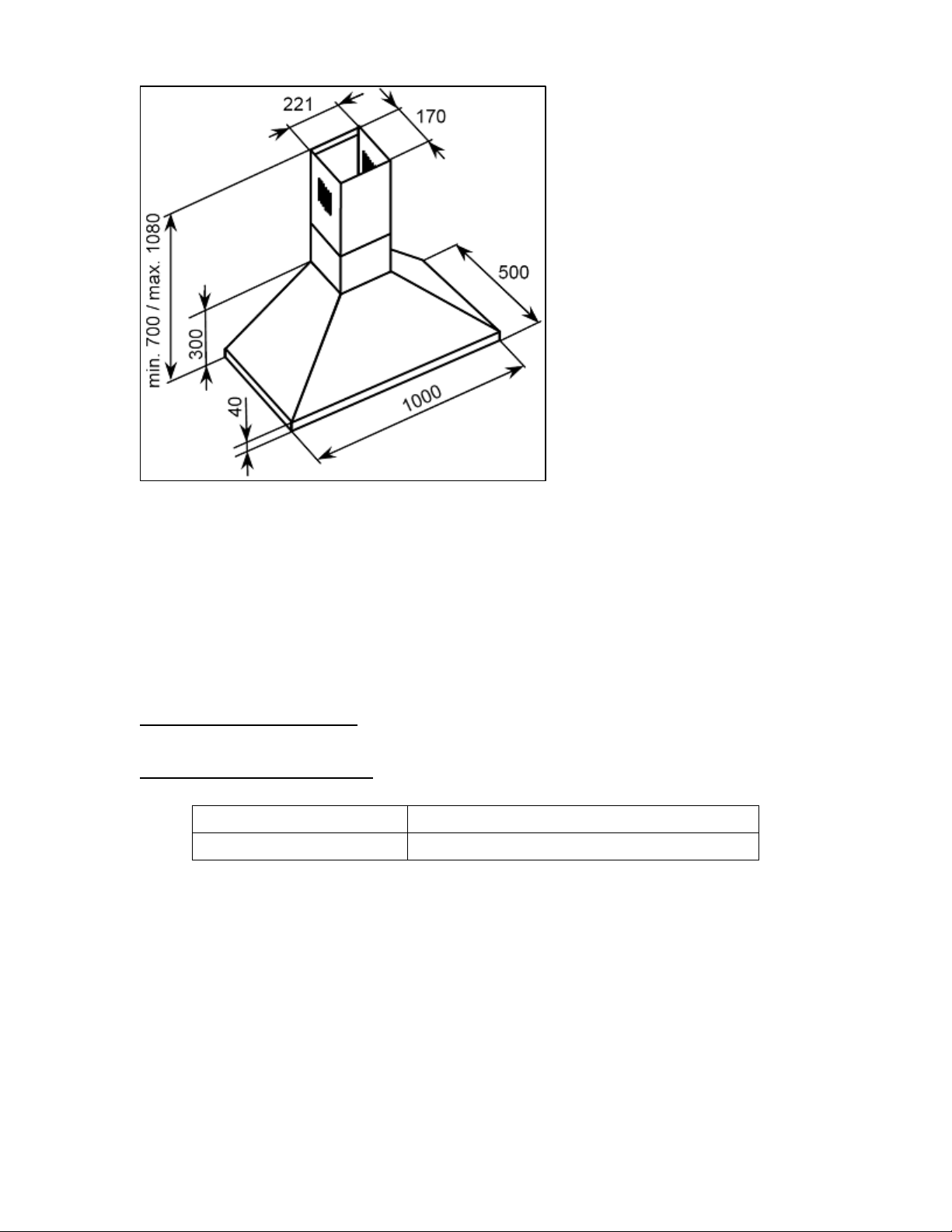

FW100.2BL/SS
PRODUCT
DIMENSIONS
Height: 700 mm* –
1080 mm
Width: 1000 mm
Depth: 500 mm
DIMENSIONS OF
CHIMNEY SECTION:
170 mm x 221 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o3 Metallic grease filters
o2 lights
Extraction capacity: 500 m³/hr
Noise level min/max: 54 – 62 dB
MODEL NUMBER
CARBON FILTER REQUIRED
FW100.2 ST1
*If you are using the appliance in recirculation mode, then PLEASE
NOTE that some of the vent in the upper chimney section must be
exposed. You will have to take this into account when calculating the
minimum height of the cooker hood when installed.
Optional extras (all models)
DK5 1 Metre length ducting kit 125 mm Ø.
DK10 3 Metre length ducting kit 125 mm Ø with flat channelling
included.
11
